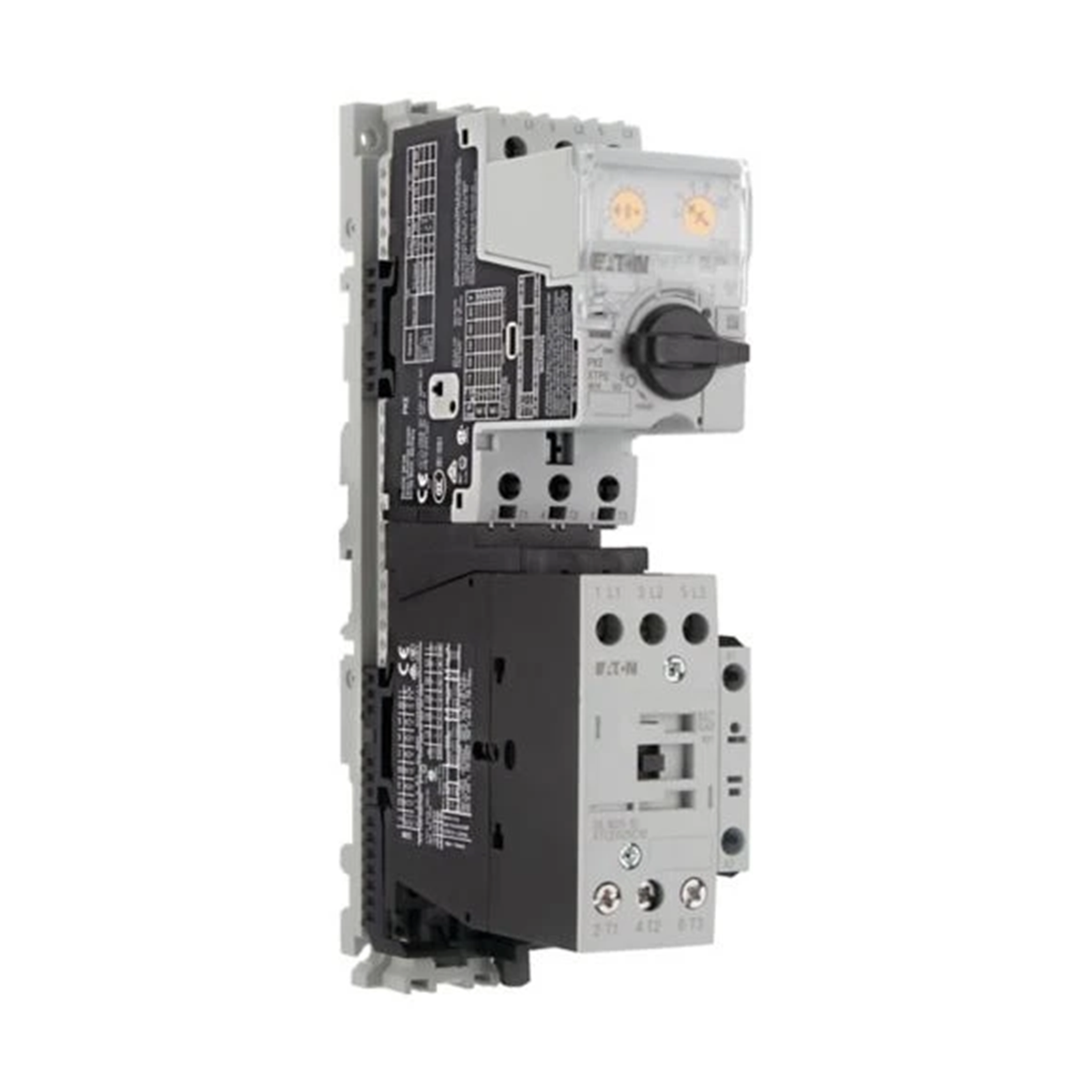

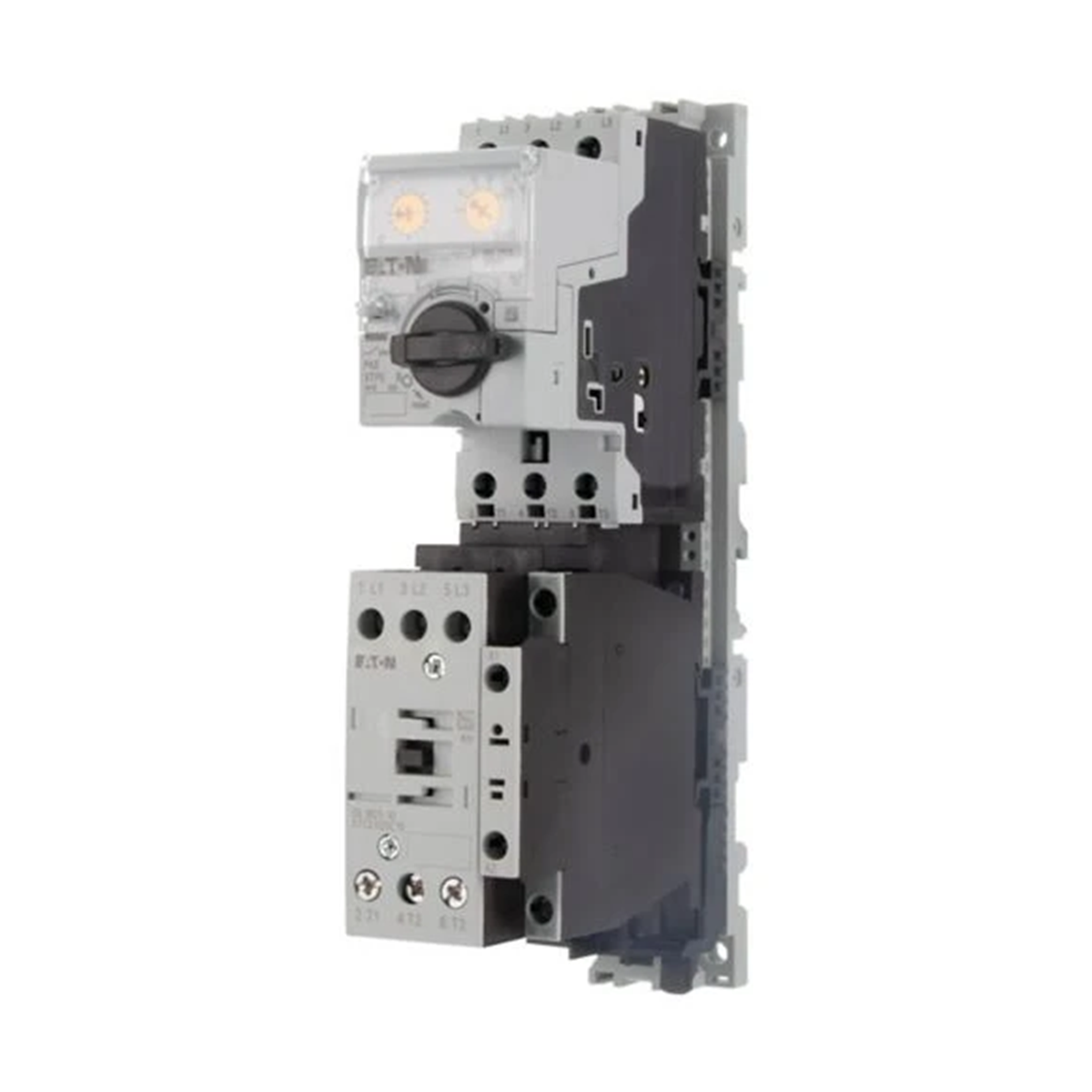

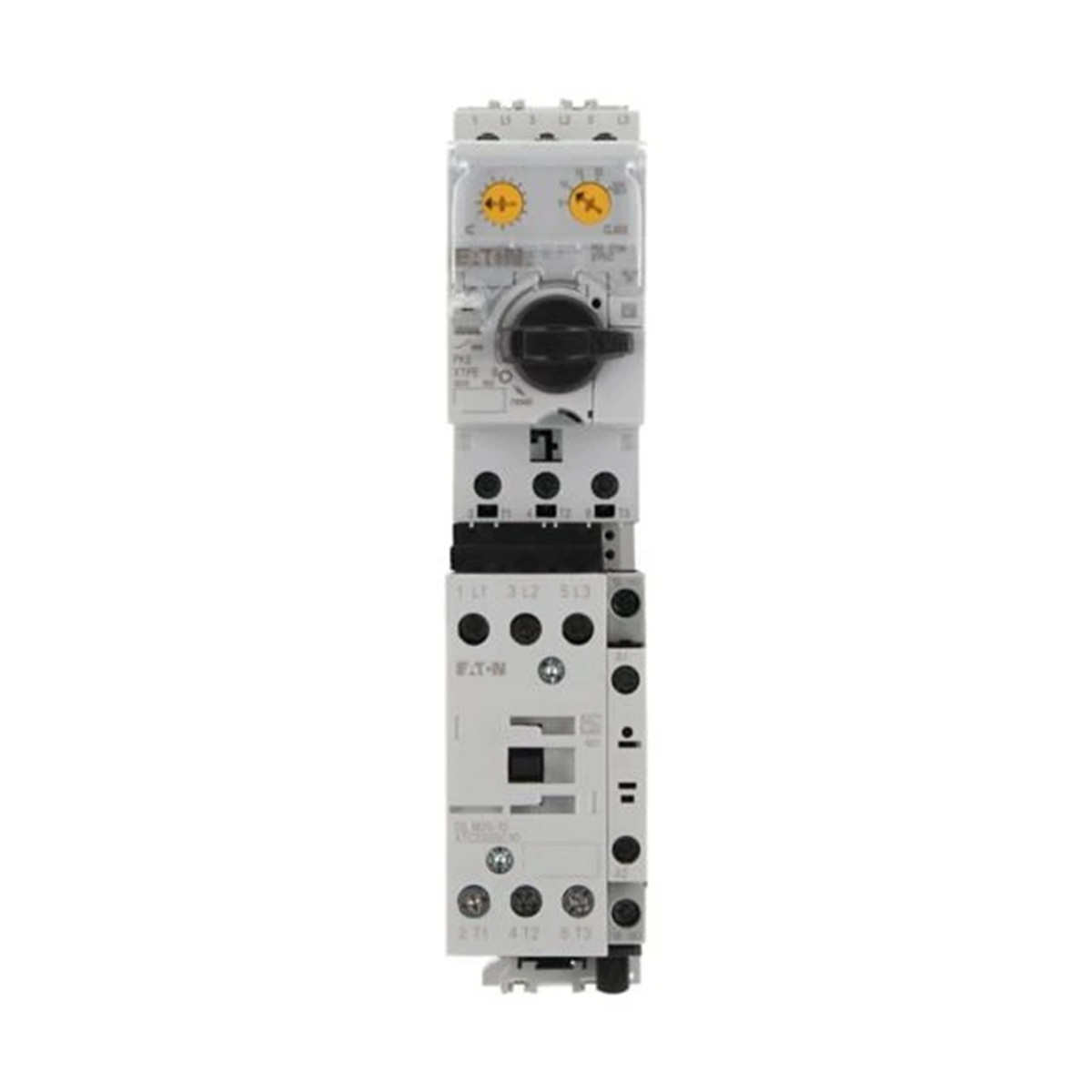

Motor starter with PKE switch, MSC-DE-32-M25(24VDC) 121750

Direct-on-line starter, Basic unit: MSC, Note: Also suitable for motors of energy efficiency class IE3., IE3 compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 11 kW, Motor data rated power AC-3 500 V: P= 15 kW, Motor data Rated operational current AC-3 500 V: Ie= 23.4 A, Motor data Rated conditional short-circuit current 500 V: Iq= 50 kA, Range setting of the overload release: Ir= 8 - 32 A, Type of assignment "1", Type of assignment "2", Start voltage: 24 V DC, Direct voltage, Standards and regulations: IEC/EN 60947-4-1, VDE 0660
