el12 Electrical apparatus Motor circuit breakers Motor circuit breakers for rail mounting

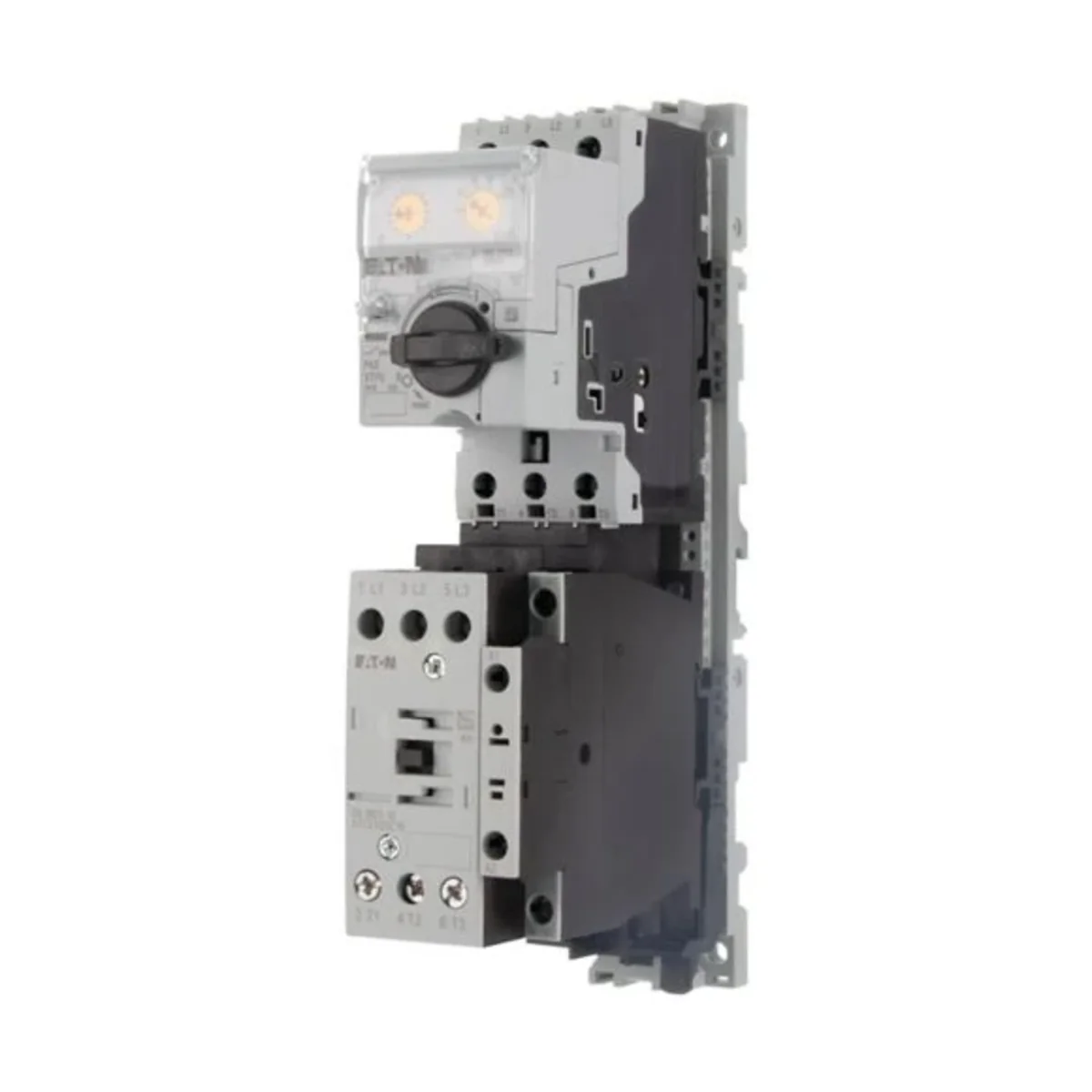

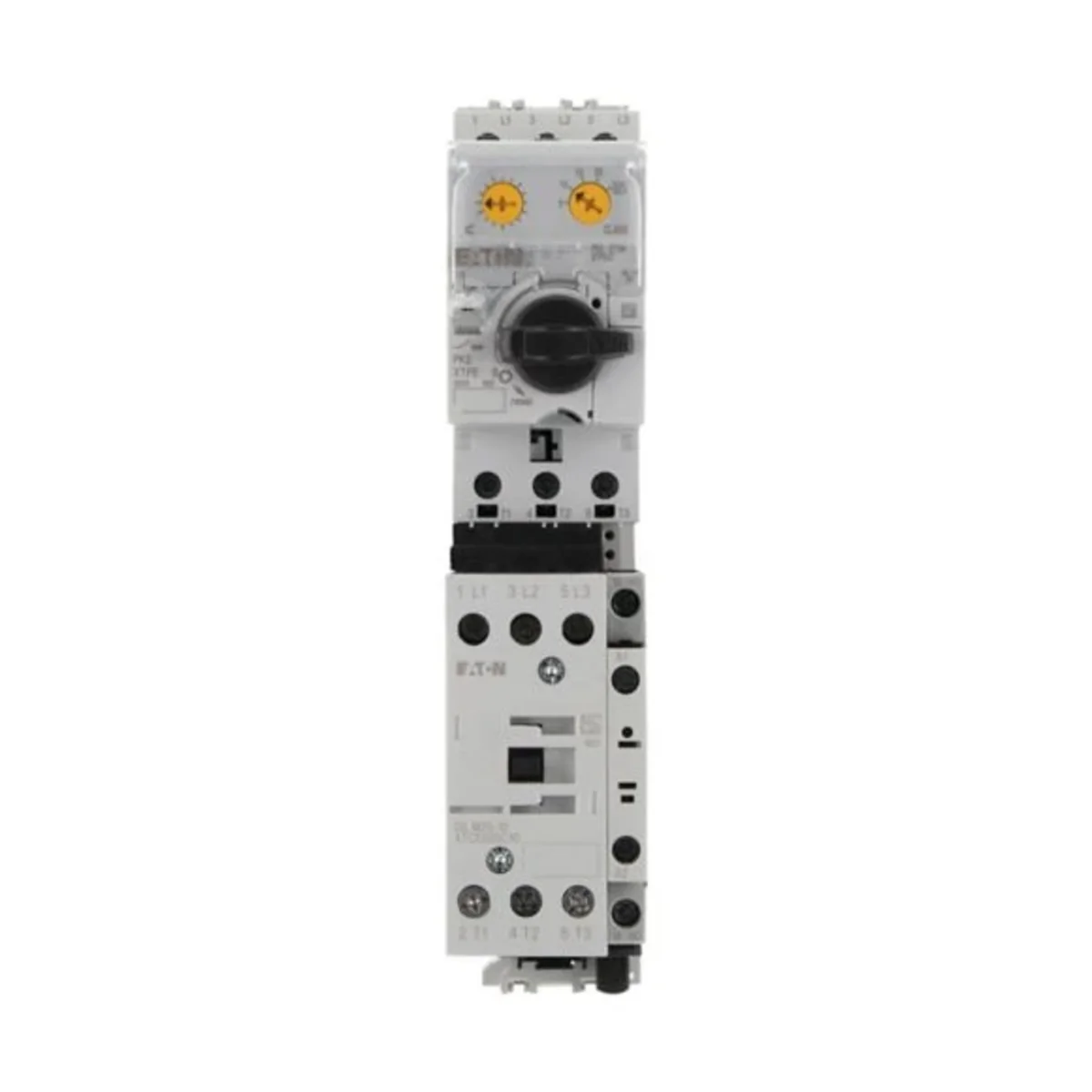

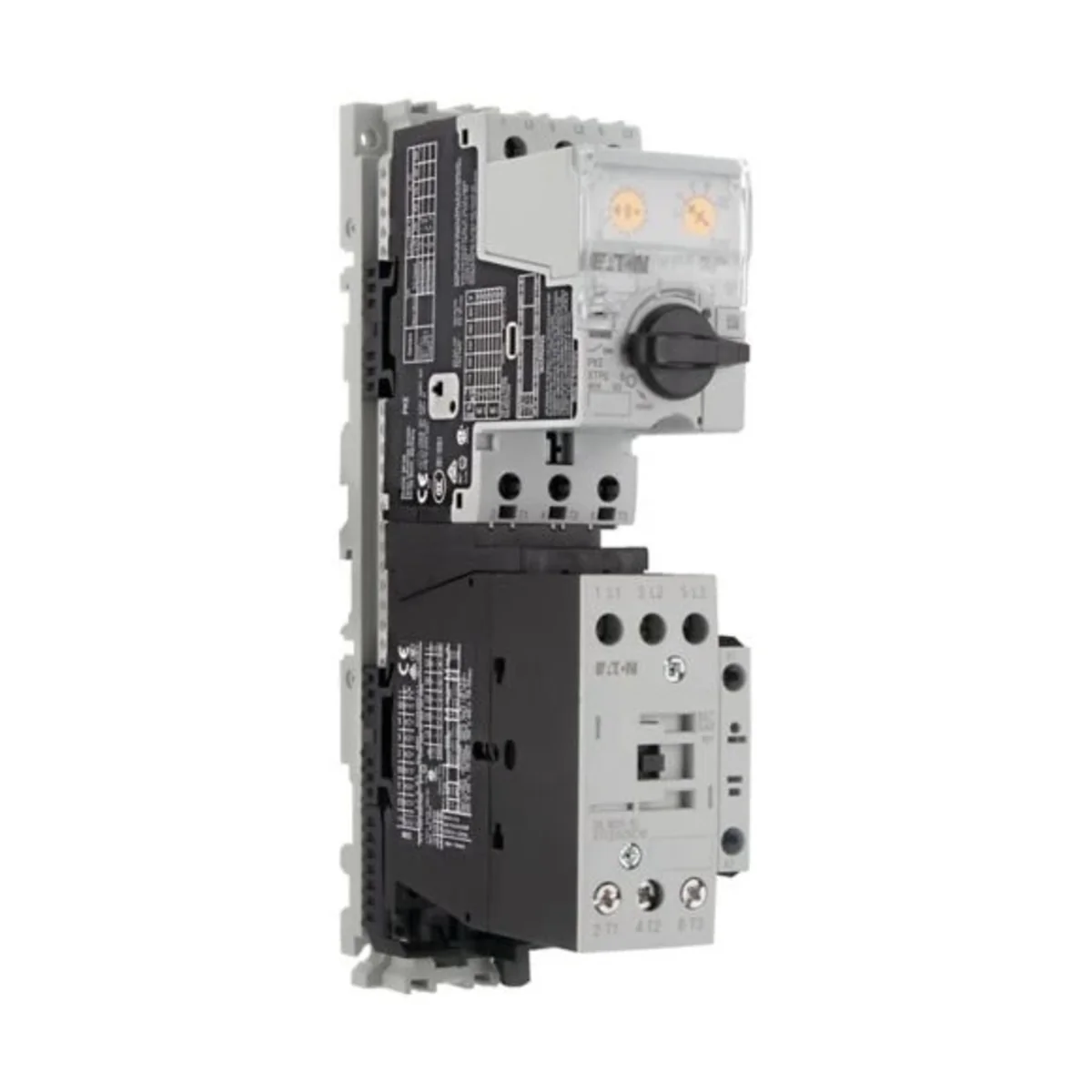

Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ) 121749

Índice local:
ASN056MOEL
Número de catálogo:
121749
Código EAN:
4015081195596
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)
Motor starter with PKE switch, MSC-DE-32-M25(230V50HZ)

Haga clic en la foto para ampliar

Fabricante: EATON
Number of poles: 3
Rated power for 400V [kW]: 11
Rated power for 500V [kW]: 15
Ver descripción completa
Precio:
2 411,81 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Direct-on-line starter, Basic unit: MSC, Note: Also suitable for motors of energy efficiency class IE3., IE3-compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 11 kW, Motor data rated power AC-3 500 V: P= 15 kW, Motor data Rated operational current AC-3 500 V: Ie= 23.4 A, Motor data Rated conditional short-circuit current 500 V: Iq= 50 kA, Range setting of the overload release: Ir= 8 - 32 A, Type of assignment "1", Type of assignment "2", Start voltage: 230 V 50 Hz, 240 V 60 Hz, AC voltage, Standards and regulations: IEC/EN 60947-4- 1, VDE 0660

Datos técnicos

  • Number of poles
    3
  • Rated power for 500V [kW]
    15
  • Rated operational current [A]
    21.7
  • Rated power for 400V [kW]
    11
  • Short-circuit current [kA]
    100

Otros datos técnicos

  • Type of motor starter
    Direct online starter (DOL)
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation power at AC-3, 230 V, 3-phase
    5.5 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    21.7 A
  • Overload release current setting
    8 ... 32 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    100000 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Temperature compensated overload protection
    Yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    Yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 2
  • External reset possible
    No
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Height
    242 mm
  • With short-circuit release
    Yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    AC
  • Rated operation power at AC-3, 400 V
    12.5 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    25 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    100000 A
  • Number of auxiliary contacts as normally open contact
    1
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    Adjustable
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    No
  • Suitable for emergency stop
    No
  • Number of indicator lights
    0
  • With fuse
    No
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Width
    45 mm
  • Depth
    128 mm

Detalles del fabricante

  • Fabricante
    Eaton Electric Sp. z o.o.
  • Dirección
    80-299 Gdańsk Galaktyczna 30 Polska
  • Email
    wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete Skrzynia Karton
Cantidad 1 uds. 1 uds.
Peso (kg) 1,025 1,117
Volumen (m3) 0,001 0,005
Ancho (m) 0,047 0,100
Longitud (m) 0,130 0,170
Profundidad (m) 0,244 0,290
