Motor starter with PKE switch, MSC-DE-1,2-M7(24VDC) 121736

local index:
ASN043MOEL
Catalog No:
121736
EAN code:
4015081195466

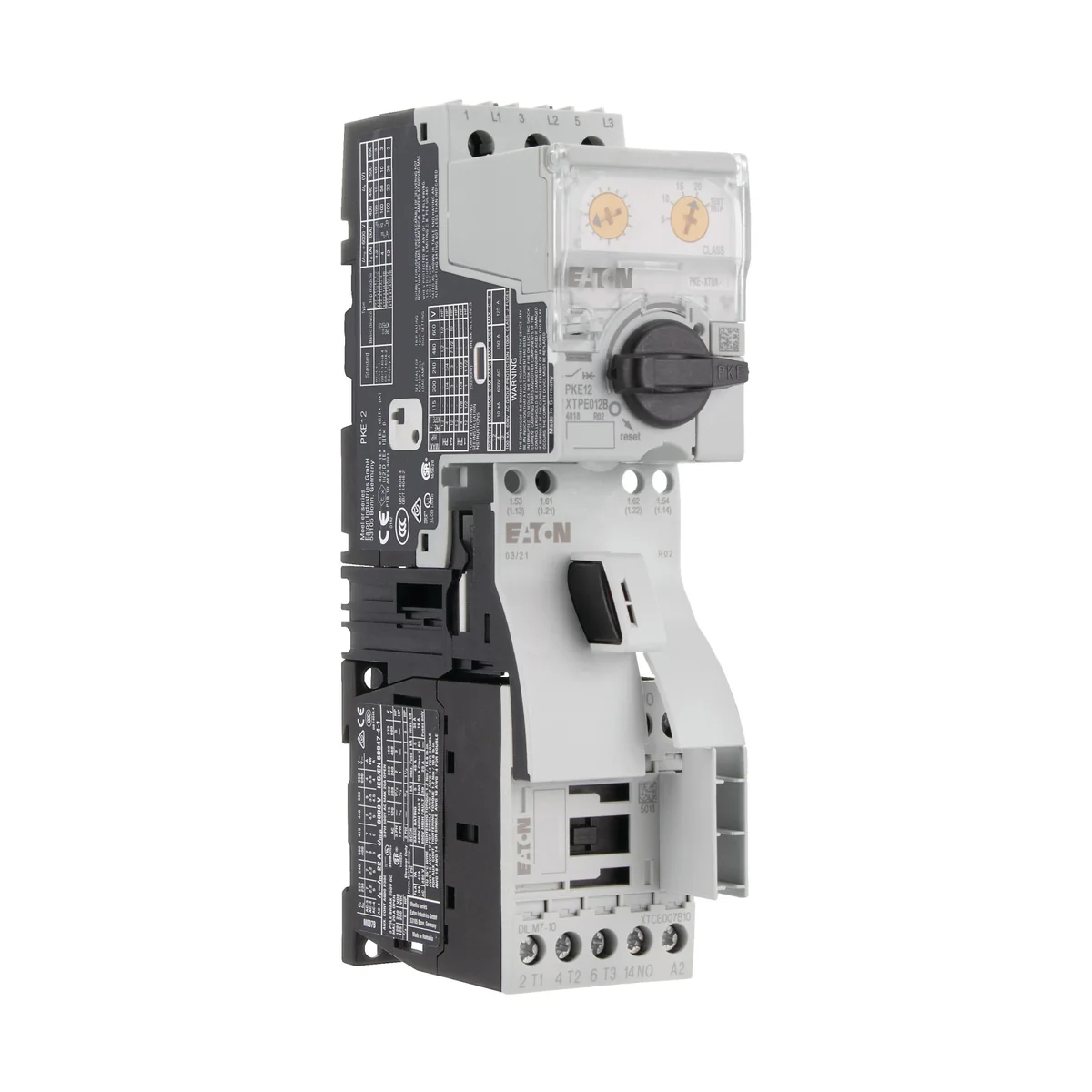

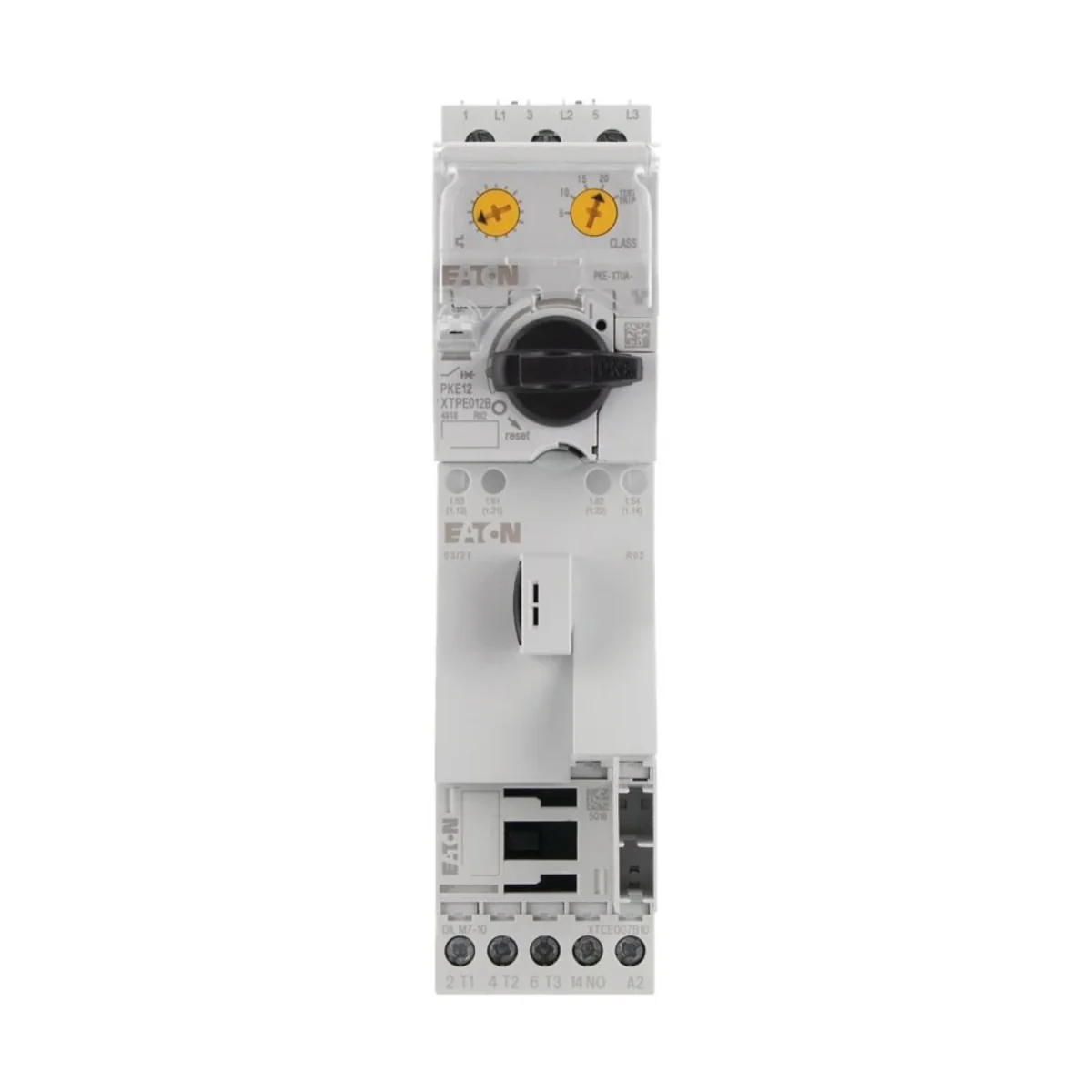

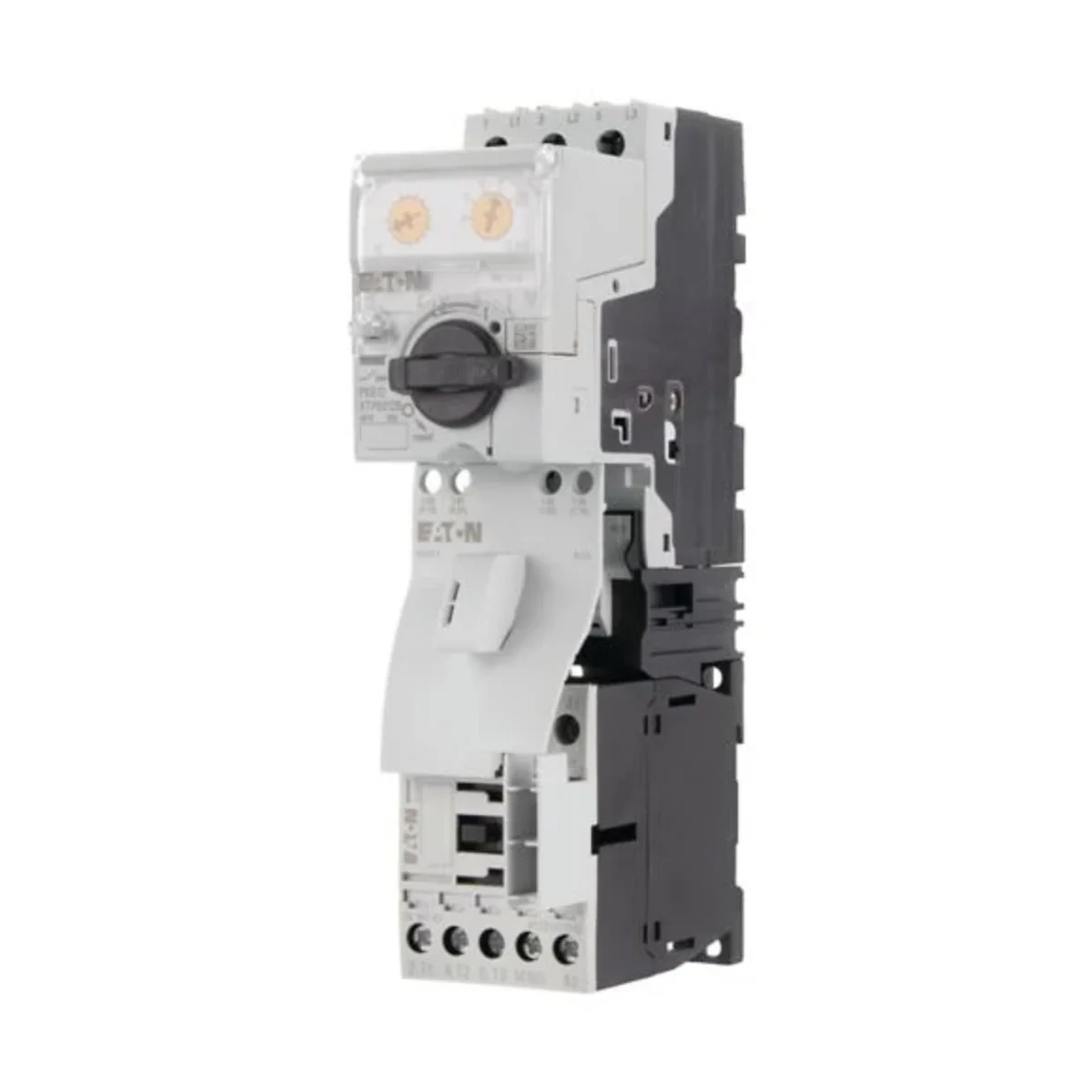

Motor starter with PKE switch, MSC-DE-1,2-M7(24VDC)
Motor starter with PKE switch, MSC-DE-1,2-M7(24VDC)
Motor starter with PKE switch, MSC-DE-1,2-M7(24VDC)
Motor starter with PKE switch, MSC-DE-1,2-M7(24VDC)
Motor starter with PKE switch, MSC-DE-1,2-M7(24VDC)
Motor starter with PKE switch, MSC-DE-1,2-M7(24VDC)
Motor starter with PKE switch, MSC-DE-1,2-M7(24VDC)
Motor starter with PKE switch, MSC-DE-1,2-M7(24VDC)

Click on the photo to enlarge

Manufacturer: EATON
Number of poles: 3
Rated power for 400V [kW]: 0.37
Short-circuit current [kA]: 100
See full description
Price:
378,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

Direct-on-line starter, Basic unit: MSC, Note: Also suitable for motors of energy efficiency class IE3., IE3 compatible devices are marked with the corresponding logo on the packaging., Motor data Rated power AC-3 380 V 400 V 415 V: P = 0.37 kW, Setting range of the overload release: Ir= 0.3 - 1.2 A, Type of assignment "1", Starting voltage: 24 V DC, Direct voltage, Standards and regulations: IEC/EN 60947-4-1, VDE 0660

Technical data

  • Number of poles
    3
  • Short-circuit current [kA]
    100
  • Rated power for 400V [kW]
    0.37
  • Rated operational current [A]
    1.1

Other technical data

  • Type of motor starter
    Direct online starter (DOL)
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation power at AC-3, 230 V, 3-phase
    0.18 kW
  • Rated power, 460 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current Ie
    1.1 A
  • Overload release current setting
    0.3 ... 1.2 A
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    0 A
  • Rated conditional short-circuit current, type 2, 400 V
    100 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Temperature compensated overload protection
    Yes
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    Yes
  • Number of command positions
    0
  • Coordination class according to IEC 60947-4-3
    Class 1
  • External reset possible
    No
  • Degree of protection (IP)
    IP20
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Height
    198 mm
  • With short-circuit release
    Yes
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation power at AC-3, 400 V
    0.37 kW
  • Rated power, 575 V, 60 Hz, 3-phase
    0 kW
  • Rated operation current at AC-3, 400 V
    1.2 A
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    0 A
  • Rated conditional short-circuit current, type 2, 230 V
    0 A
  • Number of auxiliary contacts as normally open contact
    1
  • Ambient temperature, upper operating limit
    55 °C
  • Release class
    Adjustable
  • Type of electrical connection for auxiliary- and control current circuit
    Screw connection
  • With transformer
    No
  • Suitable for emergency stop
    No
  • Number of indicator lights
    0
  • With fuse
    No
  • Degree of protection (NEMA)
    Other
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Width
    45 mm
  • Depth
    102 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,828
Volume (m3) 0,001
Width (m) 0,047
Length (m) 0,111
Depth (m) 0,192
