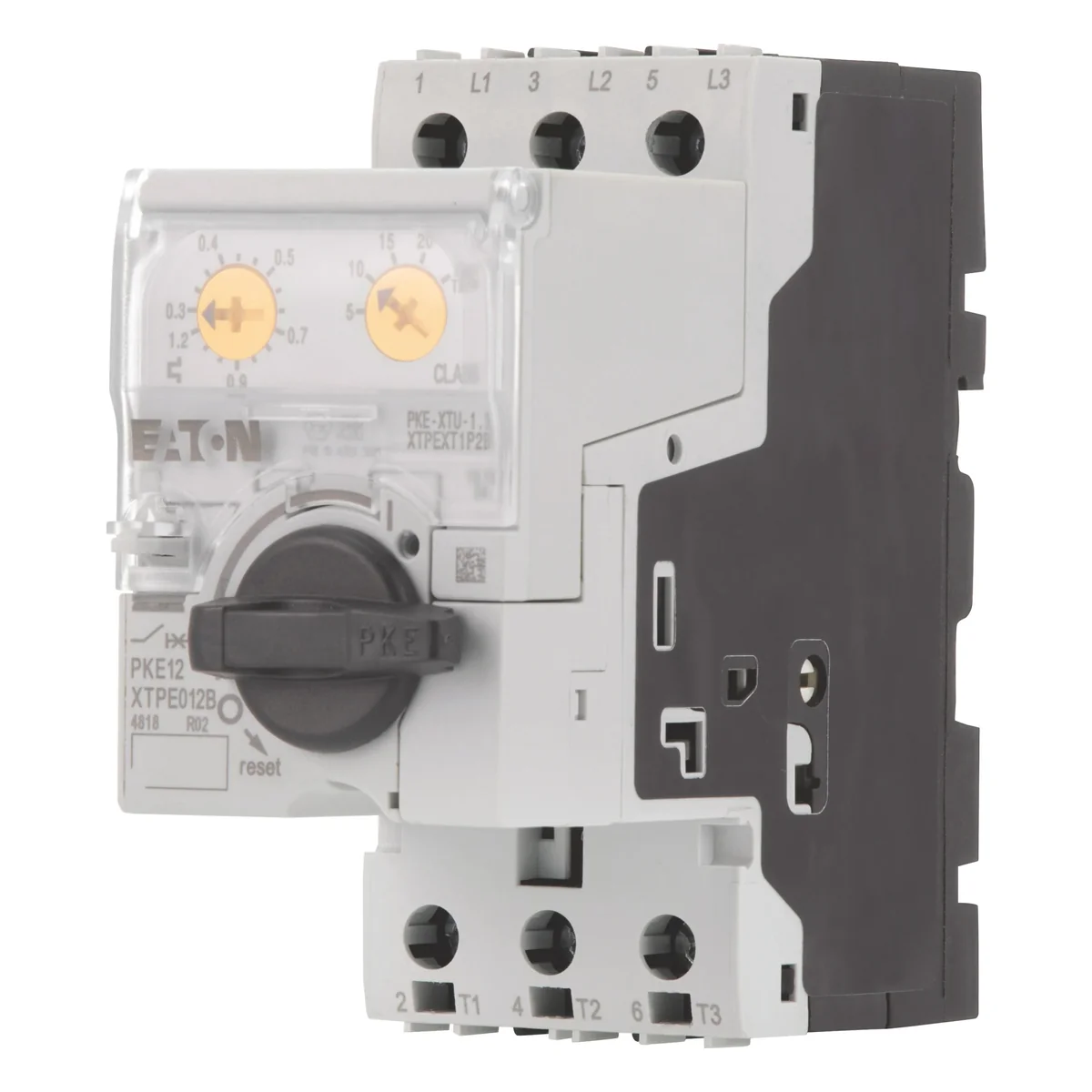

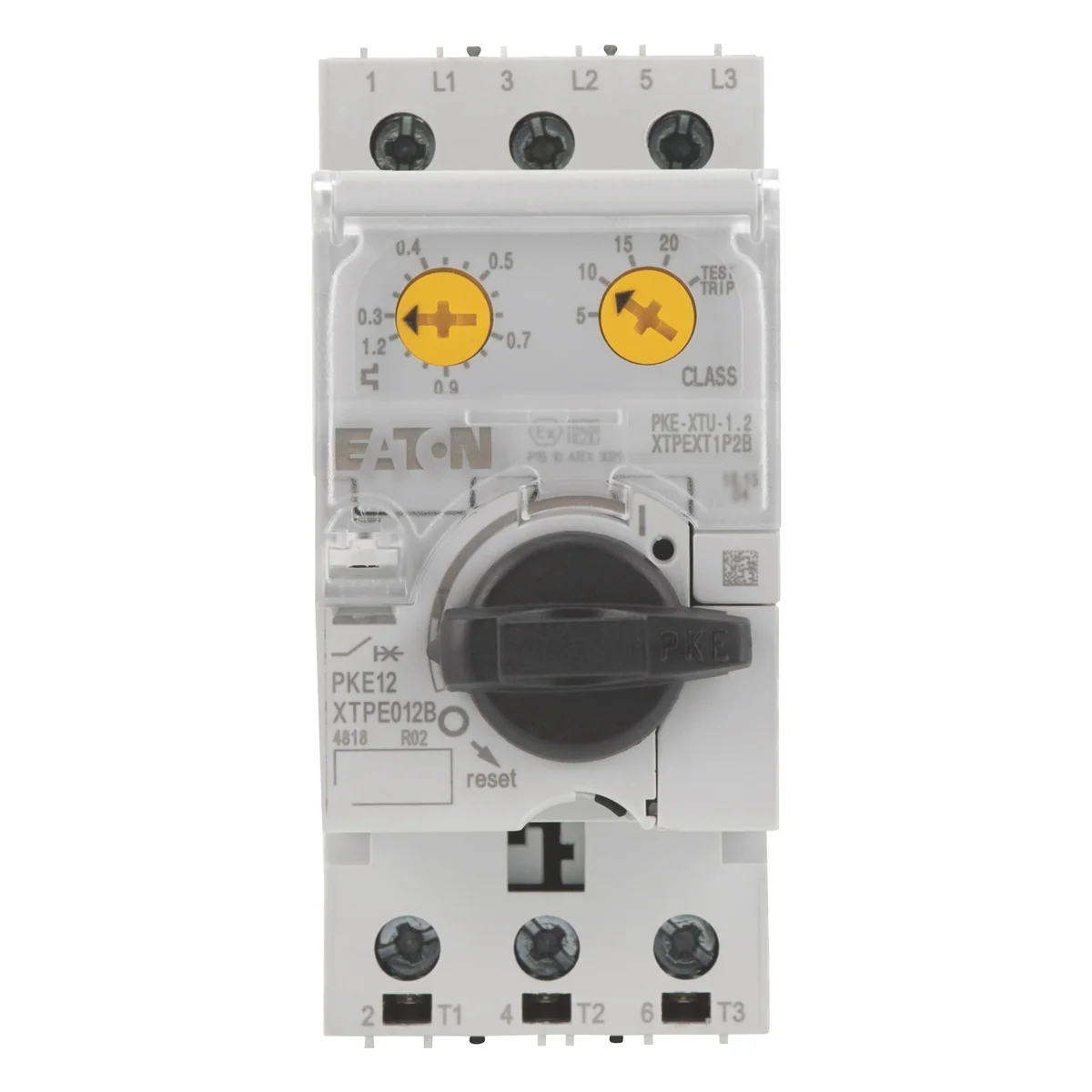

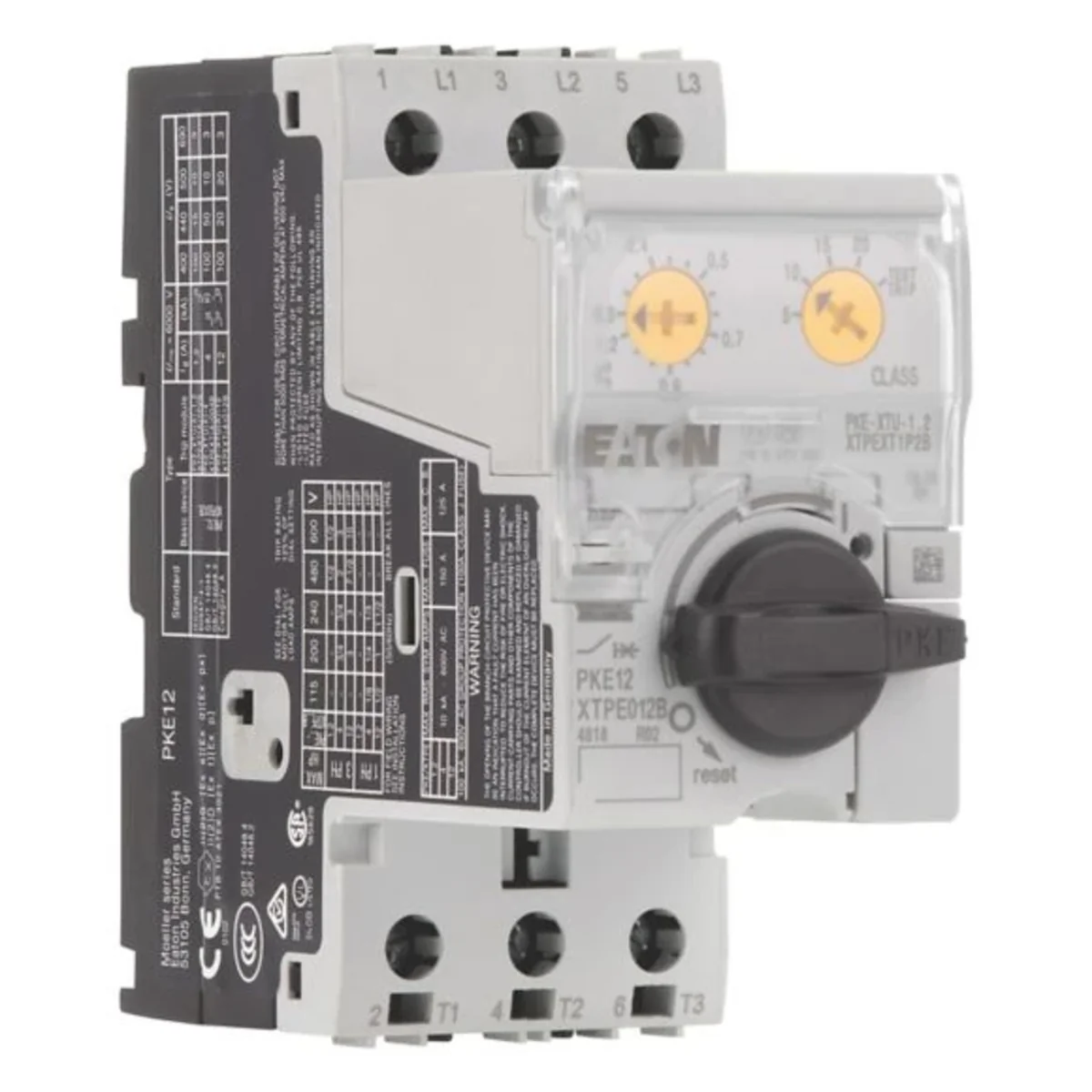

Motor protection switch, 3b, Ir=0.3-1.2A, standard 121731

local index:
ASN040MOEL
Catalog No:
121731
EAN code:
4015081195411
Manufacturer: EATON
Level of security: IP20
Price:
300,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Complete motor starter protector (basic device with electronic trip unit) to IEC60947-4-1, electronic wide range overload protection (4:1), phase failure and asymmetry protection, adjustable trip class, high short-circuit breaking capacity, disconnect function motor circuit breaker. Flexible adjustment of the current range of the motor starter protector via replaceable electronic trip blocks. Expandable with auxiliary switches, voltage release, current limiter, knobs. Devices for all markets, ATEX approved

Technical data

  • Level of security
    IP20

Other technical data

  • Overload release current setting
    0.3 ... 1.2 A
  • With thermal overload protection
    No
  • Switch off technique
    Electronic
  • Rated permanent current Iu
    1.2 A
  • Rated operation power at AC-3, 400 V
    0.25 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    18.6 ... 18.6 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.12 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100 kA
  • Height
    102.5 mm
  • Depth
    101 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,431
Volume (m3) 0,000
Width (m) 0,046
Length (m) 0,102
Depth (m) 0,106
