Motor protection switch, 3b, 12A, electronic, basic device 121721

Name: Motor protection switch, 3b, 12A, electronic, basic device
Brand: EATON
SKU: ASN030MOEL
Price: 90.16 PLN

local index:

ASN030MOEL

Catalog No:

121721

EAN code:

4015081195312

Motor protection switch, 3b, 12A, electronic, basic device

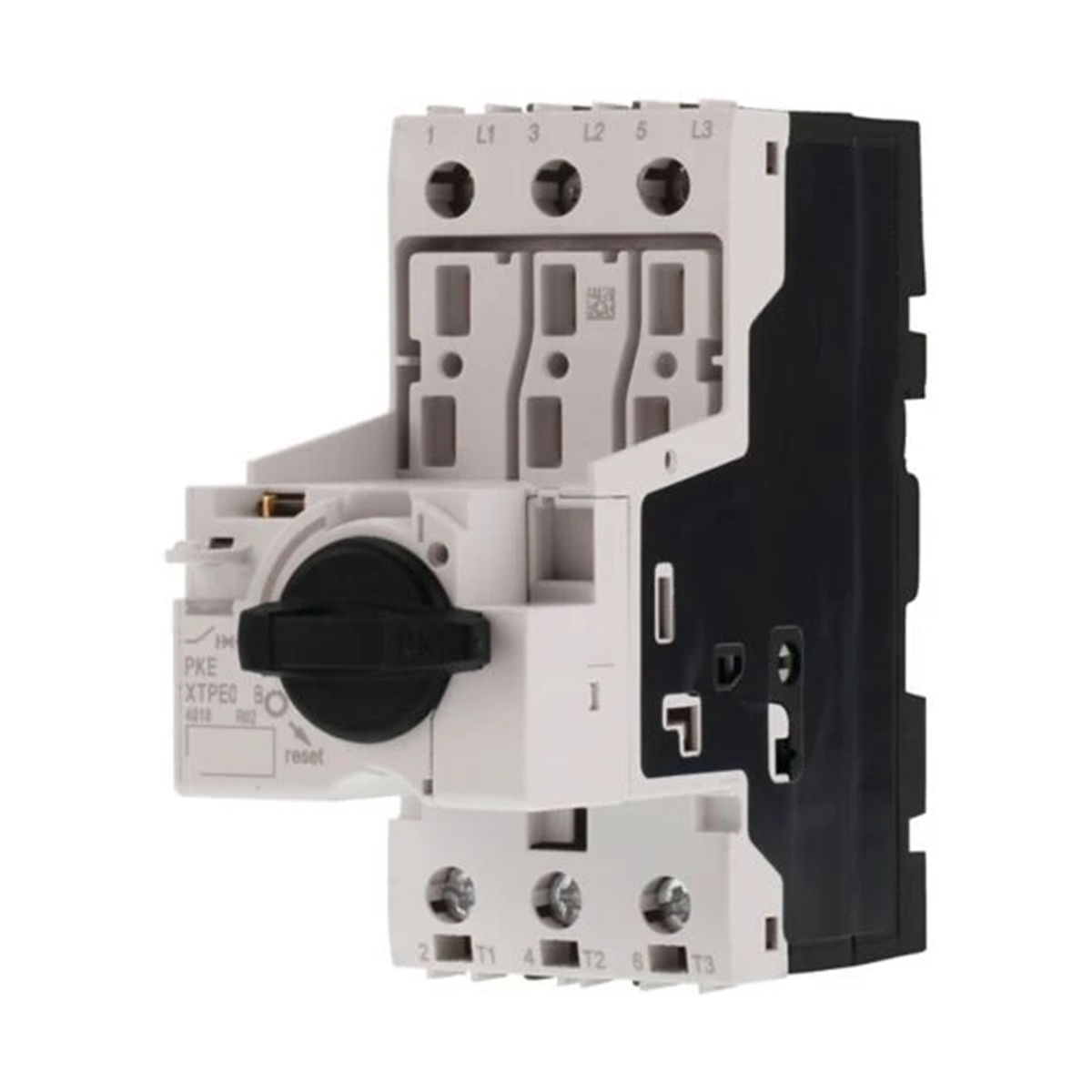

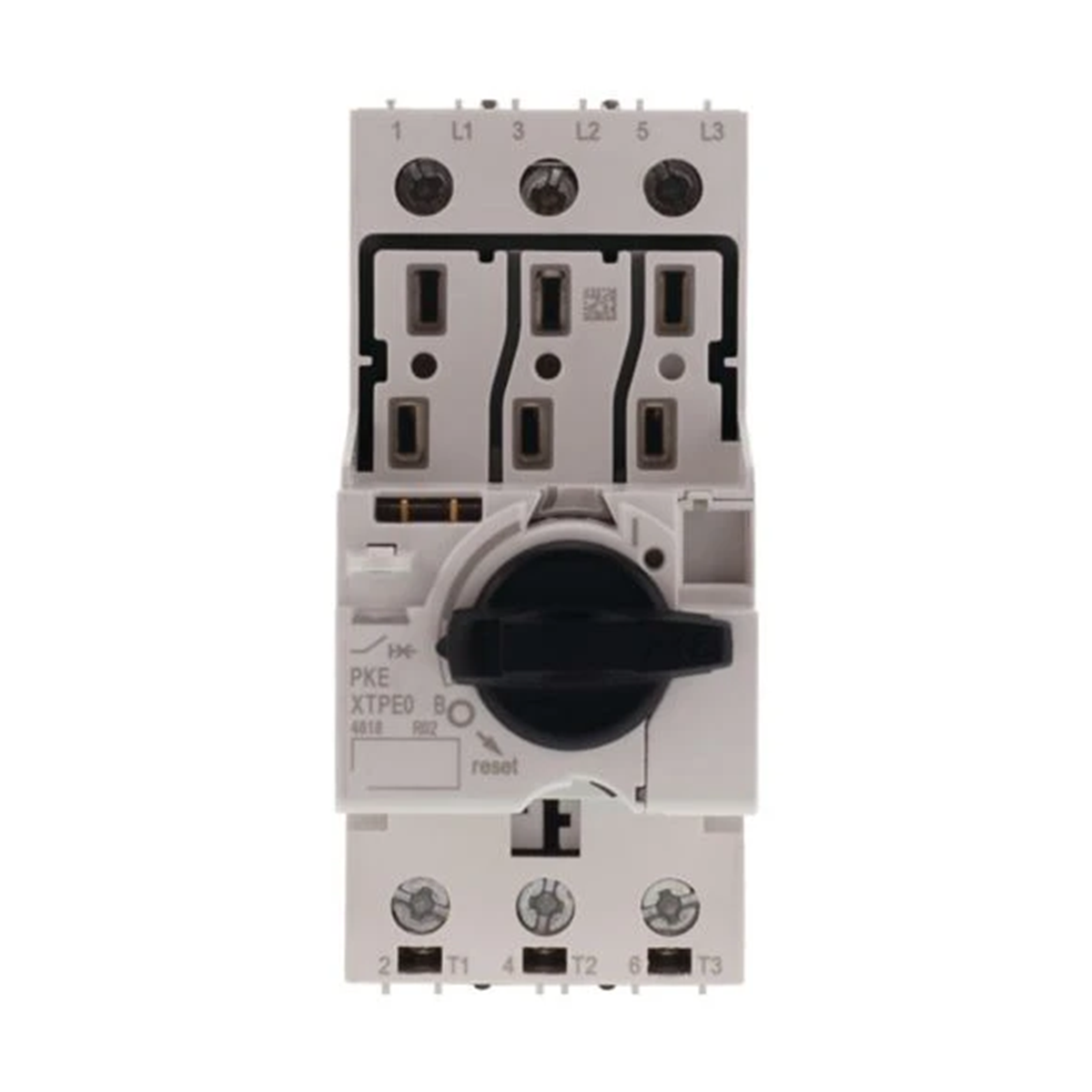

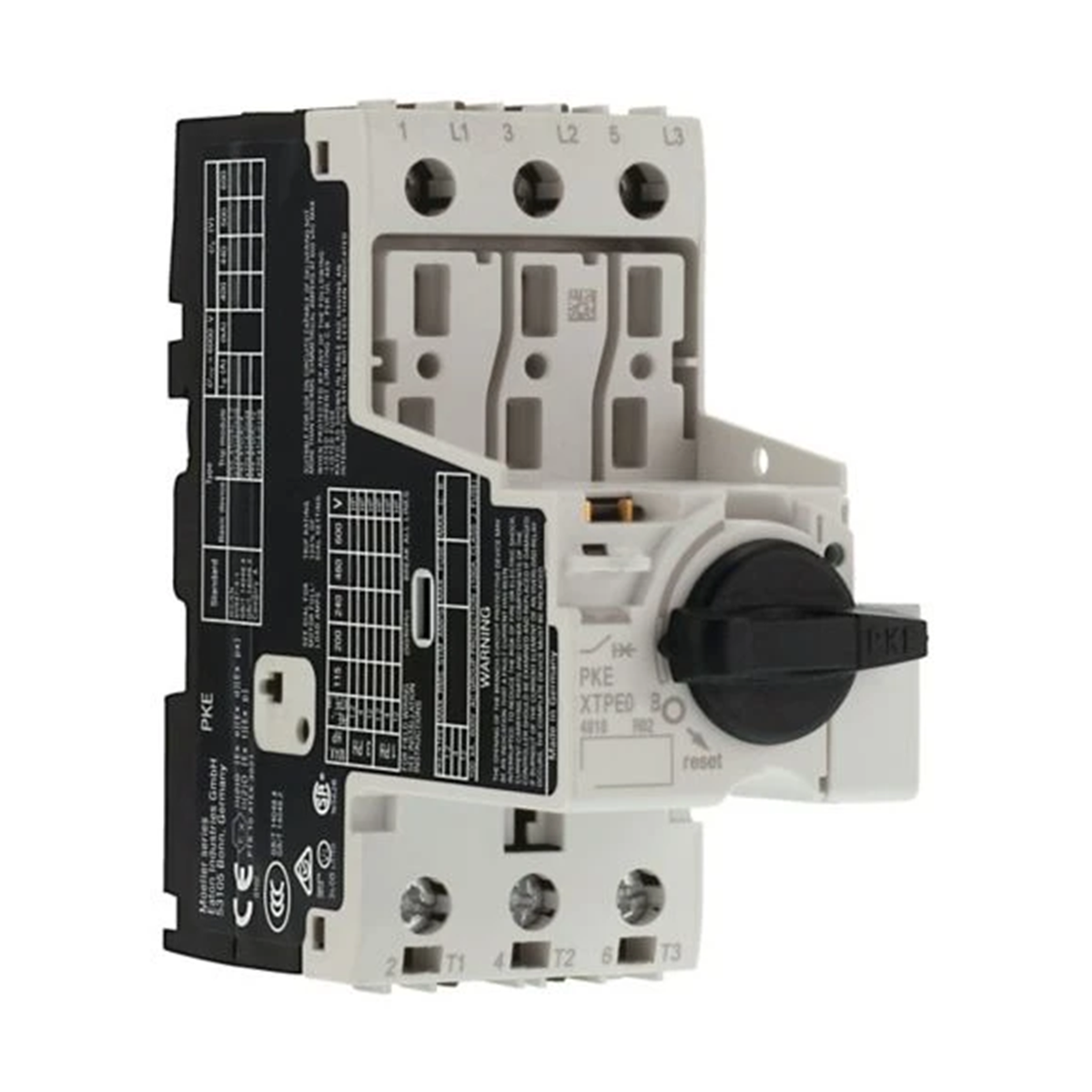

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Rated current [A]: 12

See full description

Price:

90,16 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Motor protection switch for the basic unit, isolating function, tool-free expansion with electronic trip blocks PKE-XTU… for motor protection. Can be extended with auxiliary switches, voltage release, current limiter, knobs. Devices in all markets

Technical data

Number of poles

3

Rated current [A]

12

Other technical data

Overload release current setting

0 ... 12 A
With thermal overload protection

No
Switch off technique

Electronic
Rated permanent current Iu

12 A
Rated operation power at AC-3, 400 V

0 kW
Type of control element

Turn button
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

45 mm

Adjustment range undelayed short-circuit release

0 ... 0 A
Phase failure sensitive

No
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

0 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

0 kA
Height

102.5 mm
Depth

101 mm

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,330	0,341
Volume (m3)	0,000	0,000
Width (m)	0,045	0,046
Length (m)	0,101	0,102
Depth (m)	0,102	0,106
