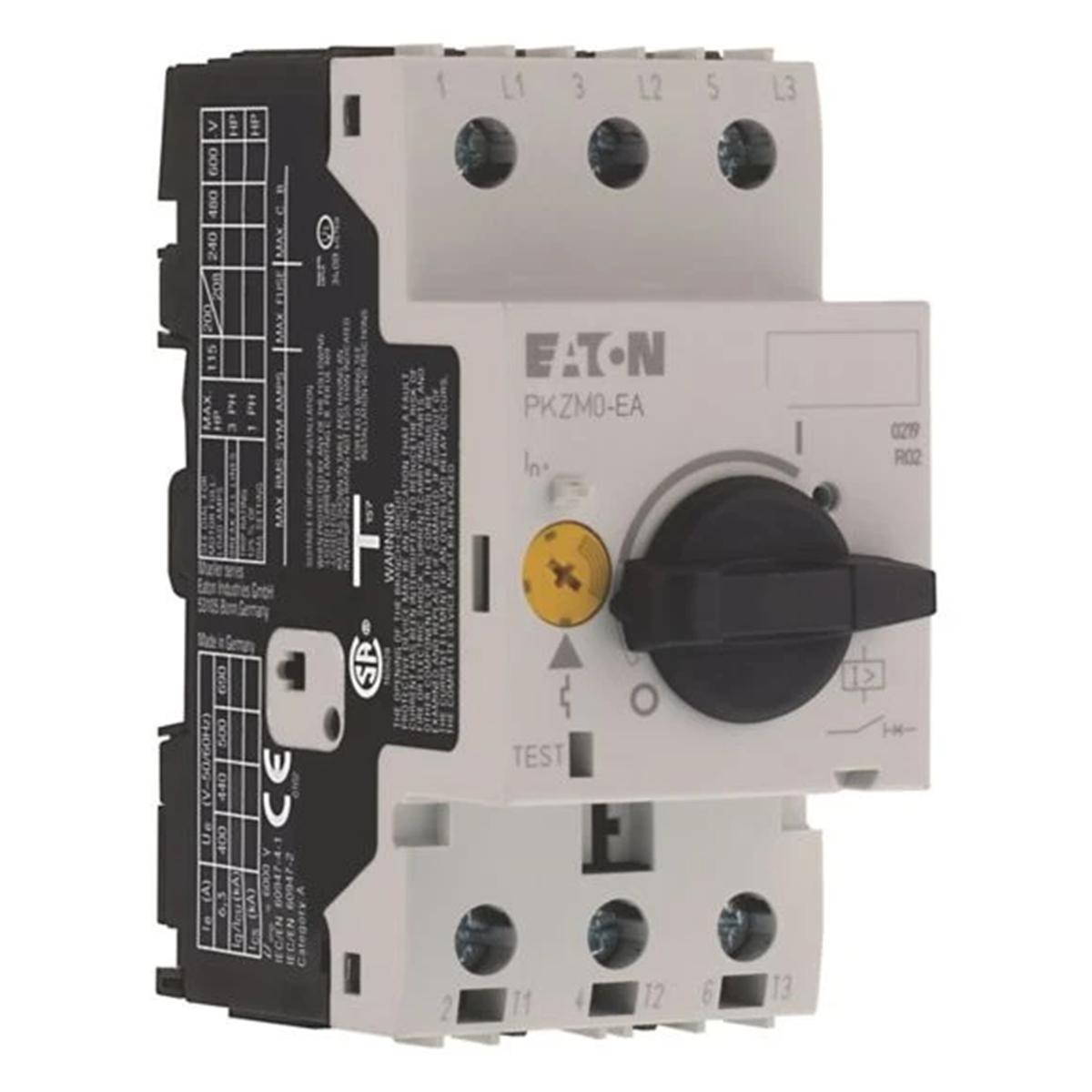

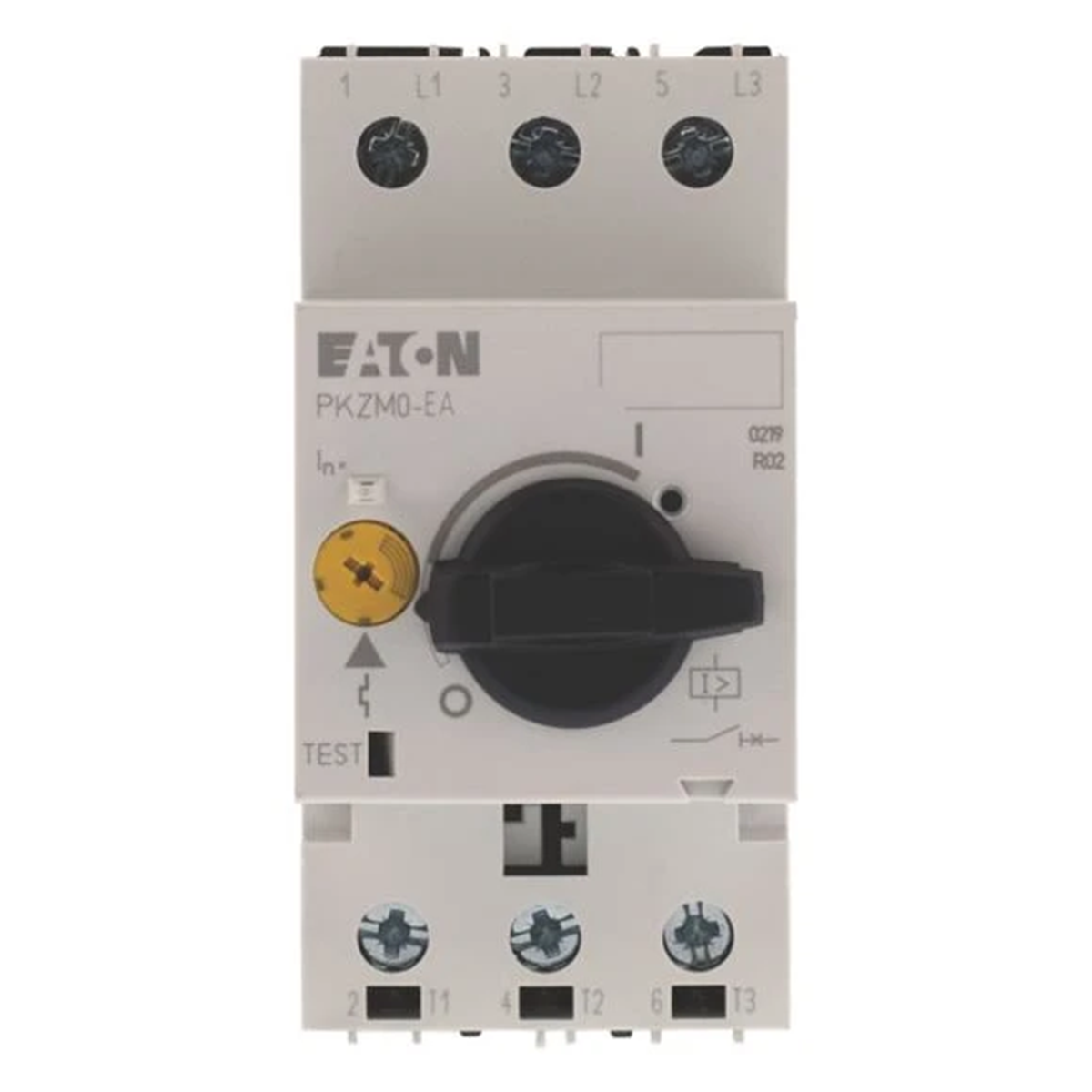

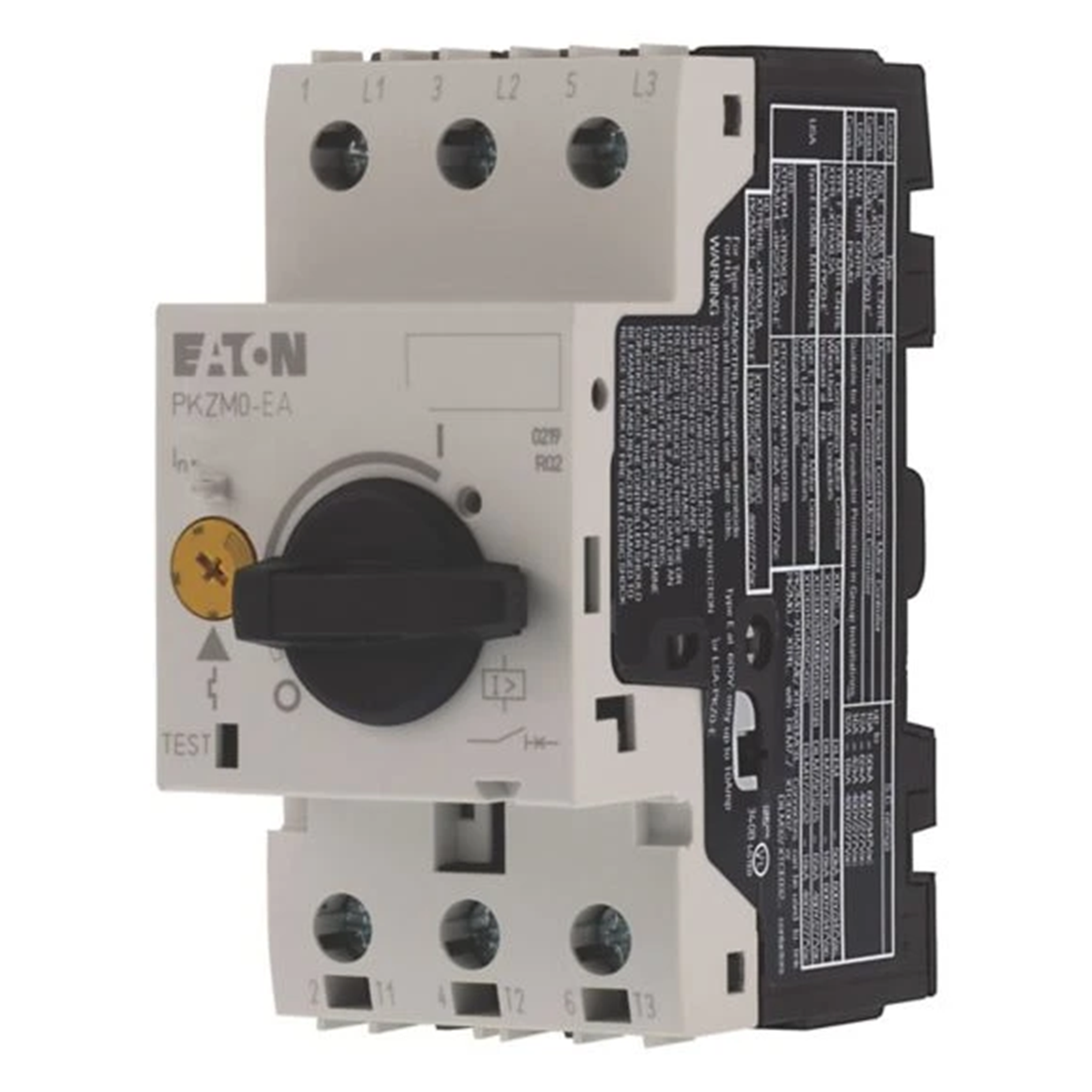

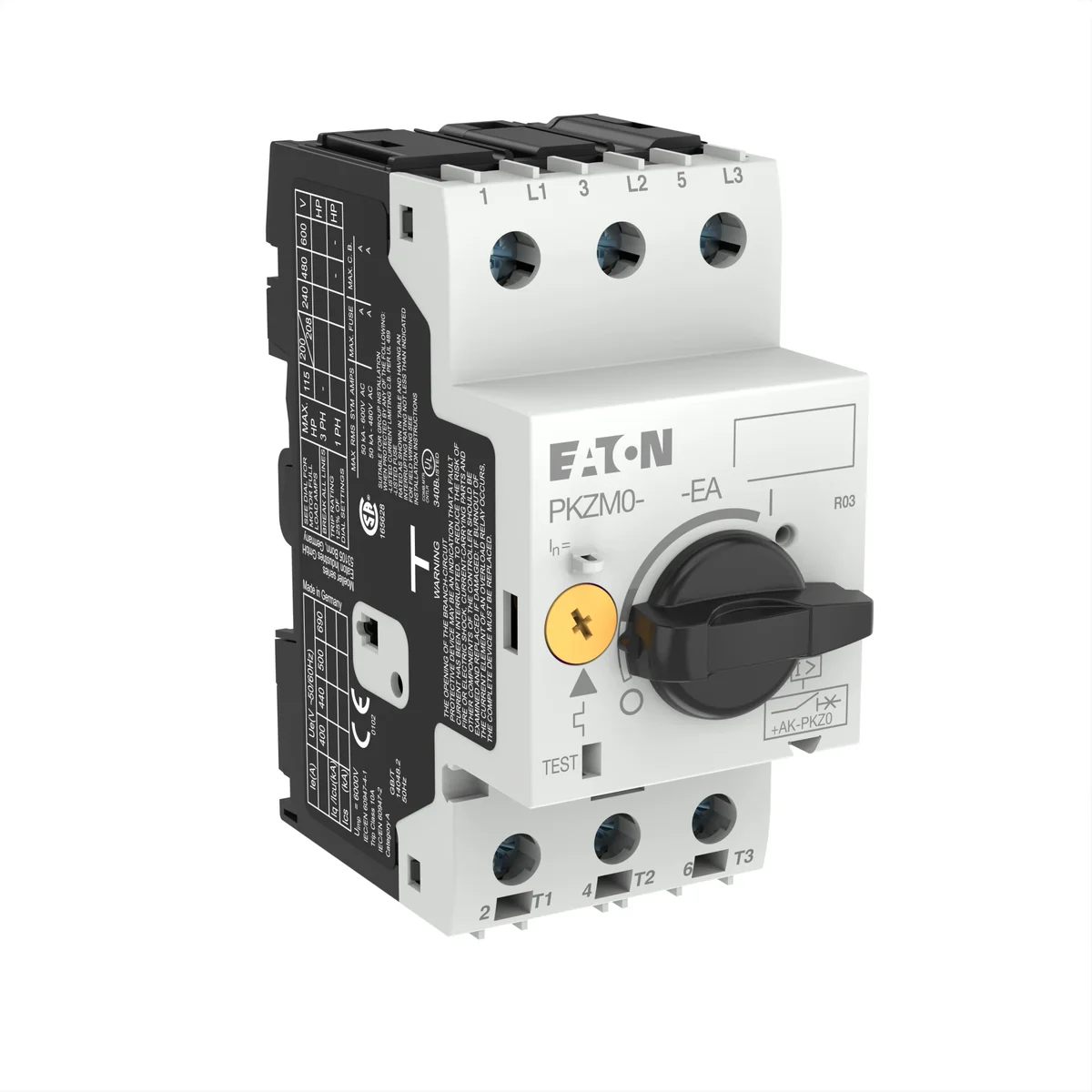

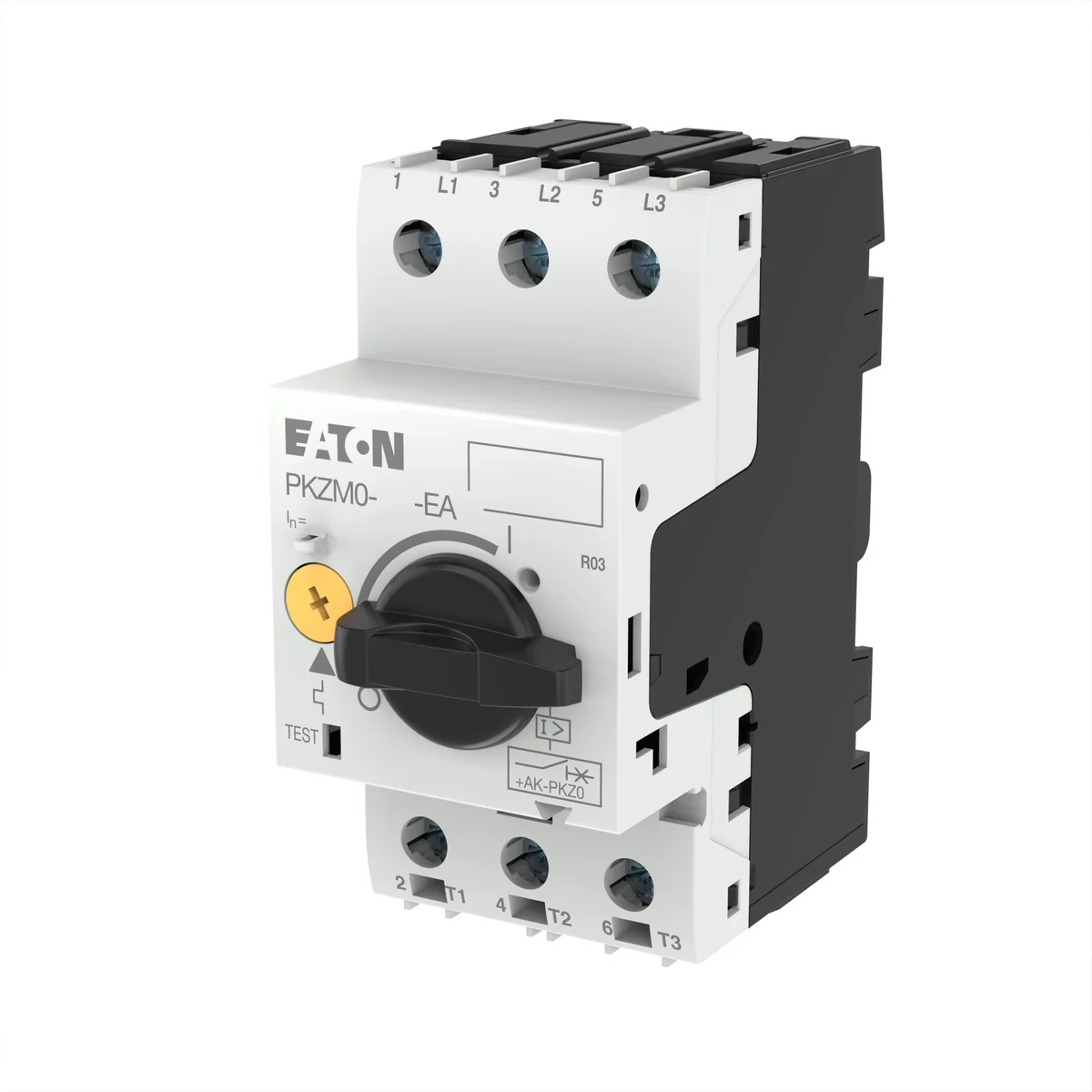

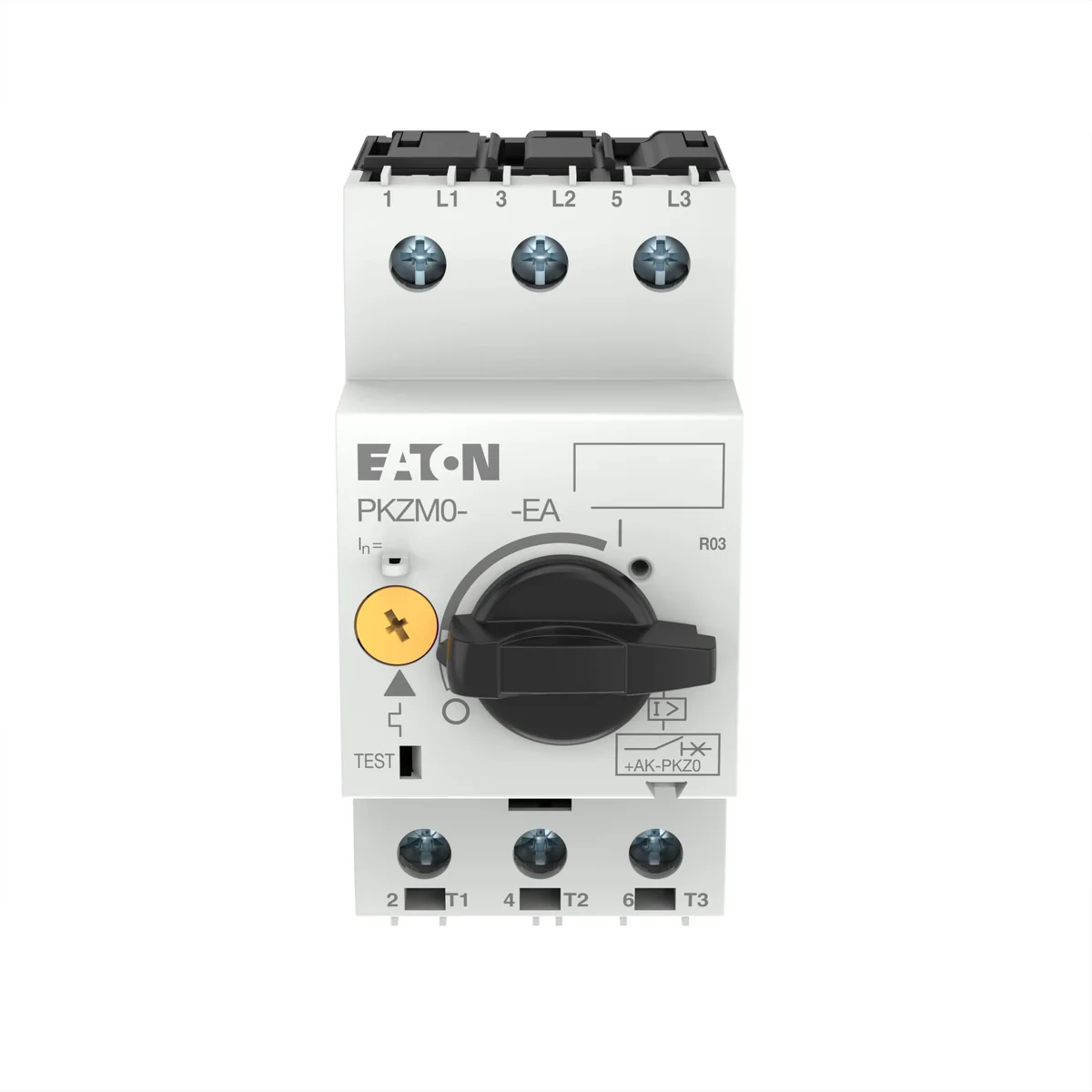

Motor circuit breaker PKZM0-6.3-EA 4-6.3A IP20 189902

Índice local:
ASN024MOEL
Número de catálogo:
189902
Código EAN:
4015081878987
Fabricante: EATON
Depth [mm]: 76
Overvoltage category: III
Number of poles: 3
Precio:
33,42 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Accesible 40 uds.
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Short downtimes of machines and installations require the devices used to be quickly ready to operation. Without fuses, the PKZ provides simultaneously short-circuit protection and overload protection.

Features:

  • ATEX approved for protection EEx motors up to 65 A
  • Simple planning thanks to short circuit strength at least 50kA
  • Trip indicator enables remote diagnostics
  • High safety with use as main switch or repair and maintenance

Datos técnicos

  • Depth [mm]
    76
  • Number of poles
    3
  • Level of security
    IP20
  • Width [number of modules]
    3
  • Mechanical durability [Number of connections]
    100000
  • Short-circuit strength [kA]
    60
  • Short-circuit release [A]
    97.7
  • Maximum operating voltage [V]
    690
  • Rated surge voltage [V]
    6000
  • Rated switching capacity [A]
    6.3
  • Rated operating power for AC-3 400V [kW]
    2.2
  • Overvoltage category
    III
  • Installation
    On the TH-35 rail
  • Degree of contamination
    3
  • Width [mm]
    45
  • Height [mm]
    93
  • Overload release [A]
    4-6.3
  • Rated operational current [A]
    6.3
  • trigger mode
    Thermomagnetic
  • Electrical durability [Number of operations]
    100000
  • Rated operating power for AC-3 230V [kW]
    1.1
  • Rated short-circuit breaking capacity Icu at 400V AC [kA]
    150

Otros datos técnicos

  • Overload release current setting
    4 ... 6.3 A
  • With thermal overload protection
    No
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    6.3 A
  • Rated operation power at AC-3, 400 V
    2.2 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    98 ... 98 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    1.1 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    150 kA
  • Height
    93 mm
  • Depth
    76 mm

Detalles del fabricante

  • Fabricante
    Eaton Electric Sp. z o.o.
  • Dirección
    80-299 Gdańsk Galaktyczna 30 Polska

Empaquetado a granel

una especie de paquete Skrzynia
Cantidad 1 uds.
Peso (kg) 0,305
Volumen (m3) 0,000
Ancho (m) 0,048
Longitud (m) 0,080
Profundidad (m) 0,097
