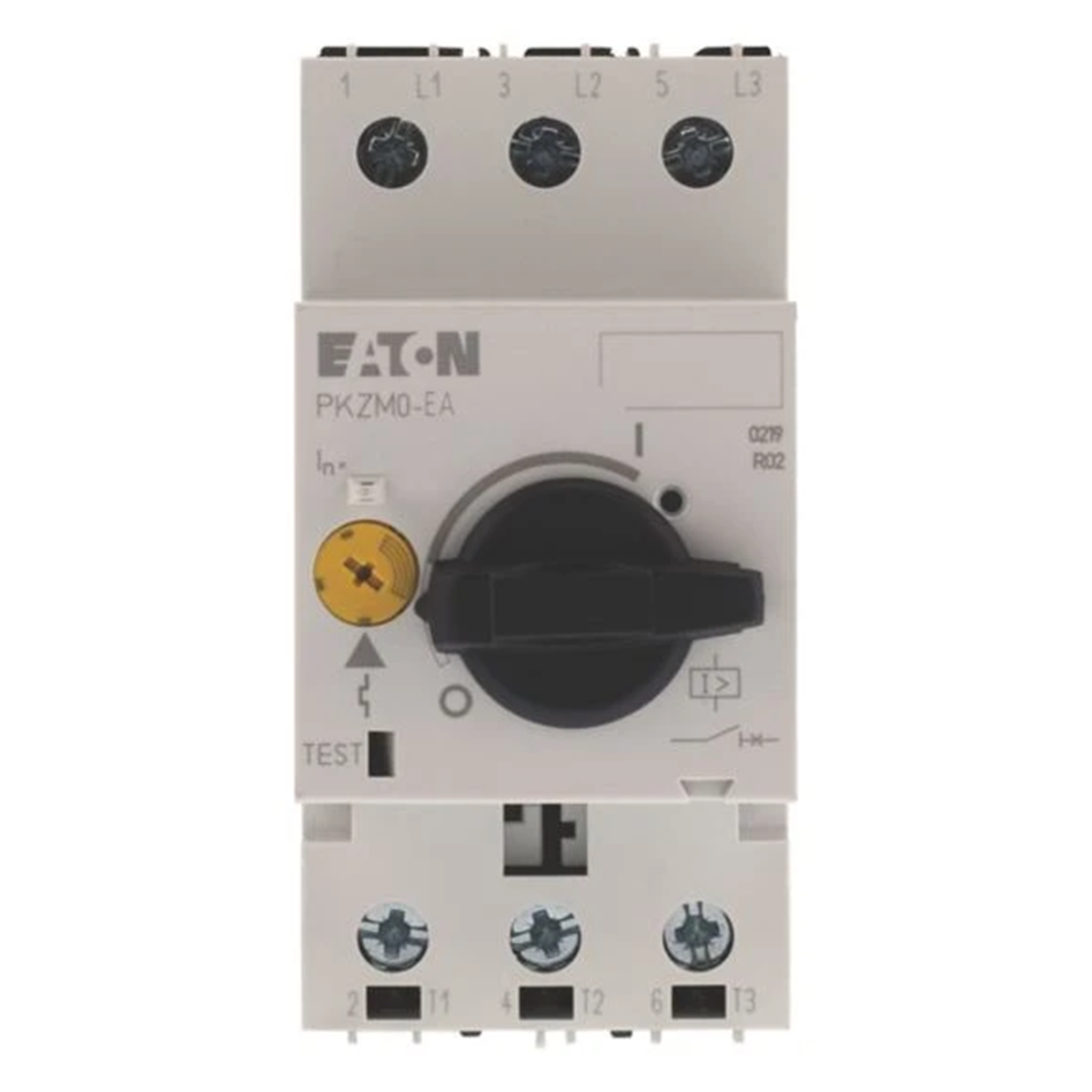

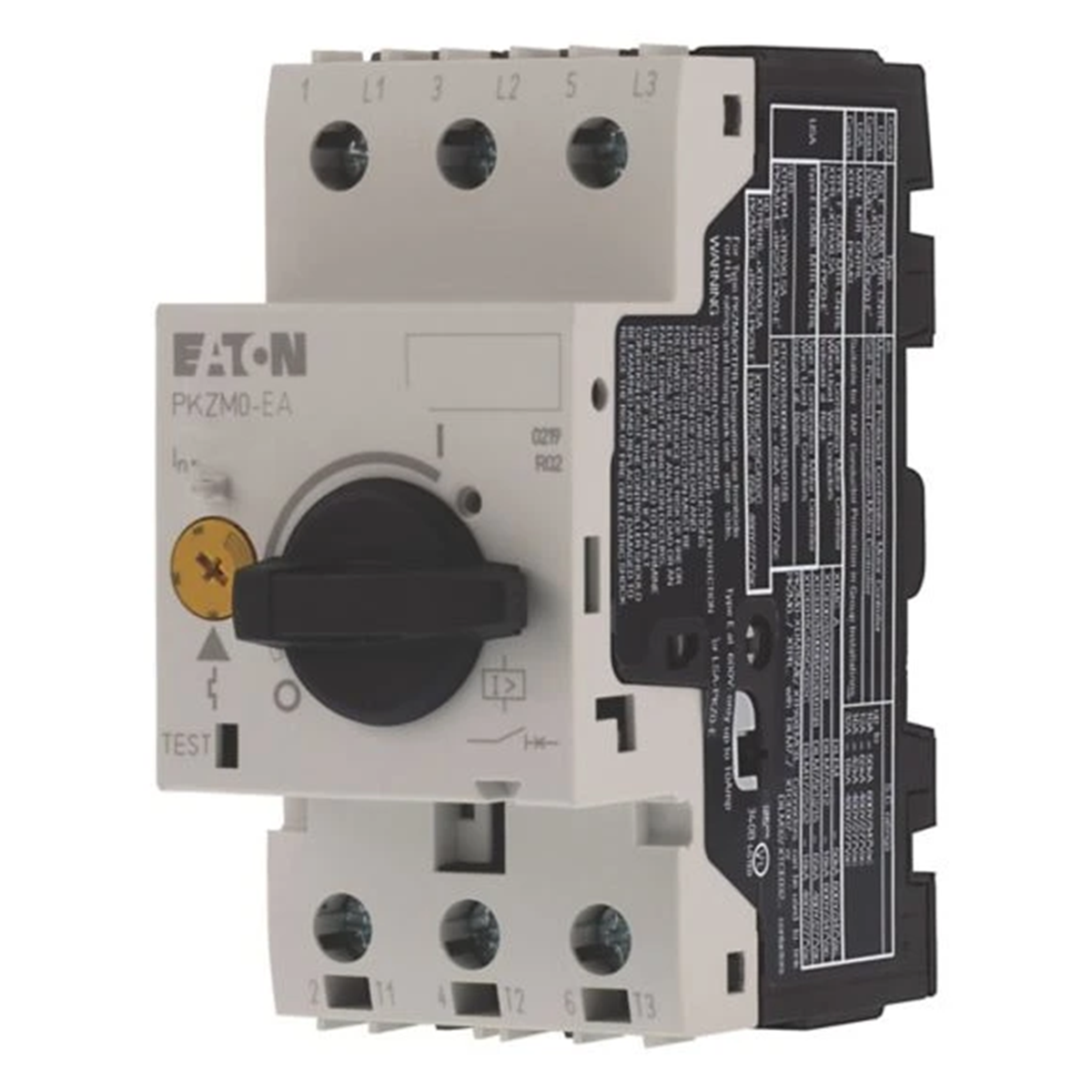

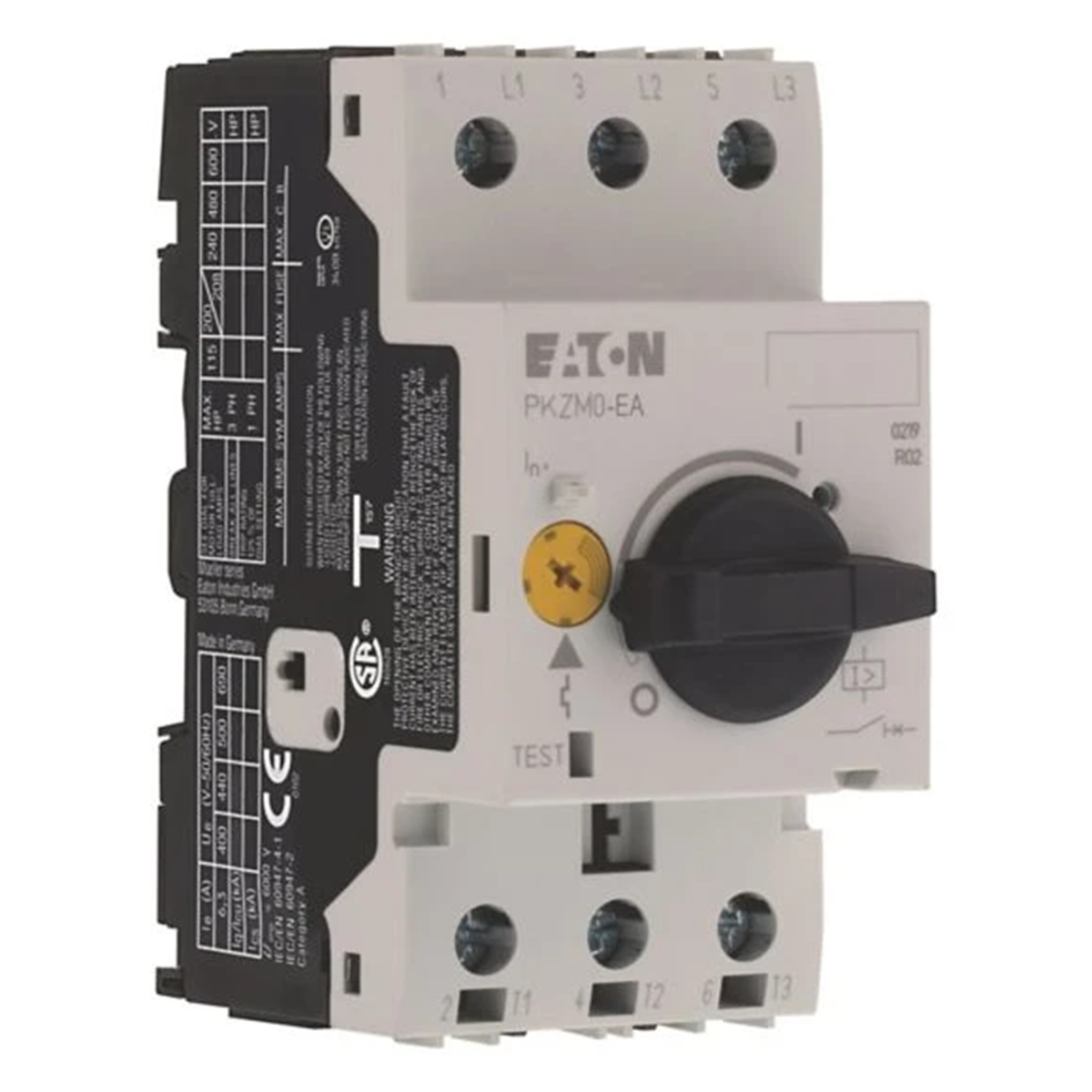

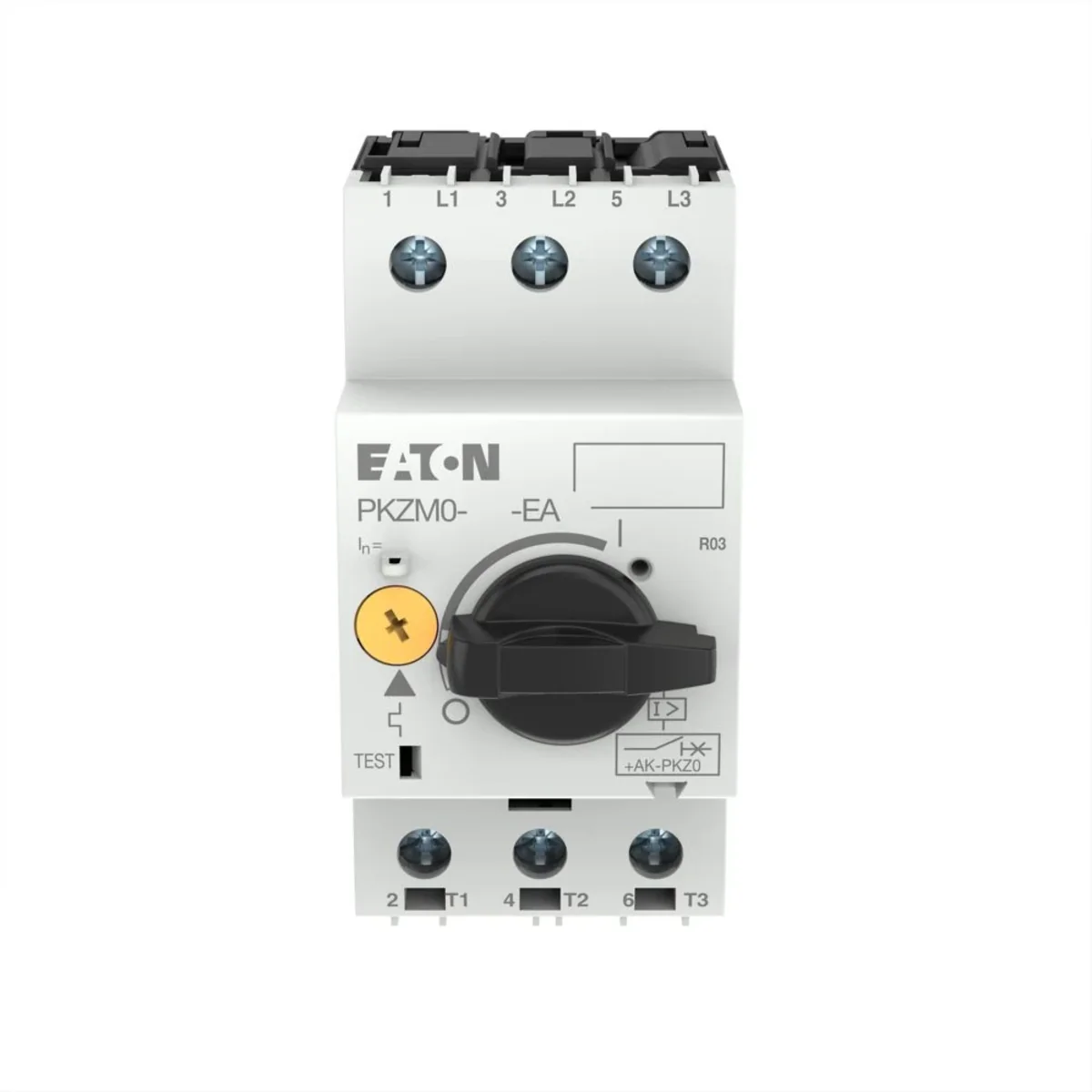

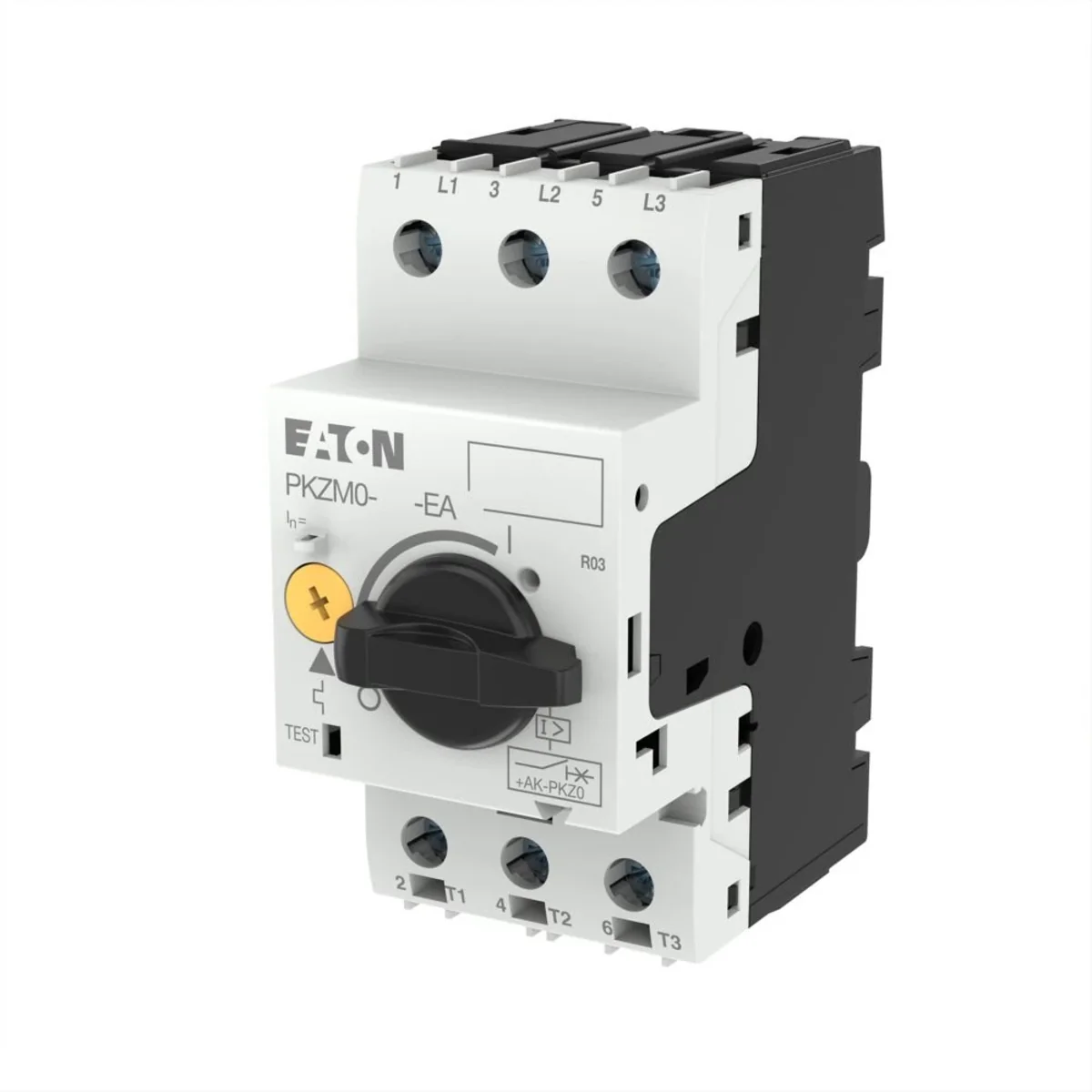

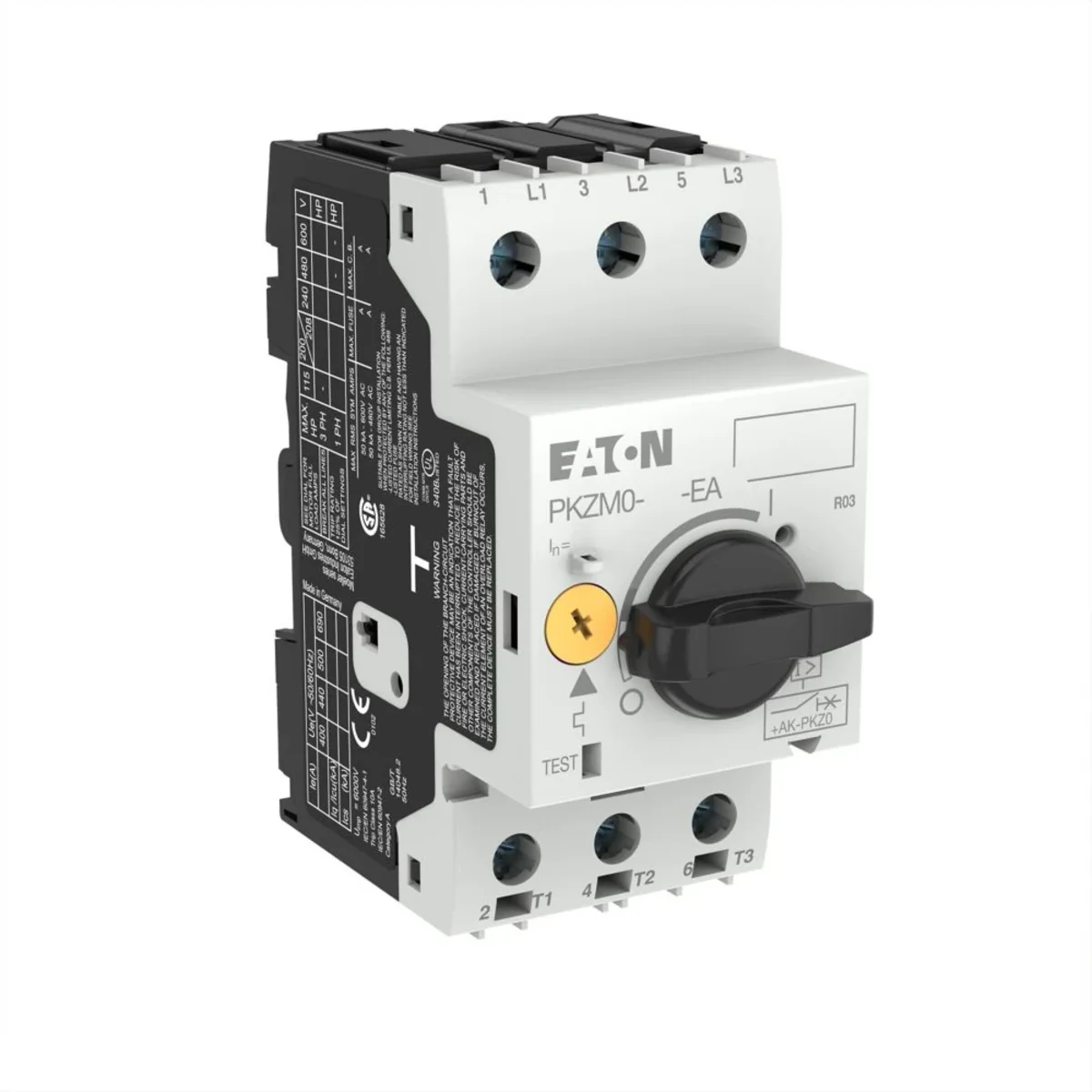

Motor circuit breaker PKZM0-4-EA 2.5-4A IP20 189901
local index:
ASN025MOEL
Catalog No:
189901
EAN code:
4015081878970
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Short downtimes of machines and installations require the devices used to be quickly ready to operation. Without fuses, the PKZ provides simultaneously short-circuit protection and overload protection.
Features:
- ATEX approved for protection EEx motors up to 65 A
- Simple planning thanks to short circuit strength at least 50kA
- Trip indicator enables remote diagnostics
- High safety with use as main switch or repair and maintenance
Technical data
-
Depth [mm]76
-
Number of poles3
-
Level of securityIP20
-
Width [number of modules]3
-
Mechanical durability [Number of connections]100000
-
Short-circuit strength [kA]60
-
Short-circuit release [A]62
-
Maximum operating voltage [V]690
-
Rated surge voltage [V]6000
-
Rated switching capacity [A]4
-
Rated operating power for AC-3 400V [kW]1.5
-
Overvoltage categoryIII
-
InstallationOn the TH-35 rail
-
Degree of contamination3
-
Width [mm]45
-
Height [mm]93
-
Overload release [A]2.5-4
-
Rated operational current [A]4
-
trigger modeThermomagnetic
-
Electrical durability [Number of operations]100000
-
Rated operating power for AC-3 230V [kW]0.75
-
Rated short-circuit breaking capacity Icu at 400V AC [kA]150
Other technical data
-
Overload release current setting2.5 ... 4 A
-
With thermal overload protectionNo
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu4 A
-
Rated operation power at AC-3, 400 V1.5 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release62 ... 62 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V0.75 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC150 kA
-
Height93 mm
-
Depth76 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,284 | 0,299 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,045 | 0,048 |
| Length (m) | 0,076 | 0,080 |
| Depth (m) | 0,093 | 0,097 |
