EATON

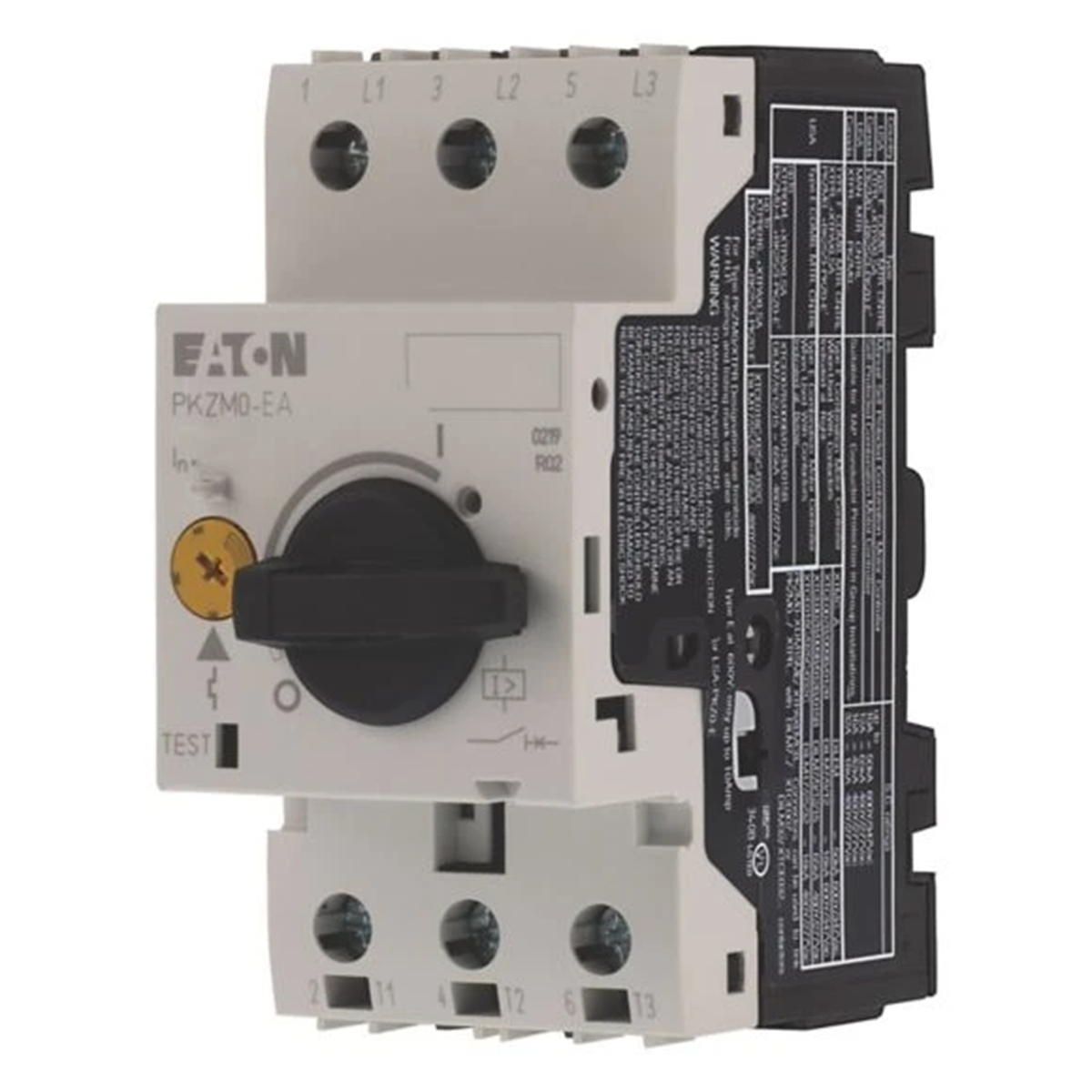

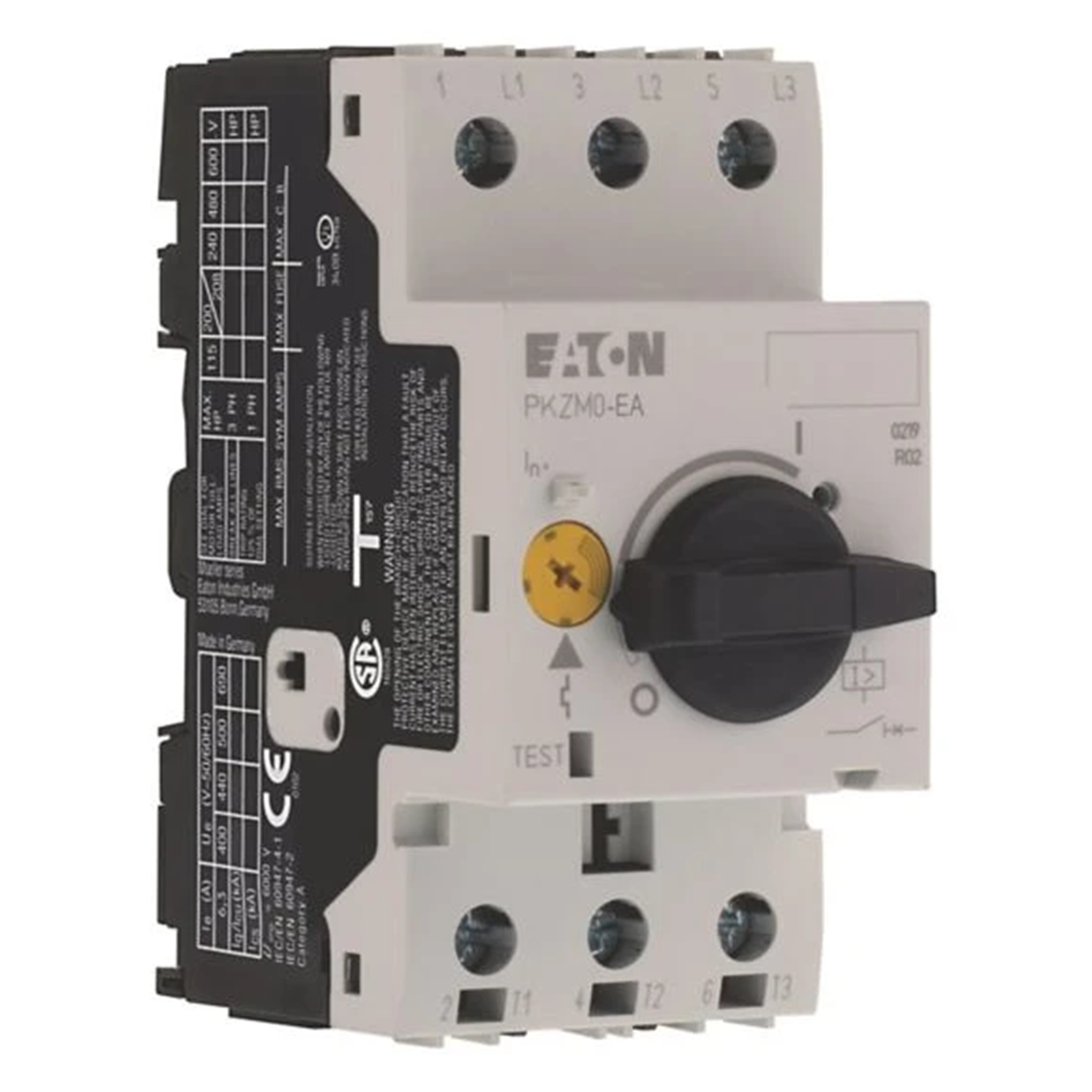

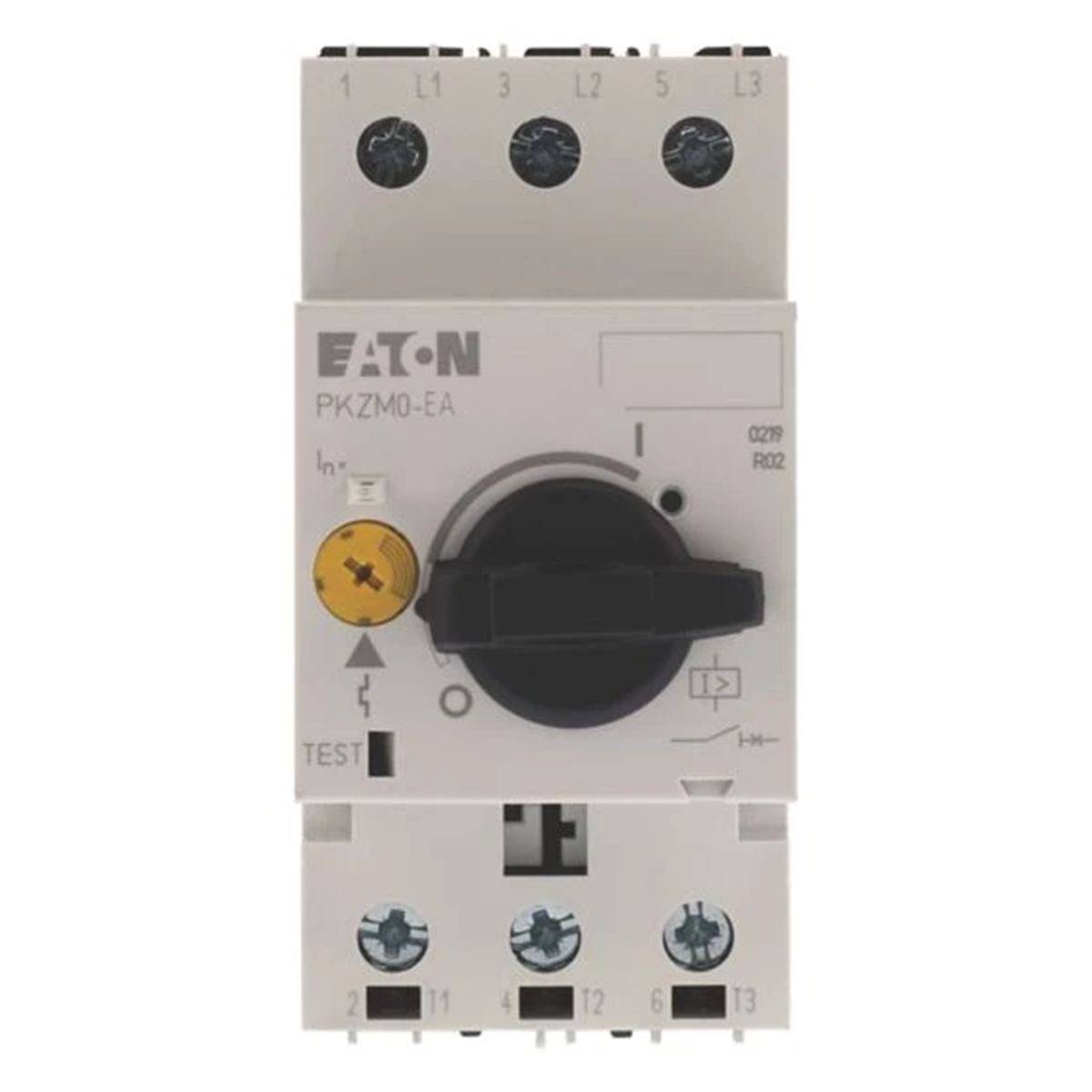

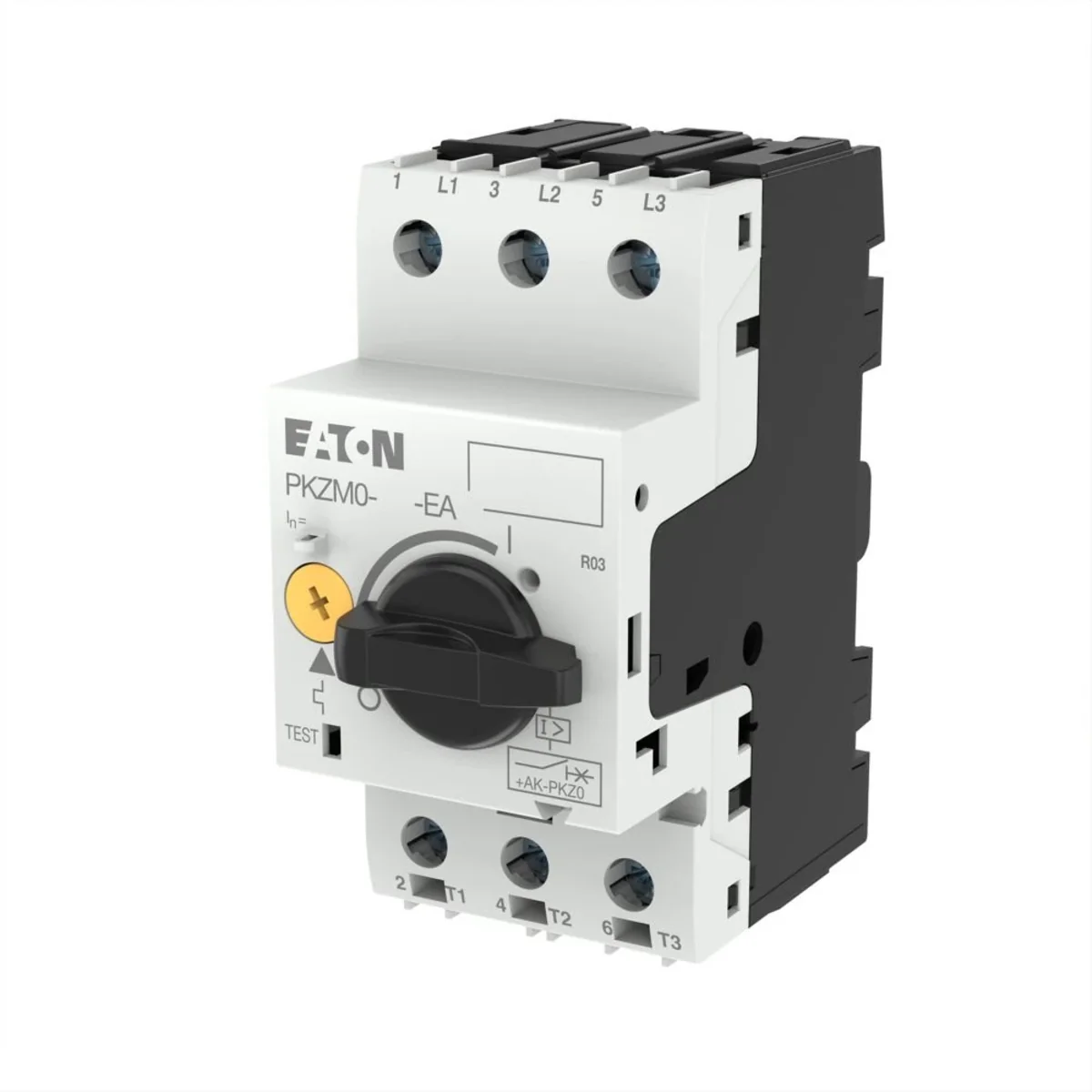

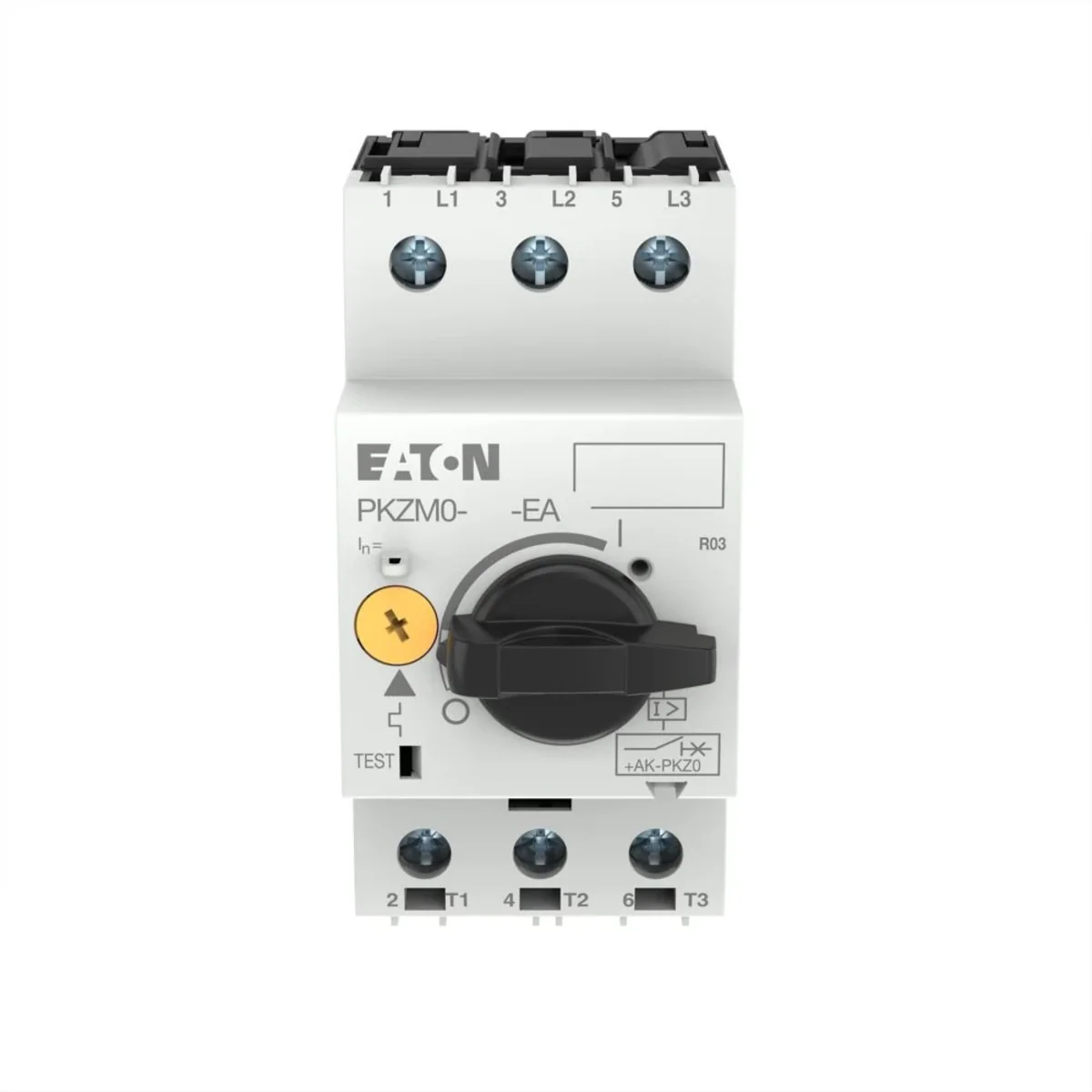

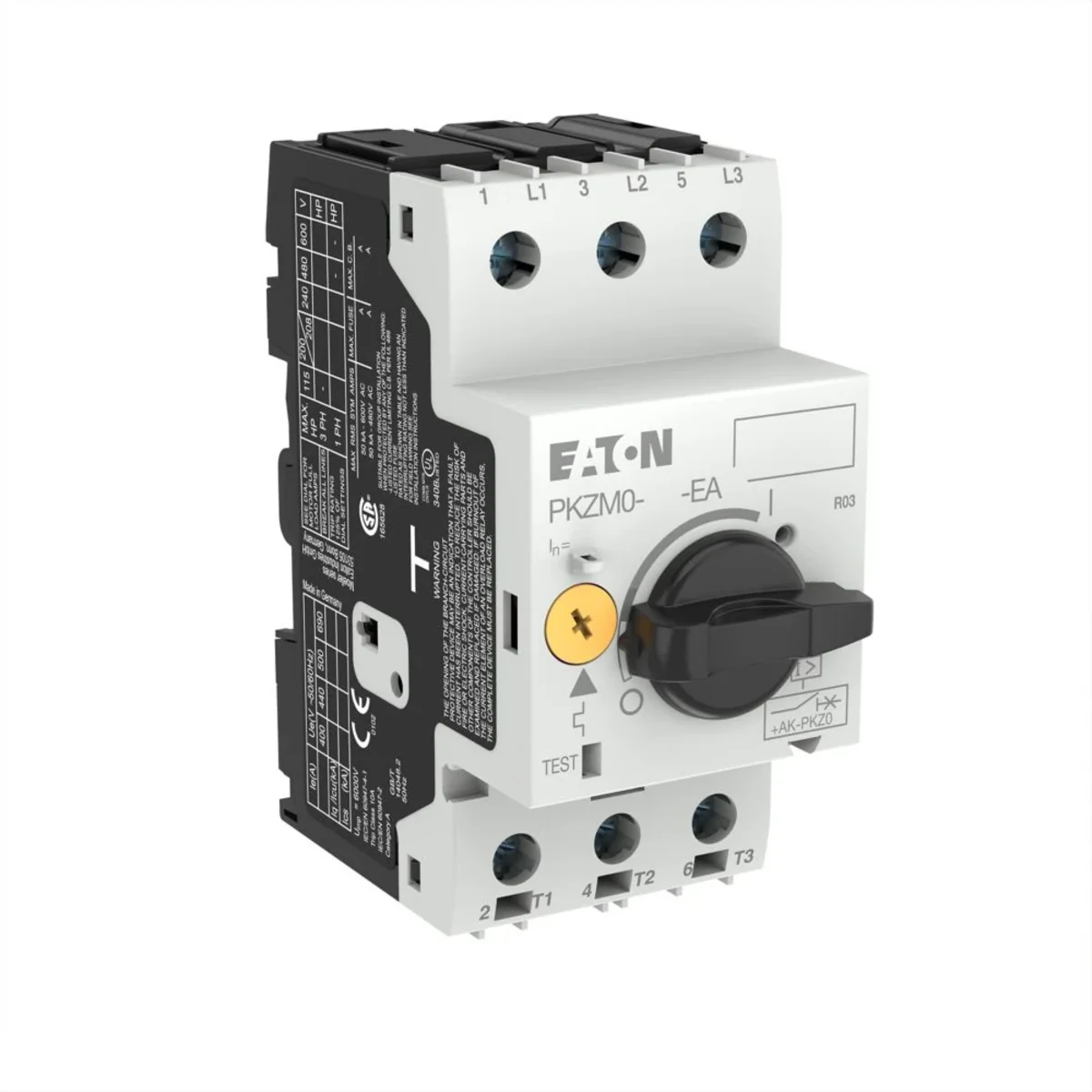

Motor circuit breaker PKZM0-32-EA 25-32A IP20 189870

local index:
ASN017MOEL
Catalog No:
189870
EAN code:
4015081878666
Price:
160,29 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 24 pcs.
Delivery:
From 3,68 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Short downtimes of machines and installations require the devices used to be quickly ready to operation. Without fuses, the PKZ provides simultaneously short-circuit protection and overload protection.

Features:

  • ATEX approved for protection EEx motors up to 65 A
  • Simple planning thanks to short circuit strength at least 50kA
  • Trip indicator enables remote diagnostics
  • High safety with use as main switch or repair and maintenance

Technical data

  • Depth [mm]
    76
  • Number of poles
    3
  • Level of security
    IP20
  • Width [number of modules]
    3
  • Mechanical durability [Number of connections]
    100000
  • Short-circuit strength [kA]
    40
  • Short-circuit release [A]
    496
  • Maximum operating voltage [V]
    690
  • Rated surge voltage [V]
    6000
  • Rated switching capacity [A]
    32
  • Rated operating power for AC-3 400V [kW]
    15
  • Overvoltage category
    III
  • Installation
    On the TH-35 rail
  • Degree of contamination
    3
  • Width [mm]
    45
  • Height [mm]
    93
  • Overload release [A]
    25-32
  • Rated operational current [A]
    32
  • trigger mode
    Thermomagnetic
  • Electrical durability [Number of operations]
    100000
  • Rated operating power for AC-3 230V [kW]
    7.5
  • Rated short-circuit breaking capacity Icu at 400V AC [kA]
    50

Other technical data

  • Overload release current setting
    25 ... 32 A
  • With thermal overload protection
    no
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    32 A
  • Rated operation power at AC-3, 400 V
    15 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    no
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    496 ... 496 A
  • Phase failure sensitive
    yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    7.5 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    no
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Height
    93 mm
  • Depth
    76 mm
