Motor circuit breaker PKZM0-12-EA 8-12A IP20 189904

Index local:

ASN021MOEL

Numéro de catalogue:

189904

Code EAN:

4015081879007

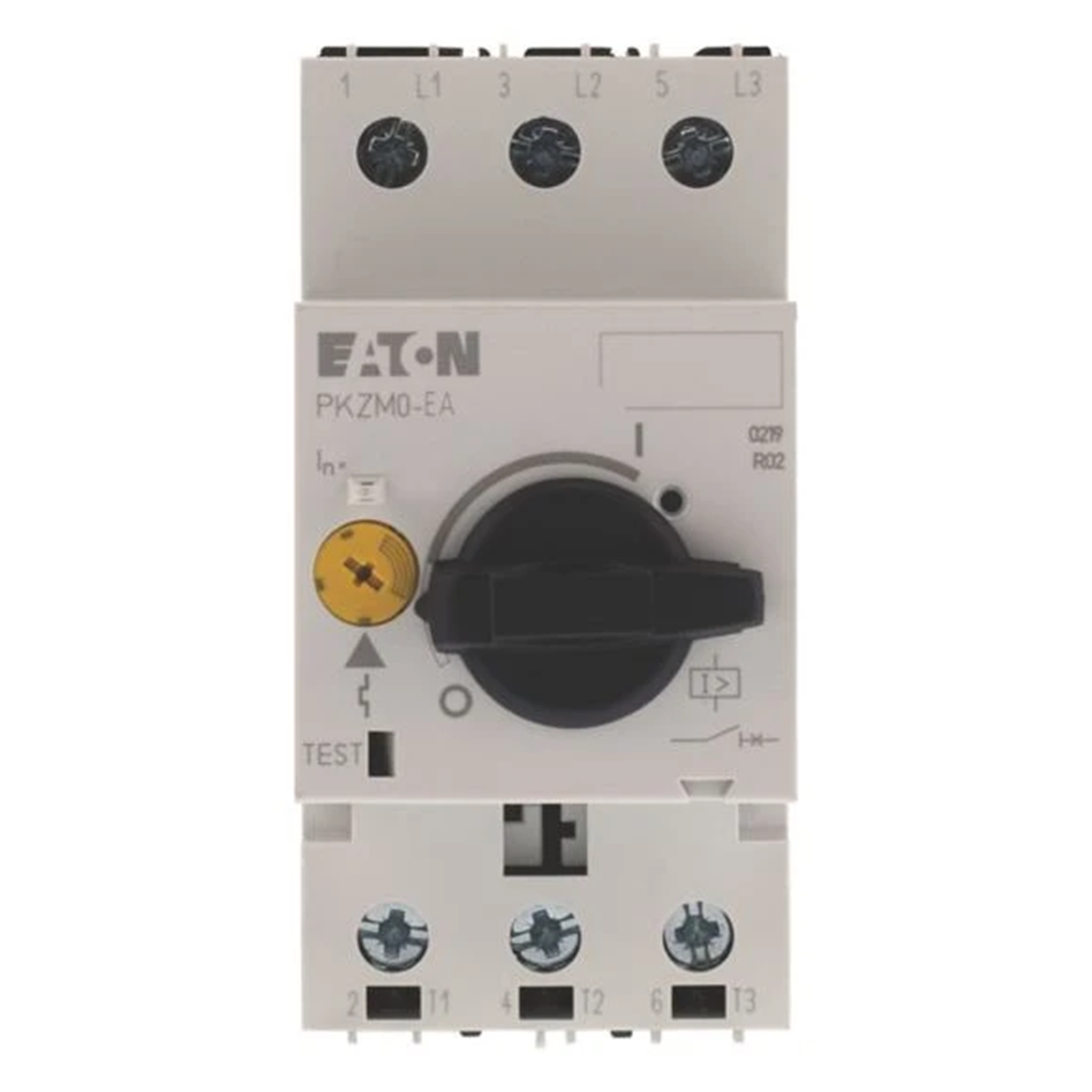

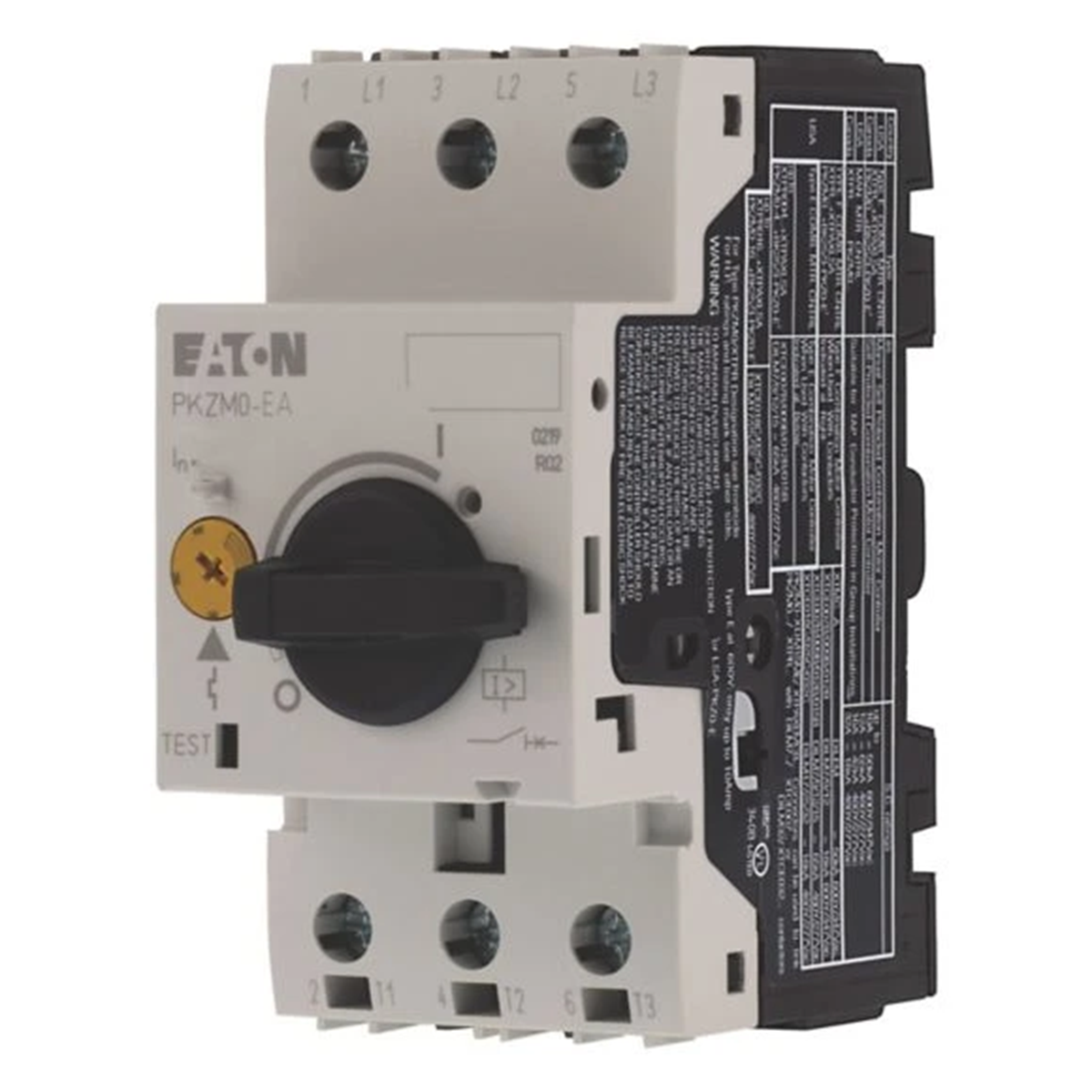

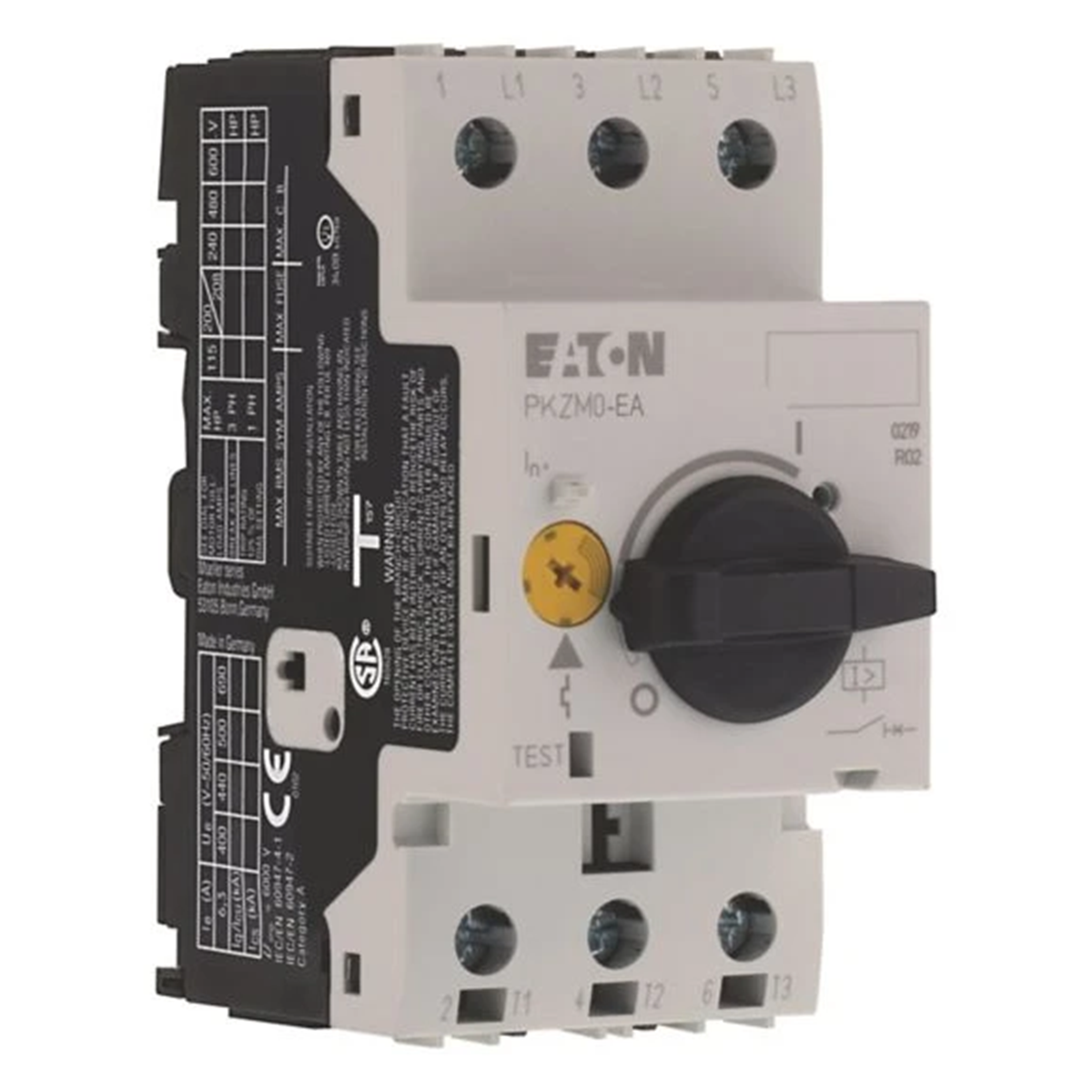

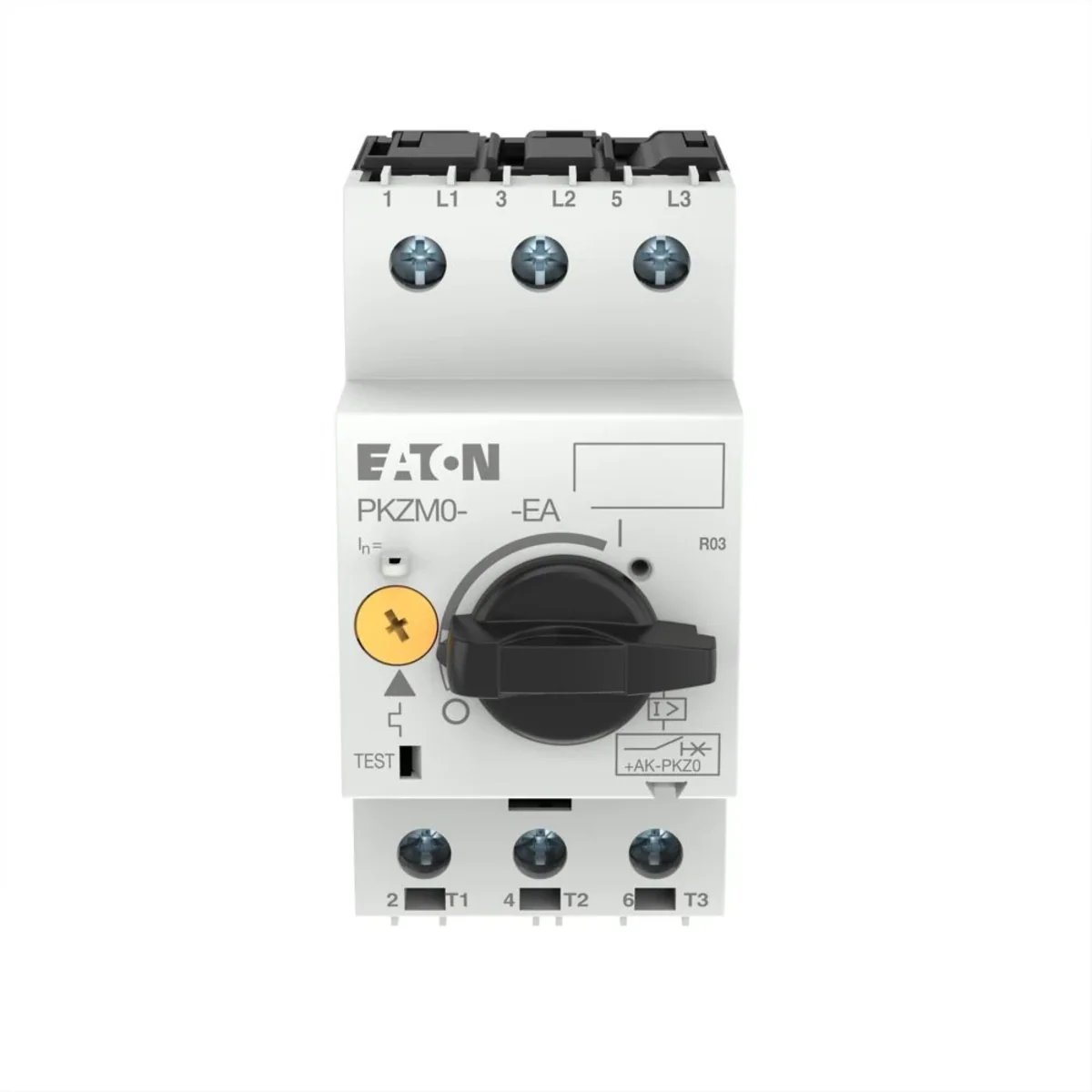

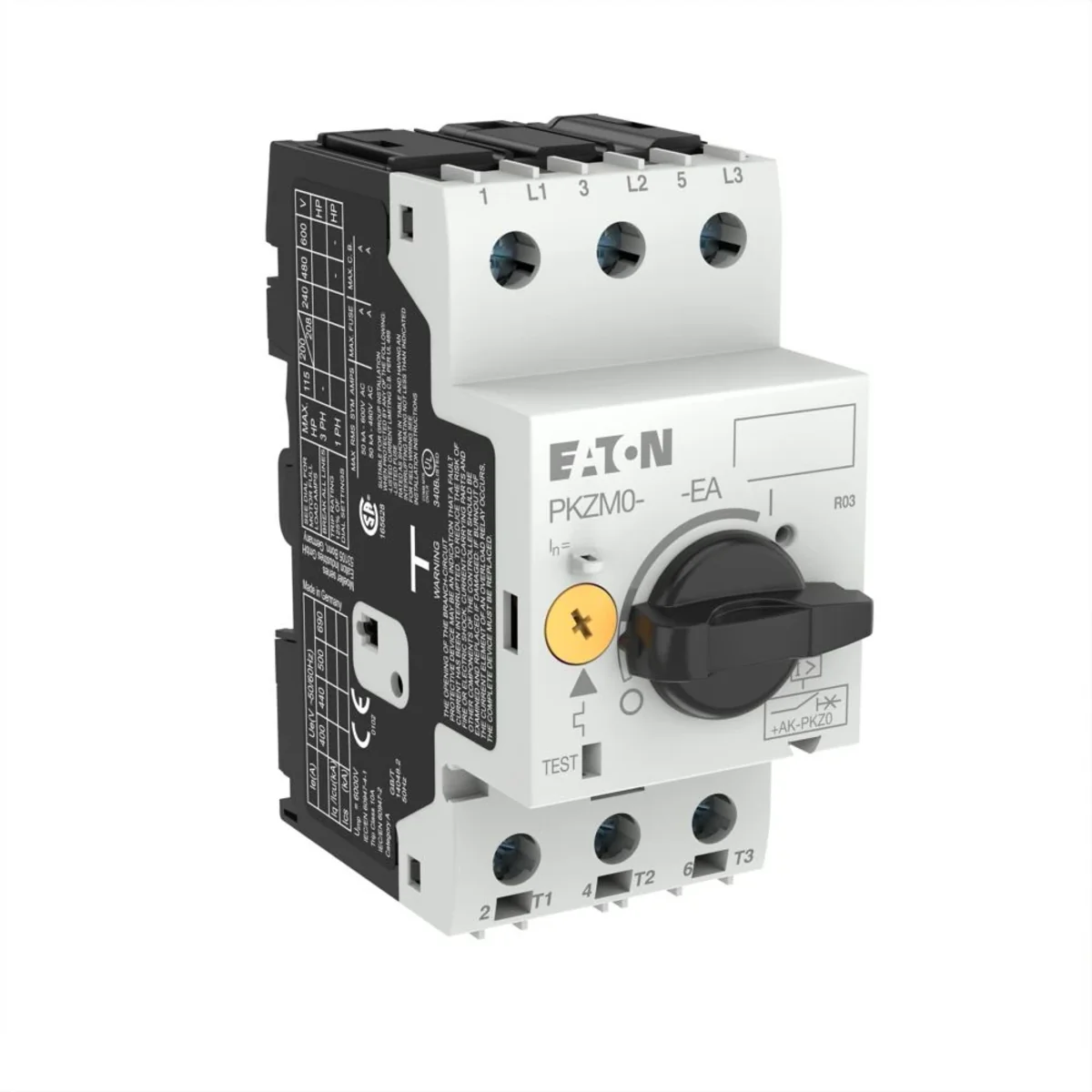

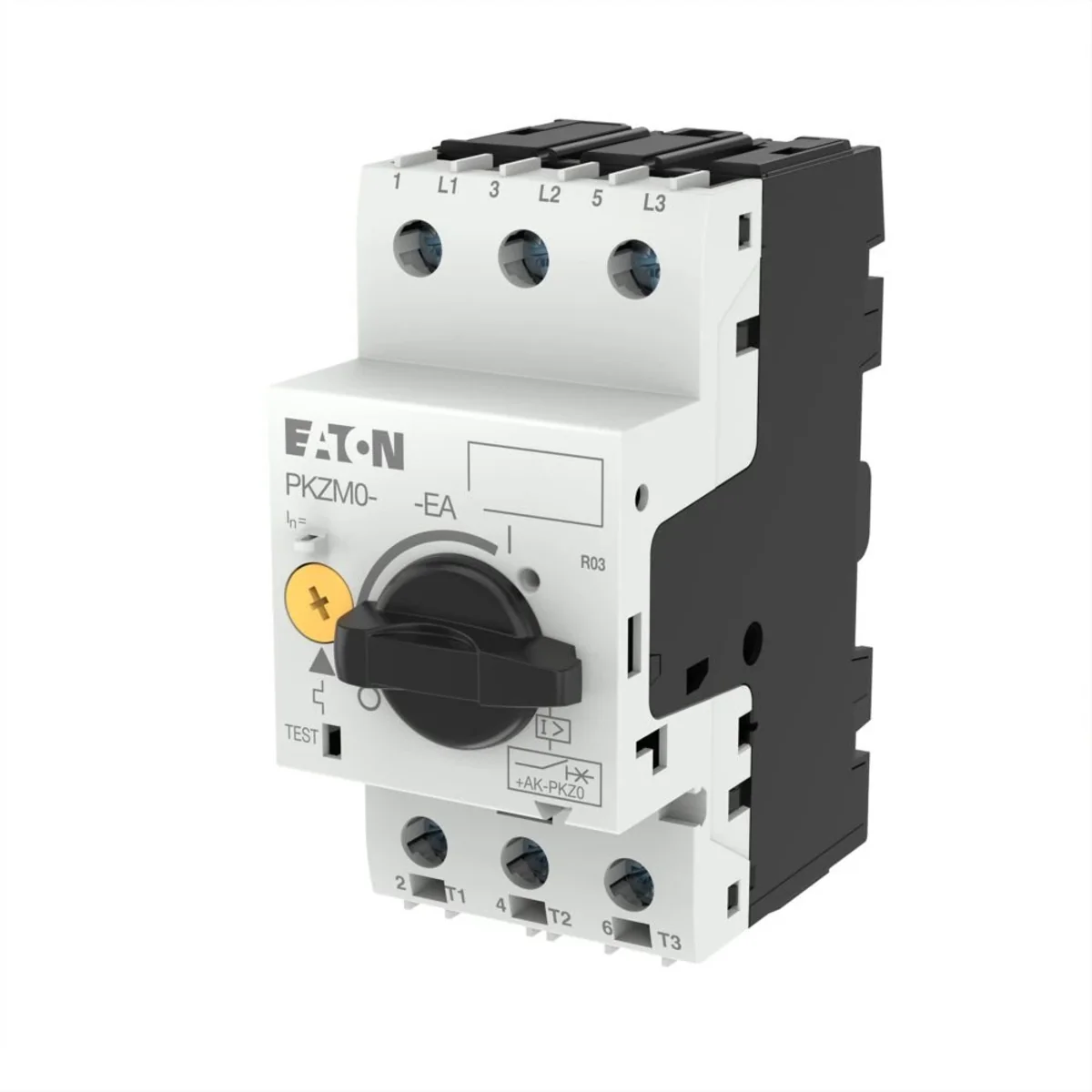

Motor circuit breaker PKZM0-12-EA 8-12A IP20

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Depth [mm]: 76

Overvoltage category: III

Number of poles: 3

Voir la description complète

310

zł

gross / pcs. (y compris la TVA 23%)

Dostępne 20 pcs.

Vérifier

Odbierz w godzinę!

Détails

Choisissez votre grossiste

Sélectionner

Quantité pcs. (plusieurs: 1 )

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Short downtimes of machines and installations require the devices used to be quickly ready to operation. Without fuses, the PKZ provides simultaneously short-circuit protection and overload protection.

Features:

ATEX approved for protection EEx motors up to 65 A
Simple planning thanks to short circuit strength at least 50kA
Trip indicator enables remote diagnostics
High safety with use as main switch or repair and maintenance

Données techniques

Depth [mm]

76
Number of poles

3
Level of security

IP20
Width [number of modules]

3
Mechanical durability [Number of connections]

100000
Short-circuit strength [kA]

60
Short-circuit release [A]

168
Maximum operating voltage [V]

690
Rated surge voltage [V]

6000
Rated switching capacity [A]

12
Rated operating power for AC-3 400V [kW]

5.5

Overvoltage category

III
Installation

On the TH-35 rail
Degree of contamination

3
Width [mm]

45
Height [mm]

93
Overload release [A]

8-12
Rated operational current [A]

12
trigger mode

Thermomagnetic
Electrical durability [Number of operations]

100000
Rated operating power for AC-3 230V [kW]

3
Rated short-circuit breaking capacity Icu at 400V AC [kA]

50

Autres données techniques

Overload release current setting

8 ... 12 A
With thermal overload protection

No
Switch off technique

Thermomagnetic
Rated permanent current Iu

12 A
Rated operation power at AC-3, 400 V

5.5 kW
Type of control element

Turn button
With integrated auxiliary switch

No
Number of poles

3
Degree of protection (IP)

IP20
Width

45 mm

Adjustment range undelayed short-circuit release

186 ... 186 A
Phase failure sensitive

Yes
Rated operating voltage

690 ... 690 V
Rated operation power at AC-3, 230 V

3 kW
Type of electrical connection of main circuit

Screw connection
Device construction

Built-in device fixed built-in technique
With integrated under voltage release

No
Rated short-circuit breaking capacity lcu at 400 V, AC

50 kA
Height

93 mm
Depth

76 mm

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	CS	CS
Quantité	1 pcs.	1 pcs.
poids (kg)	0,310	0,310
Volume (m3)	0,000	0,000
Largeur (m)	0,048	0,048
Longueur (m)	0,080	0,080
Profondeur (m)	0,097	0,097
