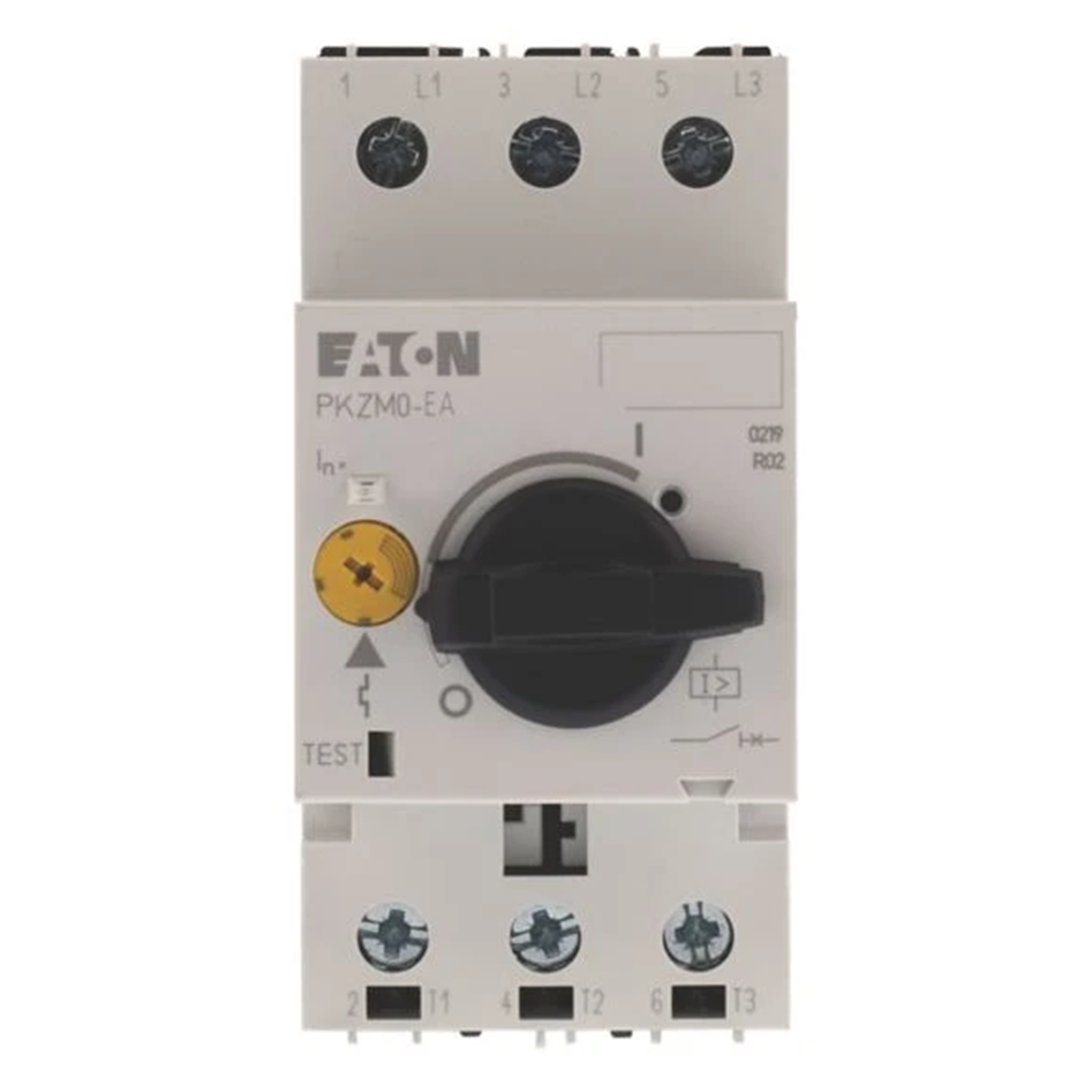

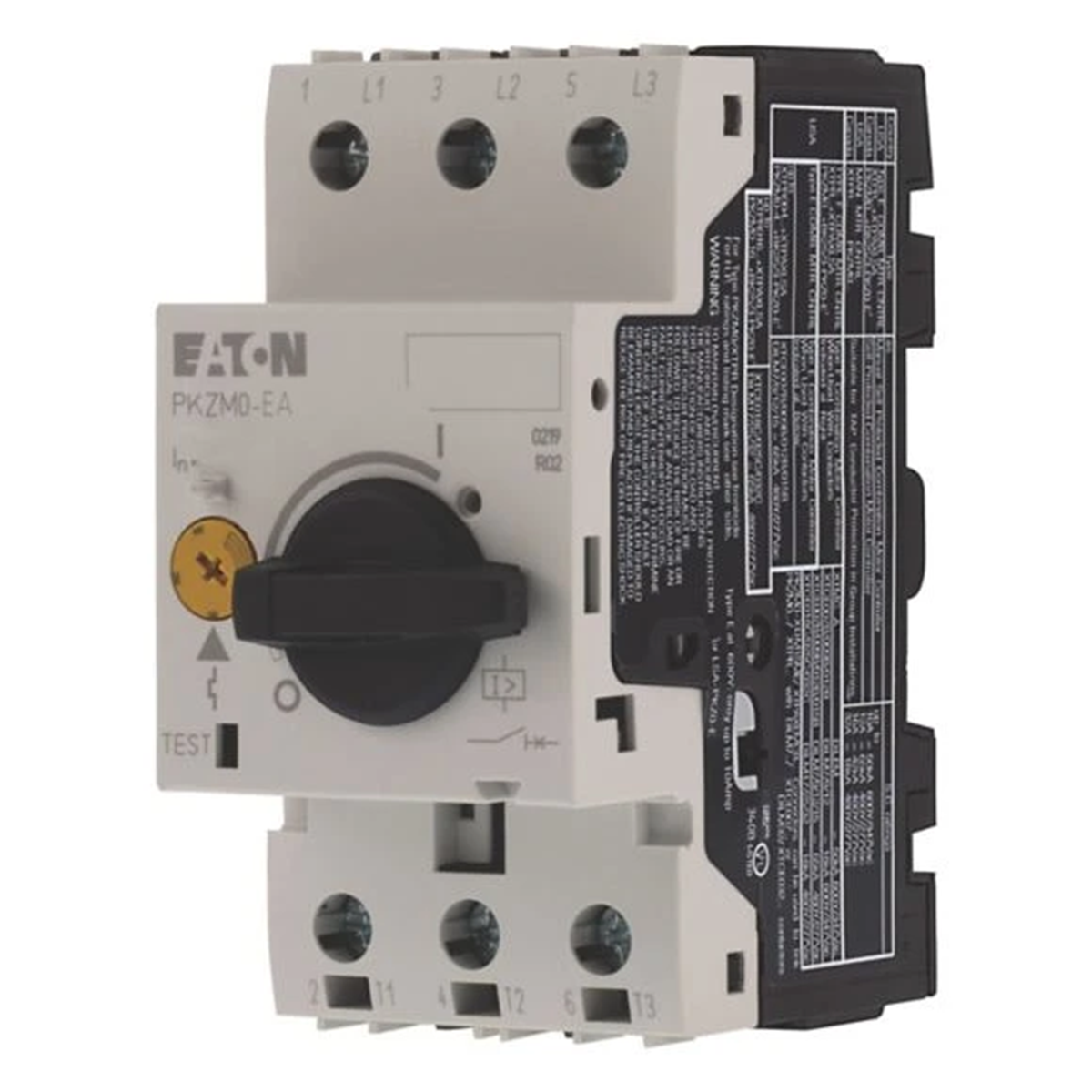

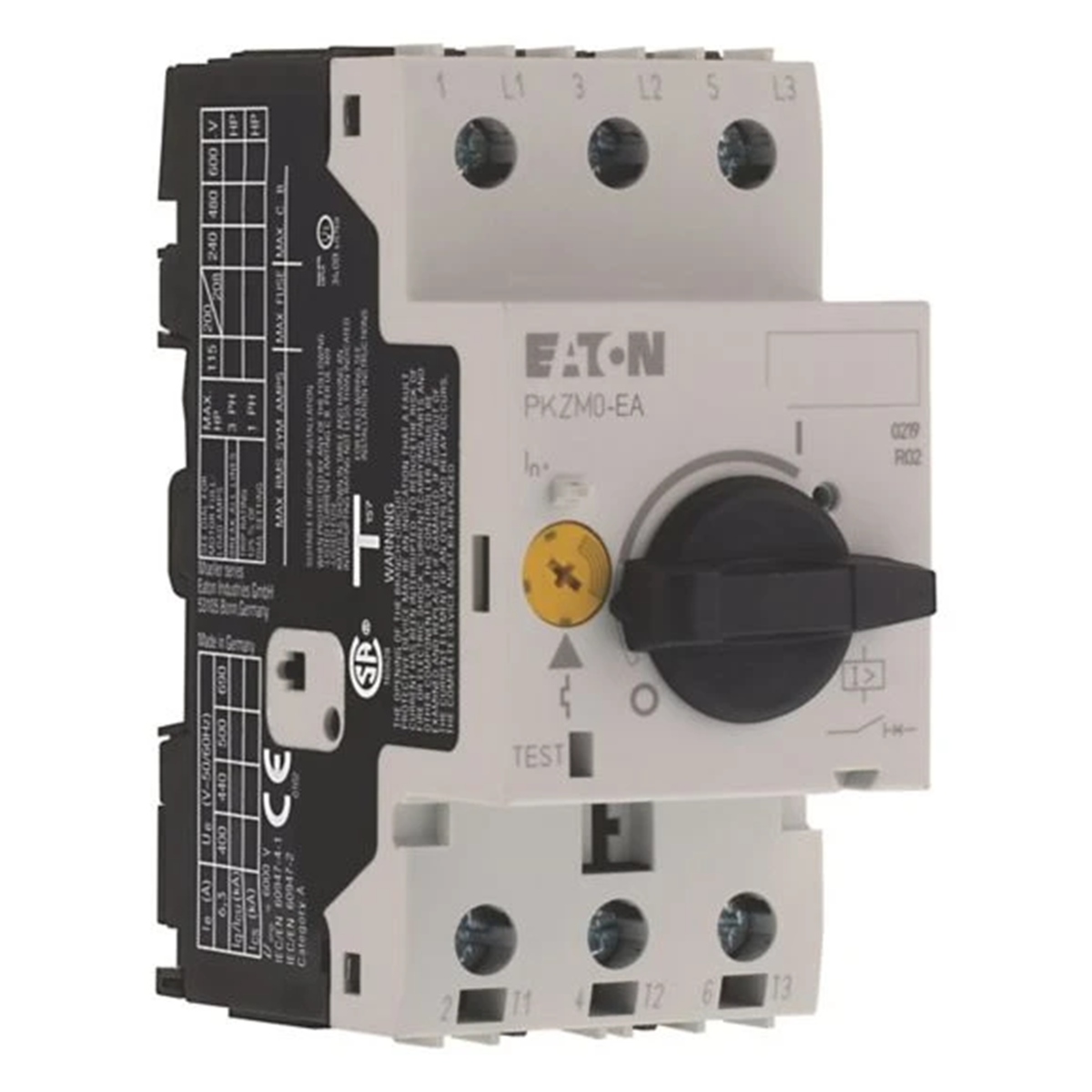

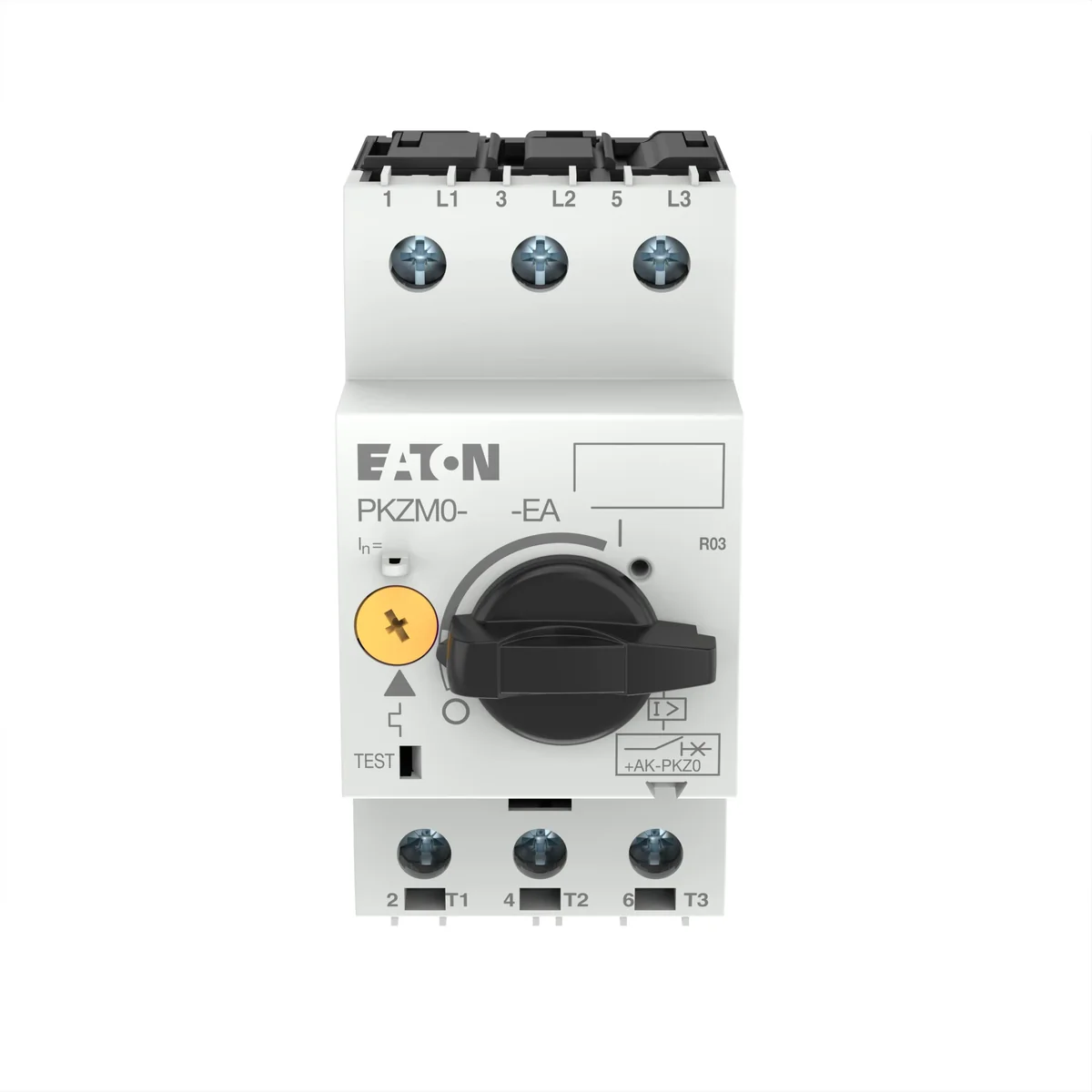

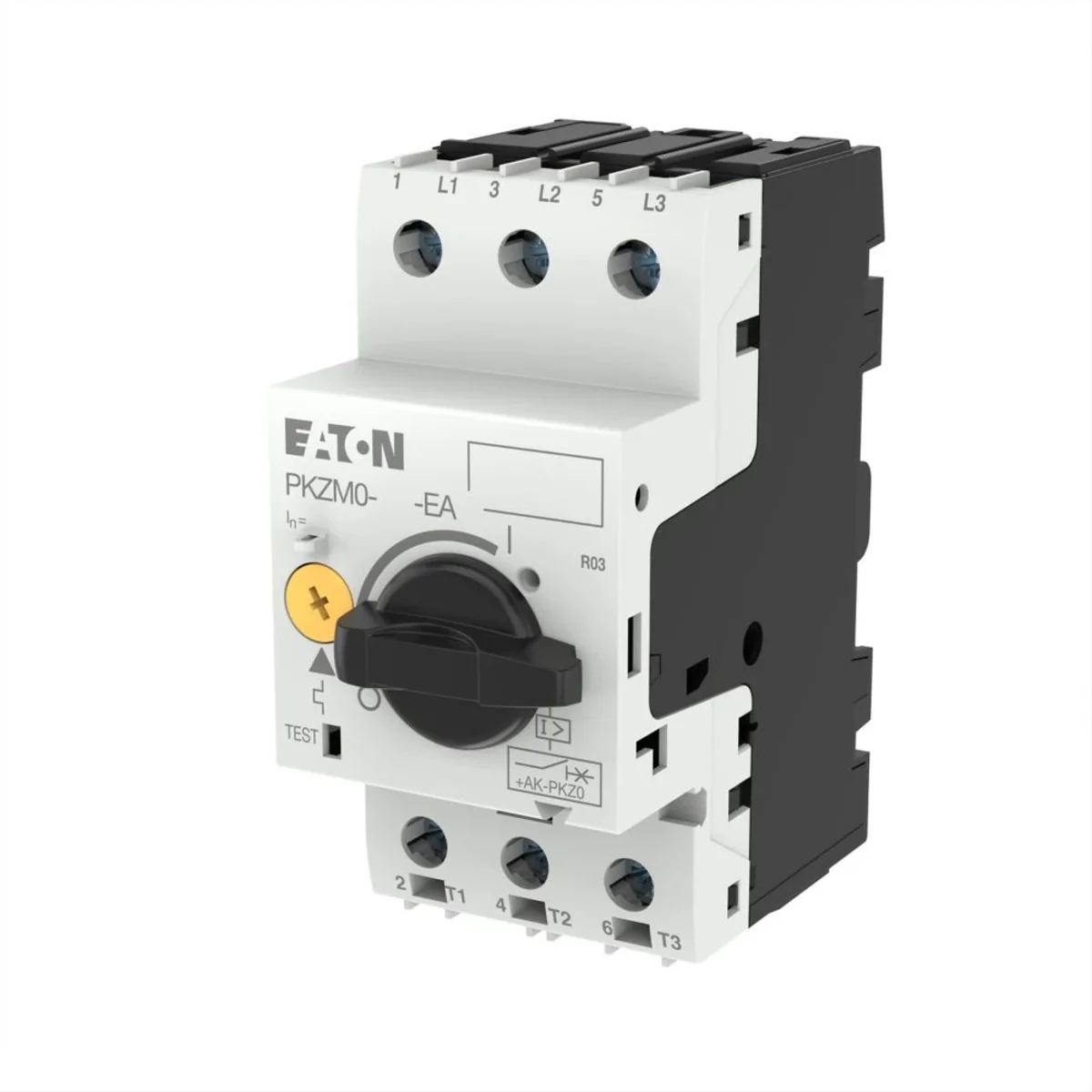

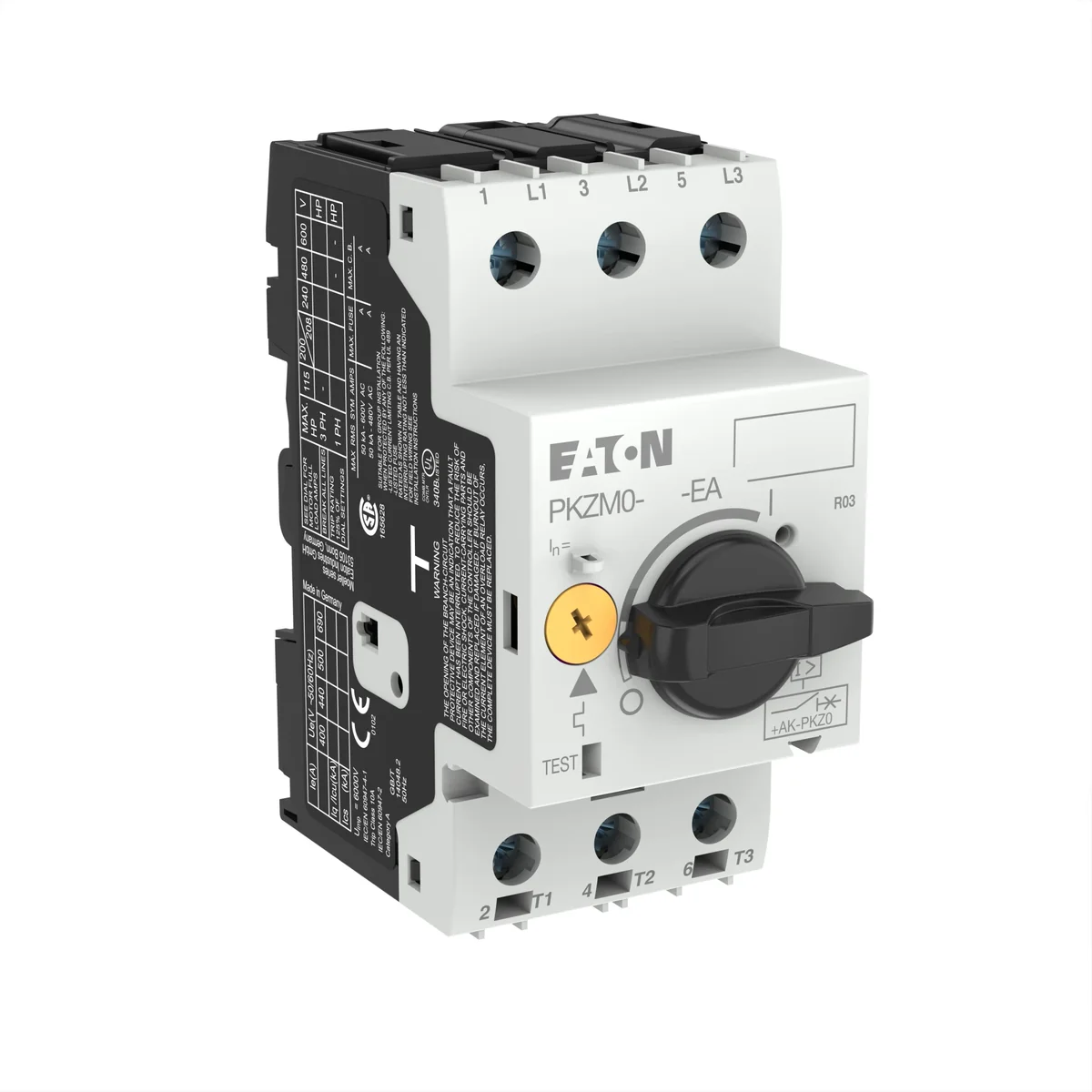

Motor circuit breaker PKZM0-1-EA 0.63-1A IP20 189898

Index local:
ASN028MOEL
Numéro de catalogue:
189898
Code EAN:
4015081878949
Producteur: EATON
Depth [mm]: 76
Overvoltage category: III
Number of poles: 3
Prix:
33,37 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Accessible 42 pcs.
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Short downtimes of machines and installations require the devices used to be quickly ready to operation. Without fuses, the PKZ provides simultaneously short-circuit protection and overload protection.

Features:

  • ATEX approved for protection EEx motors up to 65 A
  • Simple planning thanks to short circuit strength at least 50kA
  • Trip indicator enables remote diagnostics
  • High safety with use as main switch or repair and maintenance

Données techniques

  • Depth [mm]
    76
  • Number of poles
    3
  • Level of security
    IP20
  • Width [number of modules]
    3
  • Mechanical durability [Number of connections]
    100000
  • Short-circuit strength [kA]
    60
  • Short-circuit release [A]
    15.5
  • Maximum operating voltage [V]
    690
  • Rated surge voltage [V]
    6000
  • Rated switching capacity [A]
    1
  • Rated operating power for AC-3 400V [kW]
    0.25
  • Overvoltage category
    III
  • Installation
    On the TH-35 rail
  • Degree of contamination
    3
  • Width [mm]
    45
  • Height [mm]
    93
  • Overload release [A]
    0.63-1
  • Rated operational current [A]
    1
  • trigger mode
    Thermomagnetic
  • Electrical durability [Number of operations]
    100000
  • Rated operating power for AC-3 230V [kW]
    0.12
  • Rated short-circuit breaking capacity Icu at 400V AC [kA]
    150

Autres données techniques

  • Overload release current setting
    0.63 ... 1 A
  • With thermal overload protection
    No
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    1 A
  • Rated operation power at AC-3, 400 V
    0.25 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    15.5 ... 15.5 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.12 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    150 kA
  • Height
    93 mm
  • Depth
    76 mm

Détails du fabricant

  • Producteur
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska

Emballage en vrac

Une sorte de paquet Skrzynia
Quantité 1 pcs.
poids (kg) 0,262
Volume (m3) 0,000
Largeur (m) 0,048
Longueur (m) 0,080
Profondeur (m) 0,097
