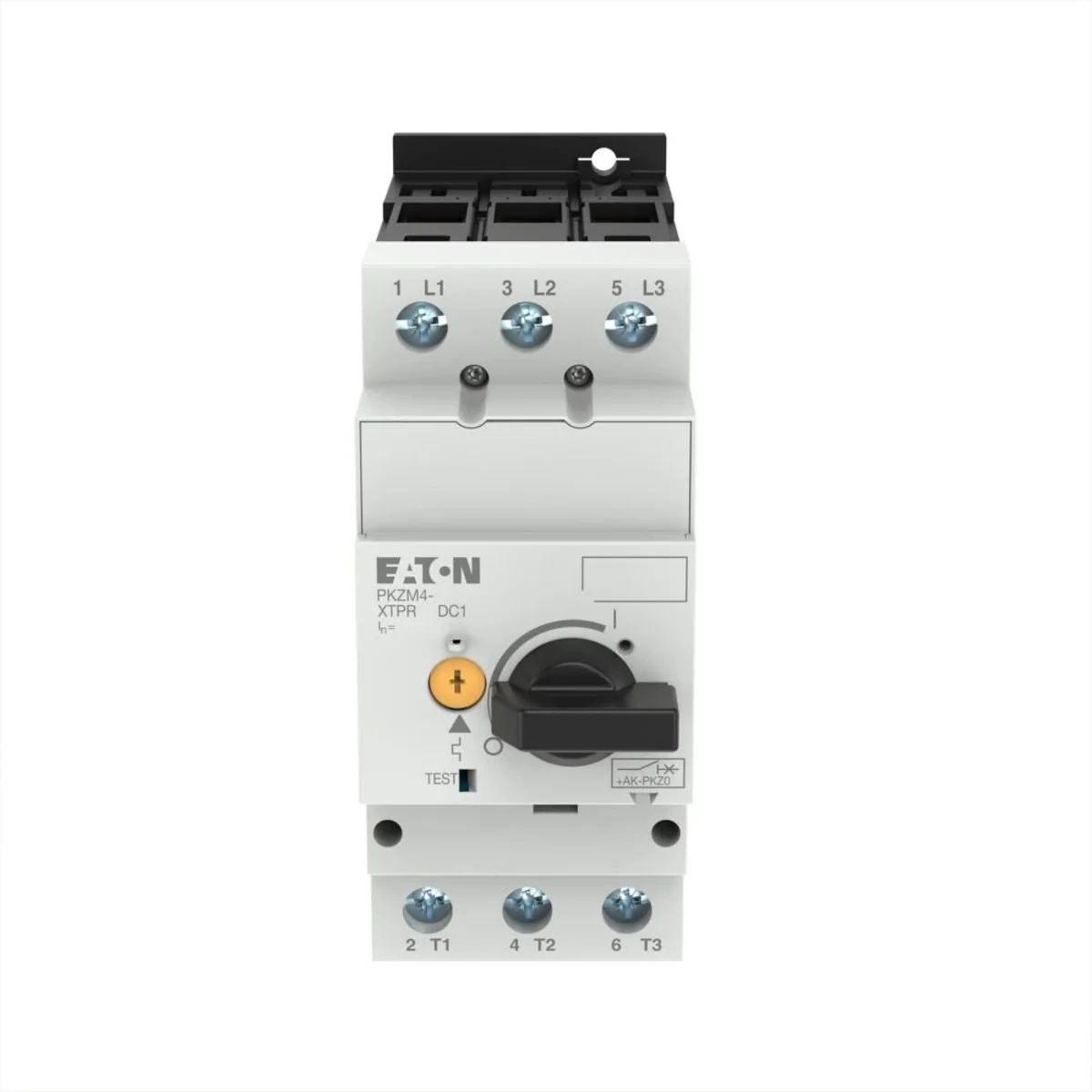

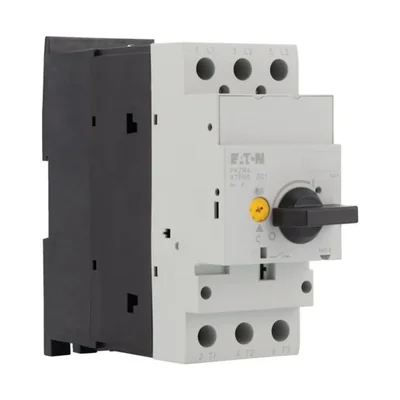

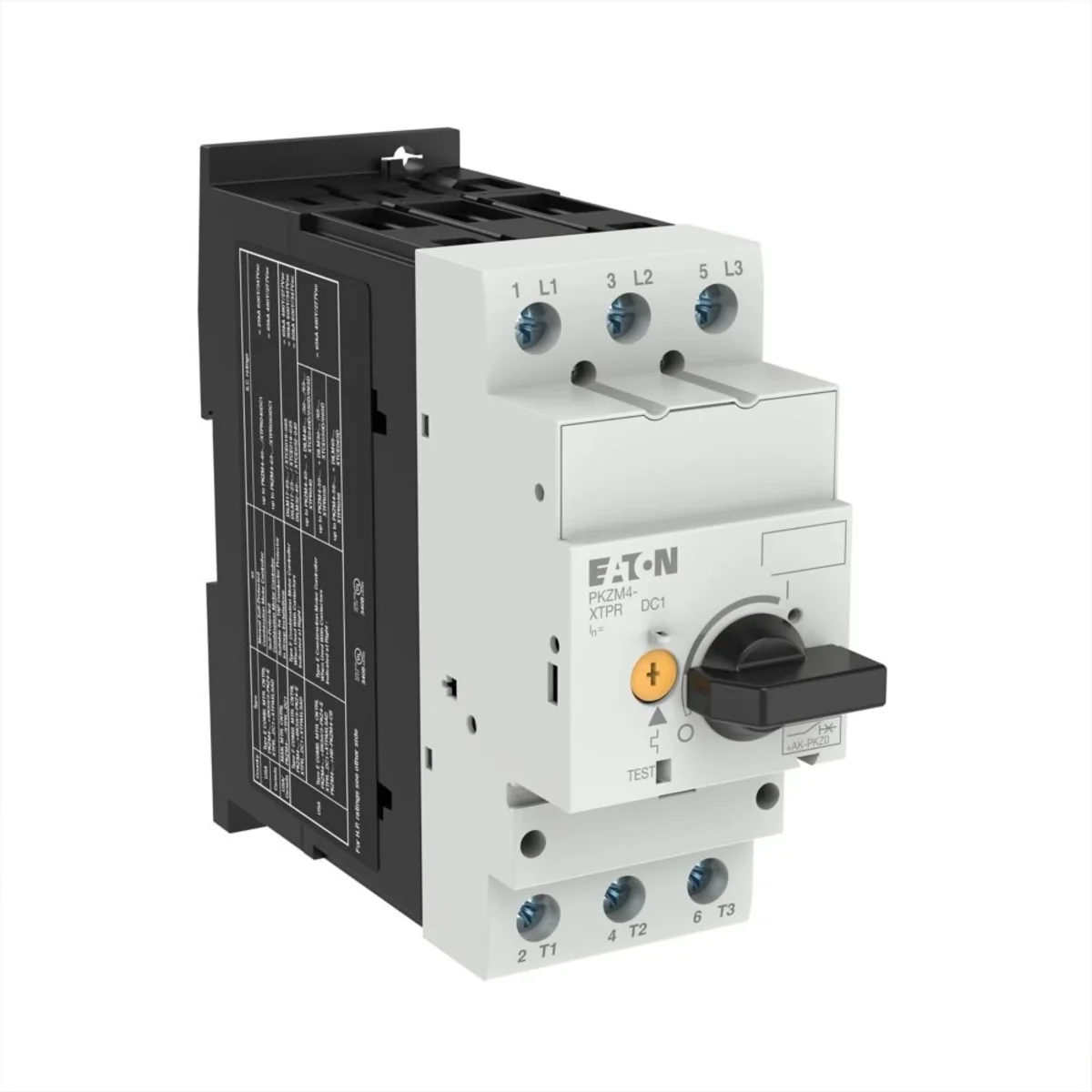

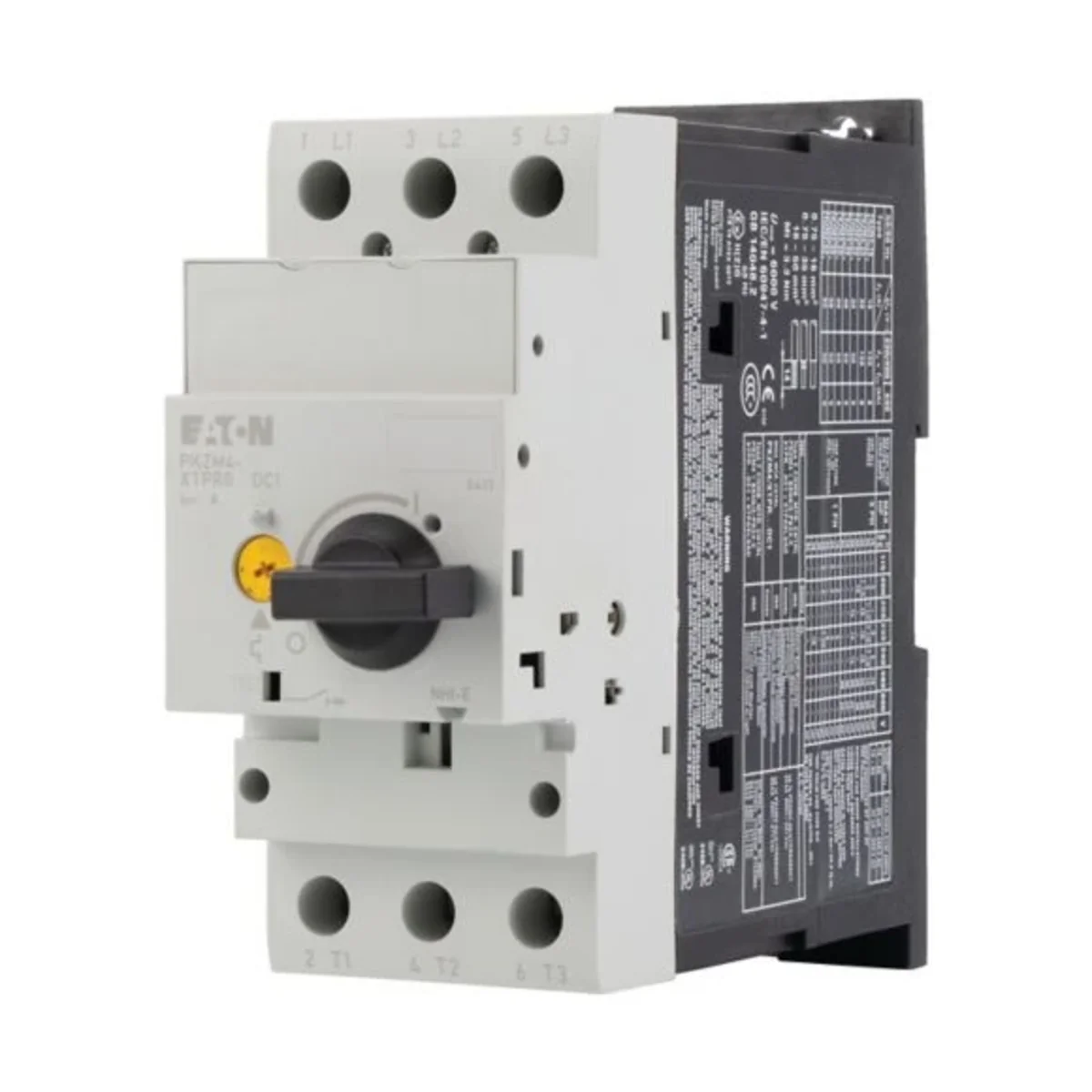

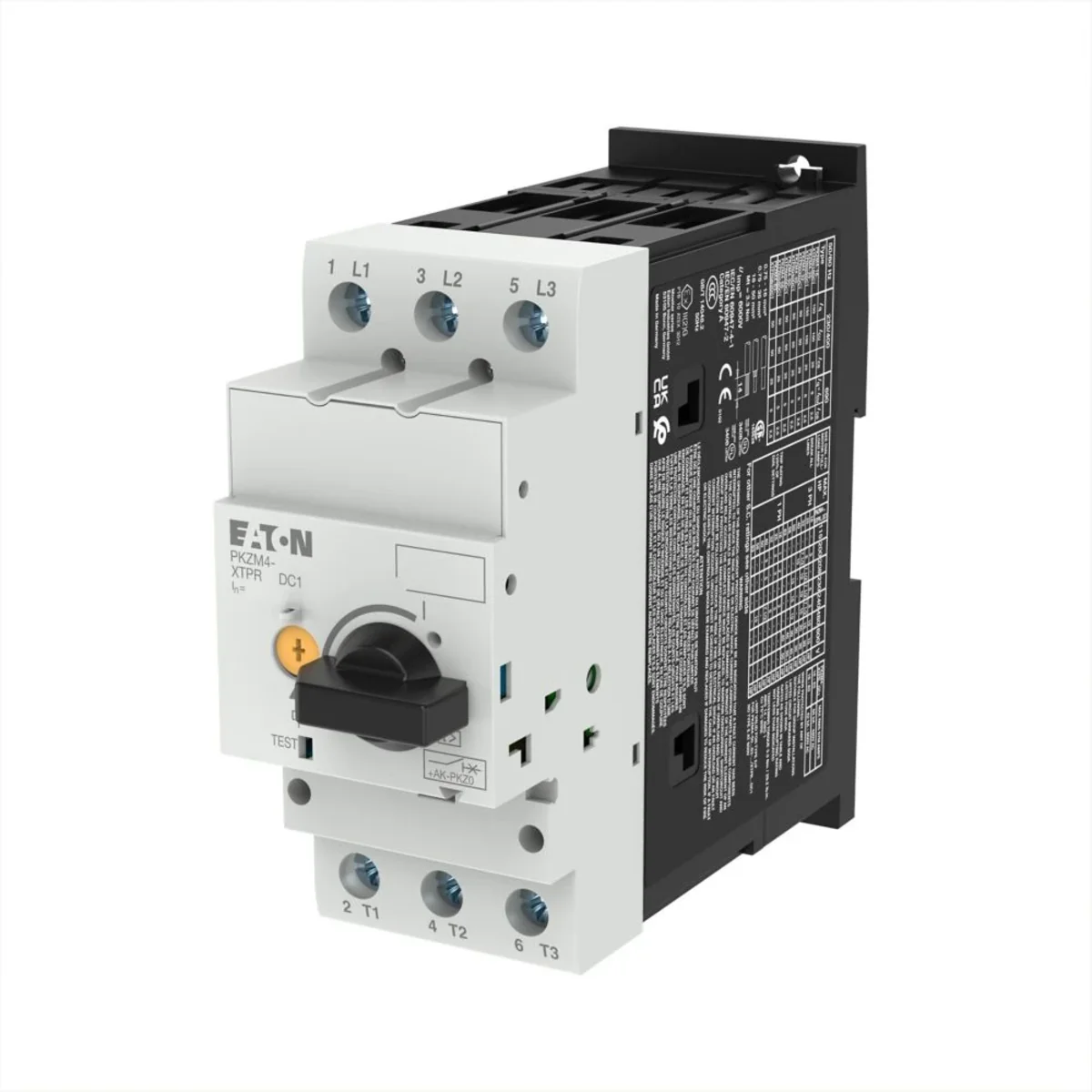

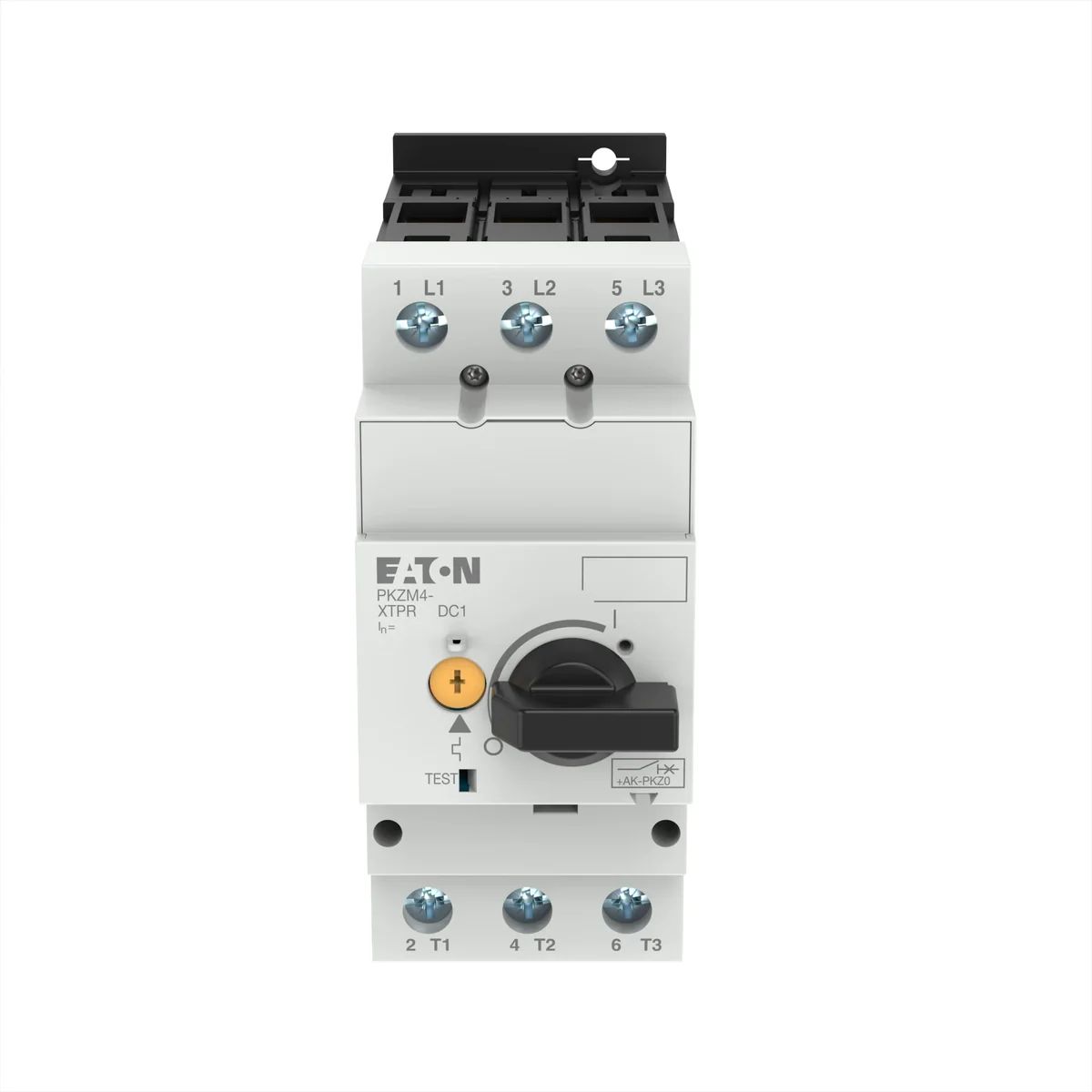

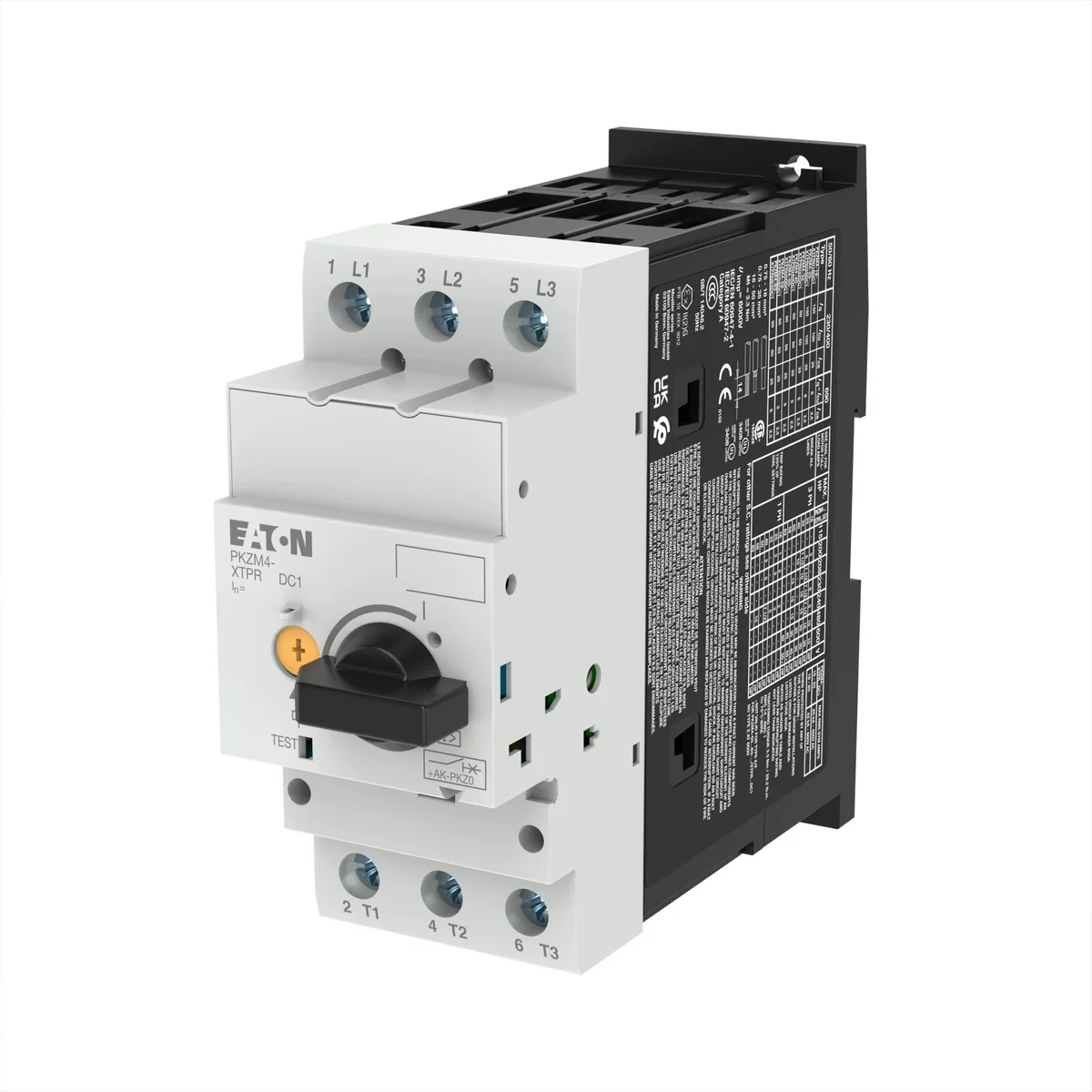

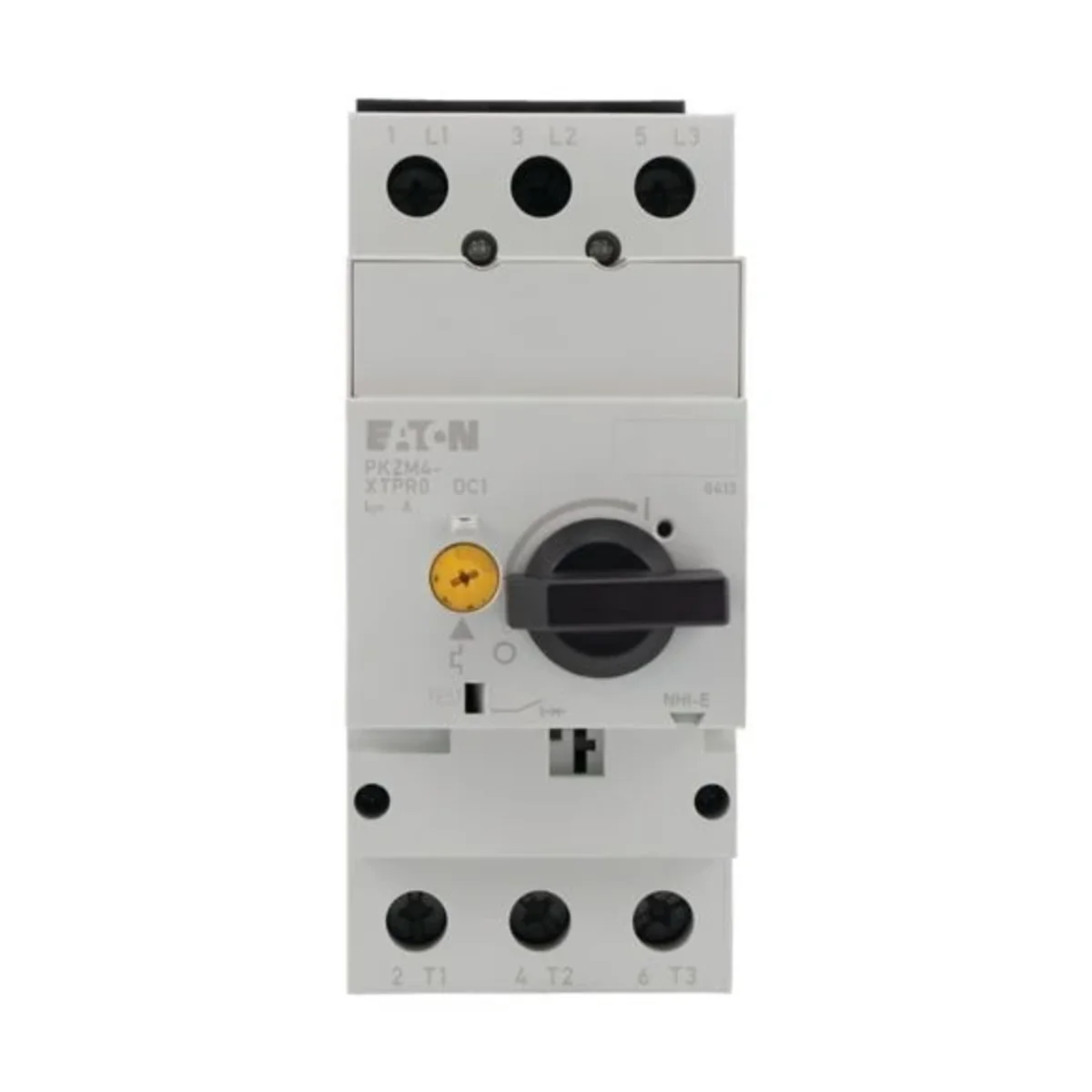

Motor circuit breaker 50A, 40-50kW, PKZM4-50 222355
local index:
ASN207MOEL
Catalog No:
222355
EAN code:
4015082223557
Manufacturer:
EATON
Continuous current [A]: 50
Overload release [A]: 40-50
Short-circuit release [A]: 700
Price:
406,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Automatic motor circuit breaker PKZM0.
Technical data
-
Continuous current [A]50
-
Short-circuit release [A]700
-
Overload release [A]40-50
Other technical data
-
Overload release current setting40 ... 50 A
-
With thermal overload protectionNo
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu50 A
-
Rated operation power at AC-3, 400 V25 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width55 mm
-
Adjustment range undelayed short-circuit release775 ... 775 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V14 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Height140 mm
-
Depth160 mm
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 1,200 |
| Volume (m3) | 0,001 |
| Width (m) | 0,058 |
| Length (m) | 0,165 |
| Depth (m) | 0,143 |
