EATON

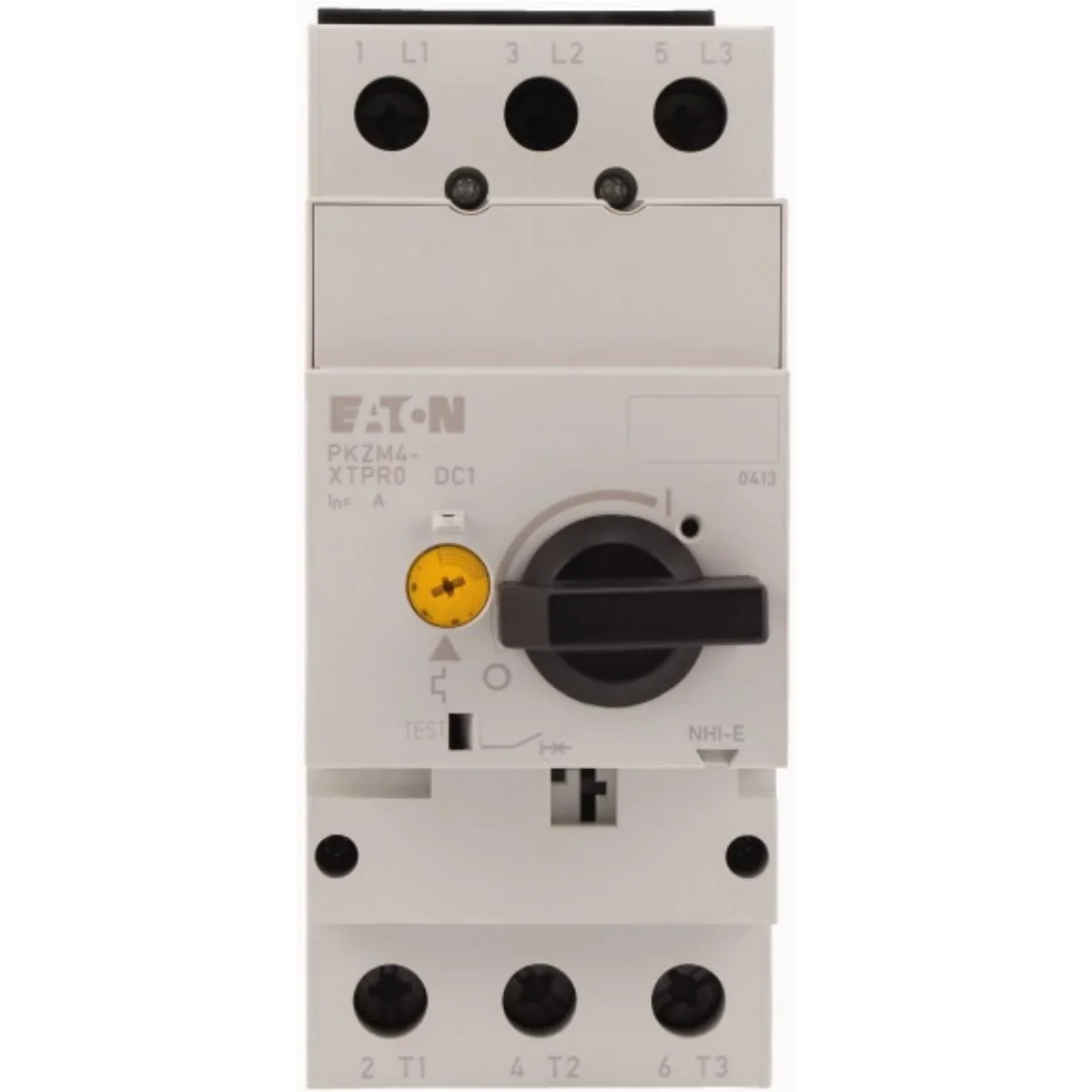

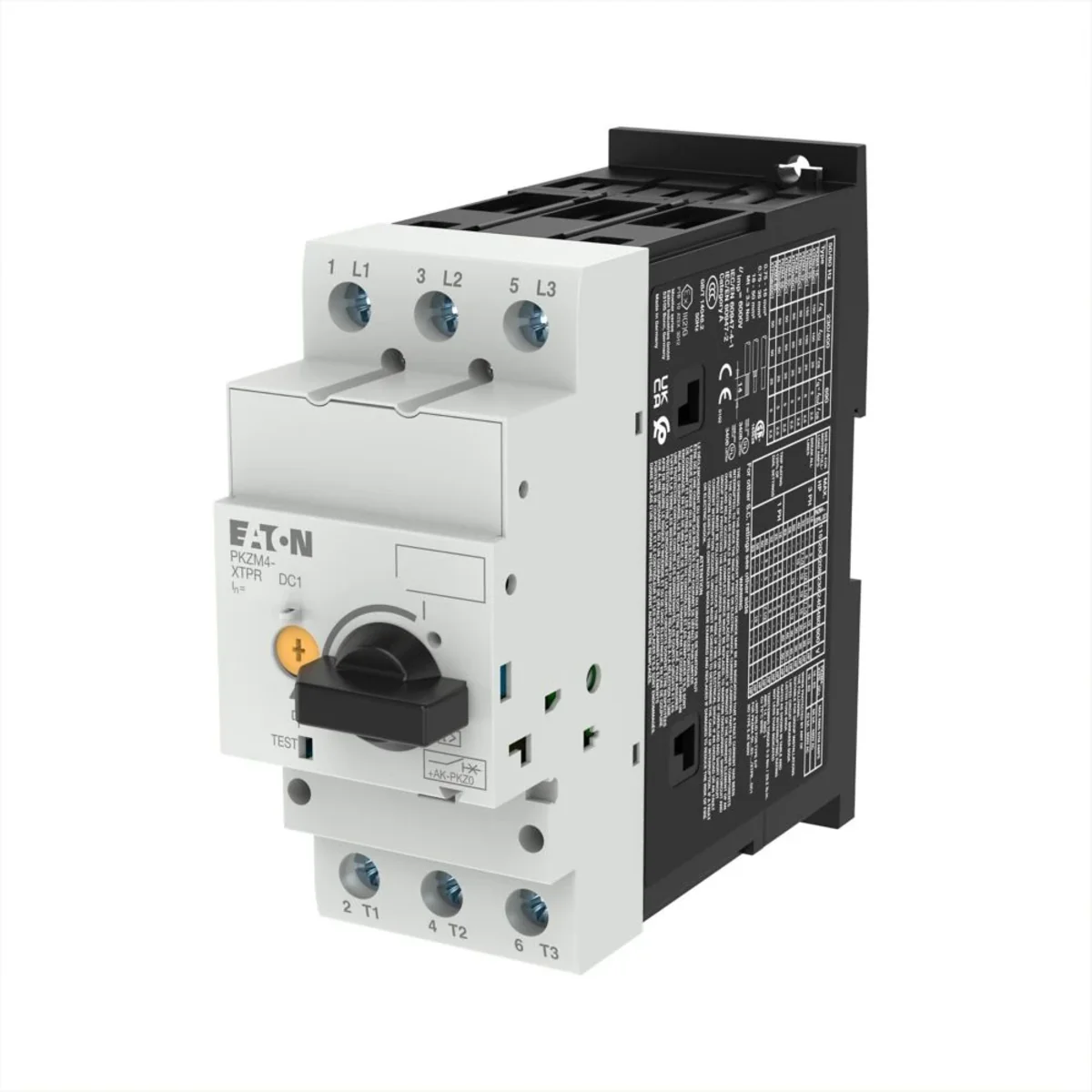

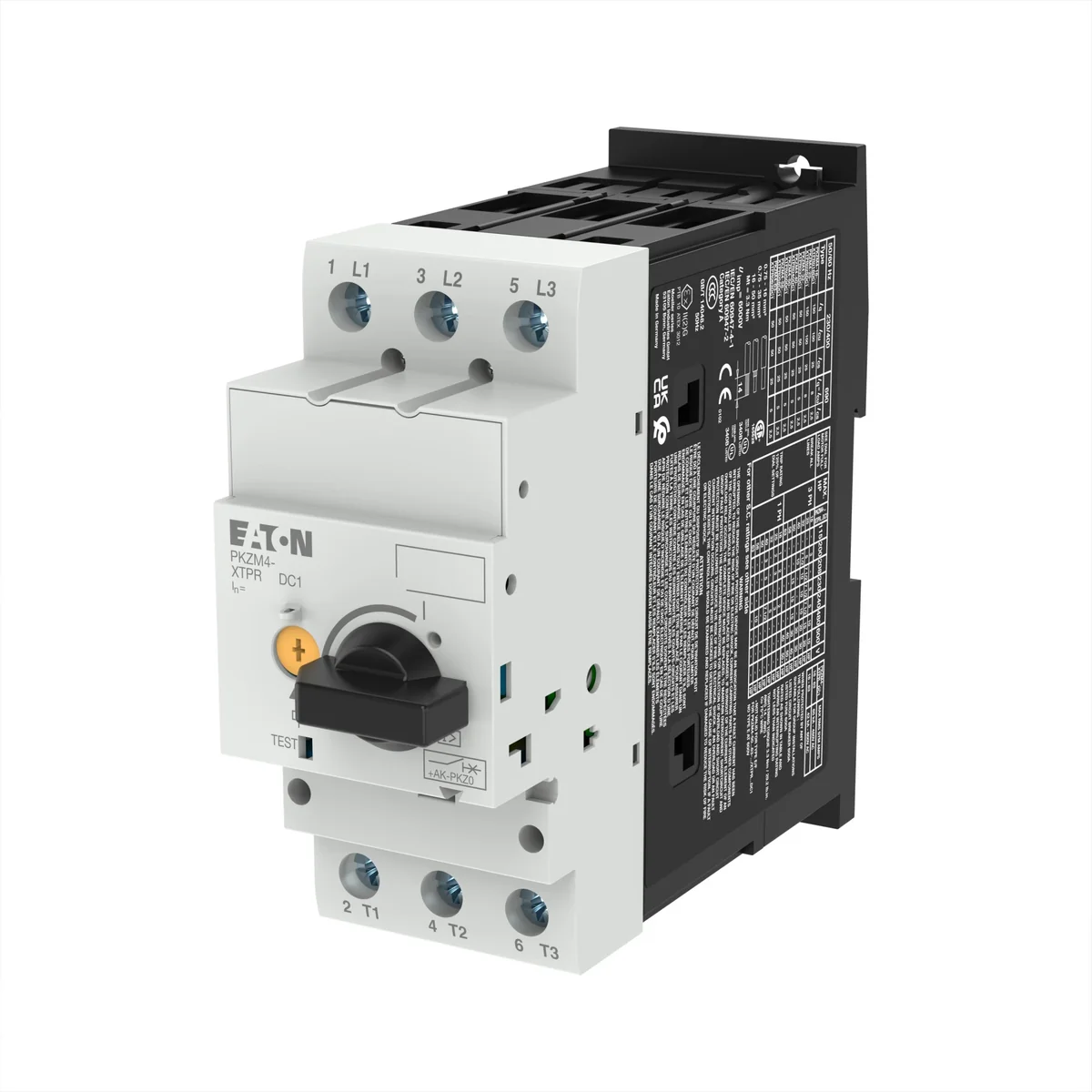

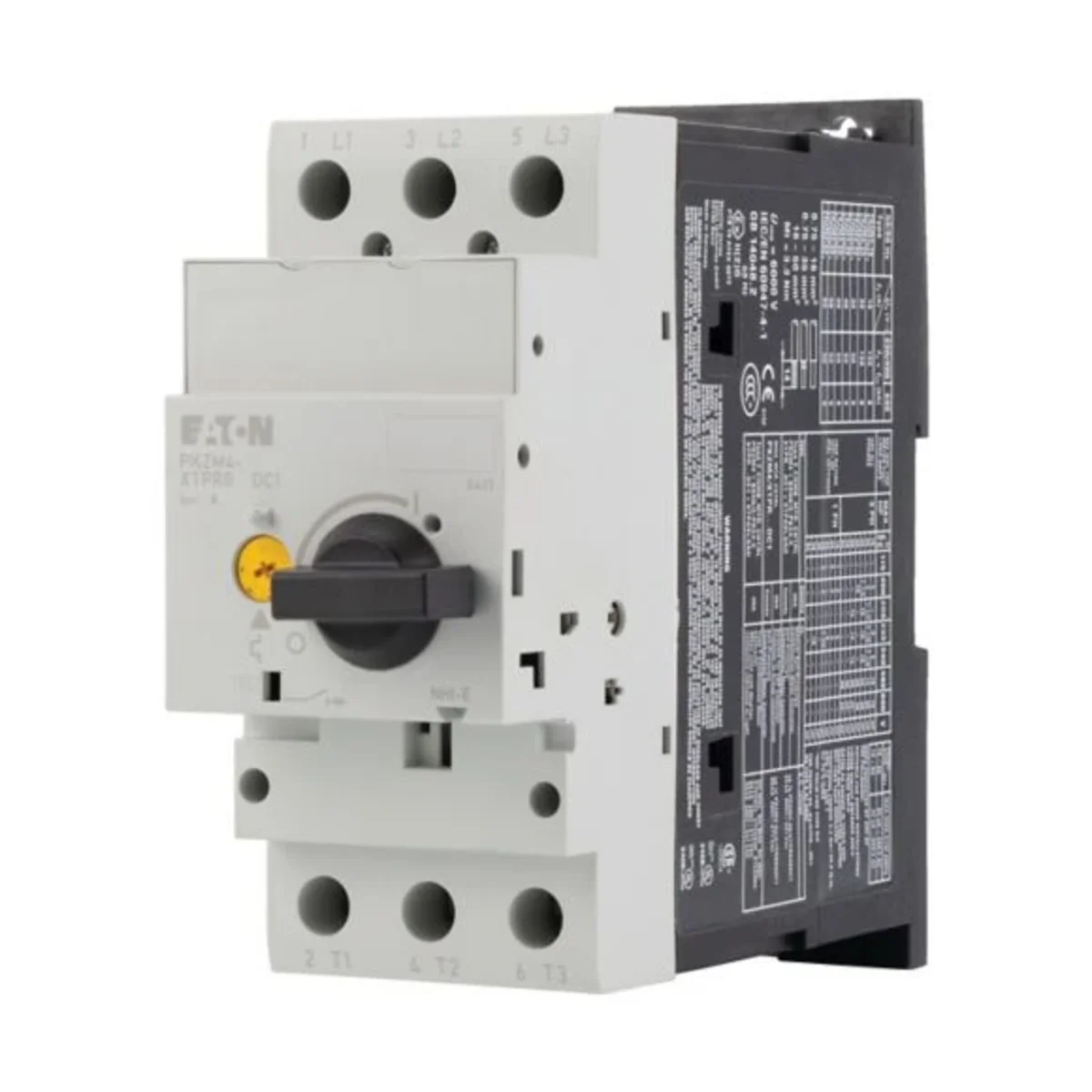

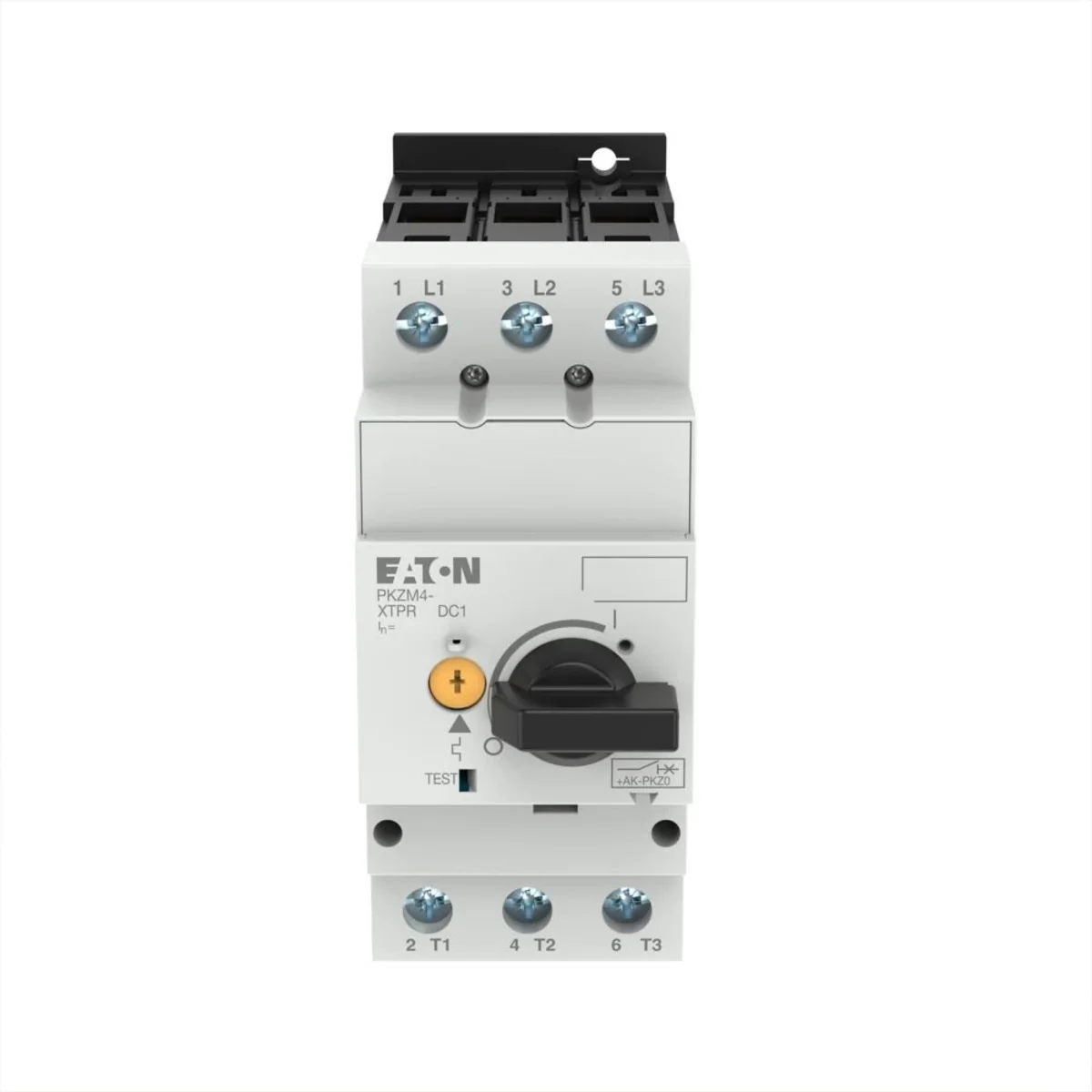

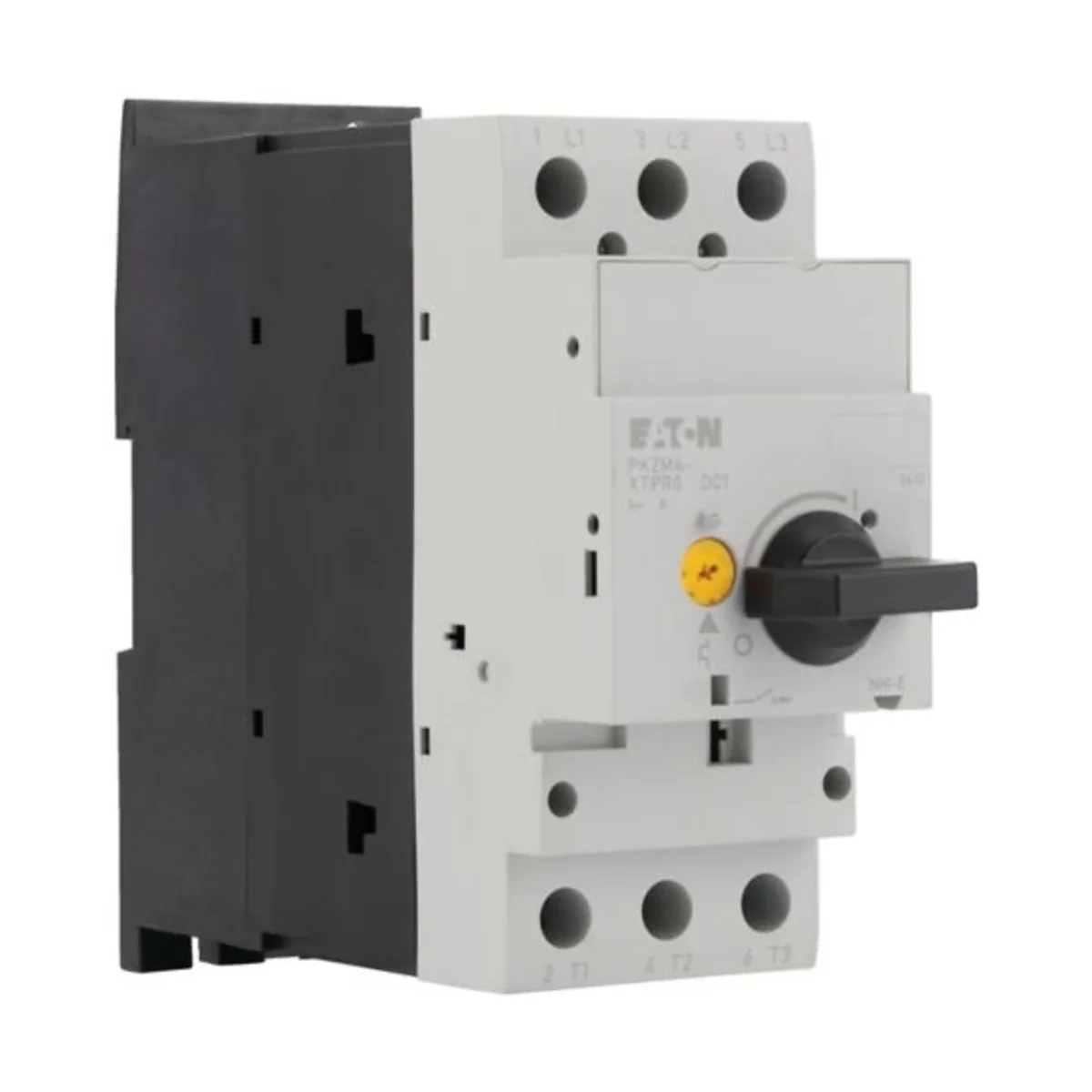

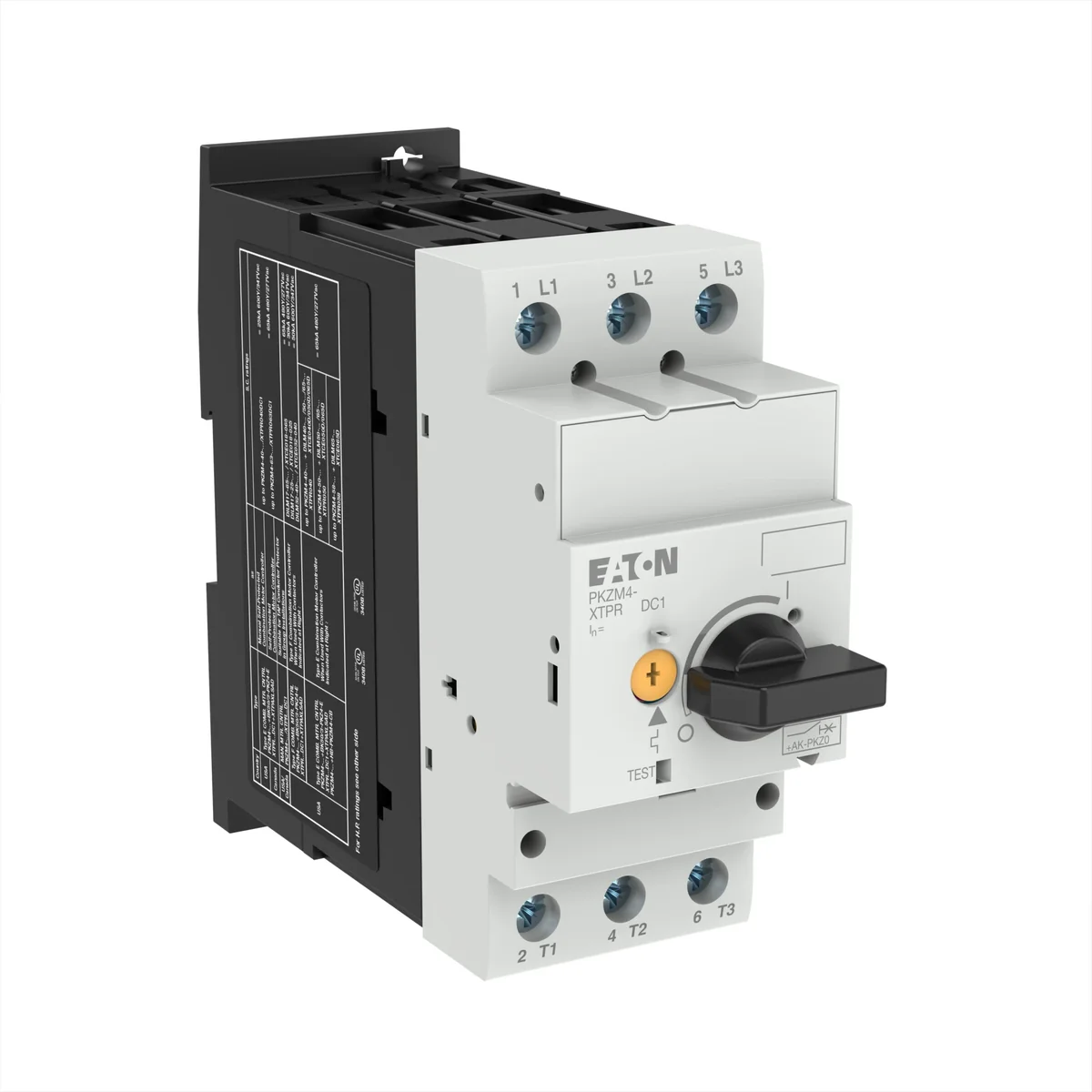

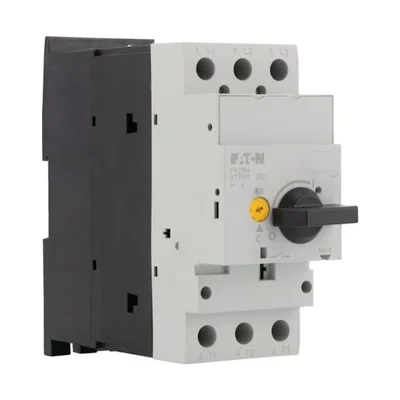

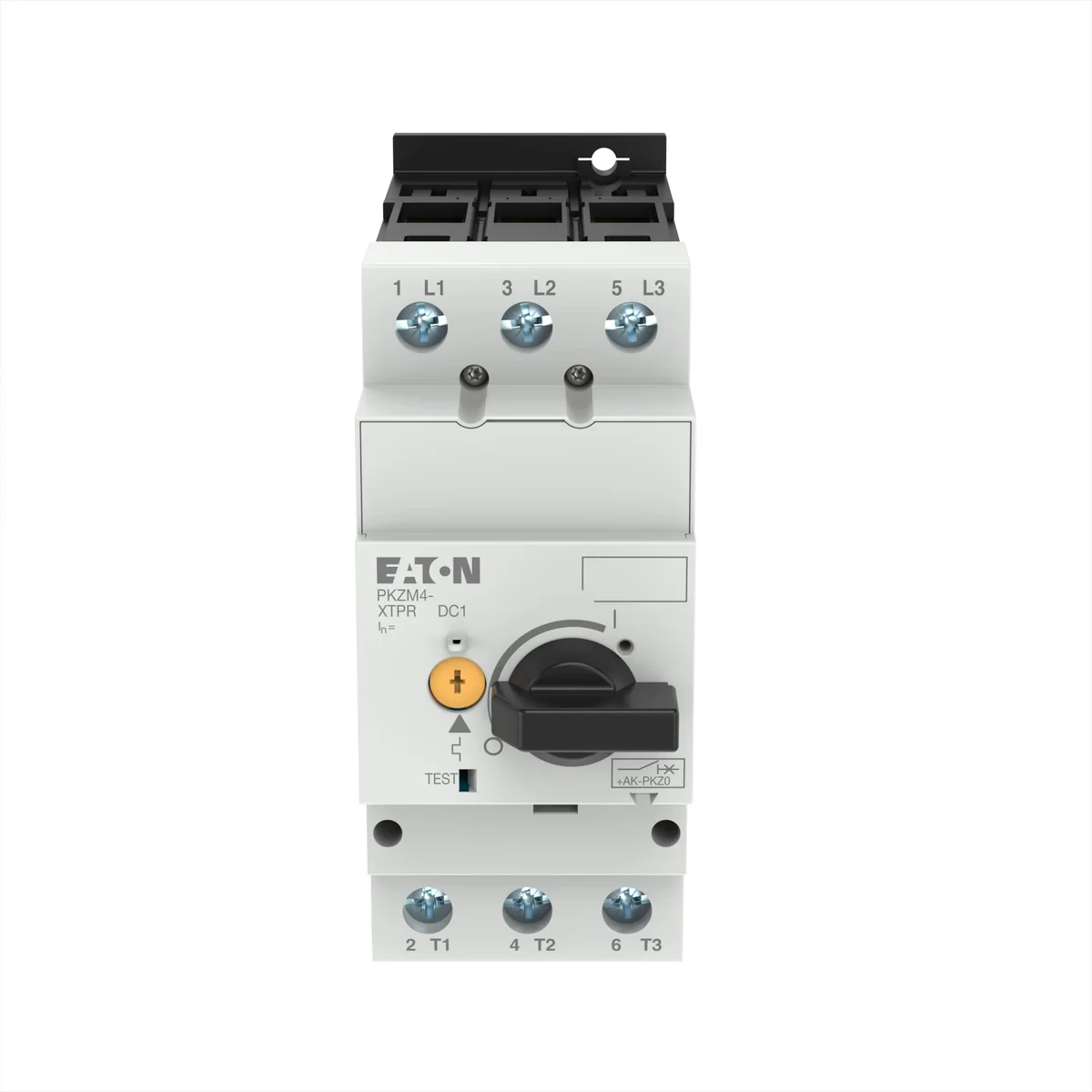

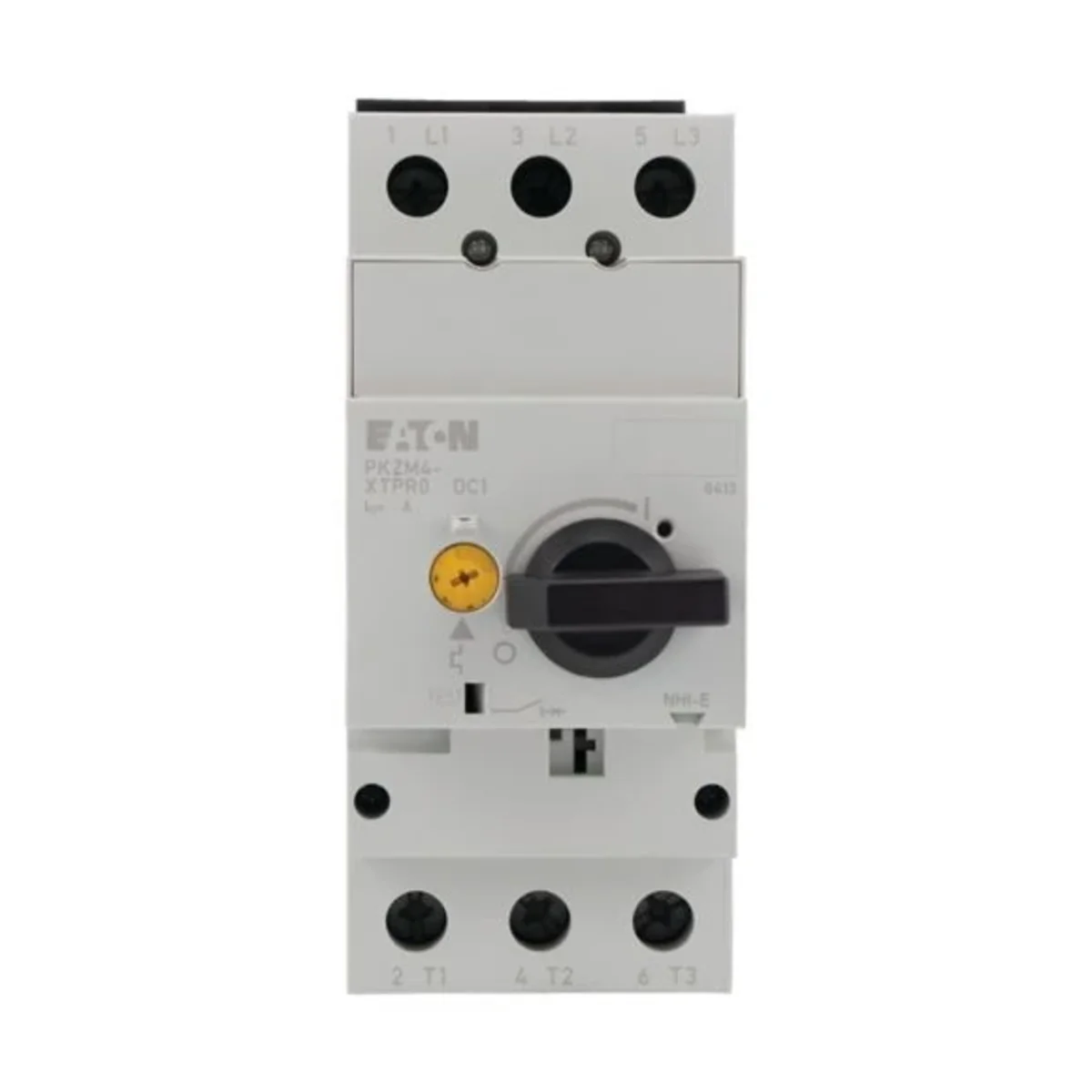

Motor circuit breaker 40A, 32kW, PKZM4-40 222354

local index:
ASN206MOEL
Catalog No:
222354
EAN code:
4015082223540
Price:
471,30 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Automatic motor circuit breaker PKZM0.

Technical data

  • Continuous current [A]
    40
  • Short-circuit release [A]
    560
  • Overload release [A]
    32

Other technical data

  • Overload release current setting
    32 ... 40 A
  • With thermal overload protection
    no
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    40 A
  • Rated operation power at AC-3, 400 V
    20 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    no
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    55 mm
  • Adjustment range undelayed short-circuit release
    620 ... 620 A
  • Phase failure sensitive
    yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    11 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    no
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Height
    140 mm
  • Depth
    160 mm
