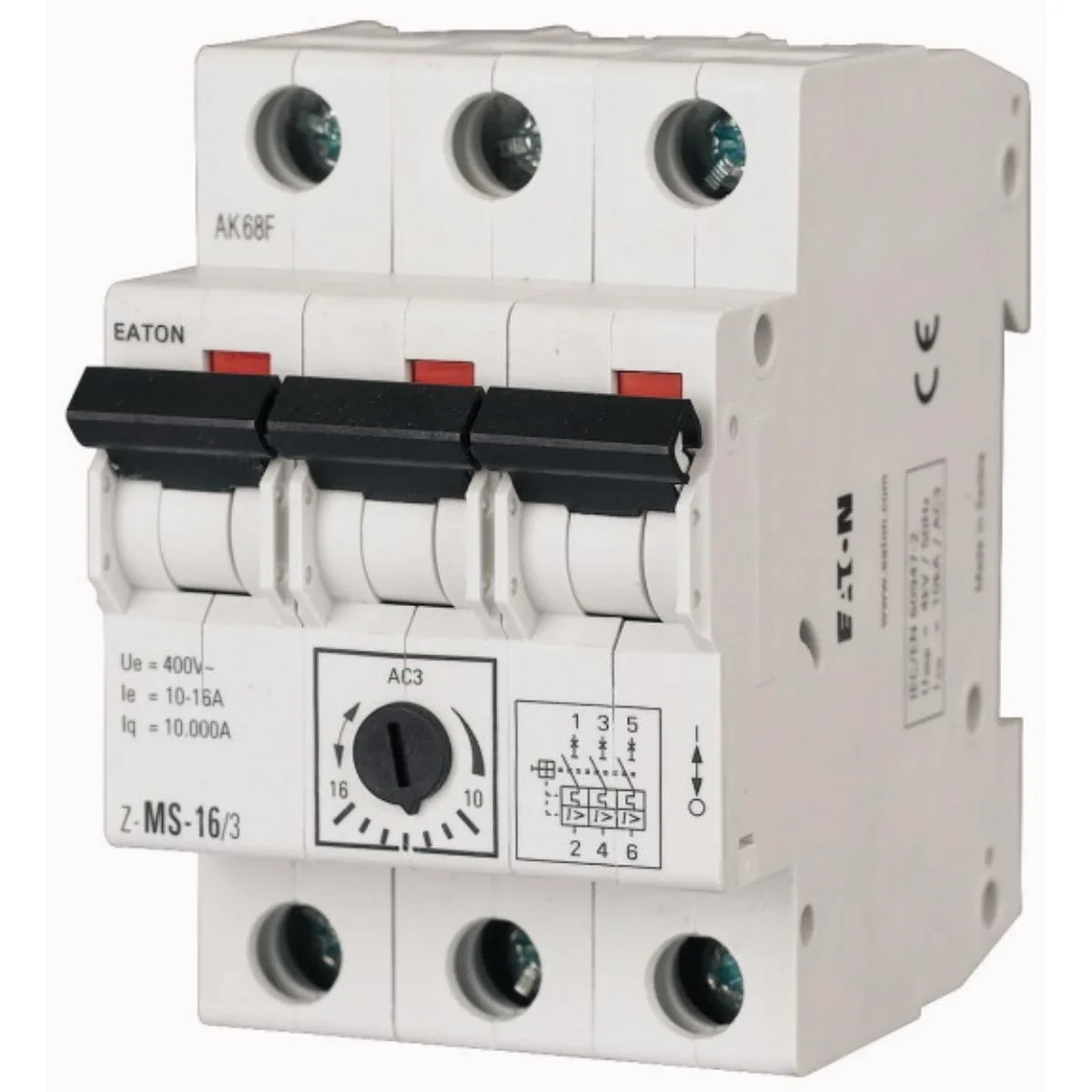

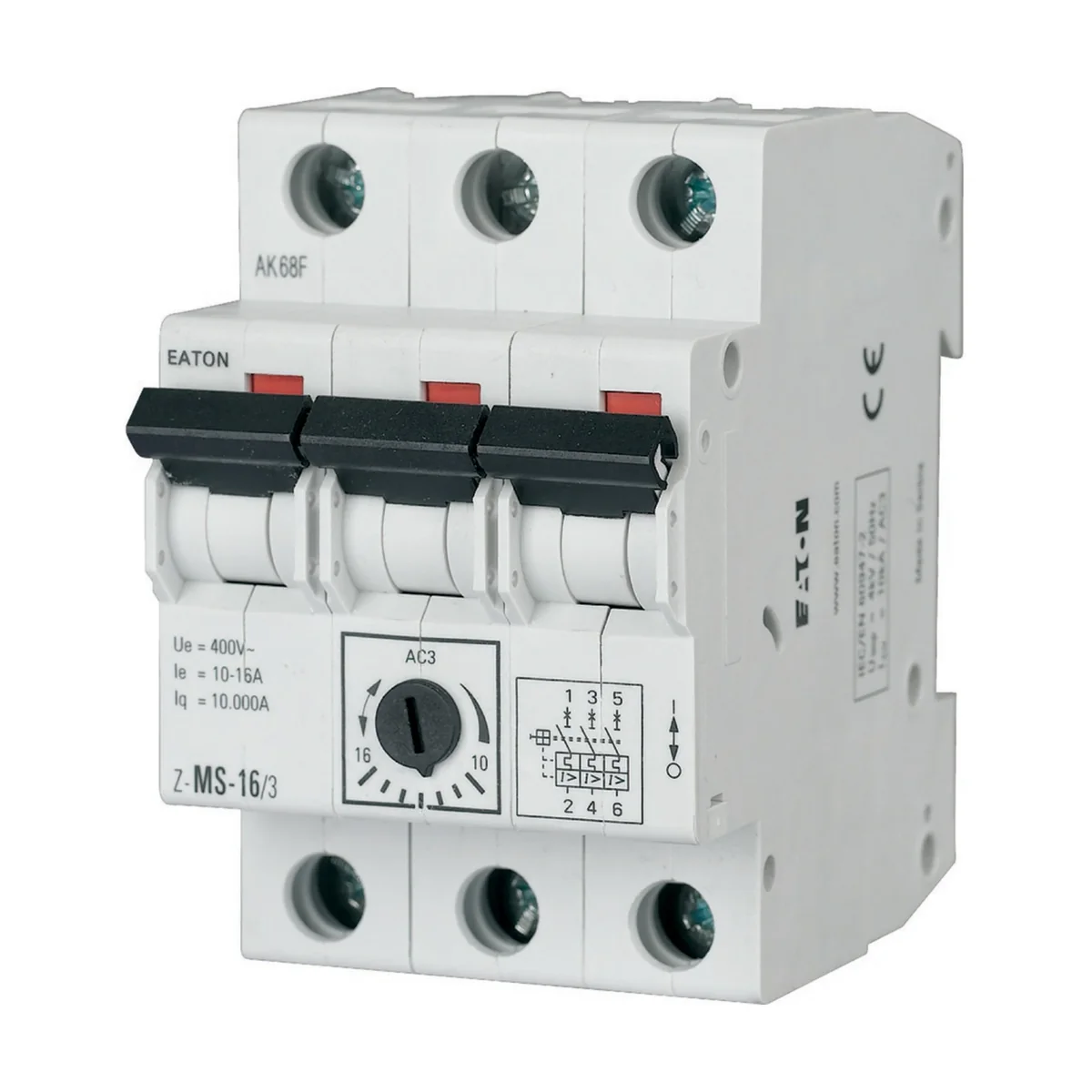

Motor circuit breaker 3A, 3-pole, Z-MS-16/3 248412
local index:
ASN500MOEL
Catalog No:
248412
EAN code:
4015082484125
Price:
47,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Z-MS motor circuit breakers - rated conditional short-circuit current Iq = 10kA
Technical data
-
Number of poles3
-
PKWIU27.40.30.0
-
Overload release setting range [A]10.0-16.0
Other technical data
-
Overload release current setting10 ... 16 A
-
With thermal overload protectionYes
-
Switch off techniqueMagnetic
-
Rated permanent current Iu16 A
-
Rated operation power at AC-3, 400 V7.5 kW
-
Type of control elementRocker lever
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width54 mm
-
Adjustment range undelayed short-circuit release160 ... 208 A
-
Phase failure sensitiveNo
-
Rated operating voltage400 ... 400 V
-
Rated operation power at AC-3, 230 V0 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionComplete device in housing
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC10 kA
-
Height75 mm
-
Depth80 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 40 pcs. |
| Weight (kg) | 0,366 | 0,366 | 14,640 |
| Volume (m3) | 0,000 | 0,000 | 0,016 |
| Width (m) | 0,054 | 0,086 | 0,385 |
| Length (m) | 0,080 | 0,055 | 0,180 |
| Depth (m) | 0,075 | 0,075 | 0,230 |
