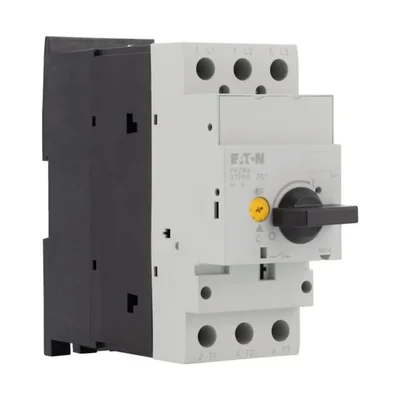

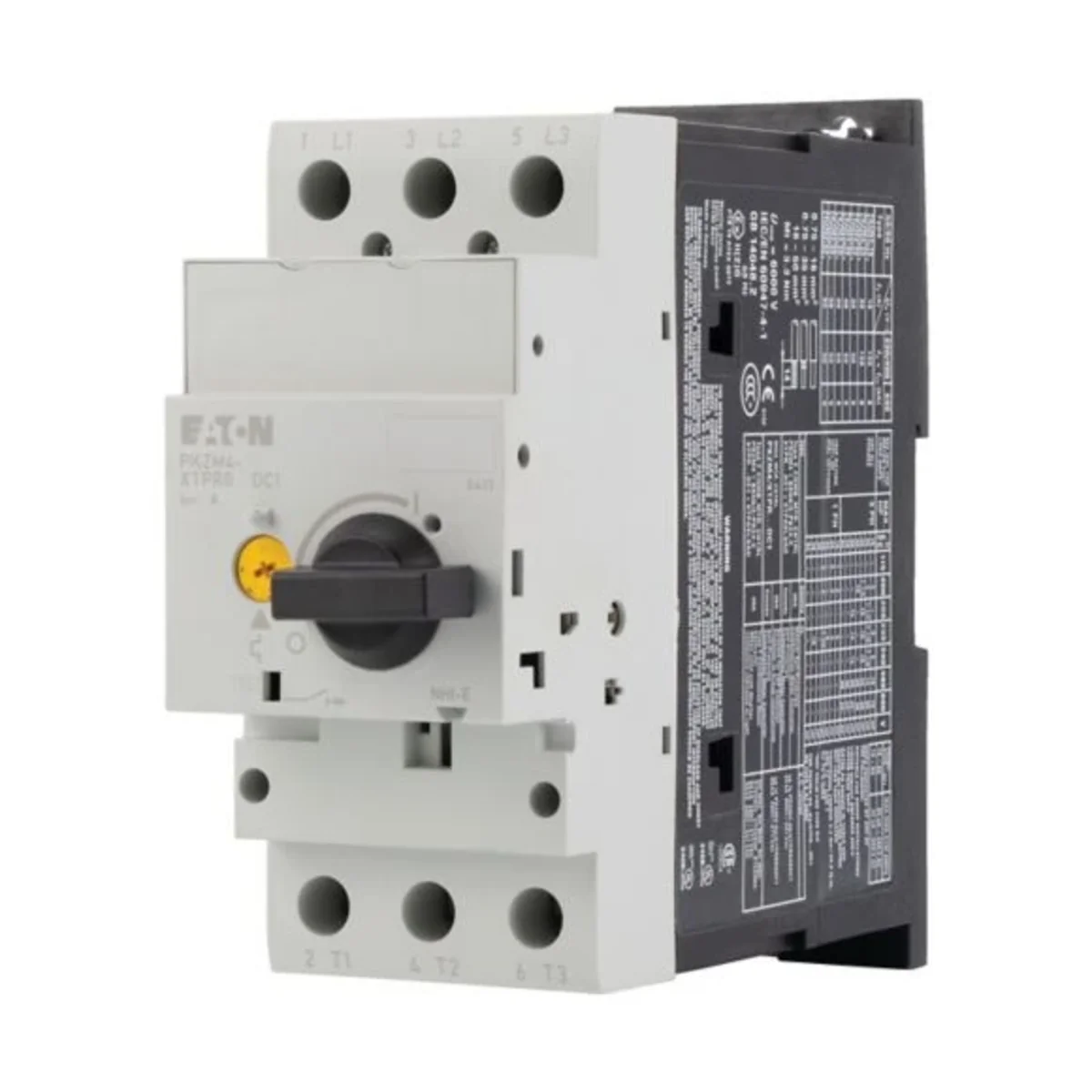

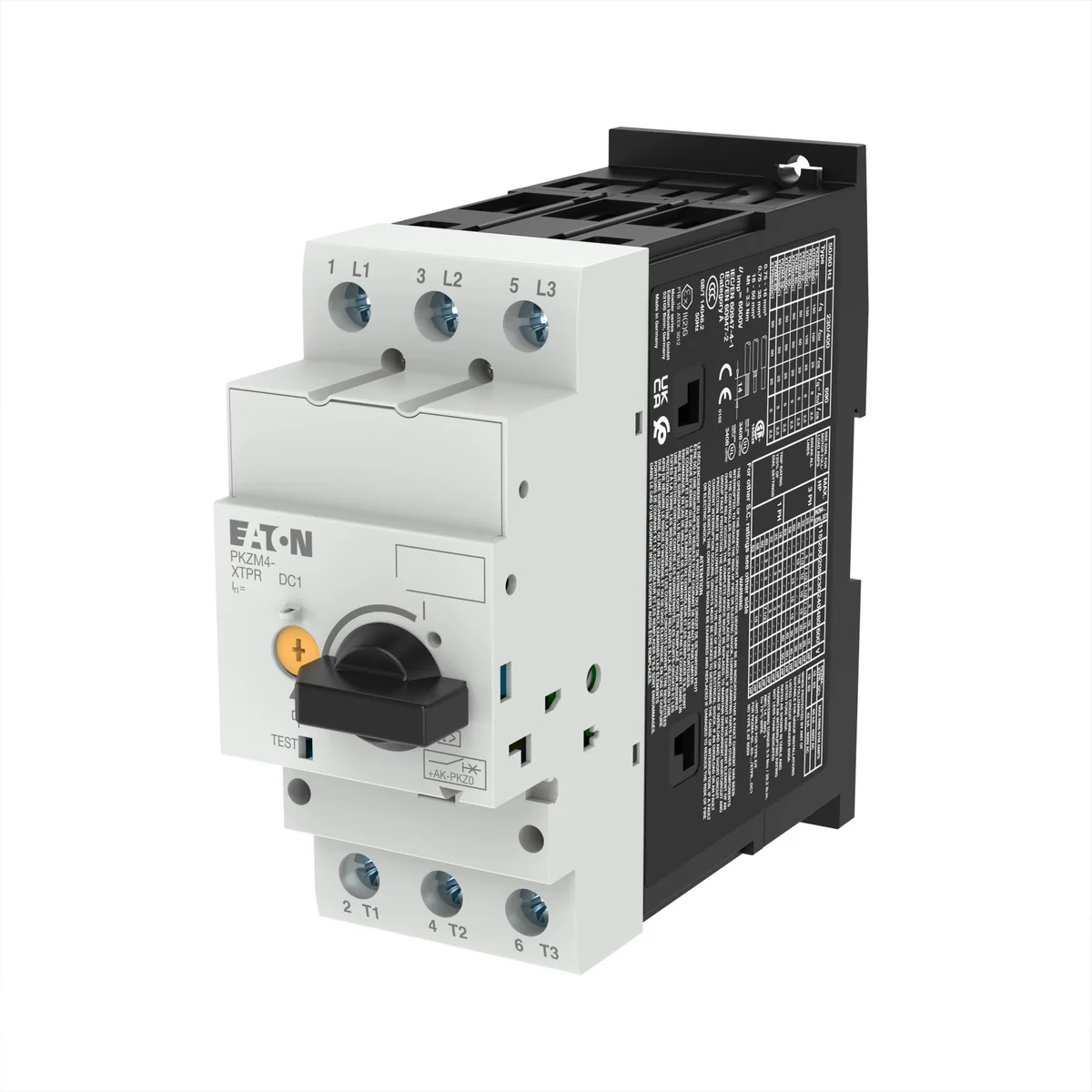

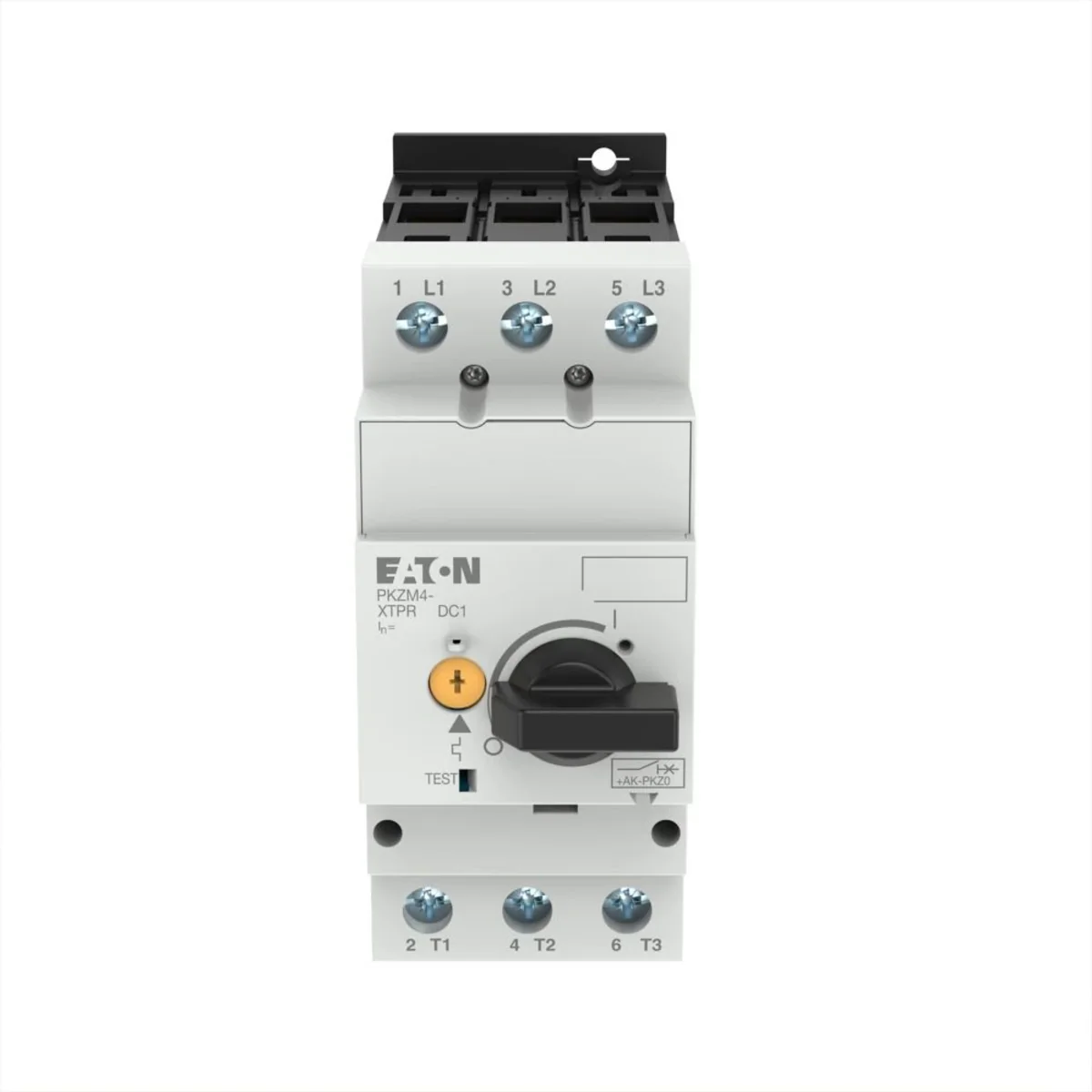

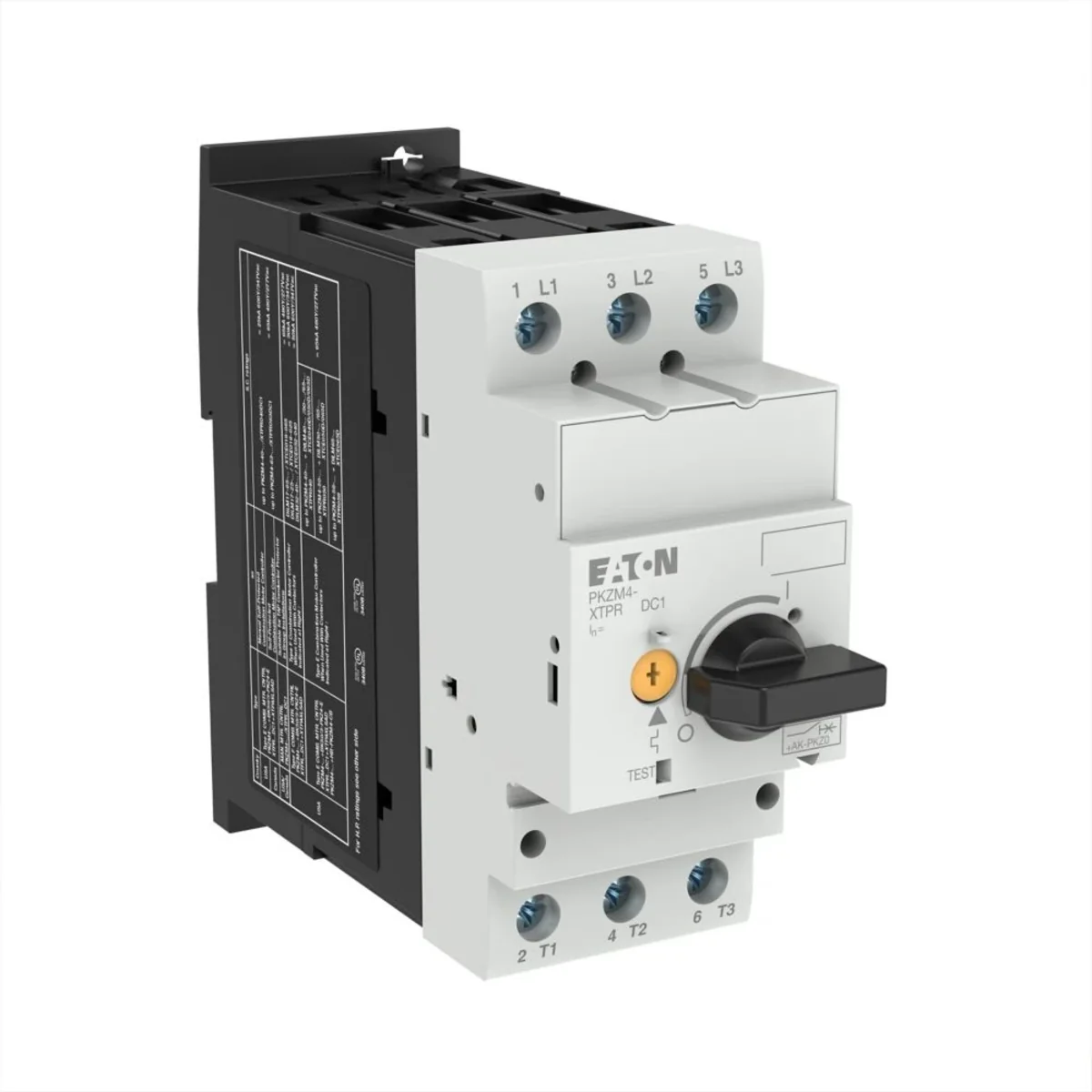

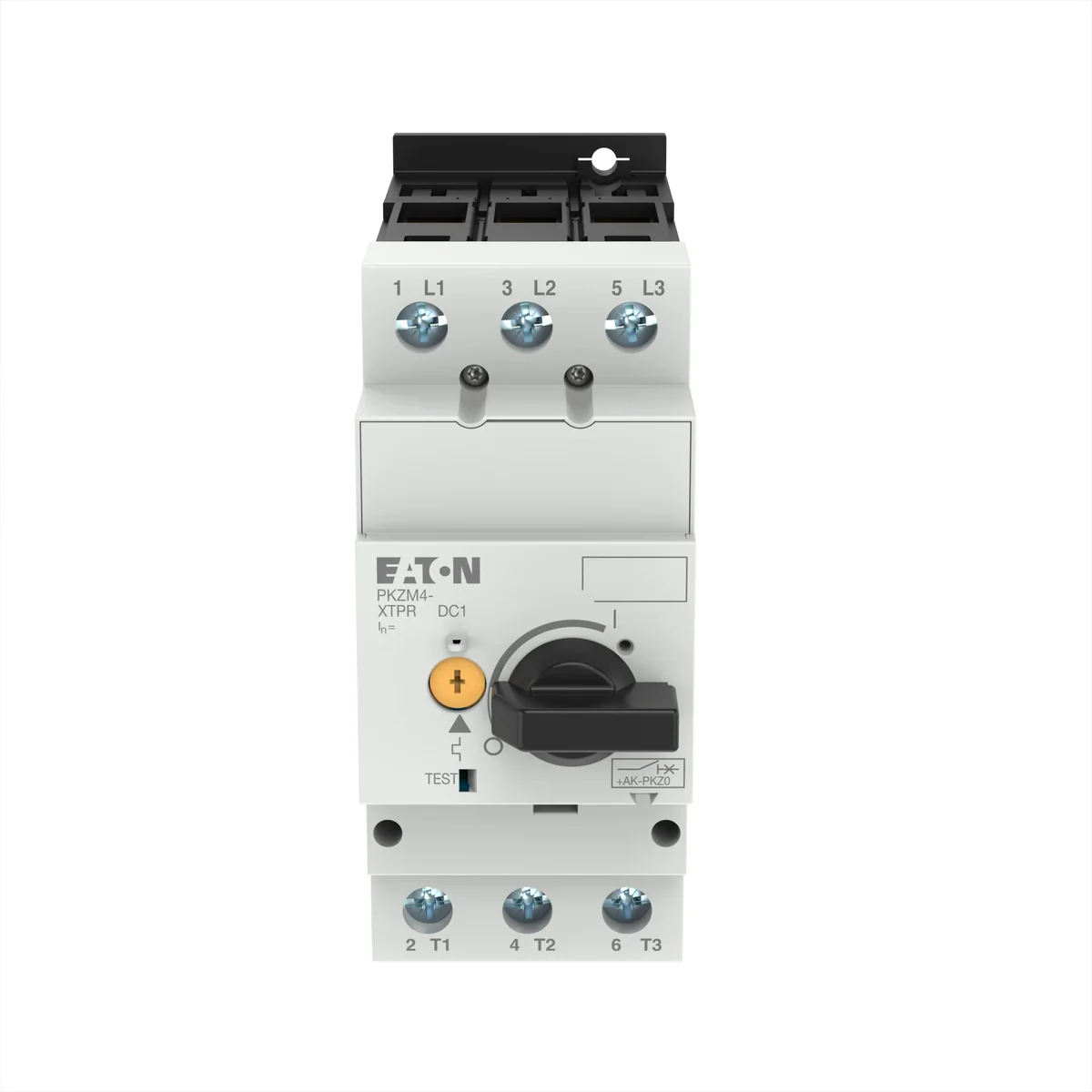

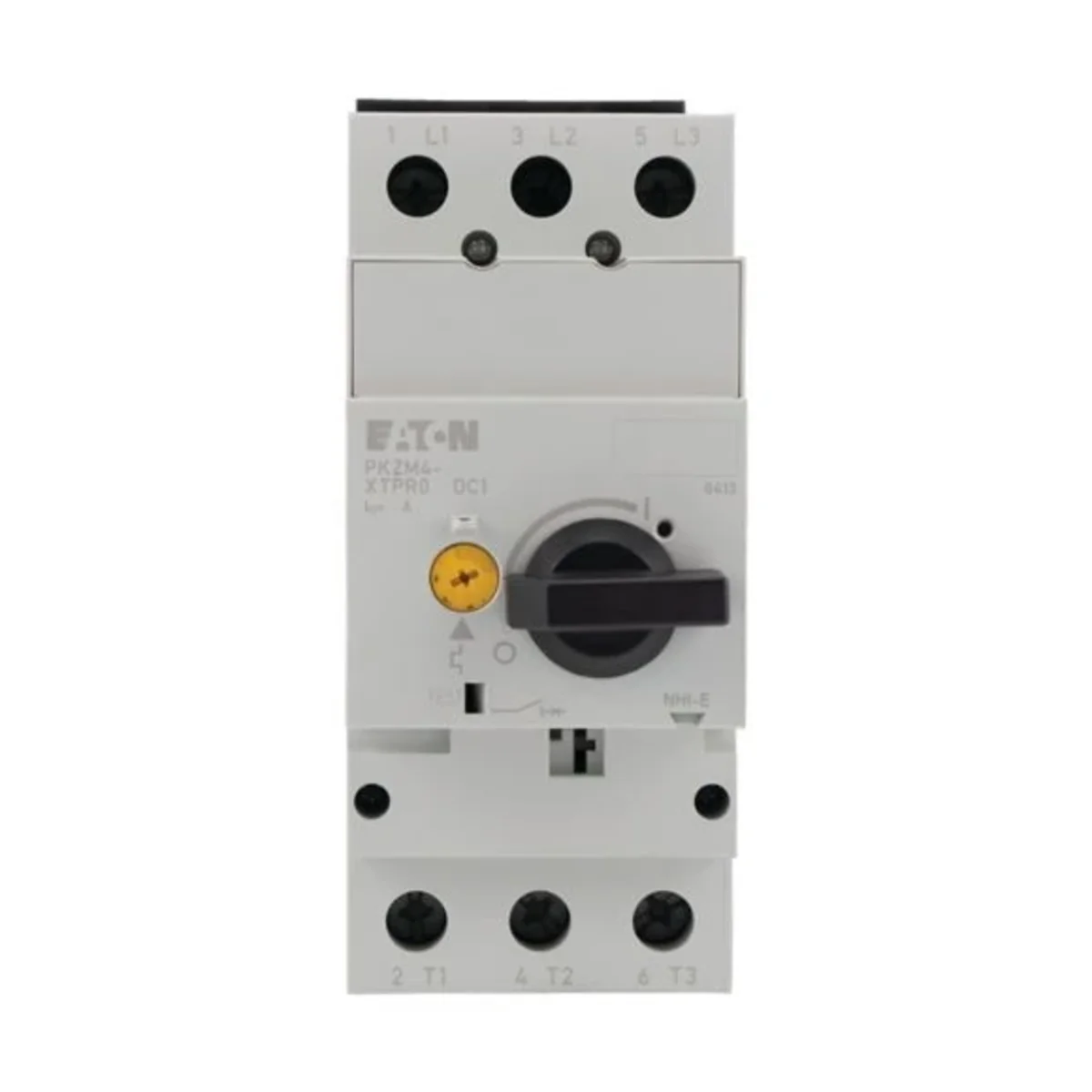

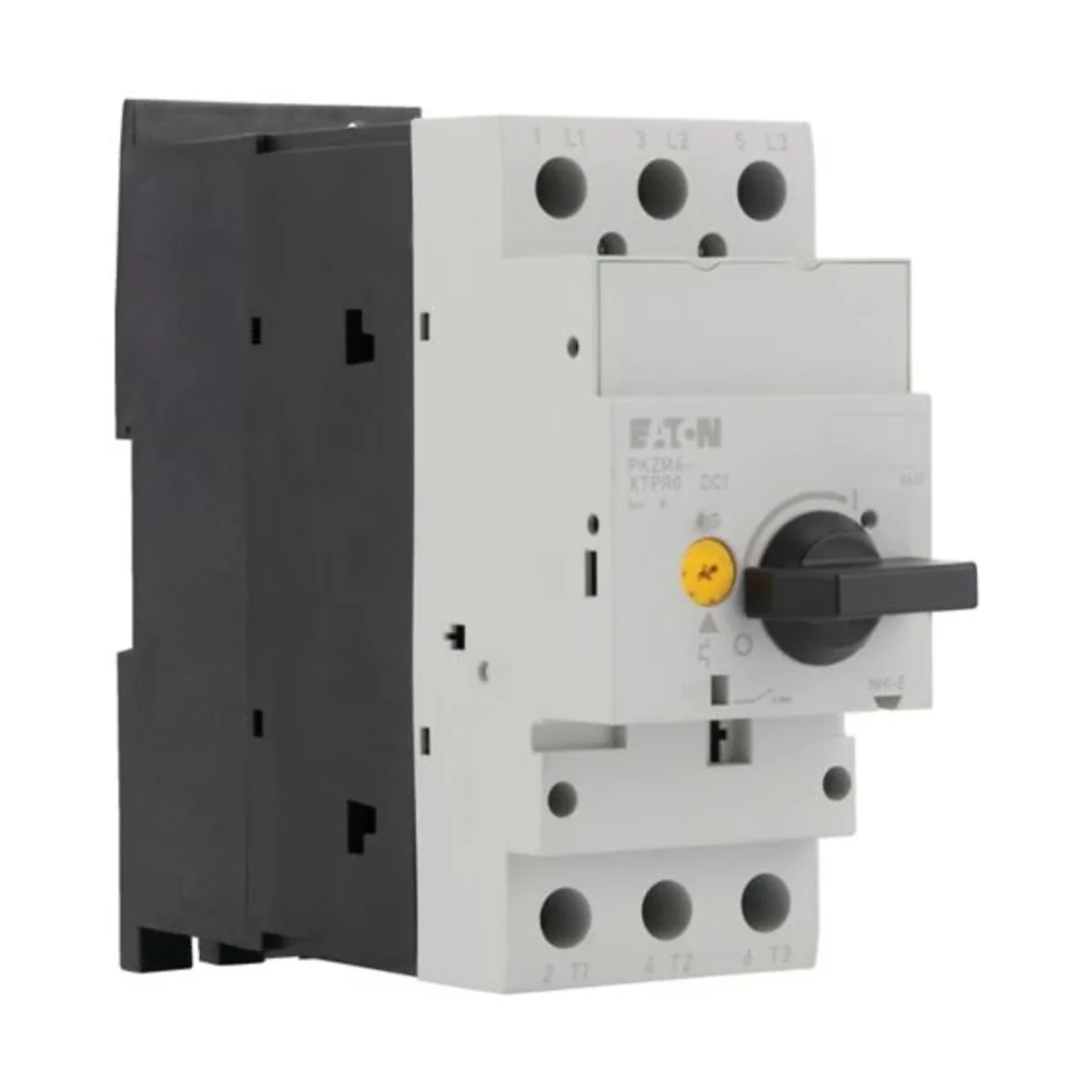

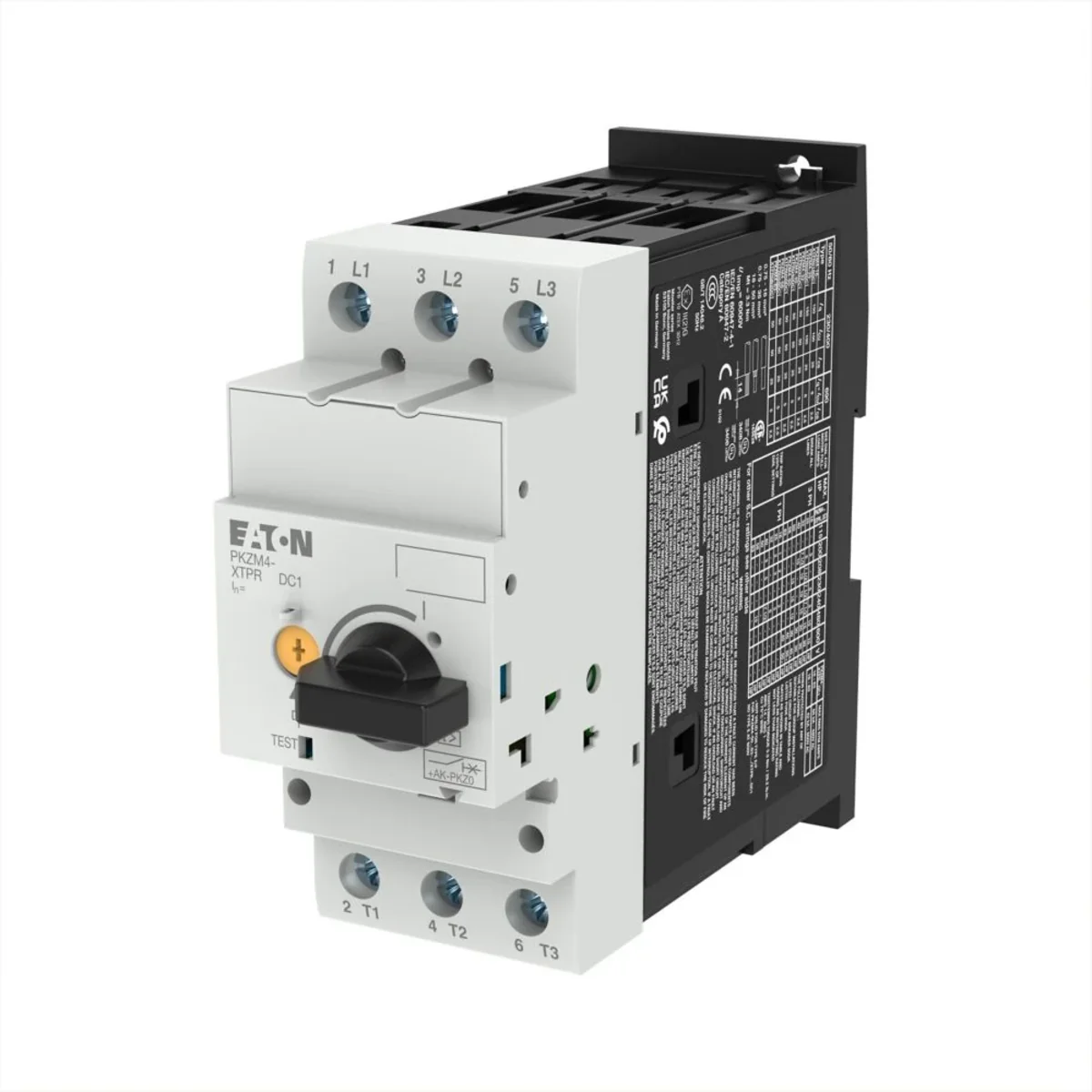

Motor circuit breaker 32A, 25-32kW, PKZM4-32 222353

local index:
ASN011MOEL
Catalog No:
222353
EAN code:
4015082223533
Manufacturer: EATON
Continuous current [A]: 32
Overload release [A]: 25-32
Short-circuit release [A]: 448
Price:
336,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Automatic motor circuit breaker PKZM0.

Technical data

  • Continuous current [A]
    32
  • Short-circuit release [A]
    448
  • Overload release [A]
    25-32

Other technical data

  • Overload release current setting
    25 ... 32 A
  • With thermal overload protection
    No
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    32 A
  • Rated operation power at AC-3, 400 V
    15 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    55 mm
  • Adjustment range undelayed short-circuit release
    496 ... 496 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    7.5 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Height
    140 mm
  • Depth
    160 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,200
Volume (m3) 0,001
Width (m) 0,058
Length (m) 0,165
Depth (m) 0,143
