Electrical apparatus
Motor circuit breakers
Motor circuit breakers for rail mounting

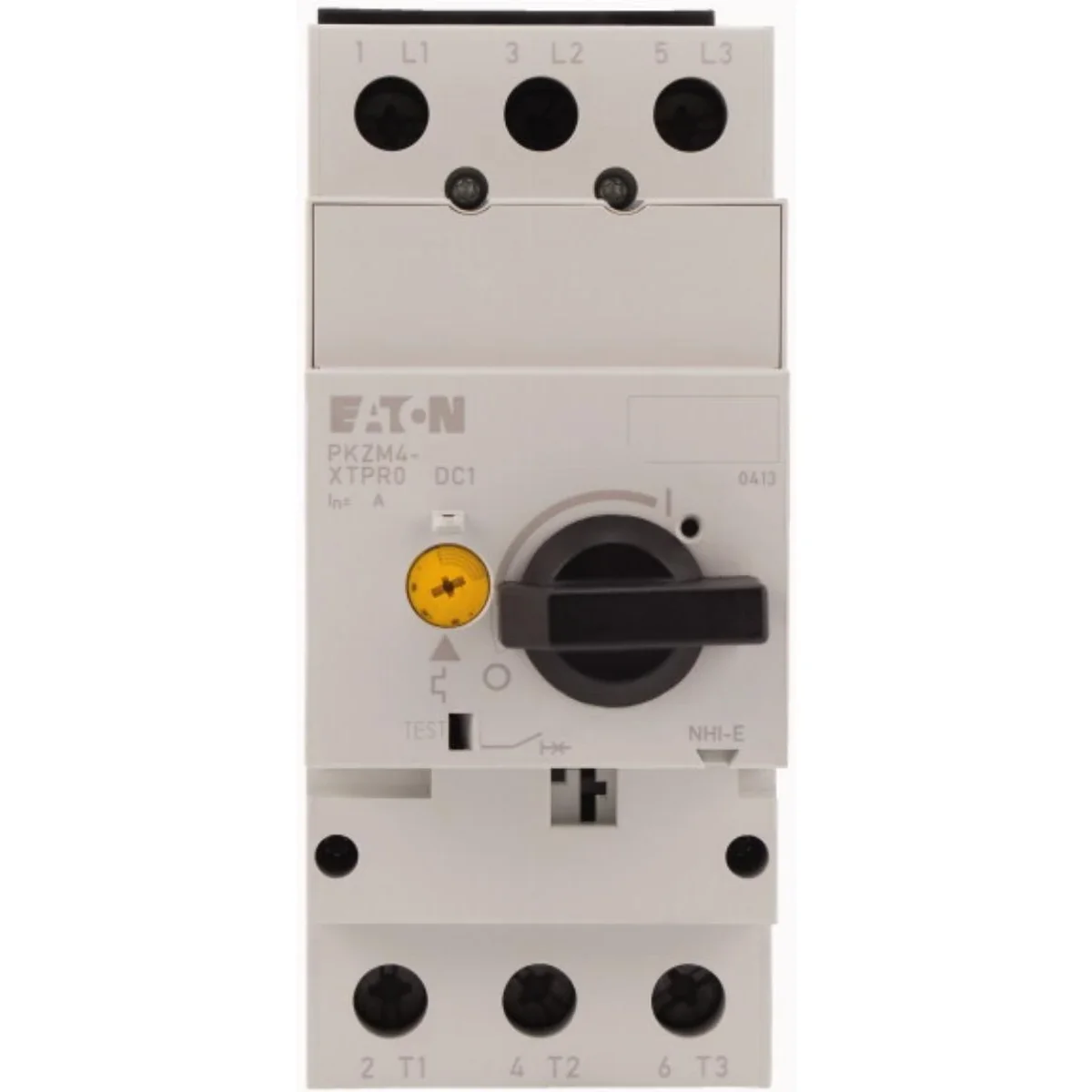

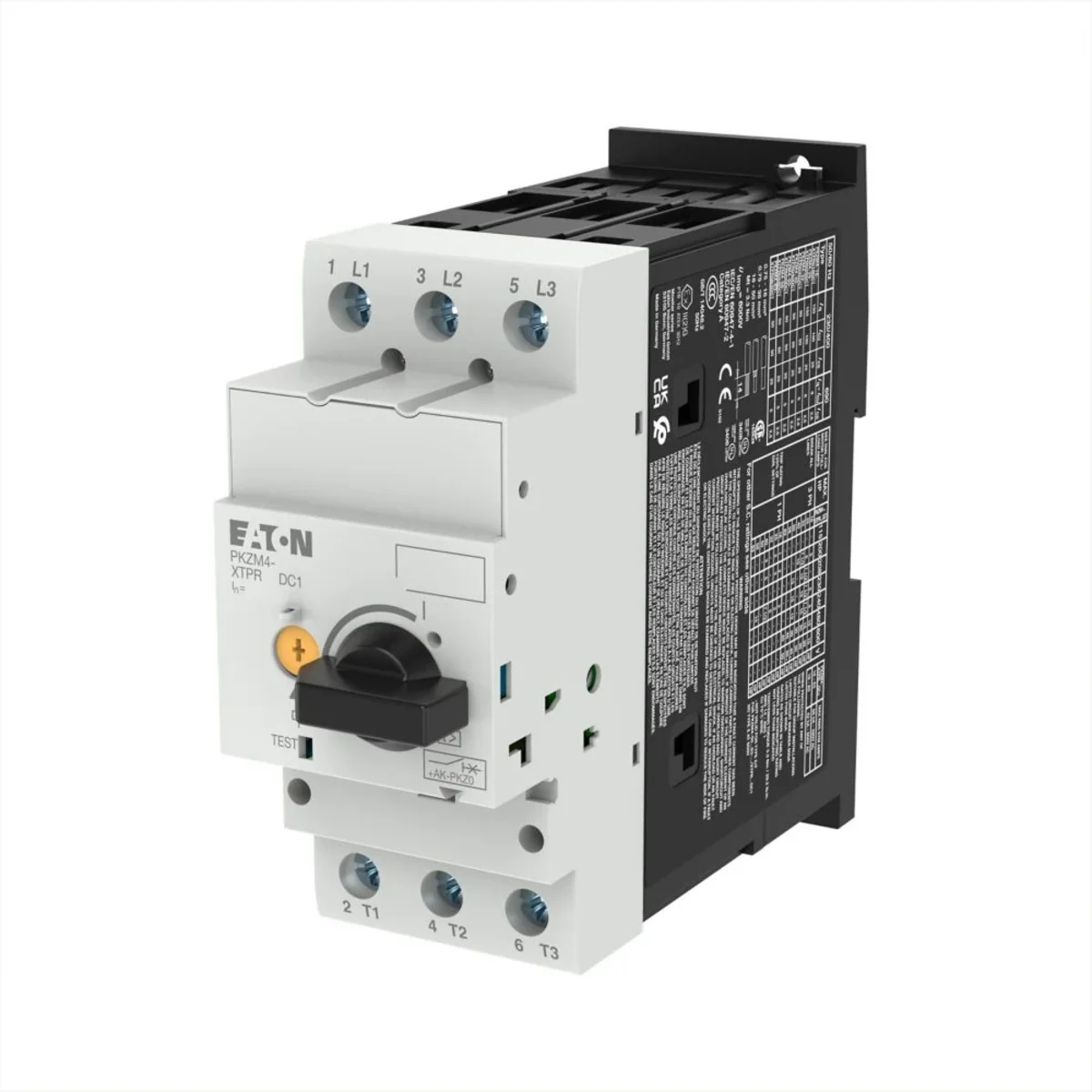

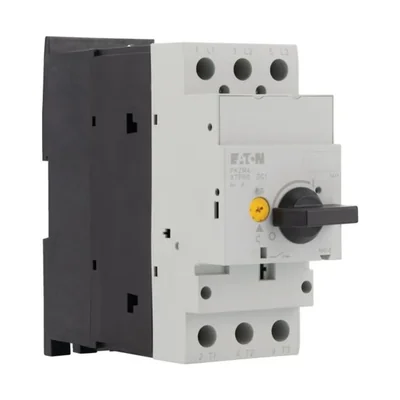

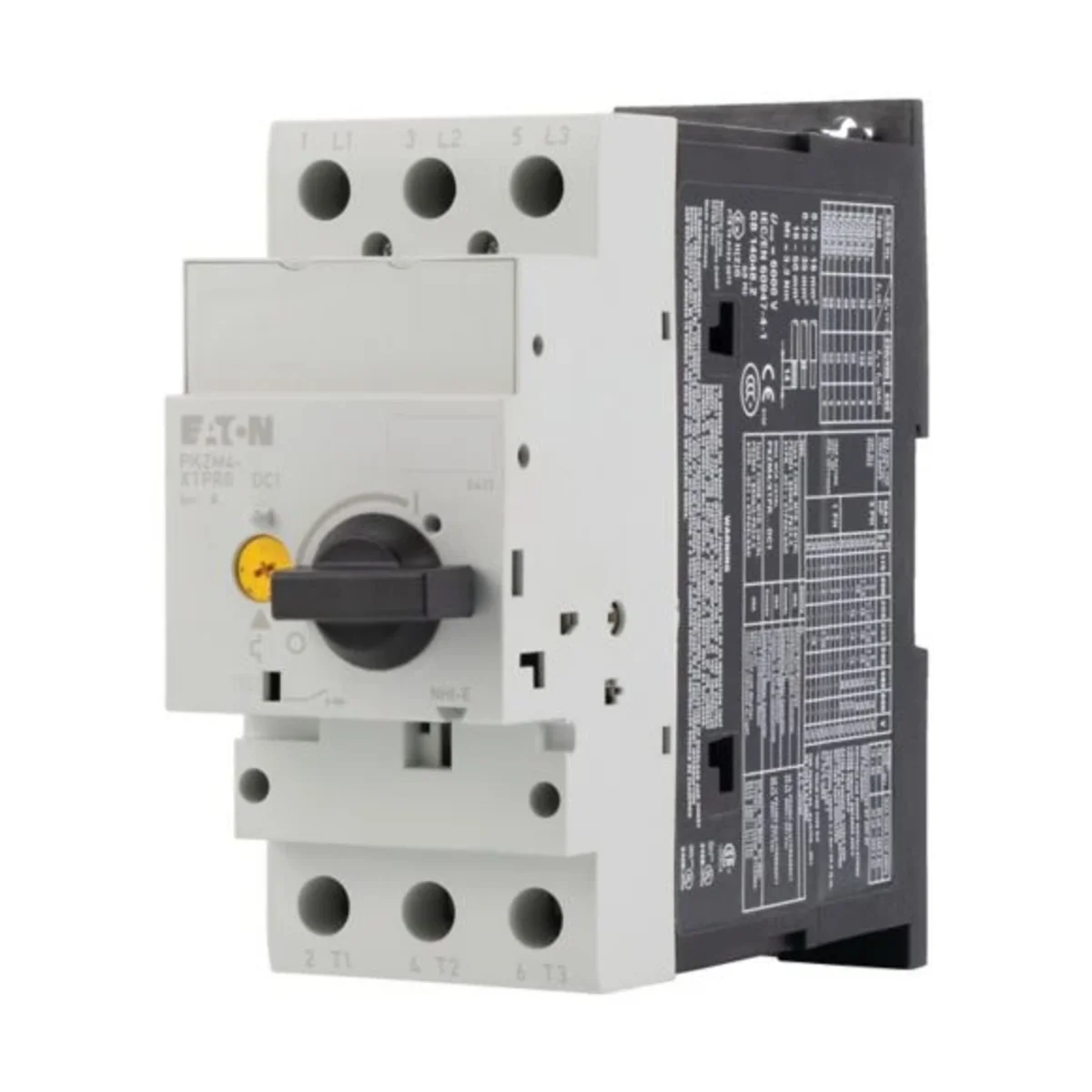

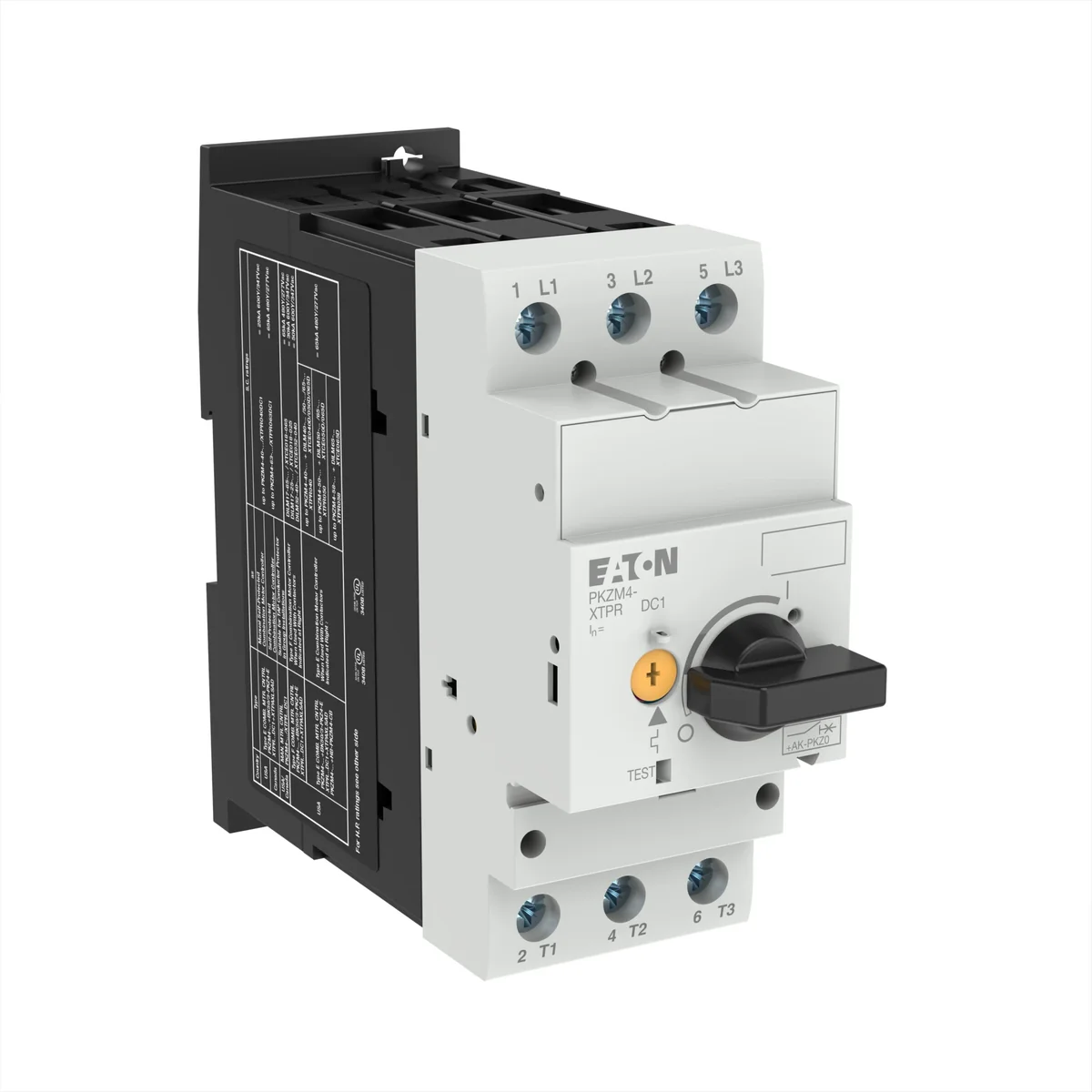

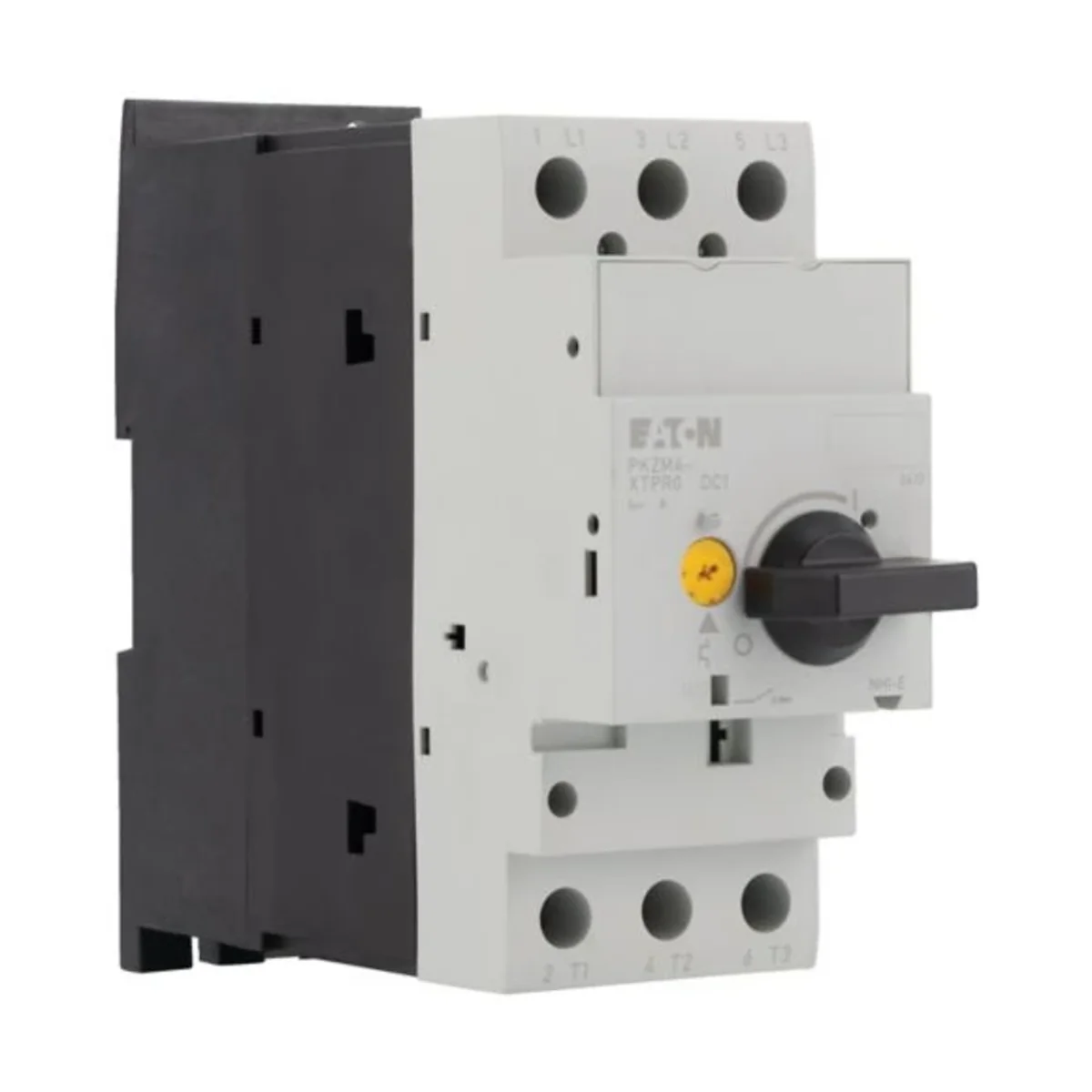

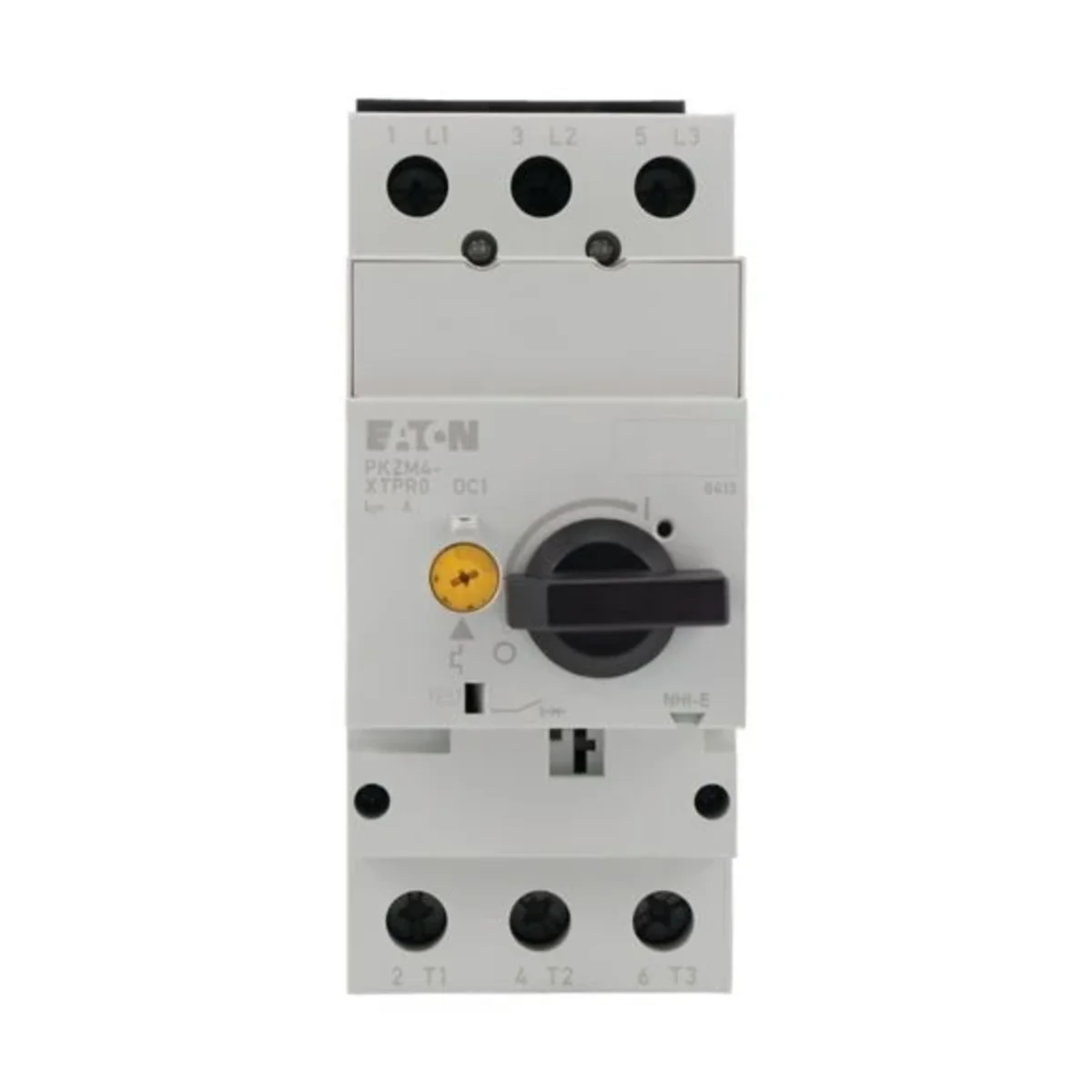

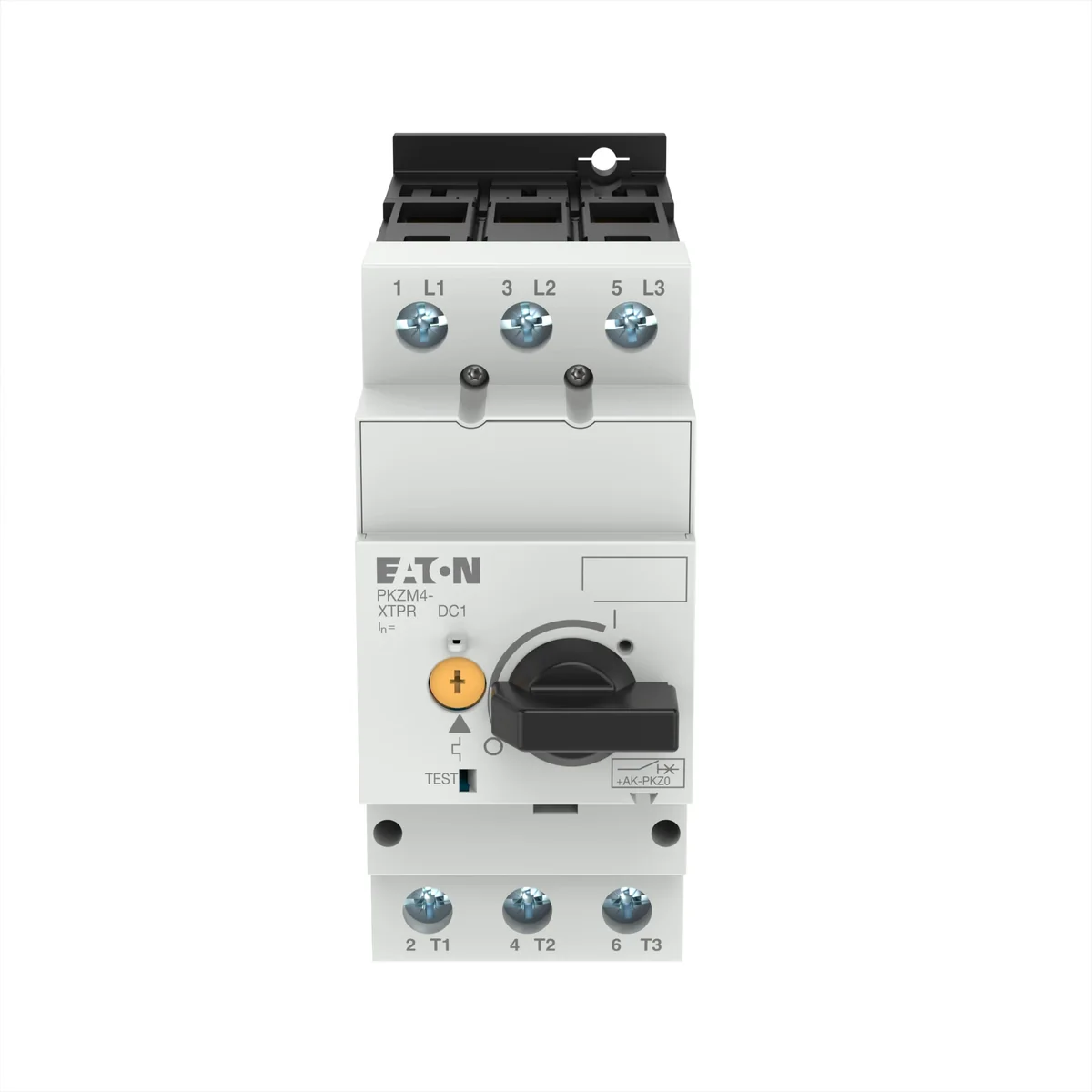

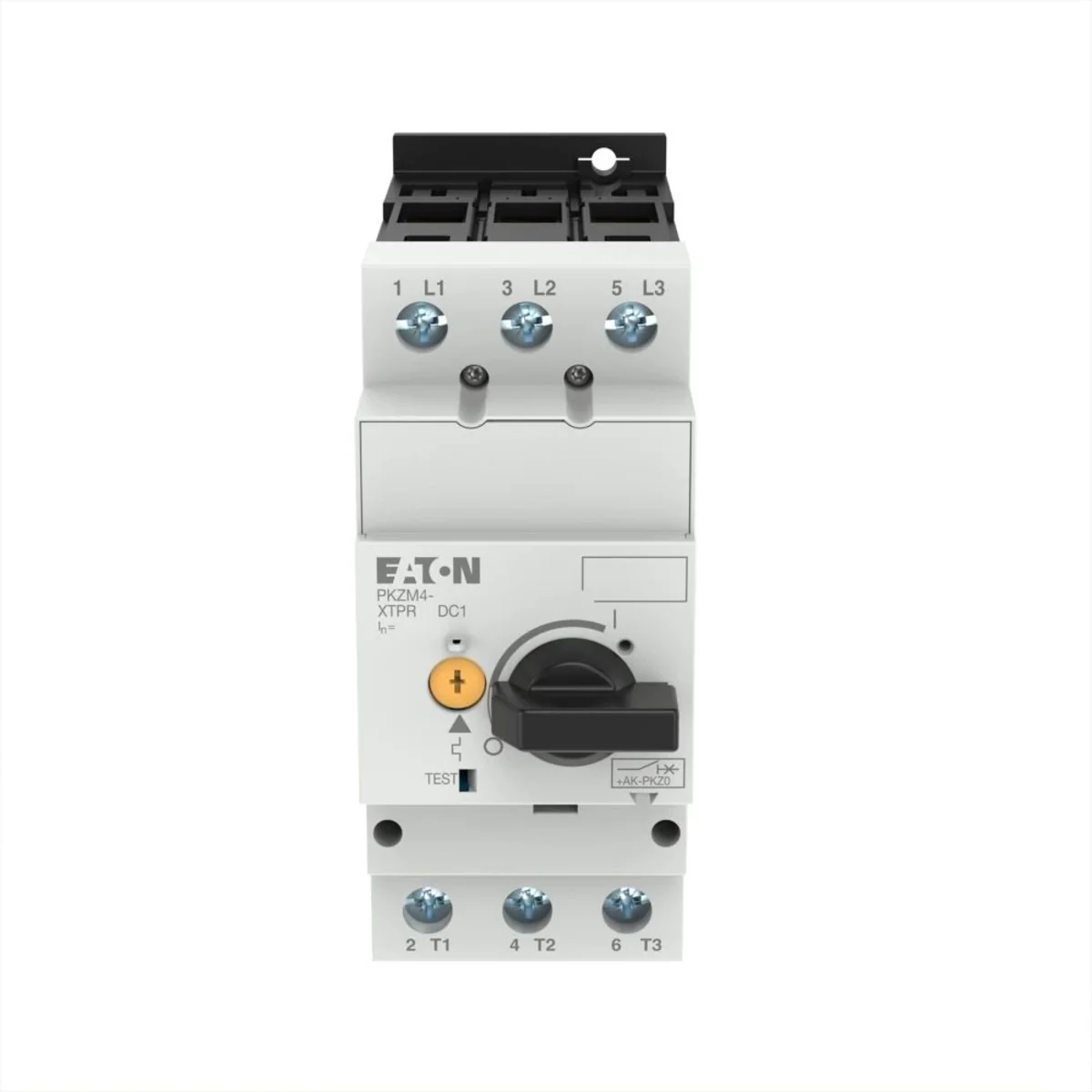

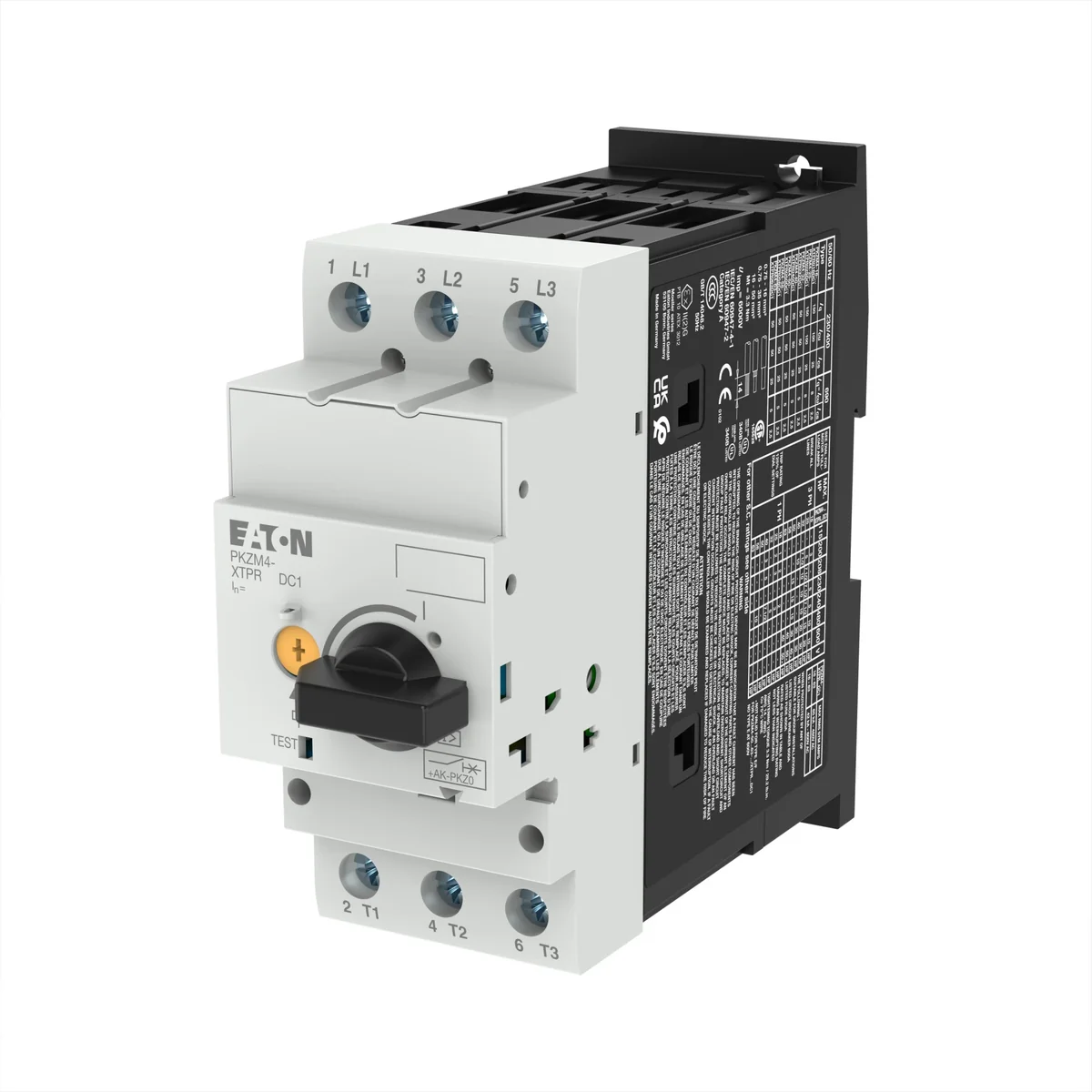

Motor circuit breaker 25A, 16-25kW, PKZM4-25 222352
local index:
ASN202MOEL
Catalog No:
222352
EAN code:
4015082223526
Click on the photo to enlarge
Manufacturer:
EATON
Continuous current [A]:
25
Overload release [A]:
16-25
Short-circuit release [A]:
350
See full description
Price:
306,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Automatic motor circuit breaker PKZM0.
Technical data
Continuous current [A]
25
Short-circuit release [A]
350
Overload release [A]
16-25
Other technical data
Overload release current setting
16 ... 25 A
With thermal overload protection
No
Switch off technique
Thermomagnetic
Rated permanent current Iu
25 A
Rated operation power at AC-3, 400 V
12.5 kW
Type of control element
Turn button
With integrated auxiliary switch
No
Number of poles
3
Degree of protection (IP)
IP20
Width
55 mm
Adjustment range undelayed short-circuit release
388 ... 388 A
Phase failure sensitive
Yes
Rated operating voltage
690 ... 690 V
Rated operation power at AC-3, 230 V
5.5 kW
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
With integrated under voltage release
No
Rated short-circuit breaking capacity lcu at 400 V, AC
150 kA
Height
140 mm
Depth
160 mm
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
1,200
Volume (m3)
0,001
Width (m)
0,058
Length (m)
0,165
Depth (m)
0,143
