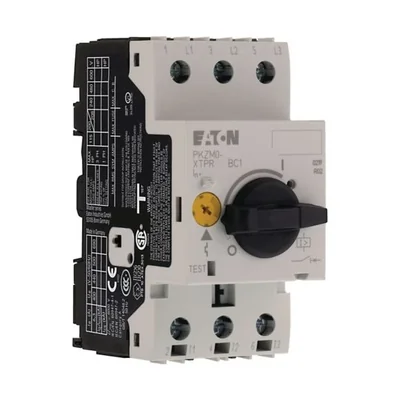

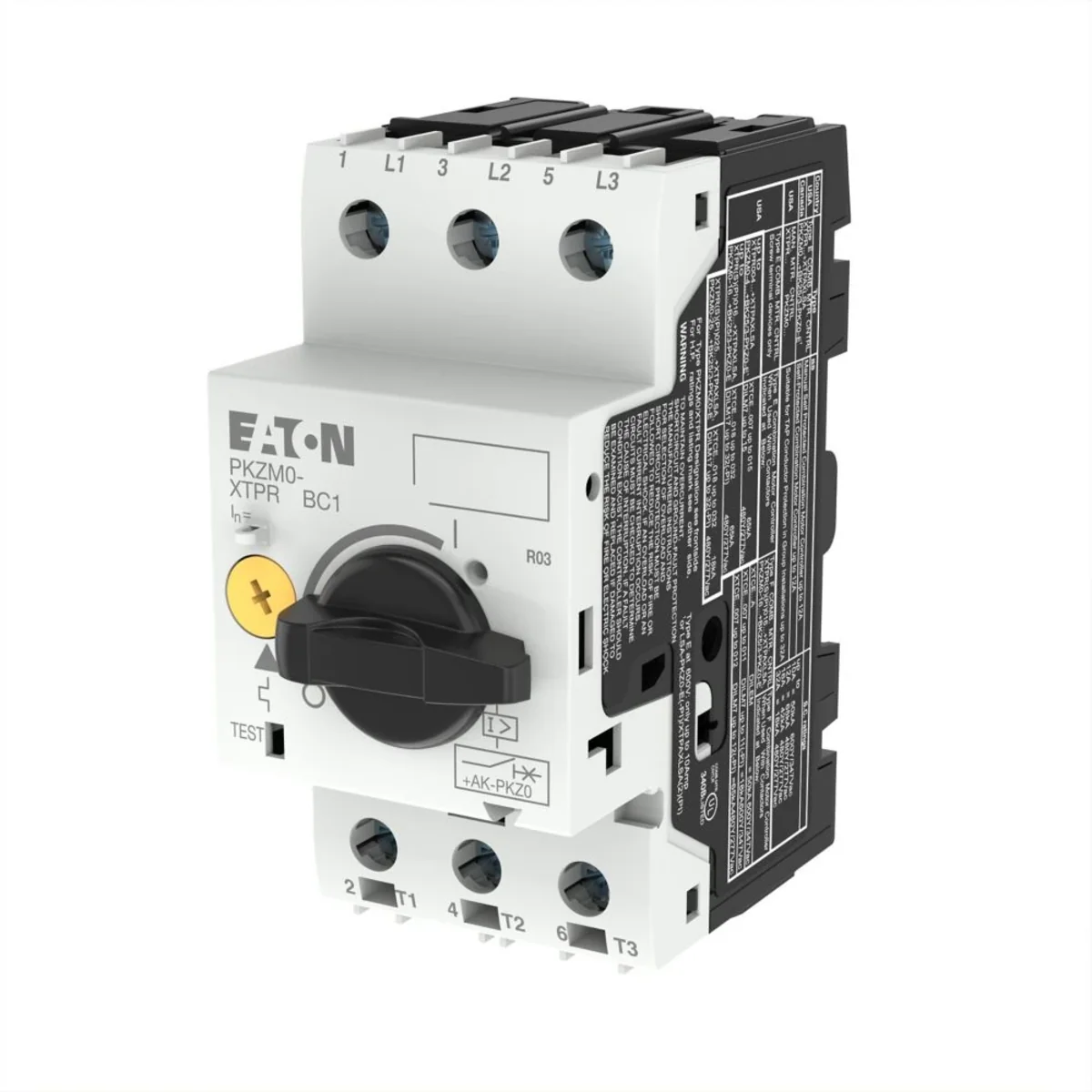

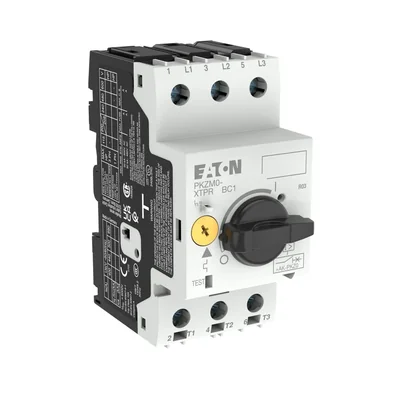

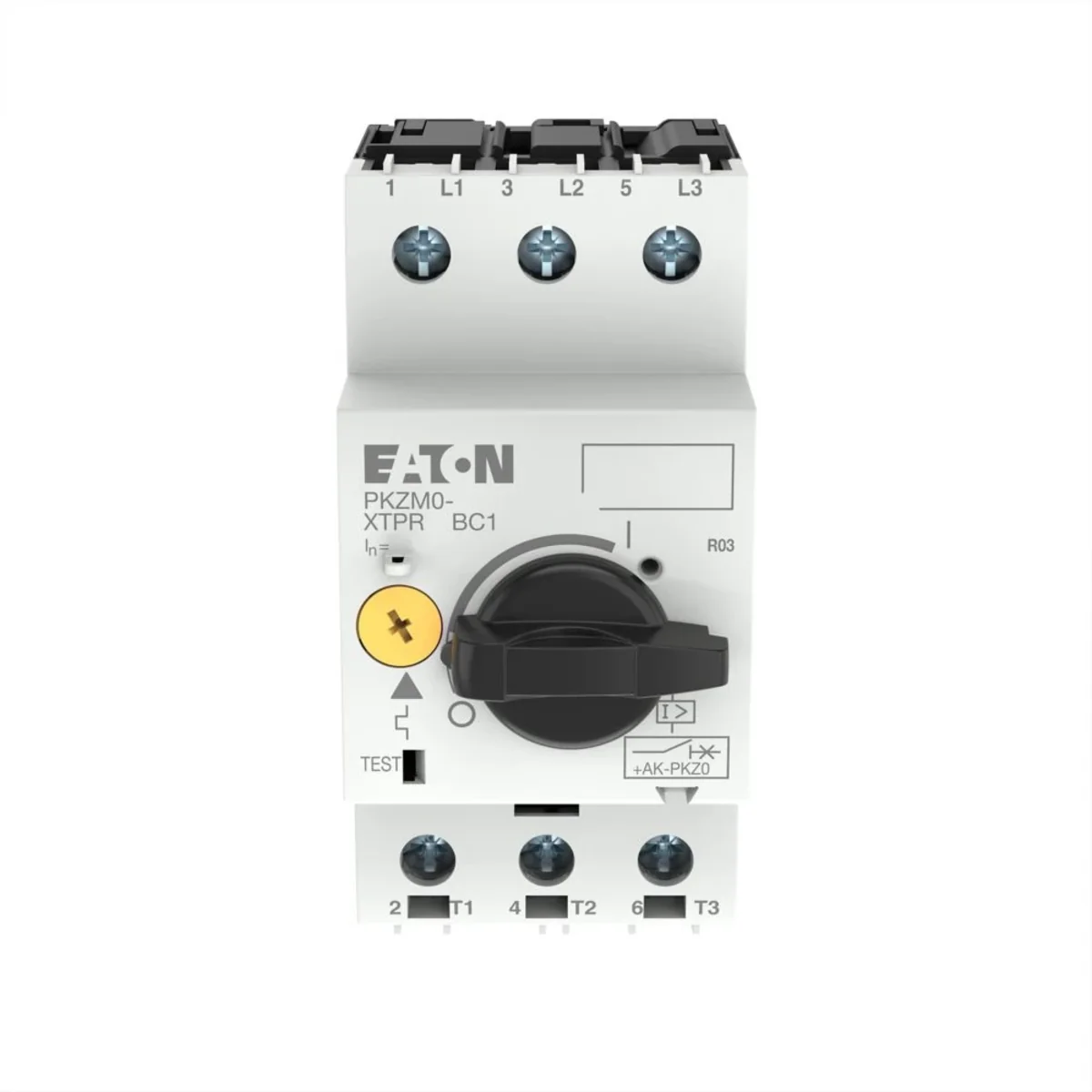

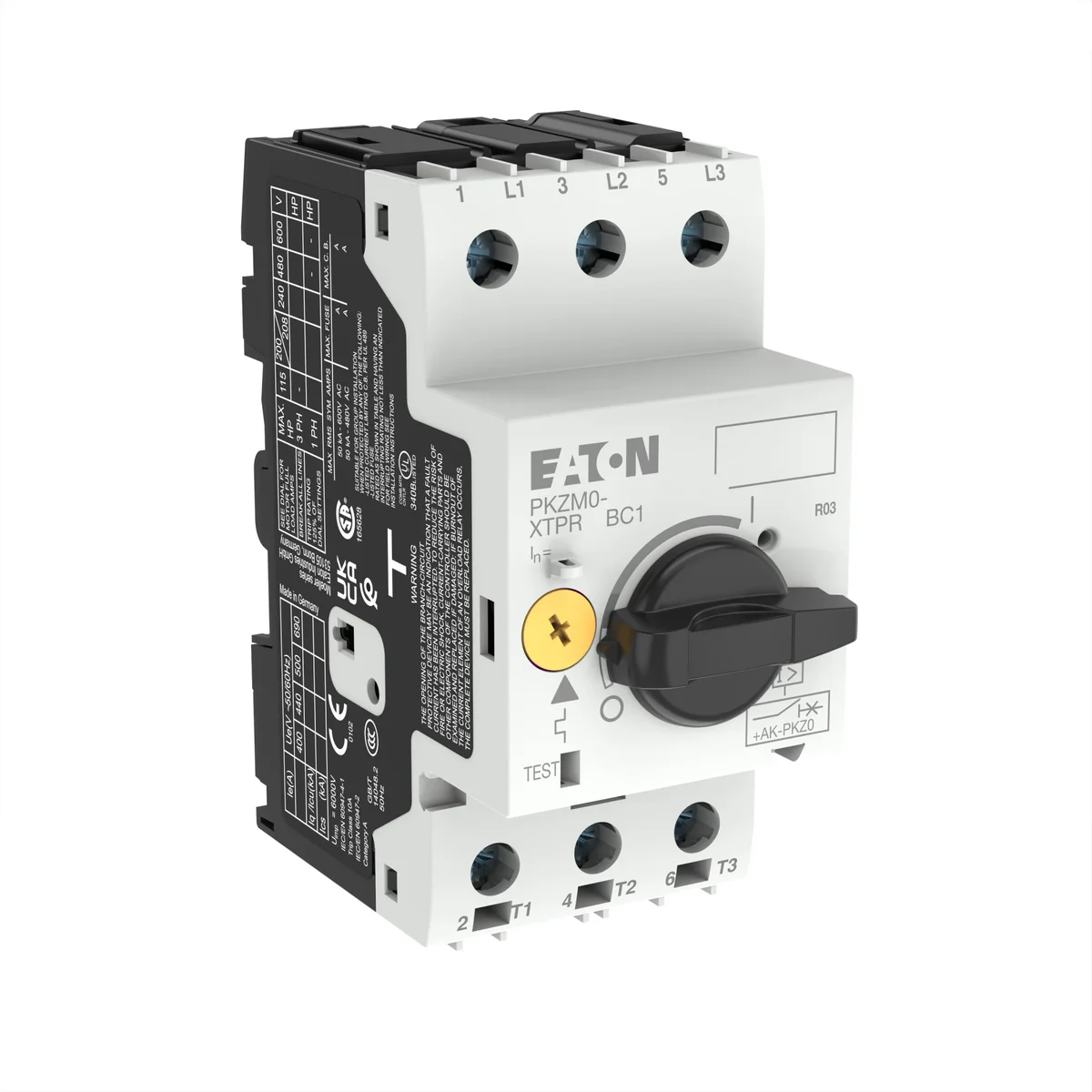

Motor circuit breaker 25A, 12.5kW, PKZM0-25 046989
local index:
ASN113MOEL
Catalog No:
046989
EAN code:
4015080469896
Manufacturer:
EATON
Maximum load capacity AC-3 [kW]: 12.5
Continuous current [A]: 25
Overload release setting range [A]: 20-25
Price:
124,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Automatic motor circuit breaker PKZM0.
Technical data
-
Maximum load capacity AC-3 [kW]12.5
-
Overload release setting range [A]20-25
-
Continuous current [A]25
Other technical data
-
Overload release current setting20 ... 25 A
-
With thermal overload protectionNo
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu25 A
-
Rated operation power at AC-3, 400 V12.5 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release388 ... 388 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V5.5 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Height93 mm
-
Depth76 mm
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,309 |
| Volume (m3) | 0,000 |
| Width (m) | 0,048 |
| Length (m) | 0,080 |
| Depth (m) | 0,097 |
