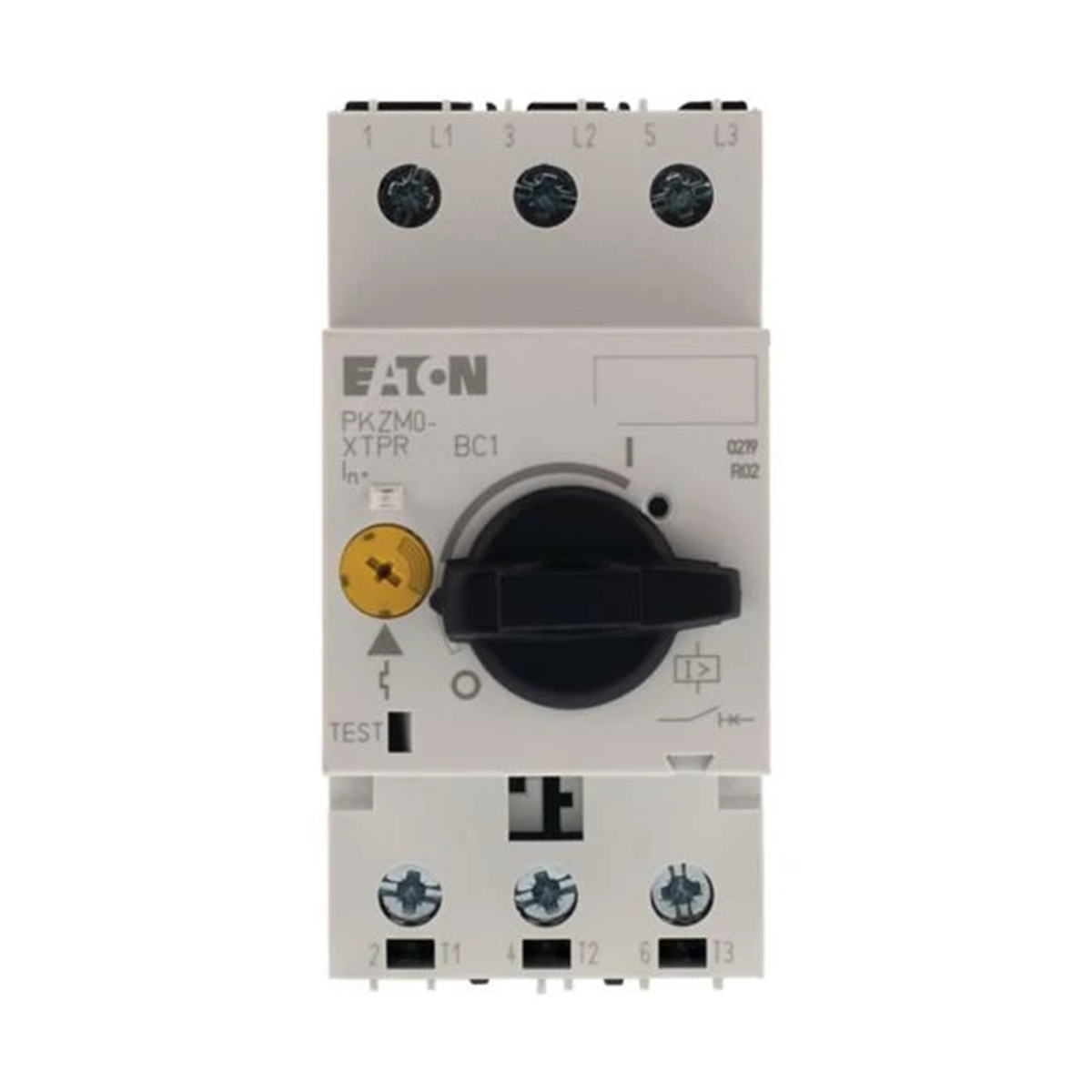

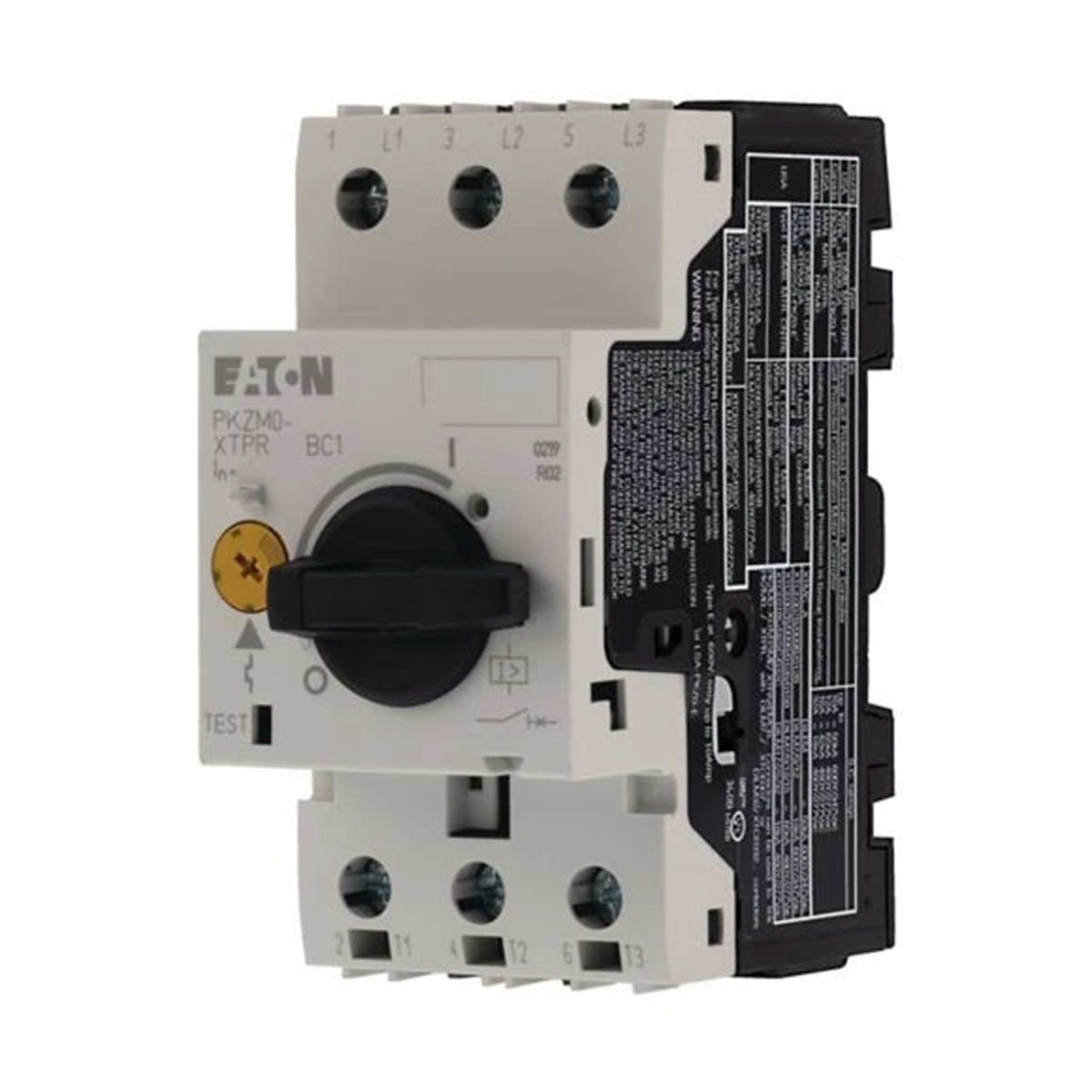

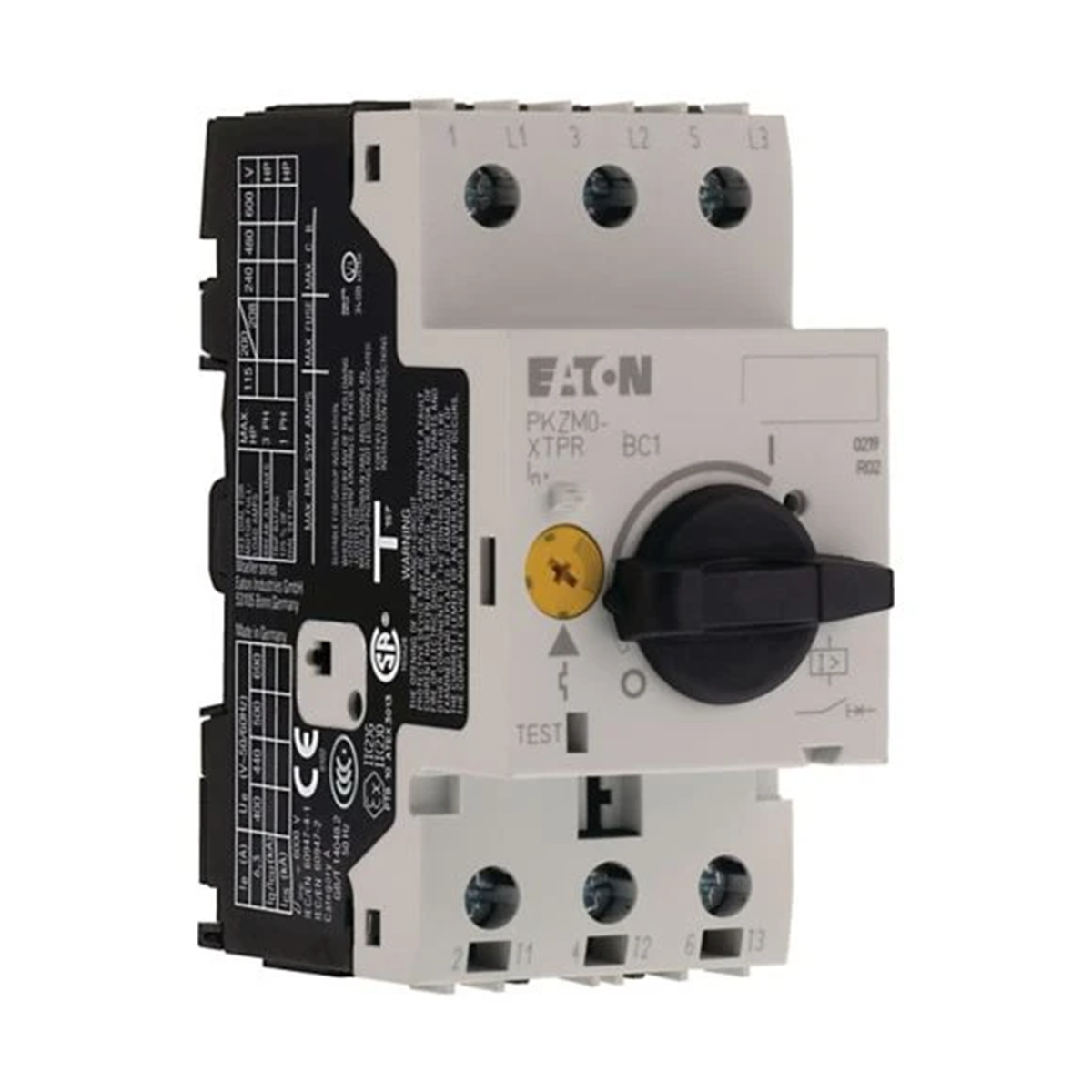

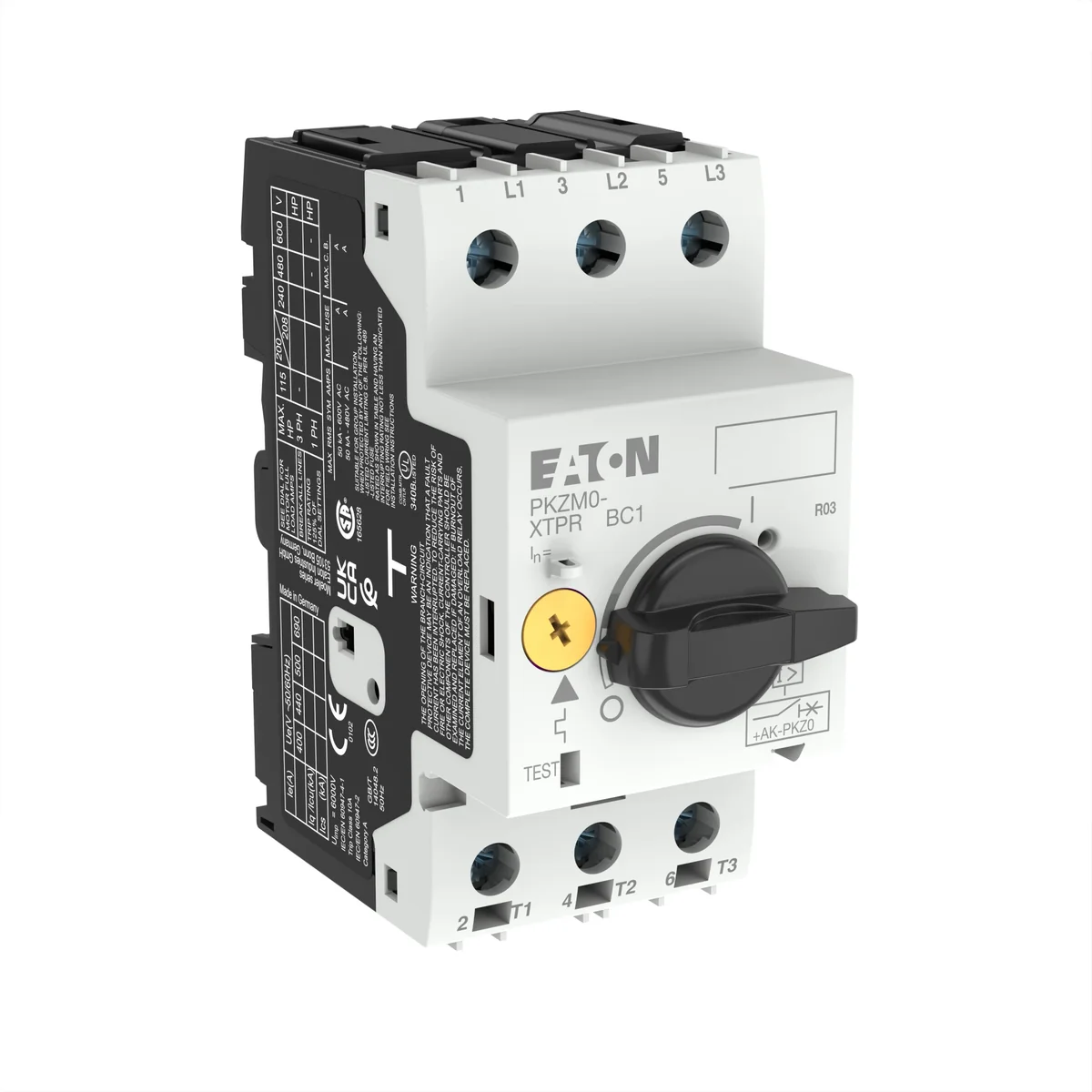

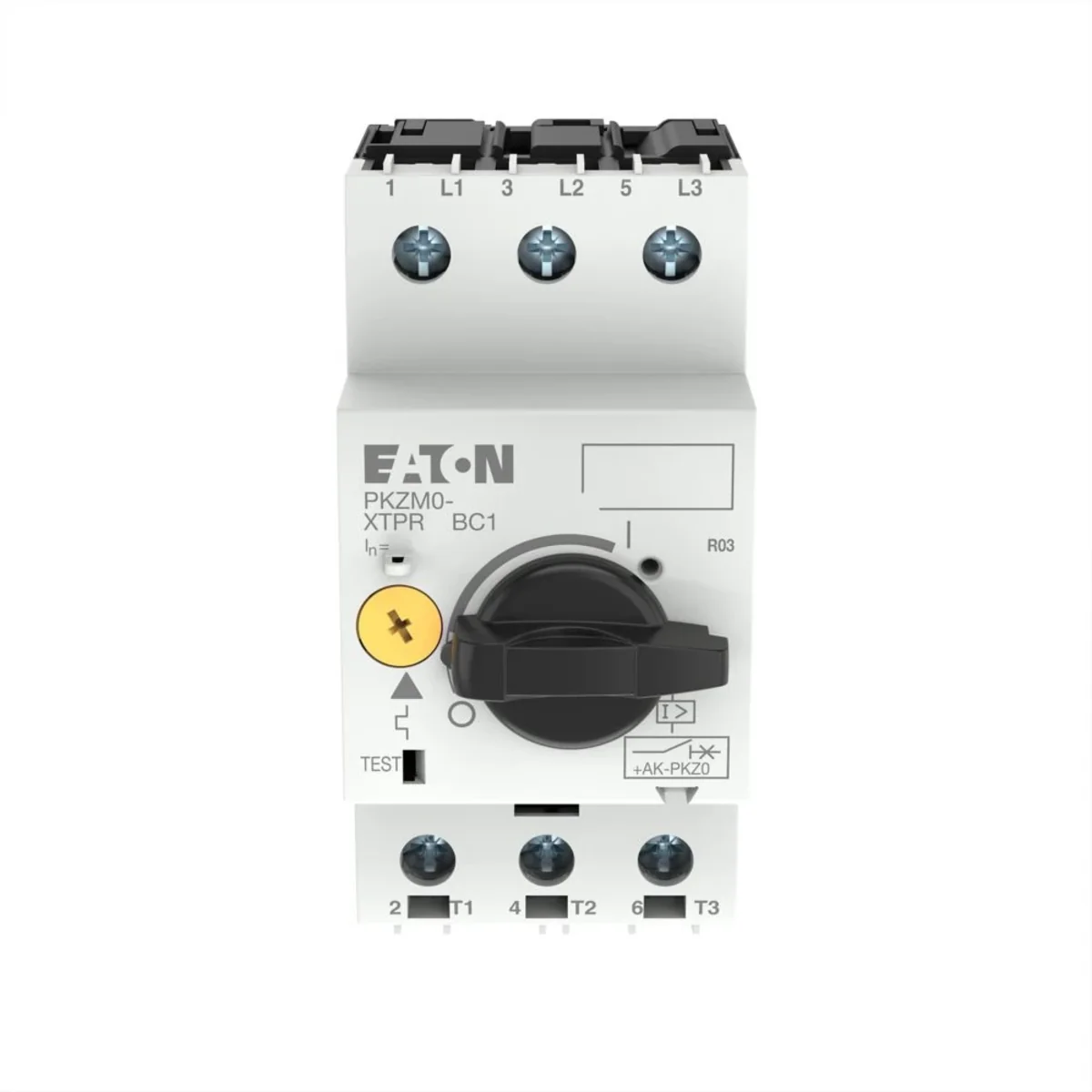

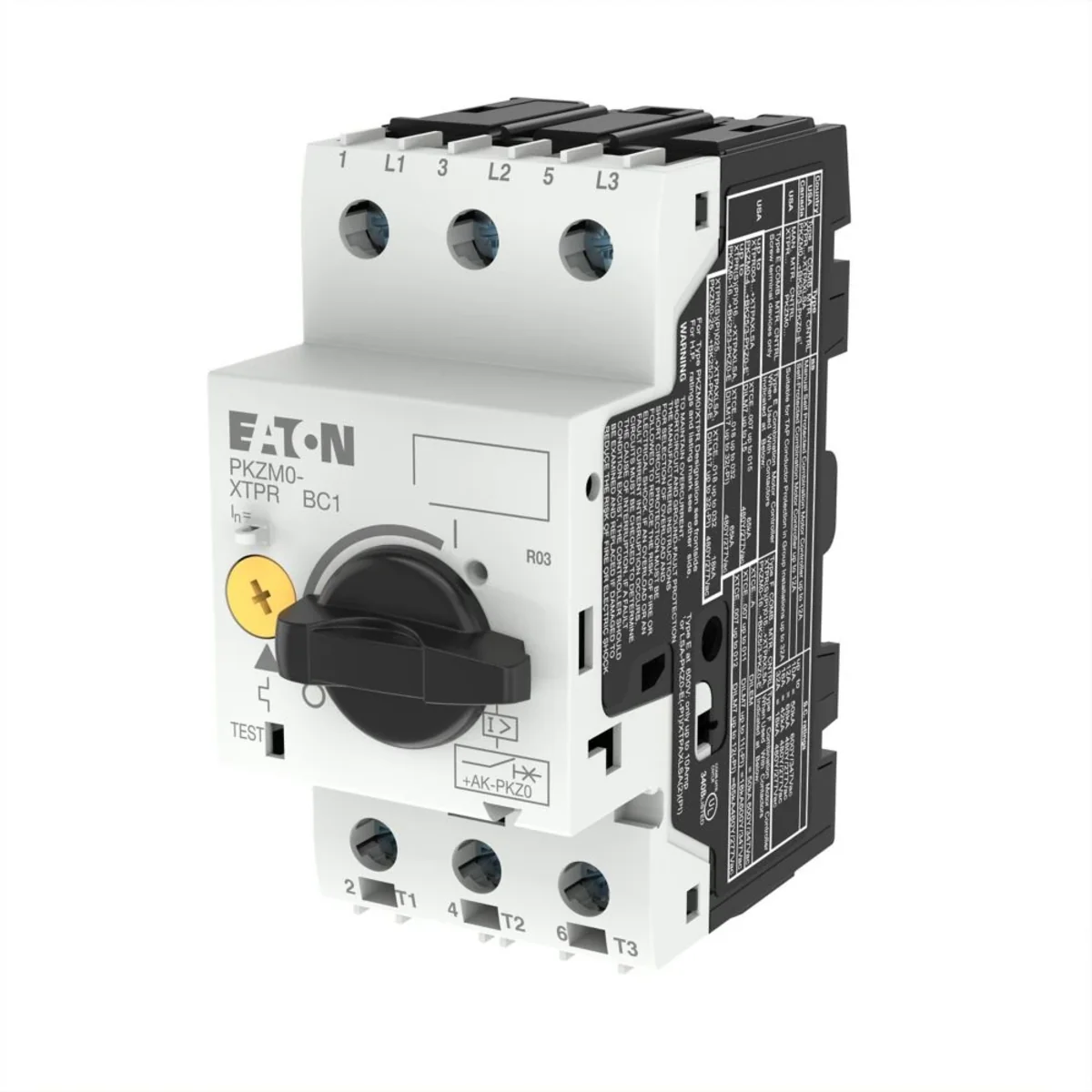

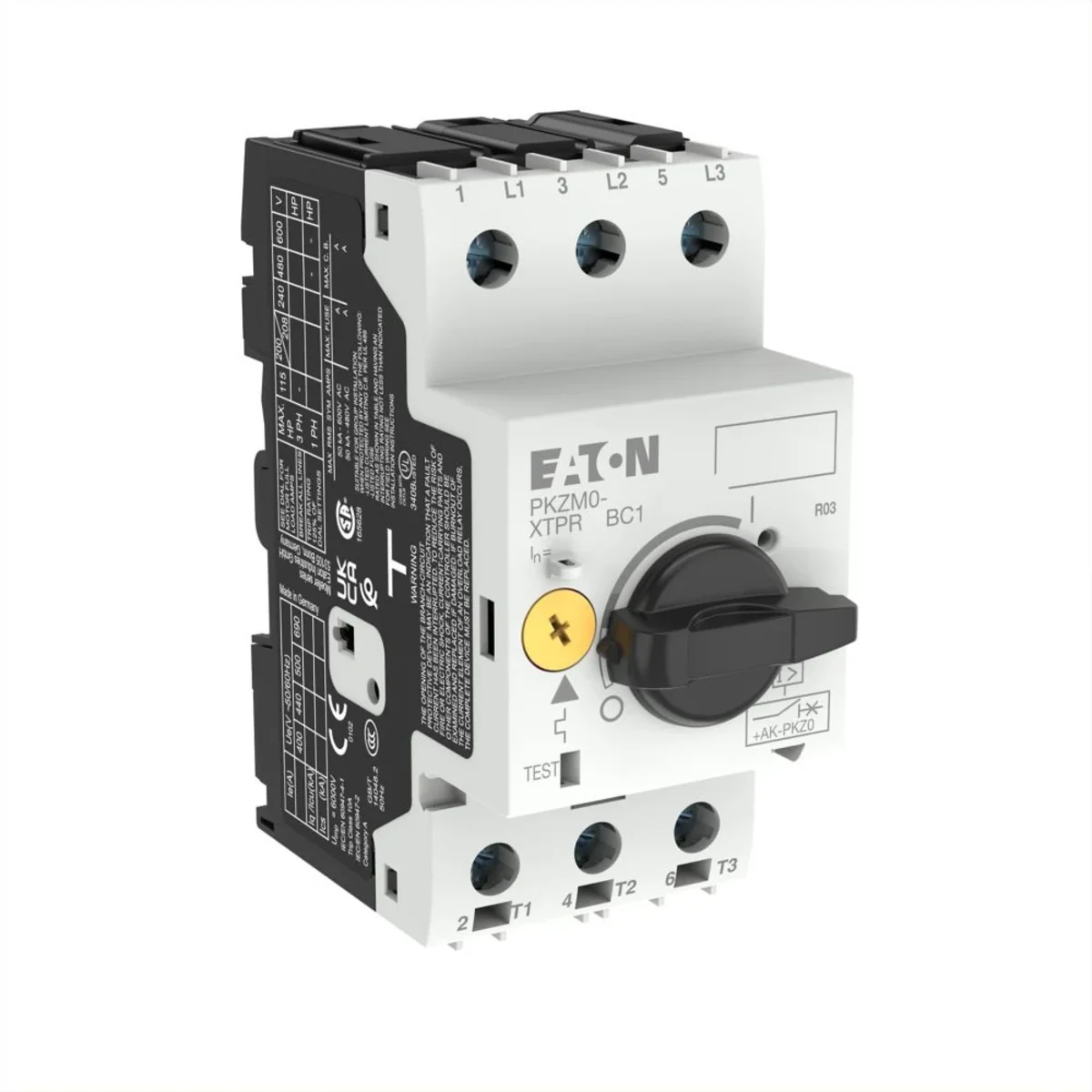

Motor circuit breaker 20A, 9kW, PKZM0-20 046988

local index:
ASN112MOEL
Catalog No:
046988
EAN code:
4015080469889
Manufacturer: EATON
Maximum load capacity AC-3 [kW]: 9
Continuous current [A]: 20
Overload release setting range [A]: 16-20
Price:
102,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Automatic motor circuit breaker PKZM0.

Technical data

  • Maximum load capacity AC-3 [kW]
    9
  • Overload release setting range [A]
    16-20
  • Continuous current [A]
    20

Other technical data

  • Overload release current setting
    16 ... 20 A
  • With thermal overload protection
    No
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    20 A
  • Rated operation power at AC-3, 400 V
    9 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    310 ... 310 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    5.5 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Height
    93 mm
  • Depth
    76 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,311
Volume (m3) 0,000
Width (m) 0,048
Length (m) 0,080
Depth (m) 0,097
