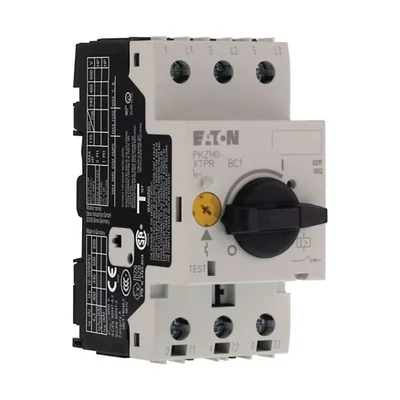

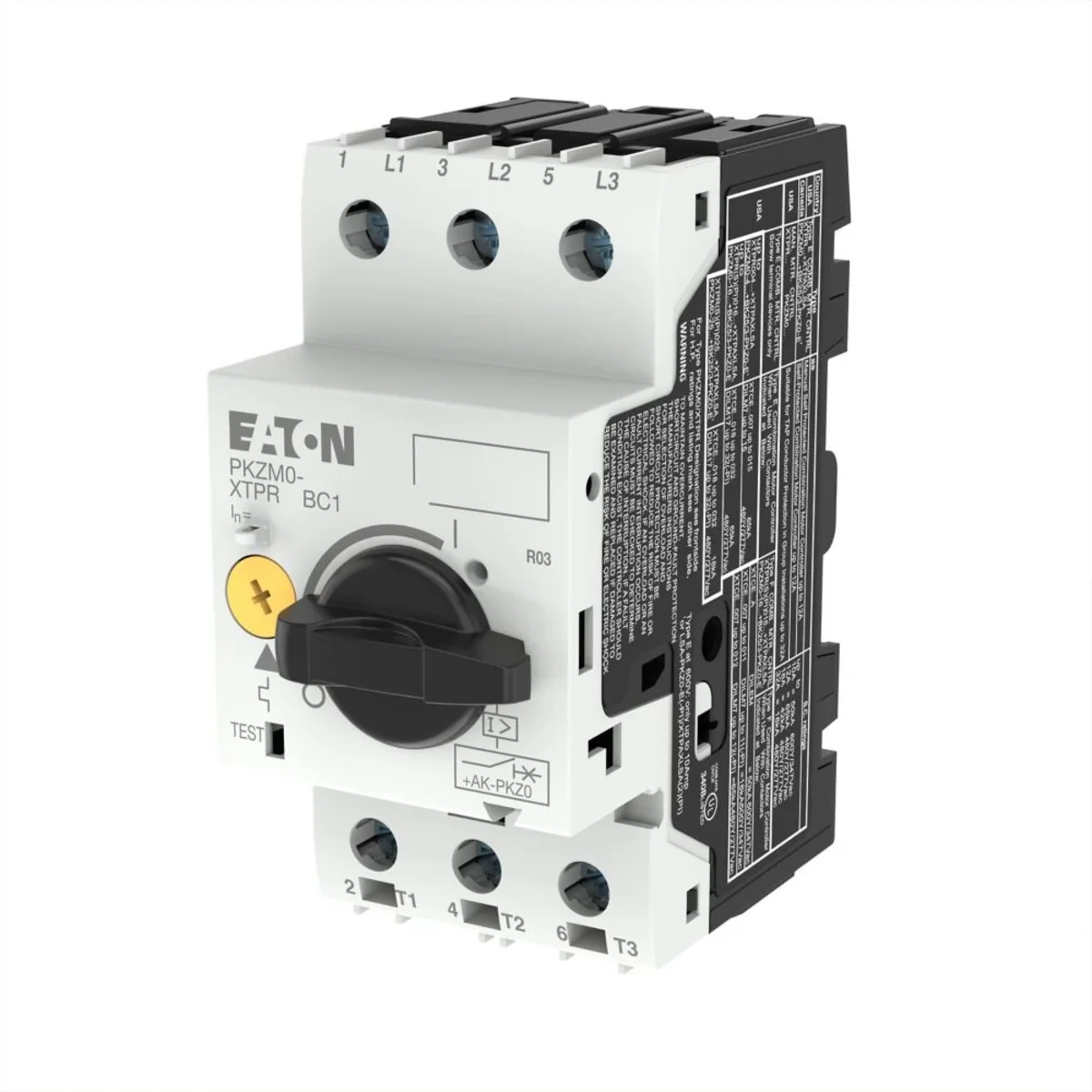

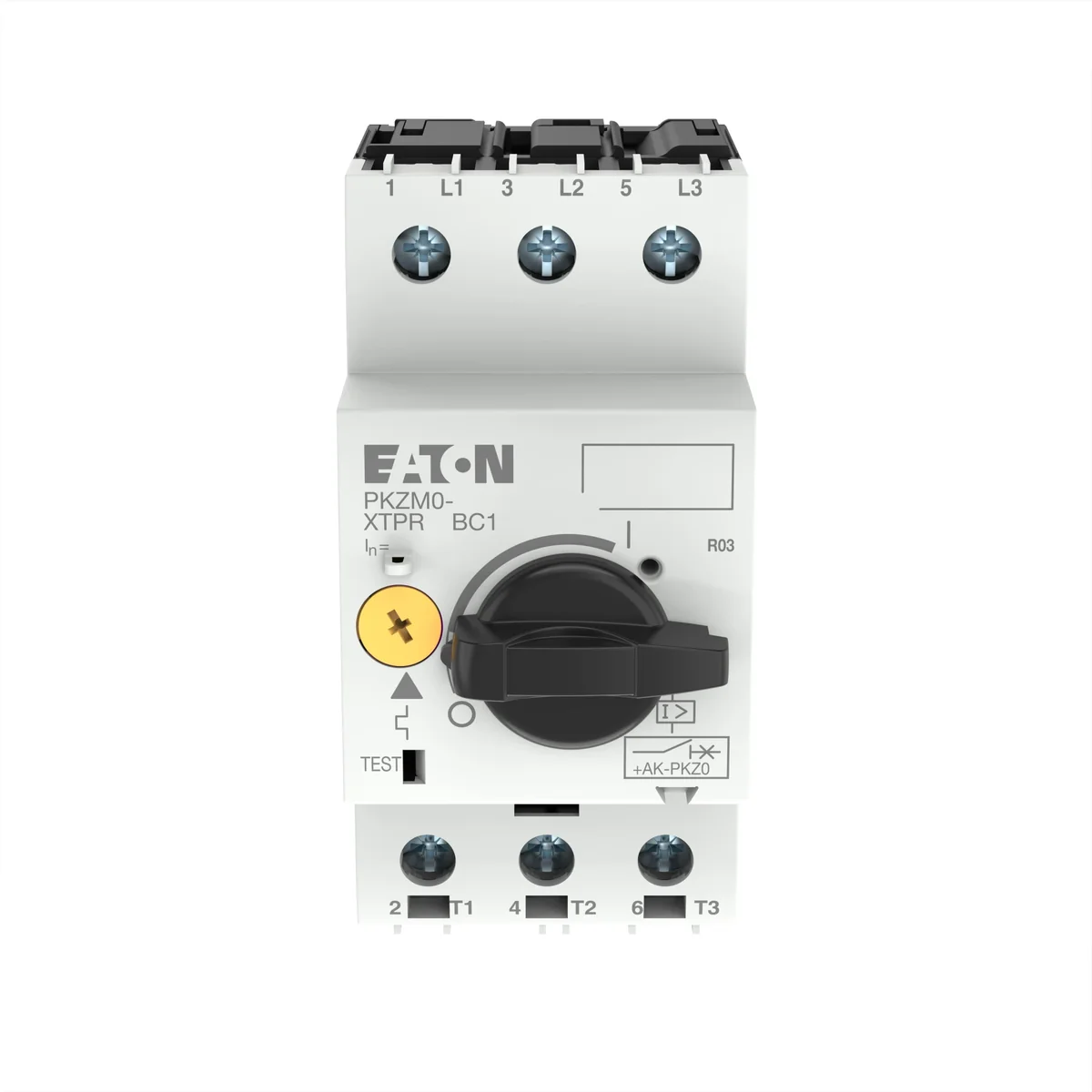

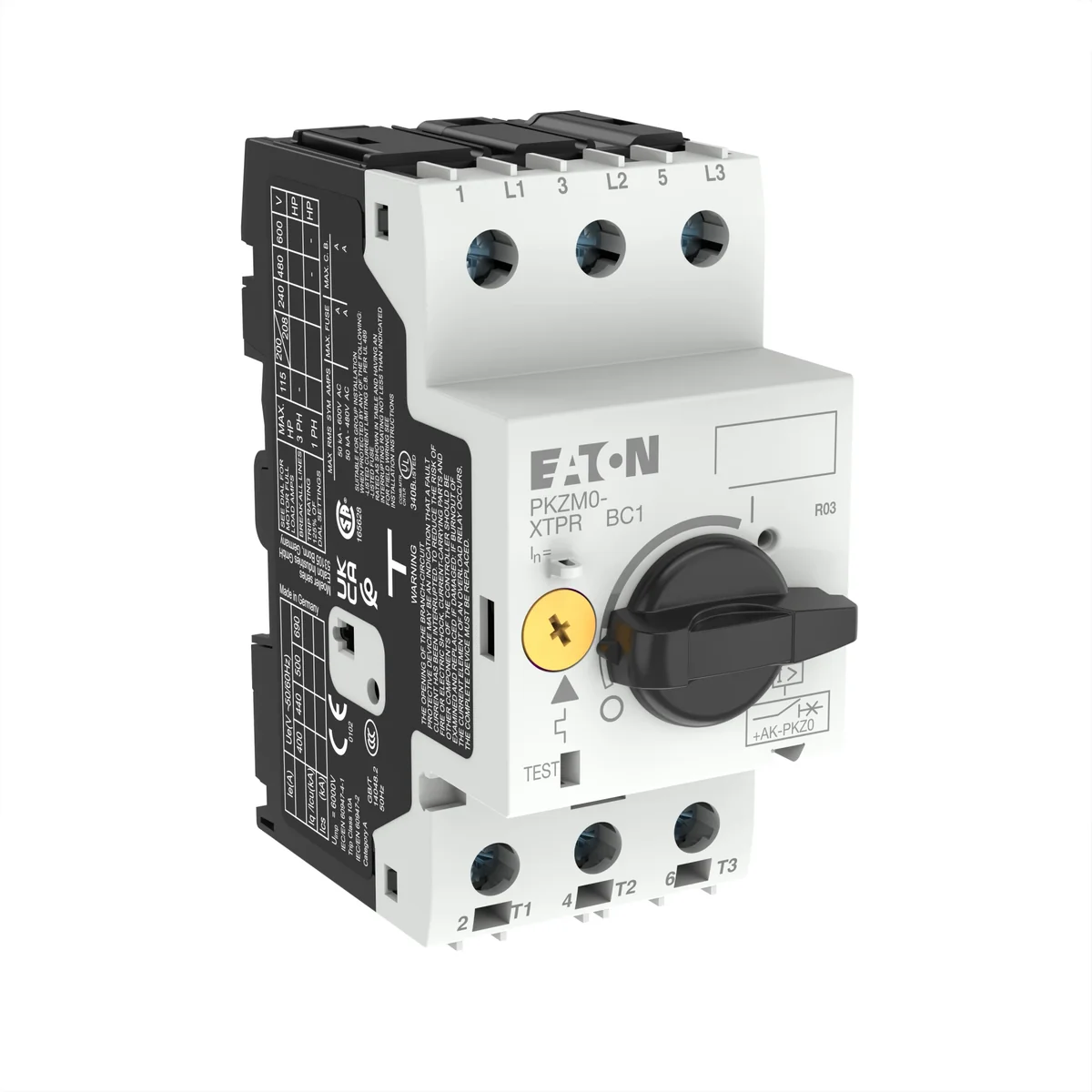

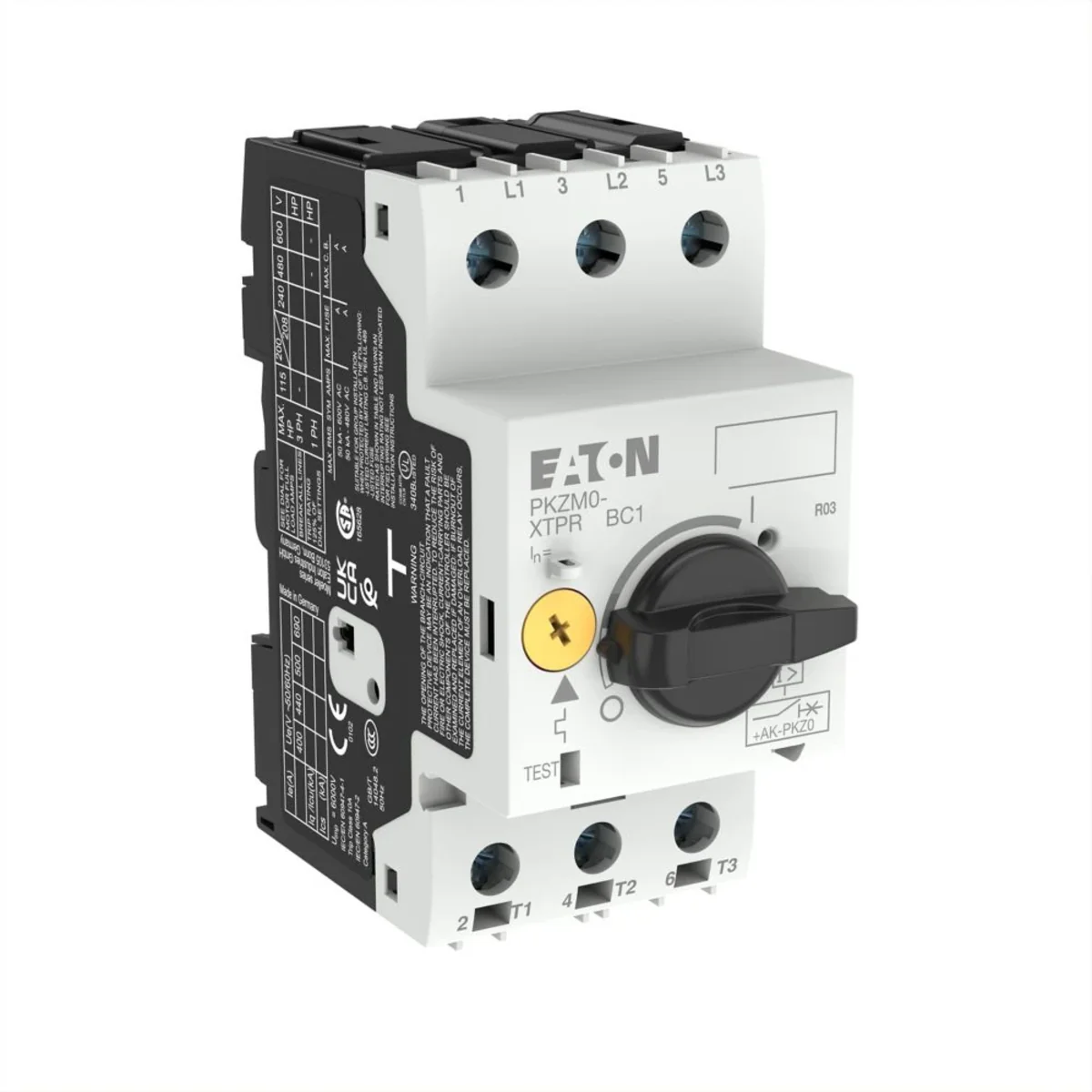

Motor circuit breaker 2, 5A, 0, 75kW, PKZM0-2, 5 072736

local index:
ASN107MOEL
Catalog No:
072736
EAN code:
4015080727361
Manufacturer: EATON
Maximum load capacity AC-3 [kW]: 0.75
Continuous current [A]: 2, 5
Overload release setting range [A]: 1.6-2.5
Price:
66,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Automatic motor circuit breaker PKZM0.


Technical data

  • Maximum load capacity AC-3 [kW]
    0.75
  • Overload release setting range [A]
    1.6-2.5
  • Continuous current [A]
    2, 5

Other technical data

  • Overload release current setting
    1.6 ... 2.5 A
  • With thermal overload protection
    no
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    2.5 A
  • Rated operation power at AC-3, 400 V
    0.75 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    no
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    39 ... 39 A
  • Phase failure sensitive
    yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.37 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    no
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    150 kA
  • Height
    93 mm
  • Depth
    76 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,302
Volume (m3) 0,000
Width (m) 0,048
Length (m) 0,080
Depth (m) 0,097
