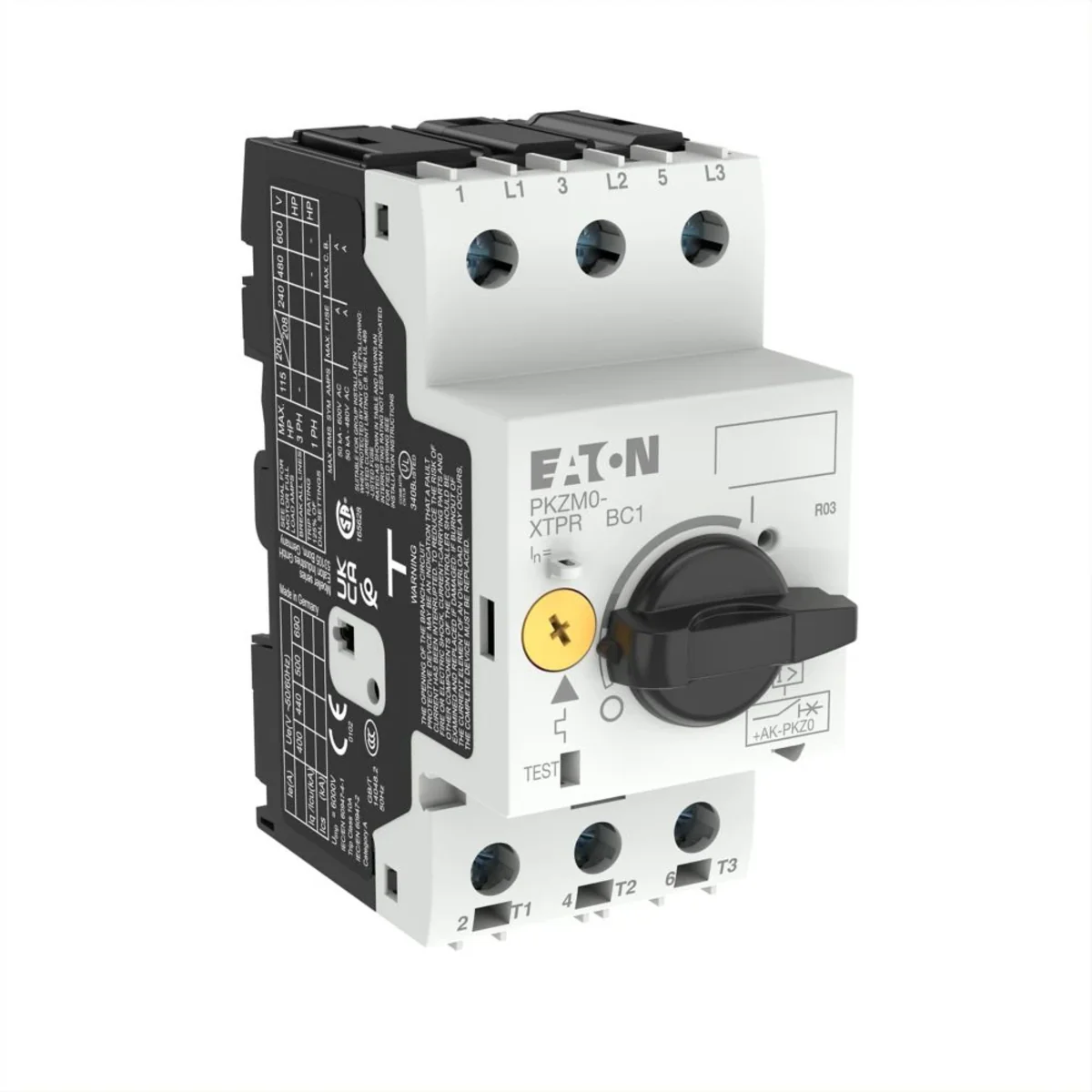

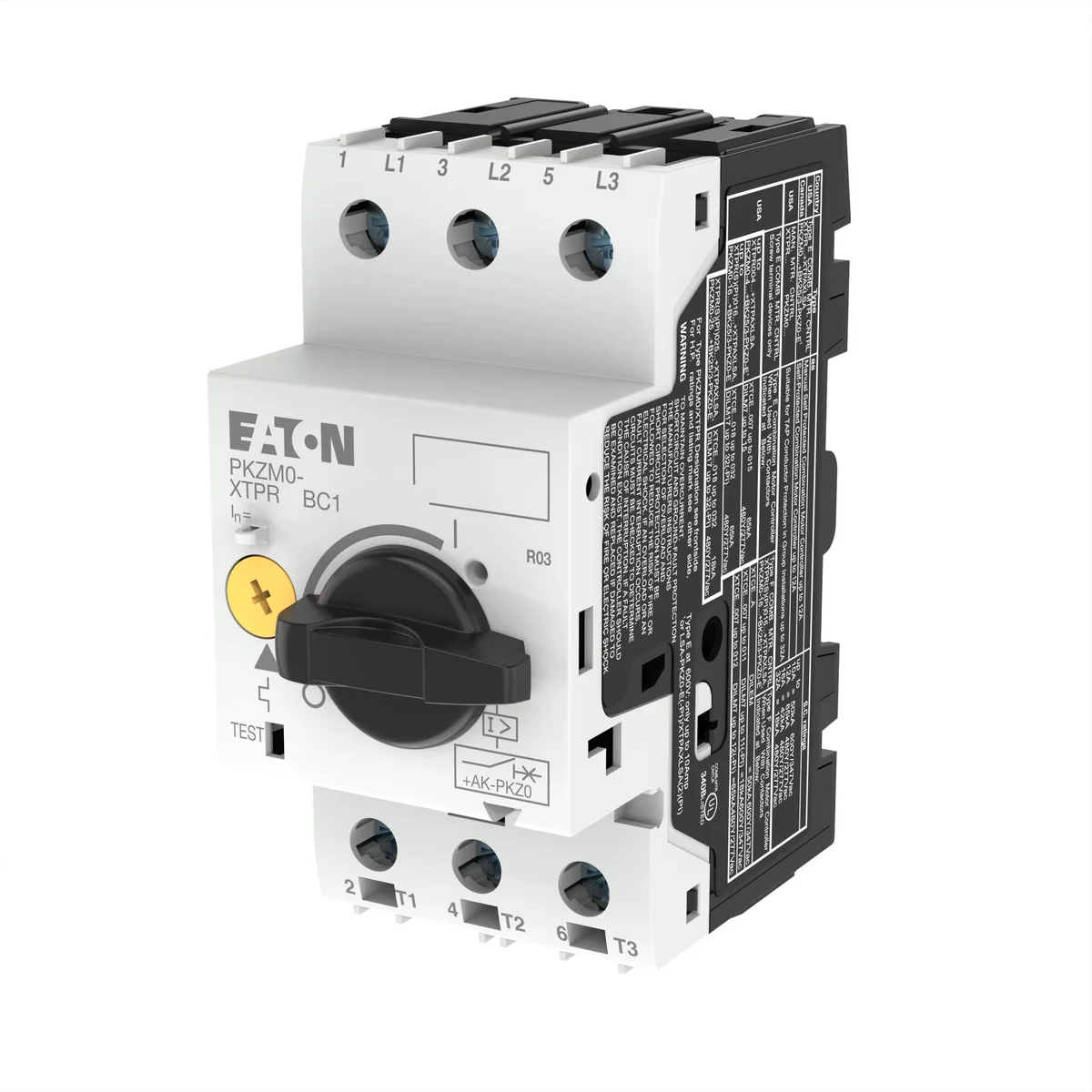

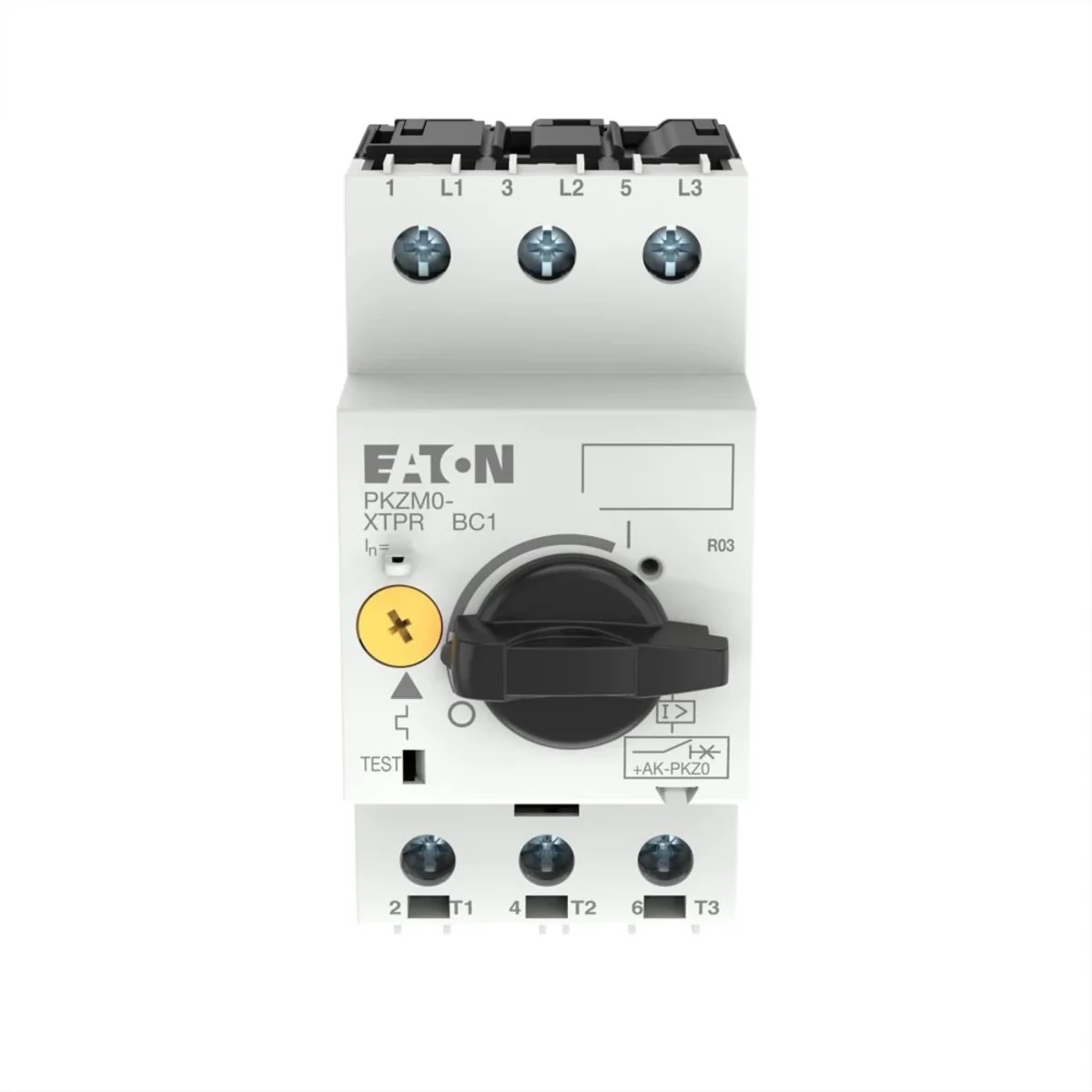

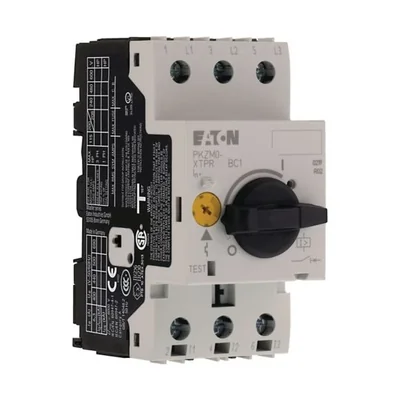

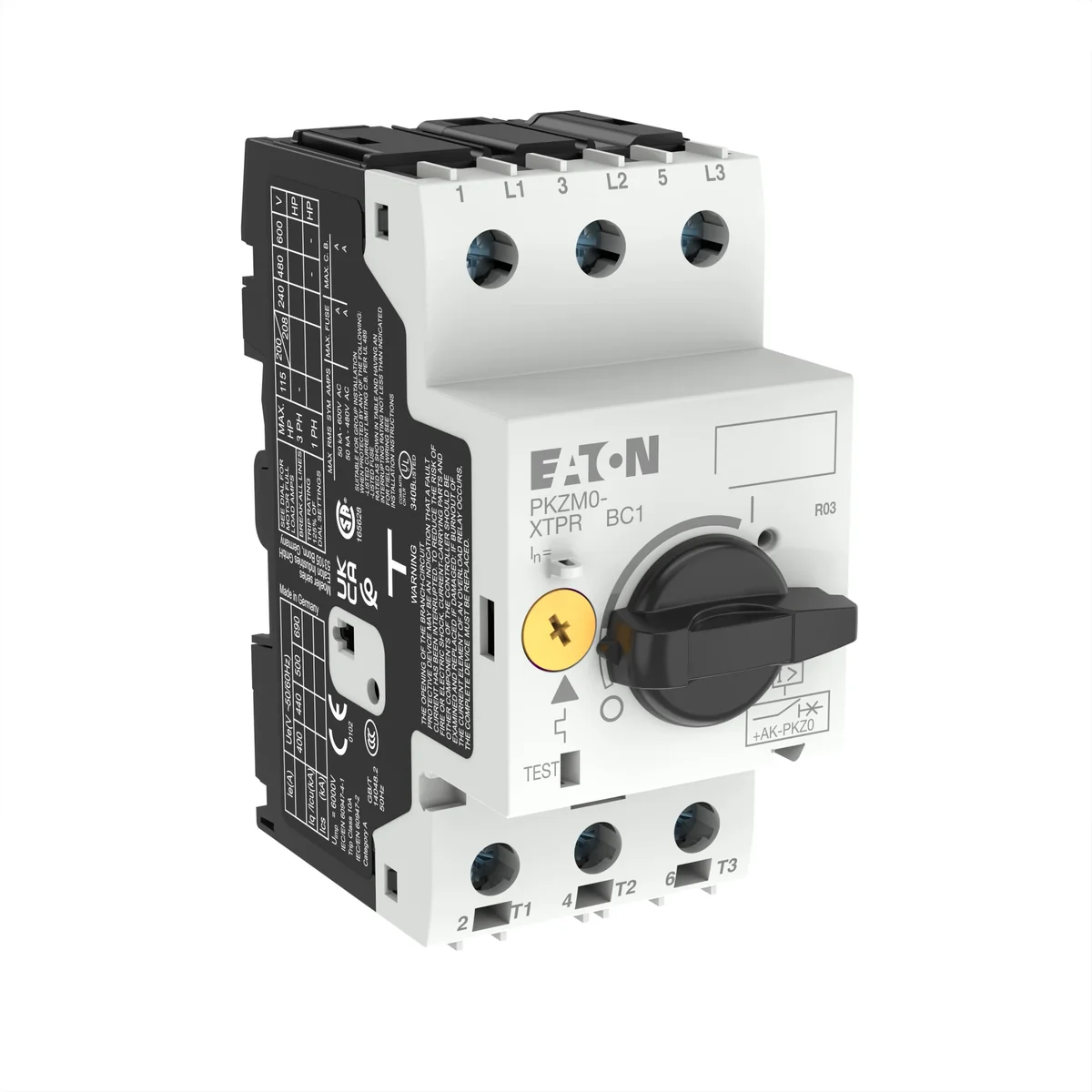

Motor circuit breaker 1A, 0, 25kW, PKZM0-1 072734
local index:
ASN105MOEL
Catalog No:
072734
EAN code:
4015080727347
Manufacturer:
EATON
Maximum load capacity AC-3 [kW]: 0.25
Continuous current [A]: 1
Overload release setting range [A]: 0.63-1
Price:
56,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Automatic motor circuit breaker PKZM0.
Technical data
-
Maximum load capacity AC-3 [kW]0.25
-
Overload release setting range [A]0.63-1
-
Continuous current [A]1
Other technical data
-
Overload release current setting0.63 ... 1 A
-
With thermal overload protectionNo
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu1 A
-
Rated operation power at AC-3, 400 V0.25 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release15.5 ... 15.5 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V0.12 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC150 kA
-
Height93 mm
-
Depth76 mm
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,262 |
| Volume (m3) | 0,000 |
| Width (m) | 0,048 |
| Length (m) | 0,080 |
| Depth (m) | 0,097 |
