Electrical apparatus
Motor circuit breakers
Motor circuit breakers for rail mounting

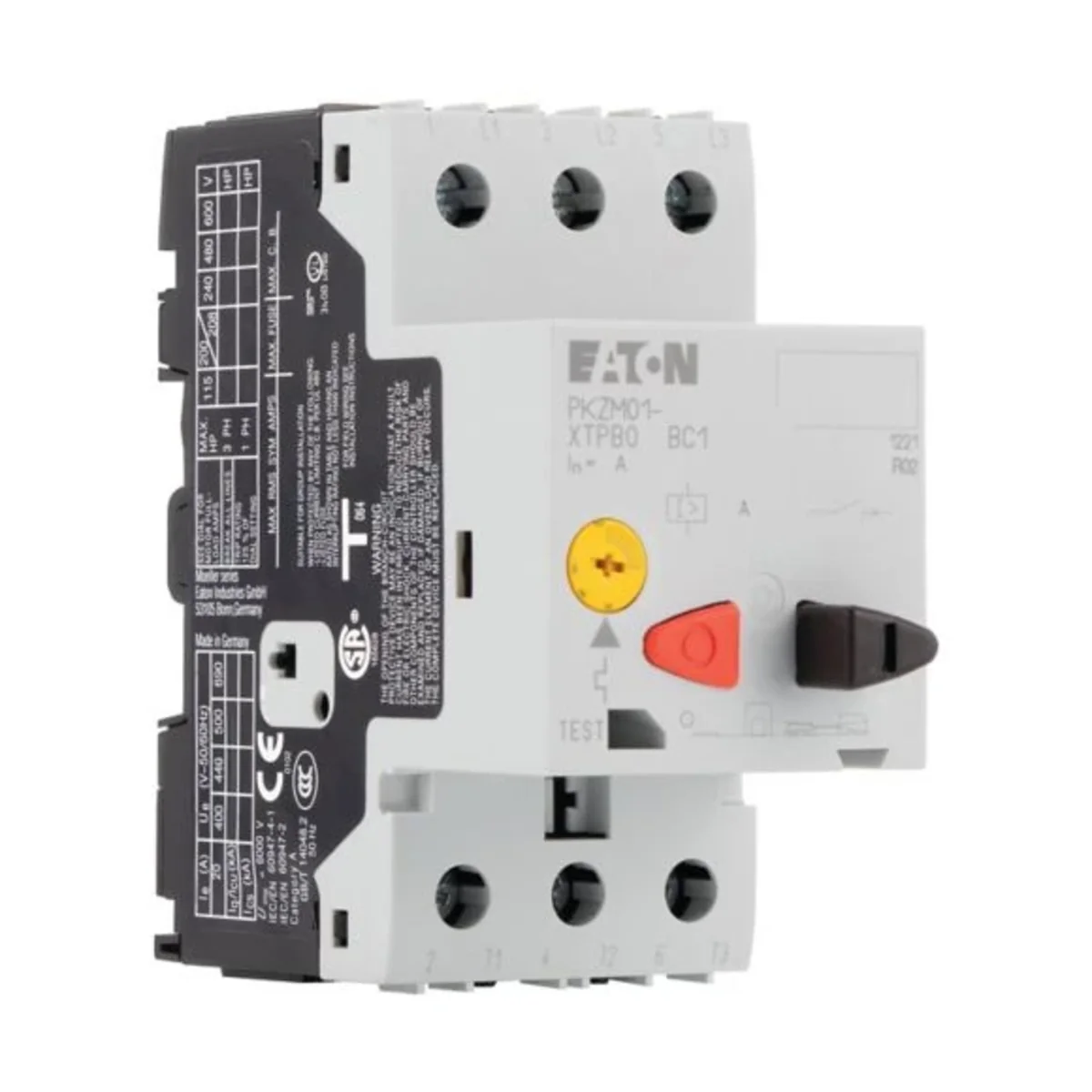

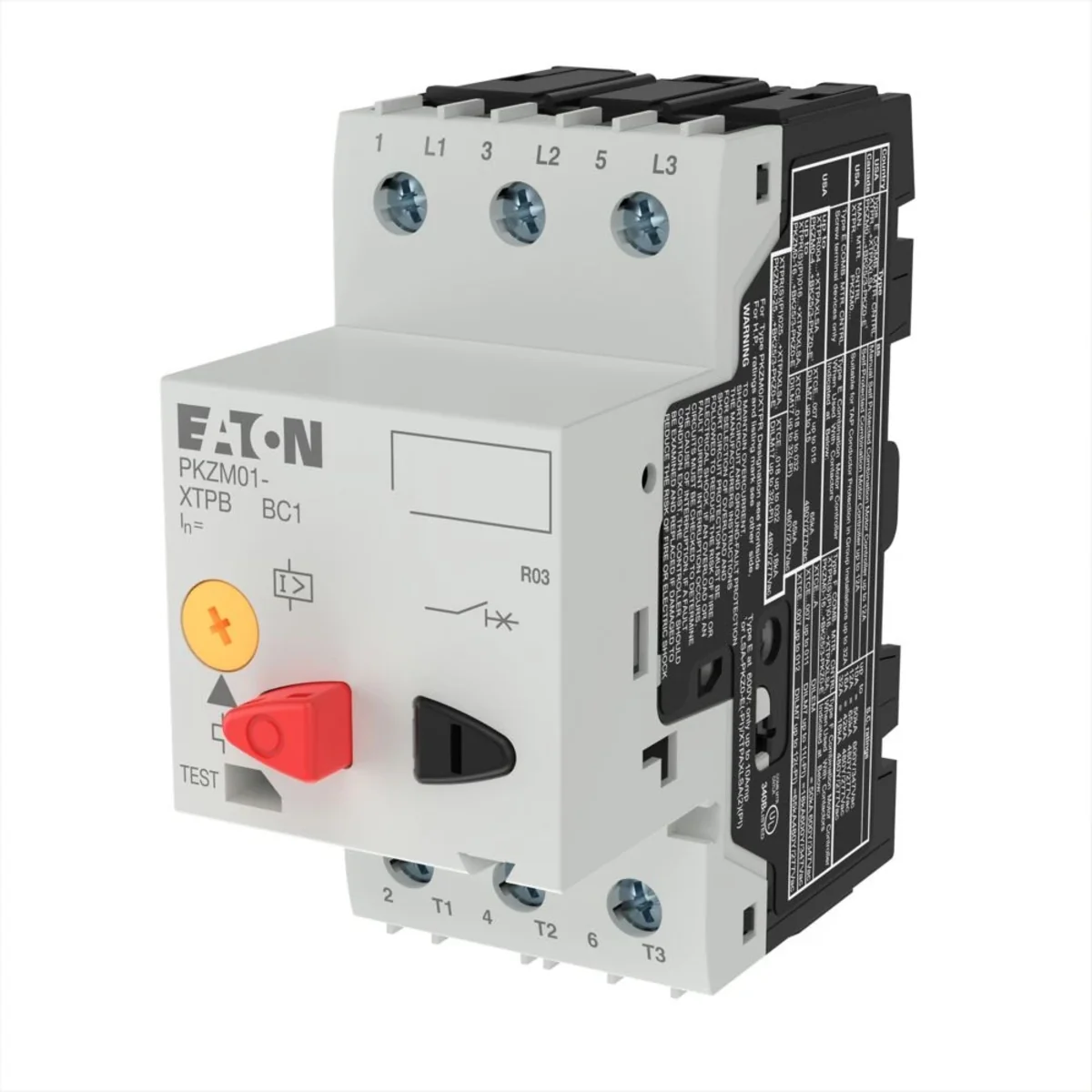

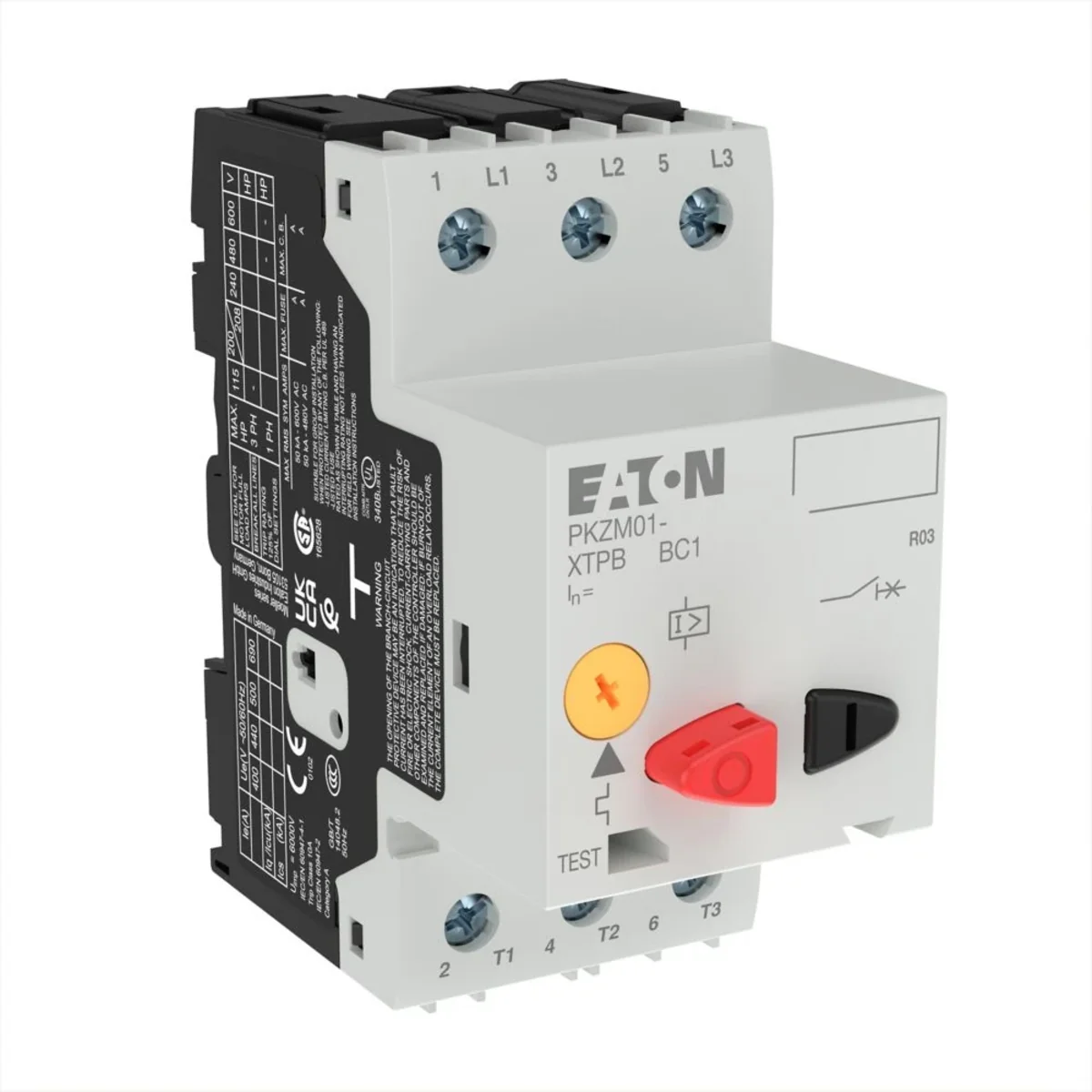

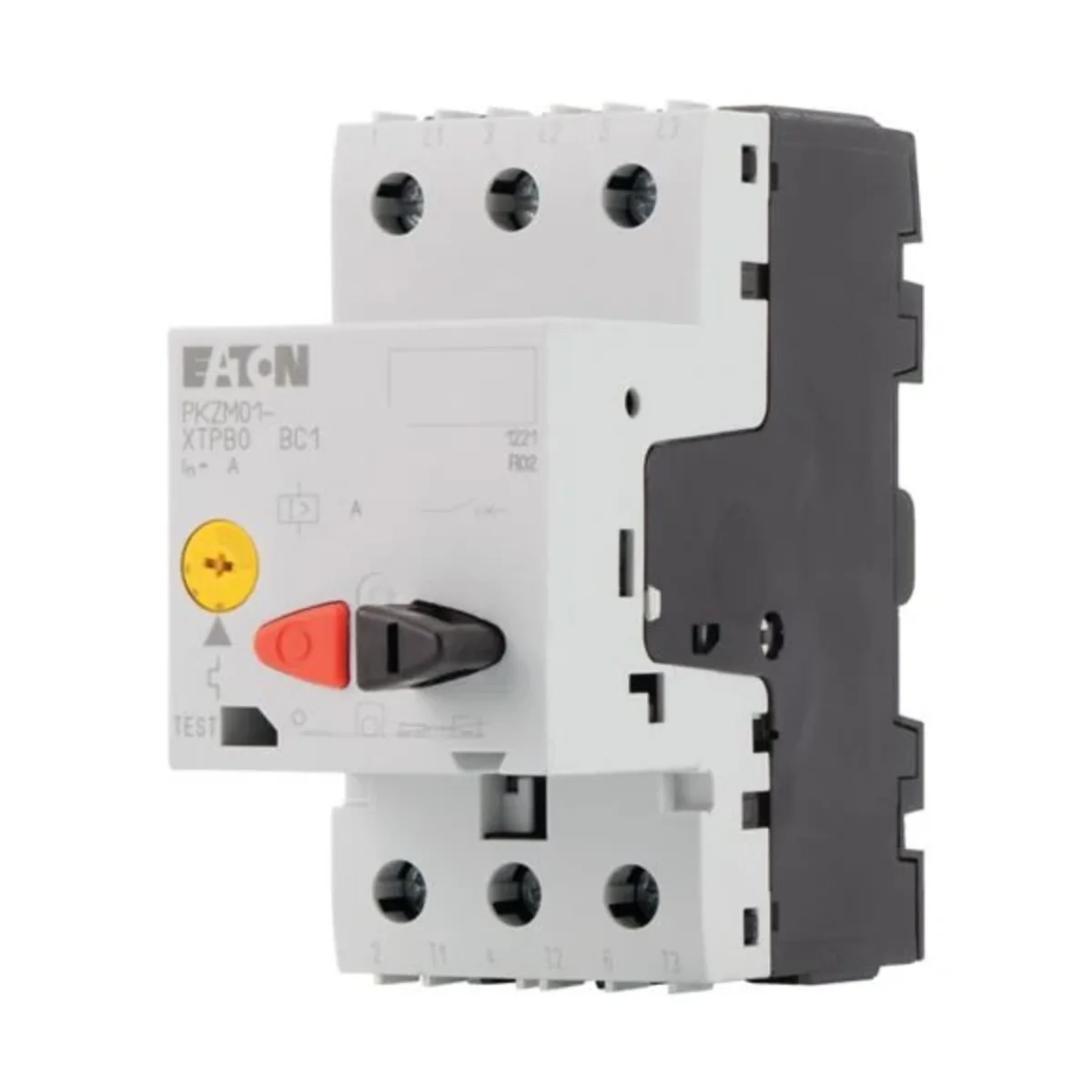

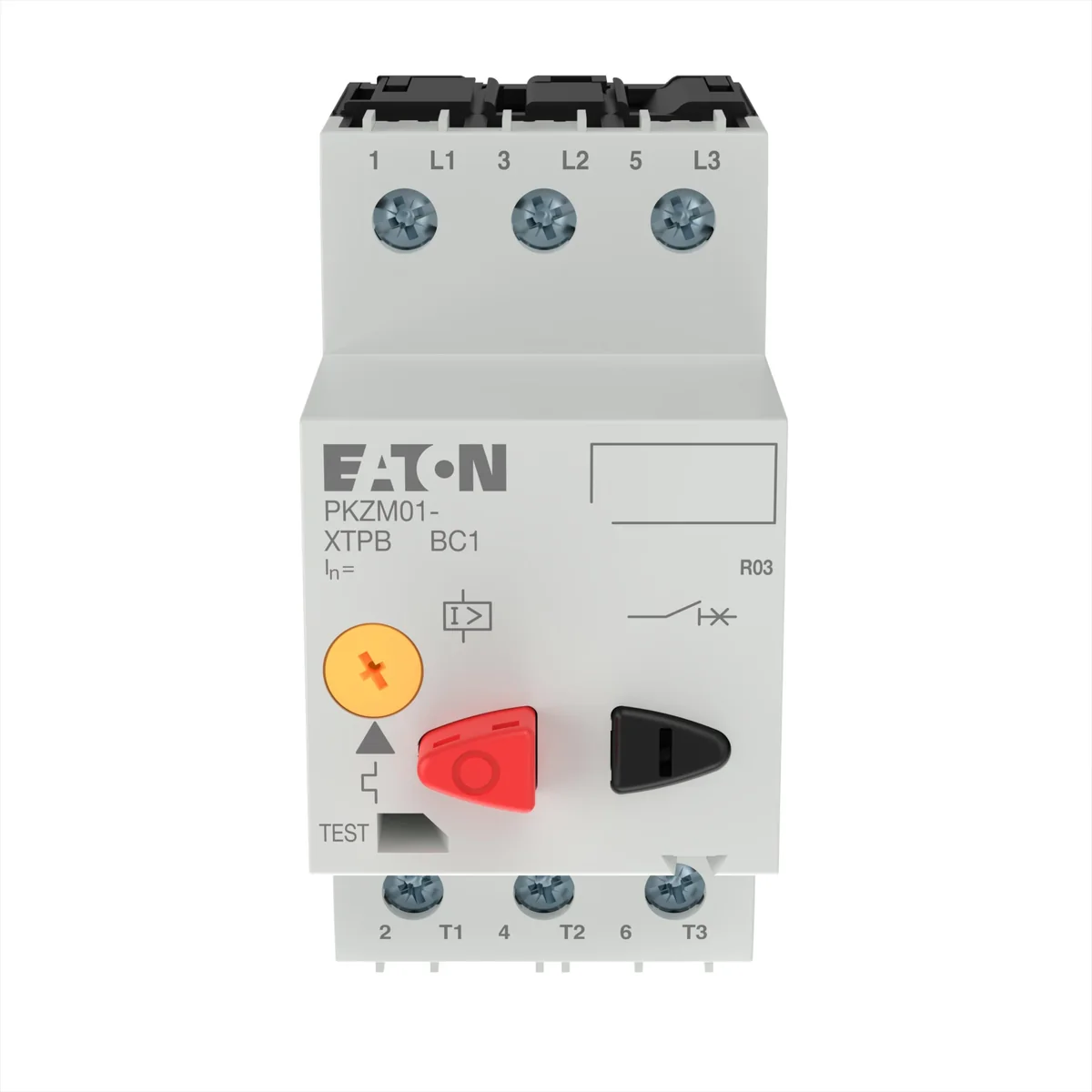

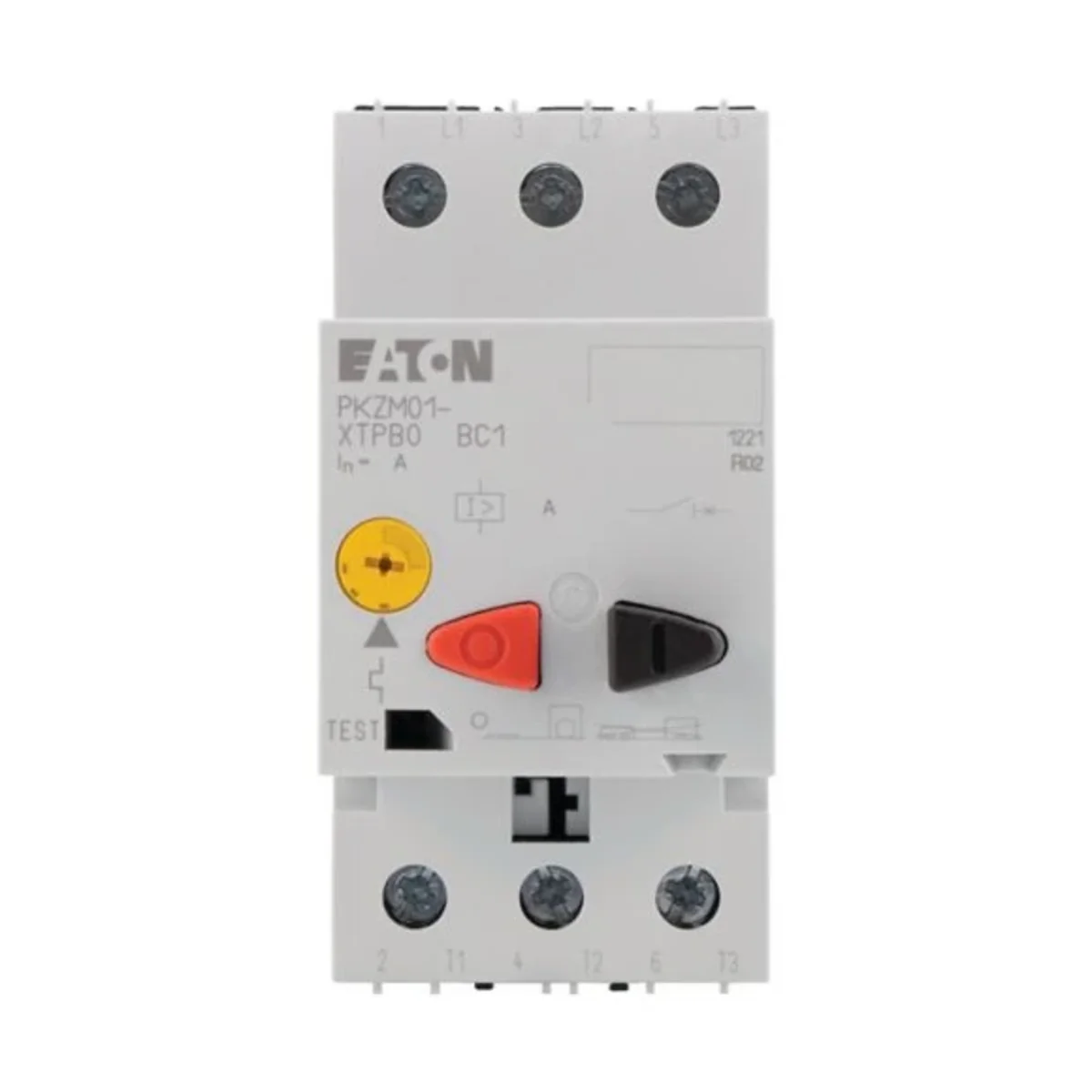

Motor circuit breaker 16A 7.5kW with push button, PKZM01-16 283390
local index:
ASN213MOEL
Catalog No:
283390
EAN code:
4015082833909
Click on the photo to enlarge
Manufacturer:
EATON
Current setting range [A] to:
16
Current setting range [A] from:
12
See full description
Price:
89,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Automatic motor circuit breaker PKZM0.
Technical data
Current setting range [A] to
16
Current setting range [A] from
12
Other technical data
Overload release current setting
10 ... 16 A
With thermal overload protection
No
Switch off technique
Thermomagnetic
Rated permanent current Iu
16 A
Rated operation power at AC-3, 400 V
7.5 kW
Type of control element
Push button
With integrated auxiliary switch
No
Number of poles
3
Degree of protection (IP)
IP20
Width
45 mm
Adjustment range undelayed short-circuit release
248 ... 248 A
Phase failure sensitive
Yes
Rated operating voltage
690 ... 690 V
Rated operation power at AC-3, 230 V
4 kW
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
With integrated under voltage release
No
Rated short-circuit breaking capacity lcu at 400 V, AC
50 kA
Height
92.4 mm
Depth
86 mm
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,319
Volume (m3)
0,000
Width (m)
0,049
Length (m)
0,095
Depth (m)
0,094
