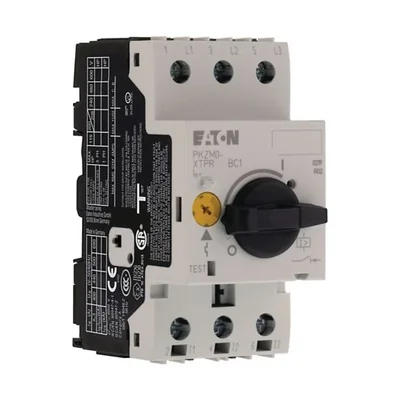

Motor circuit breaker 16A, 7.5kW, PKZM0-16 046938

Índice local:
ASN111MOEL
Número de catálogo:
046938
Código EAN:
4015080469384
Fabricante: EATON
Maximum load capacity AC-3 [kW]: 7.5
Continuous current [A]: 16
Overload release setting range [A]: 2014-10-16 00:00:00
Precio:
78,74 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 2 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

Automatic motor circuit breaker PKZM0.

Datos técnicos

  • Maximum load capacity AC-3 [kW]
    7.5
  • Overload release setting range [A]
    2014-10-16 00:00:00
  • Continuous current [A]
    16

Otros datos técnicos

  • Overload release current setting
    10 ... 16 A
  • With thermal overload protection
    No
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    16 A
  • Rated operation power at AC-3, 400 V
    7.5 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    248 ... 248 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    4 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Height
    93 mm
  • Depth
    76 mm

Detalles del fabricante

  • Fabricante
    EATON Electric Sp. z o.o.
  • Dirección
    80-299 Gdańsk ul. Galaktyczna 30
  • NIF
    5841022327

Empaquetado a granel

una especie de paquete Skrzynia
Cantidad 1 uds.
Peso (kg) 0,307
Volumen (m3) 0,000
Ancho (m) 0,048
Longitud (m) 0,080
Profundidad (m) 0,097
