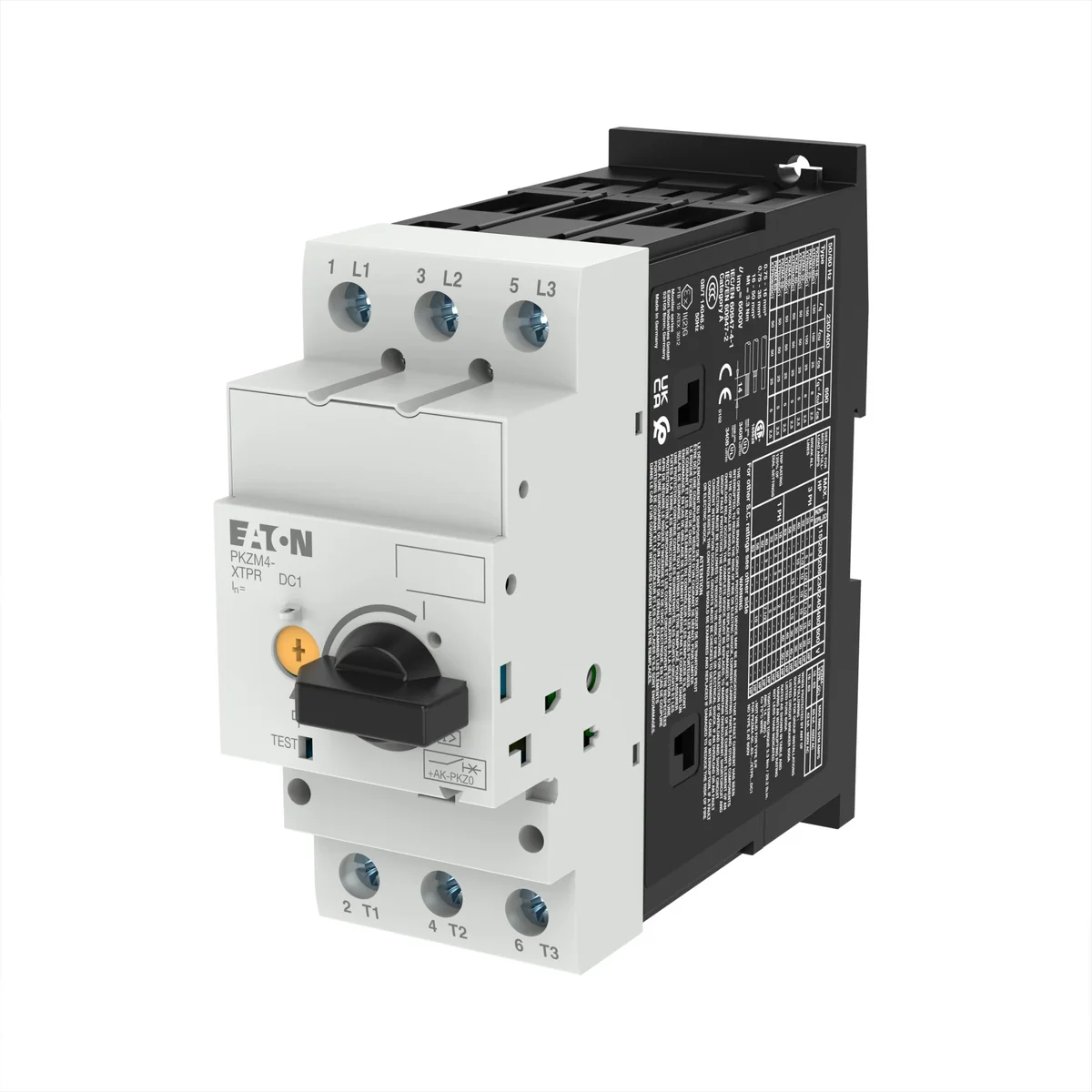

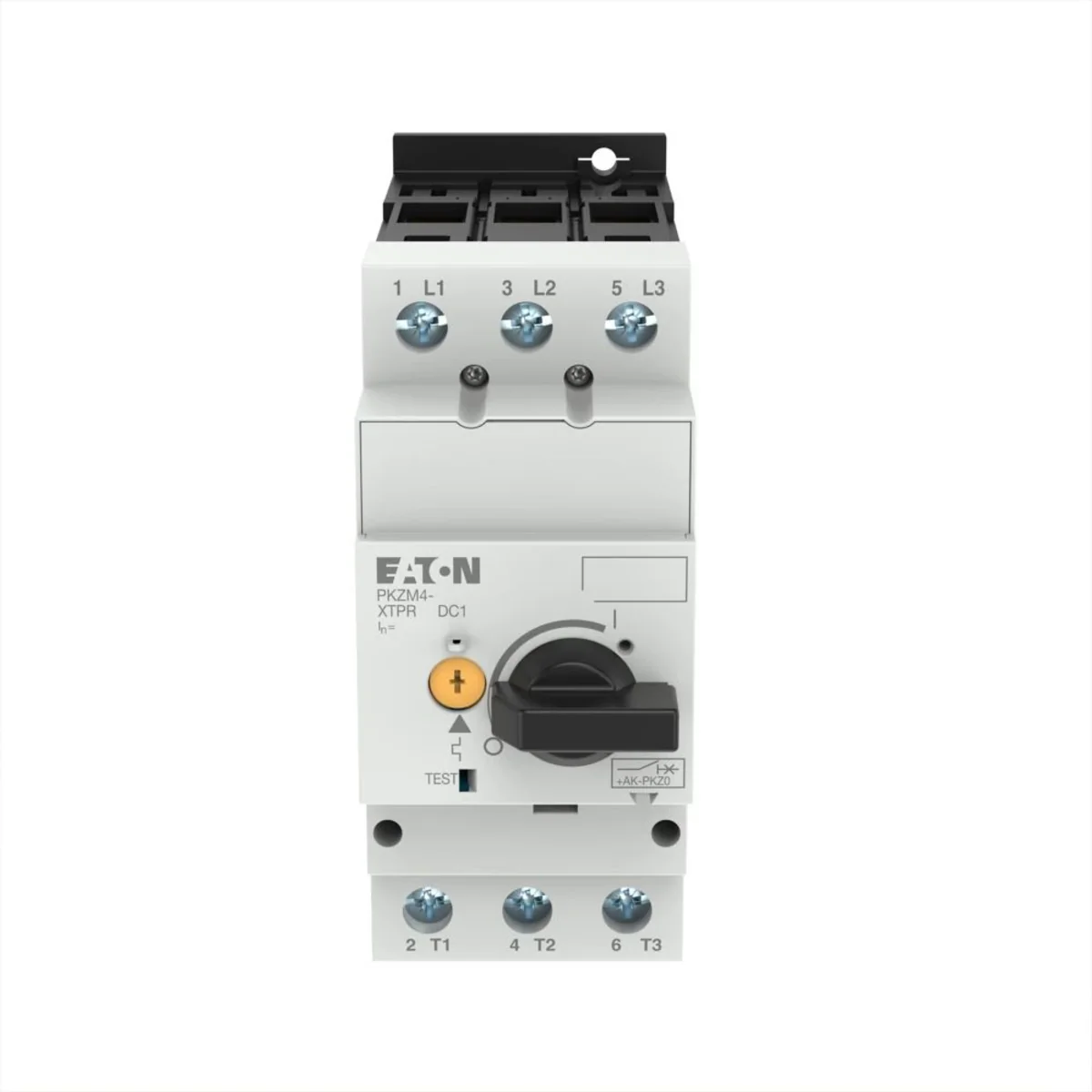

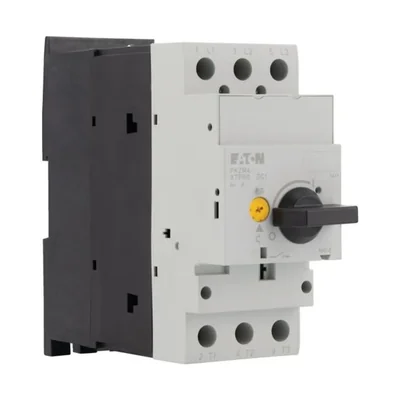

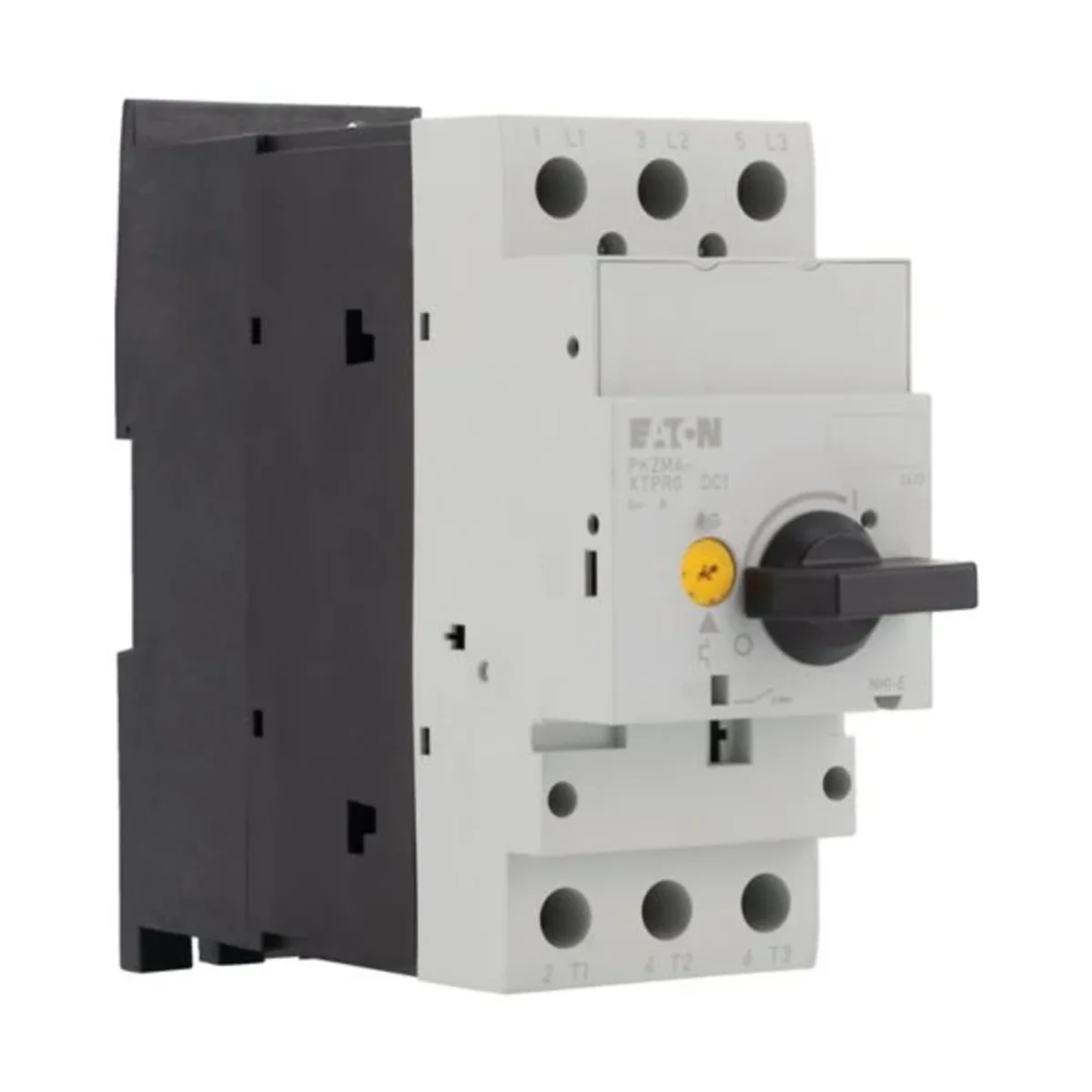

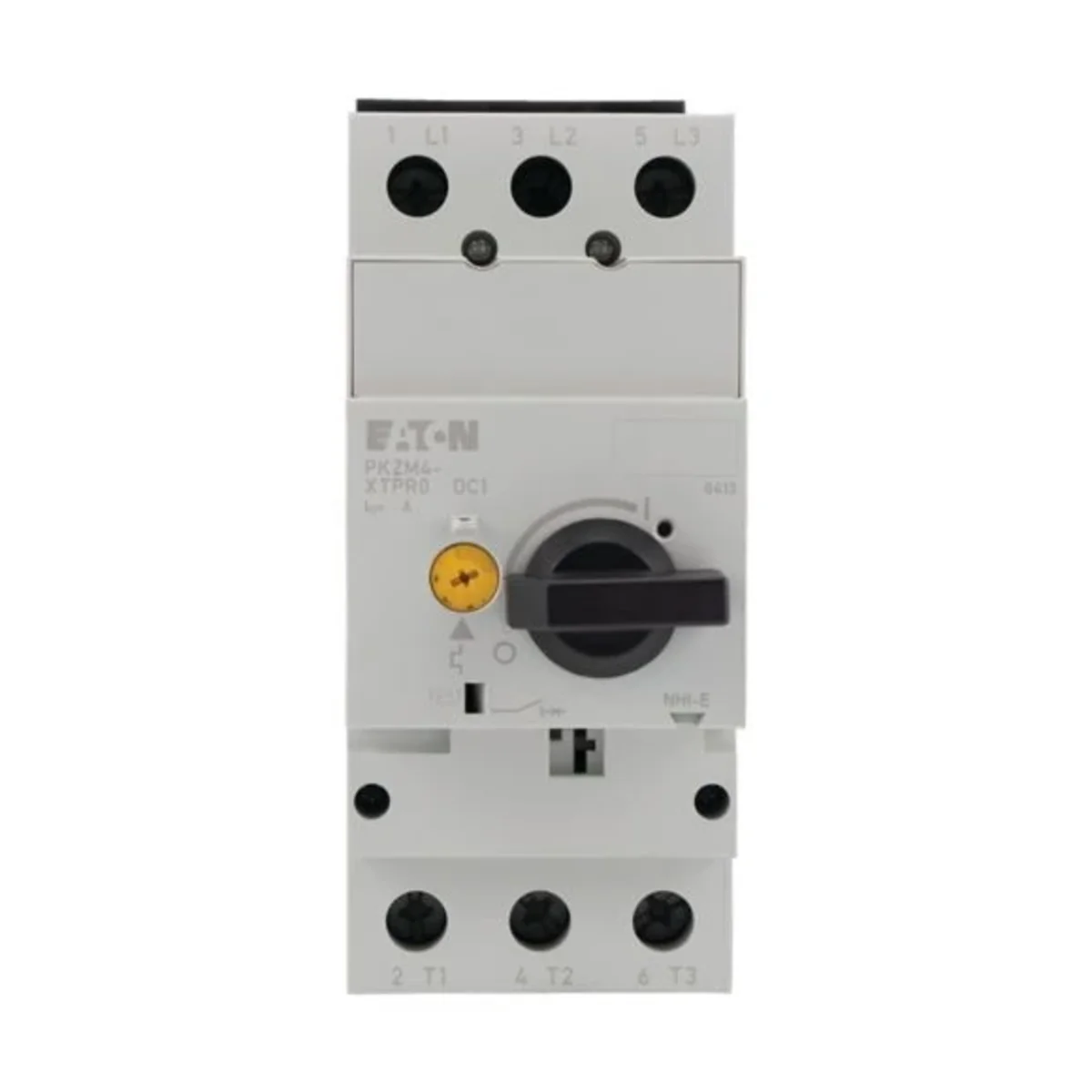

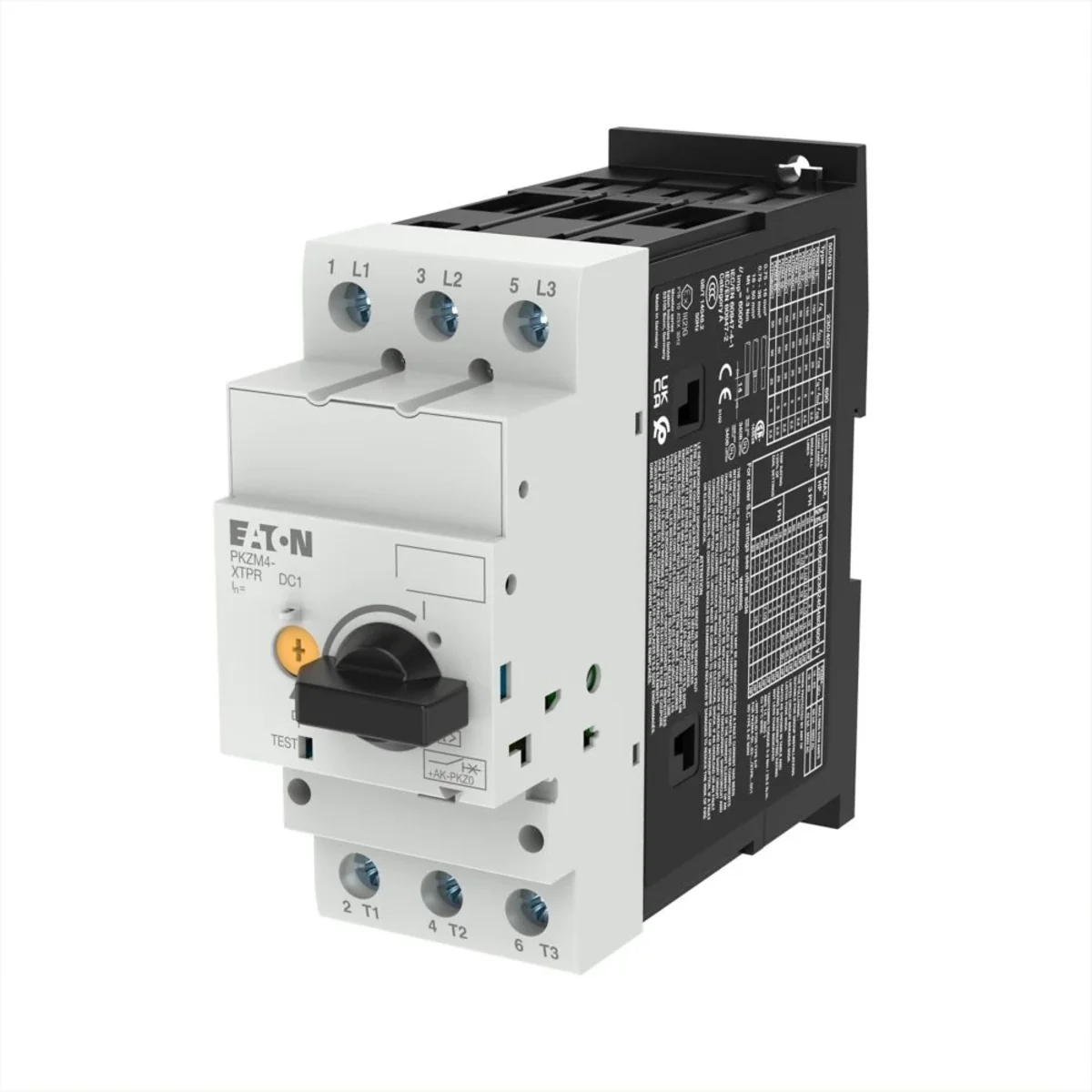

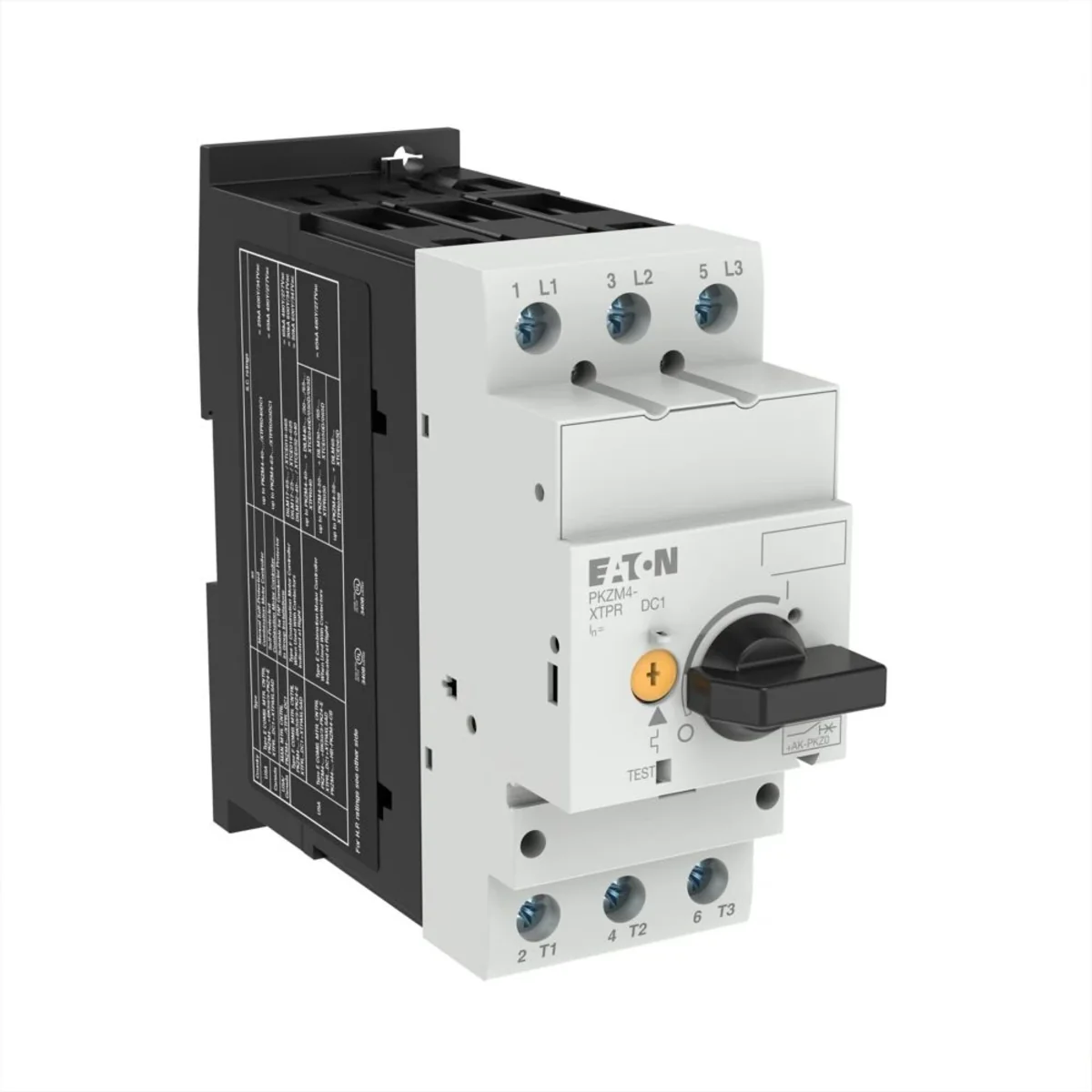

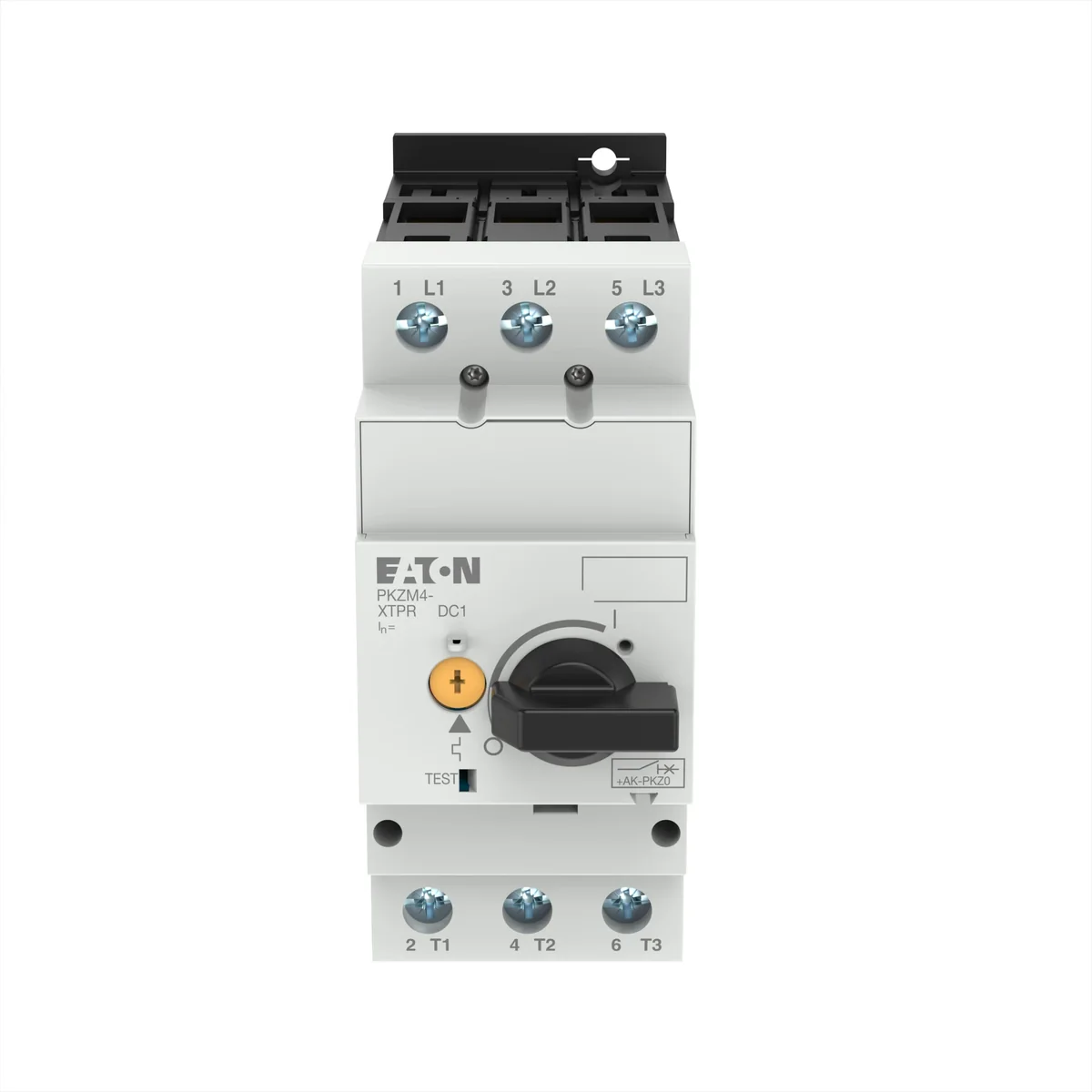

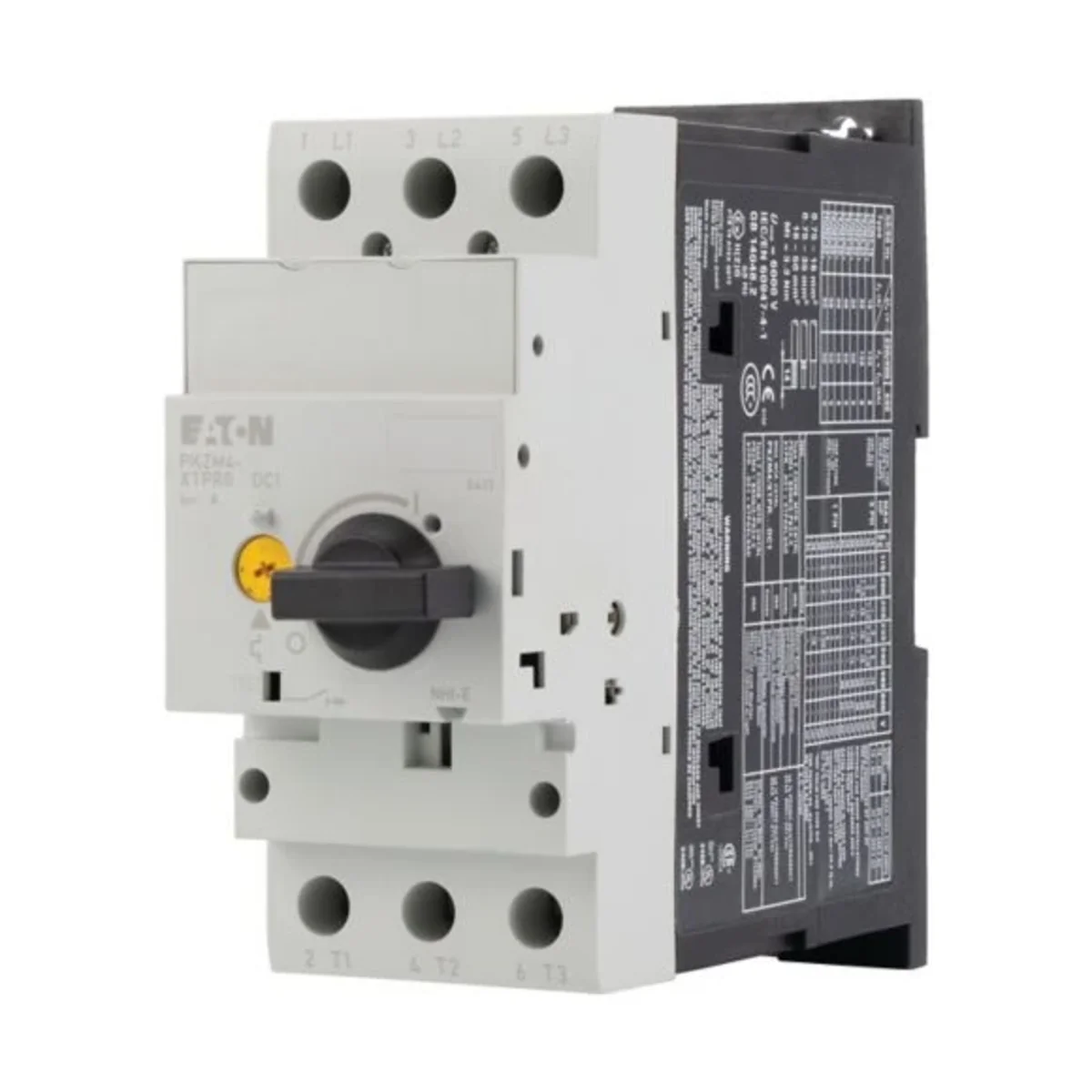

Motor circuit breaker 16A, 10-16kW, PKZM4-16 222350

local index:
ASN204MOEL
Catalog No:
222350
EAN code:
4015082223502
Manufacturer: EATON
Continuous current [A]: 16
Overload release [A]: 10-16
Short-circuit release [A]: 224
Price:
267,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motor starters, "1" coordination and "2".

Technical data

  • Continuous current [A]
    16
  • Short-circuit release [A]
    224
  • Overload release [A]
    10-16

Other technical data

  • Overload release current setting
    10 ... 16 A
  • With thermal overload protection
    No
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    16 A
  • Rated operation power at AC-3, 400 V
    7.5 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    55 mm
  • Adjustment range undelayed short-circuit release
    248 ... 248 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    4 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    150 kA
  • Height
    140 mm
  • Depth
    160 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,200
Volume (m3) 0,001
Width (m) 0,058
Length (m) 0,165
Depth (m) 0,143
