Electrical apparatus
Motor circuit breakers
Motor circuit breakers for rail mounting

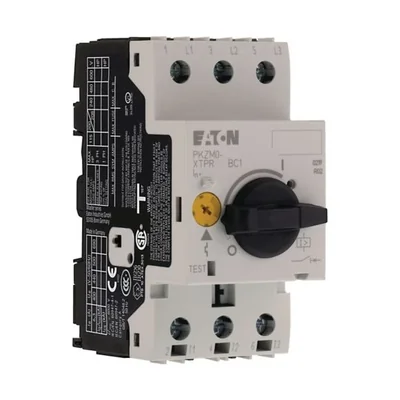

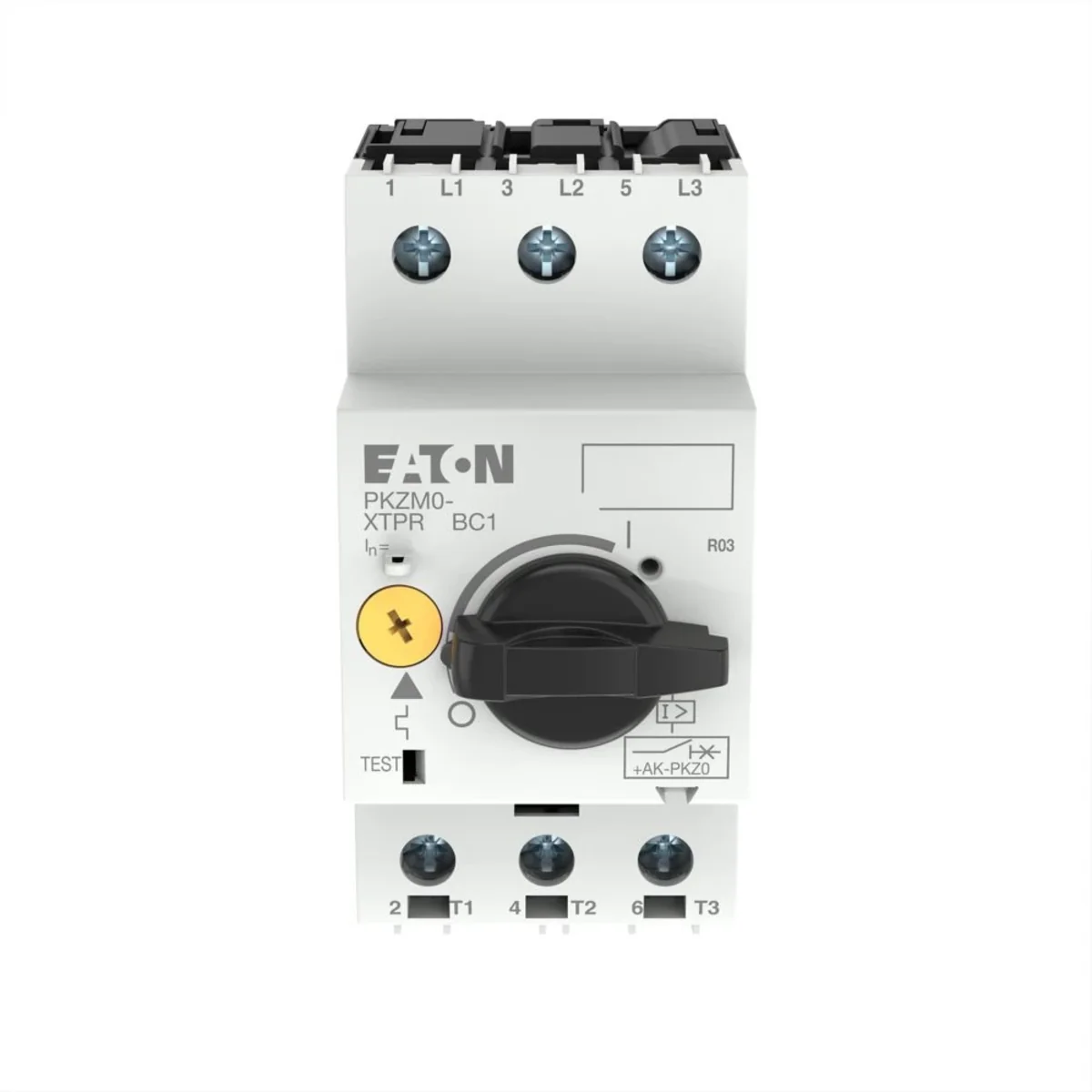

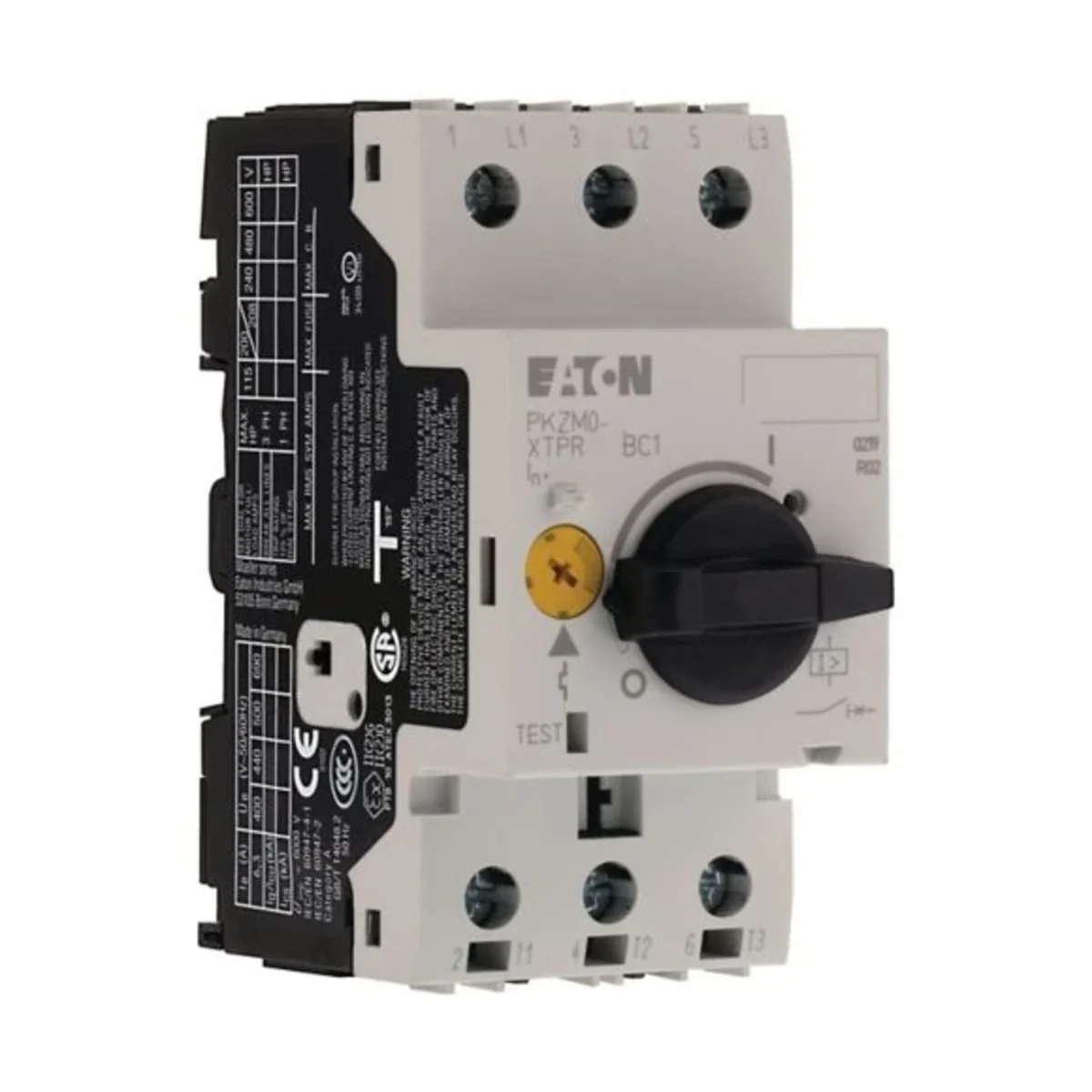

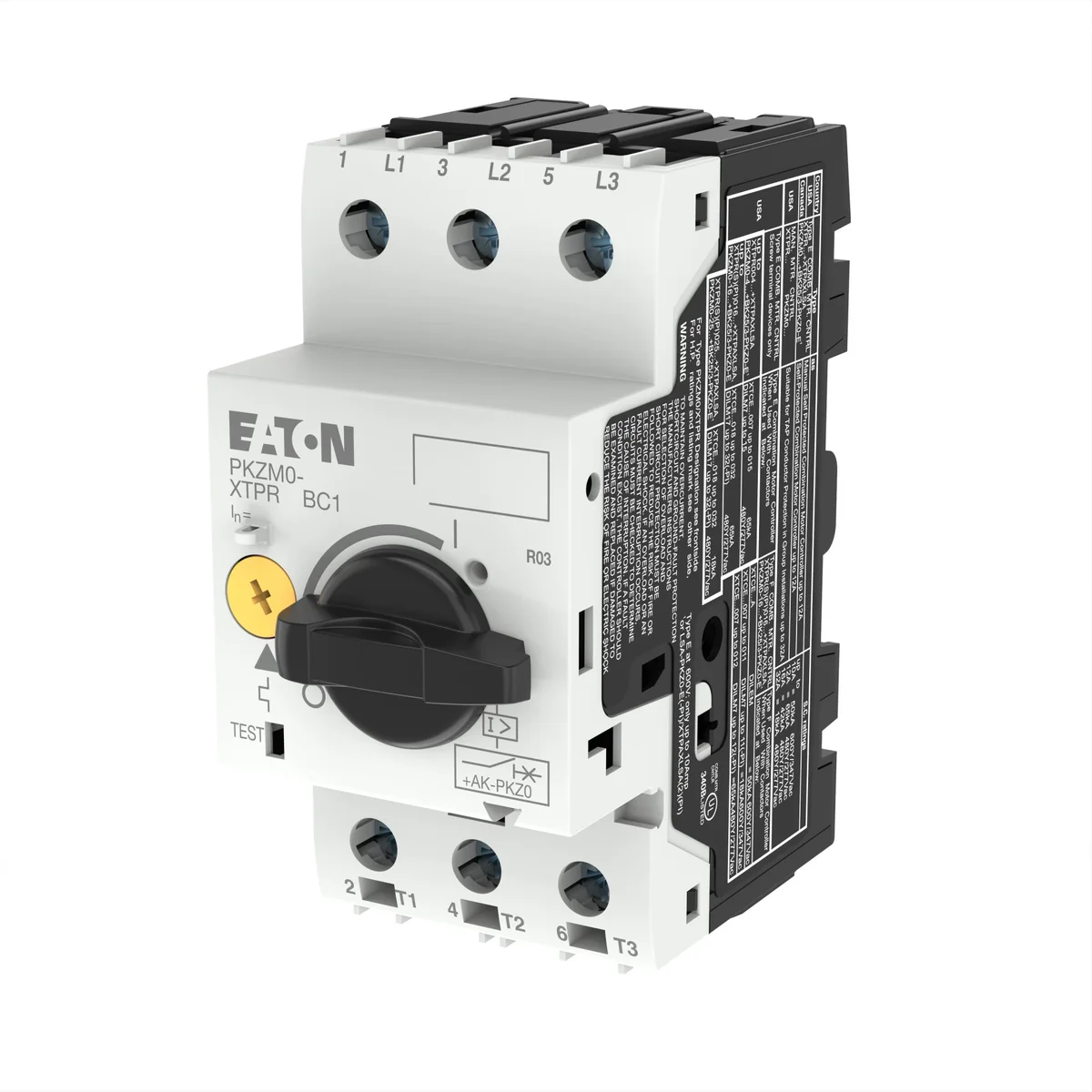

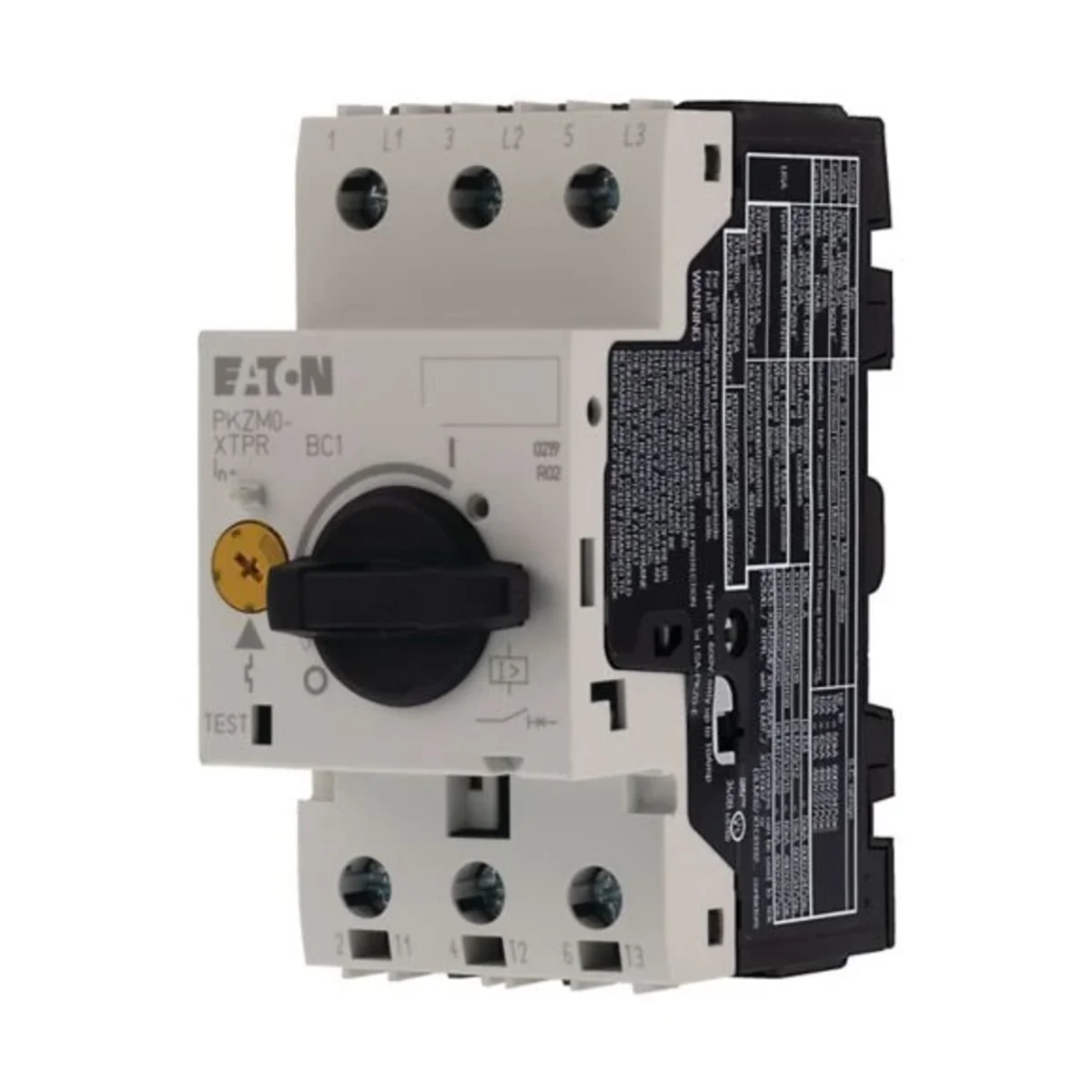

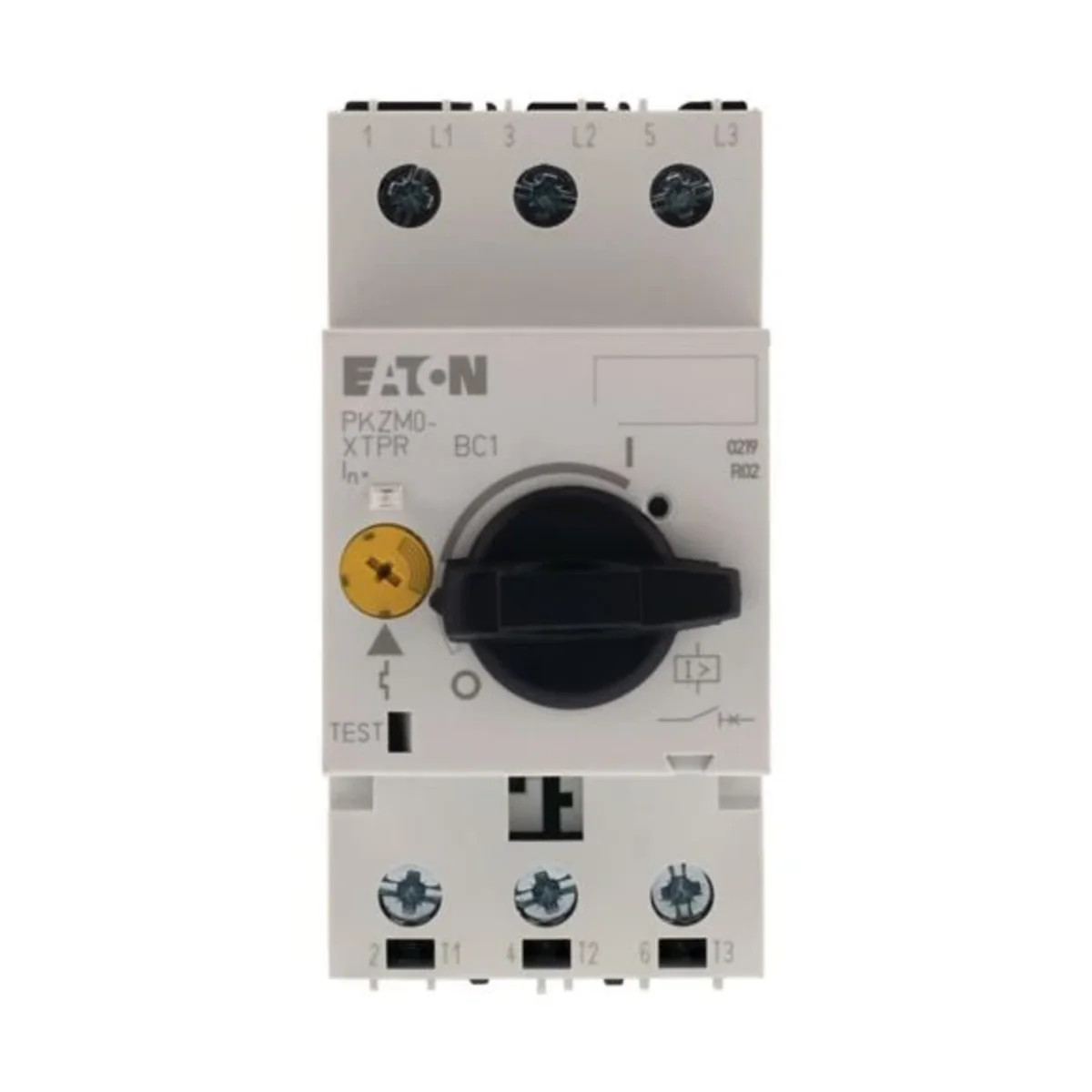

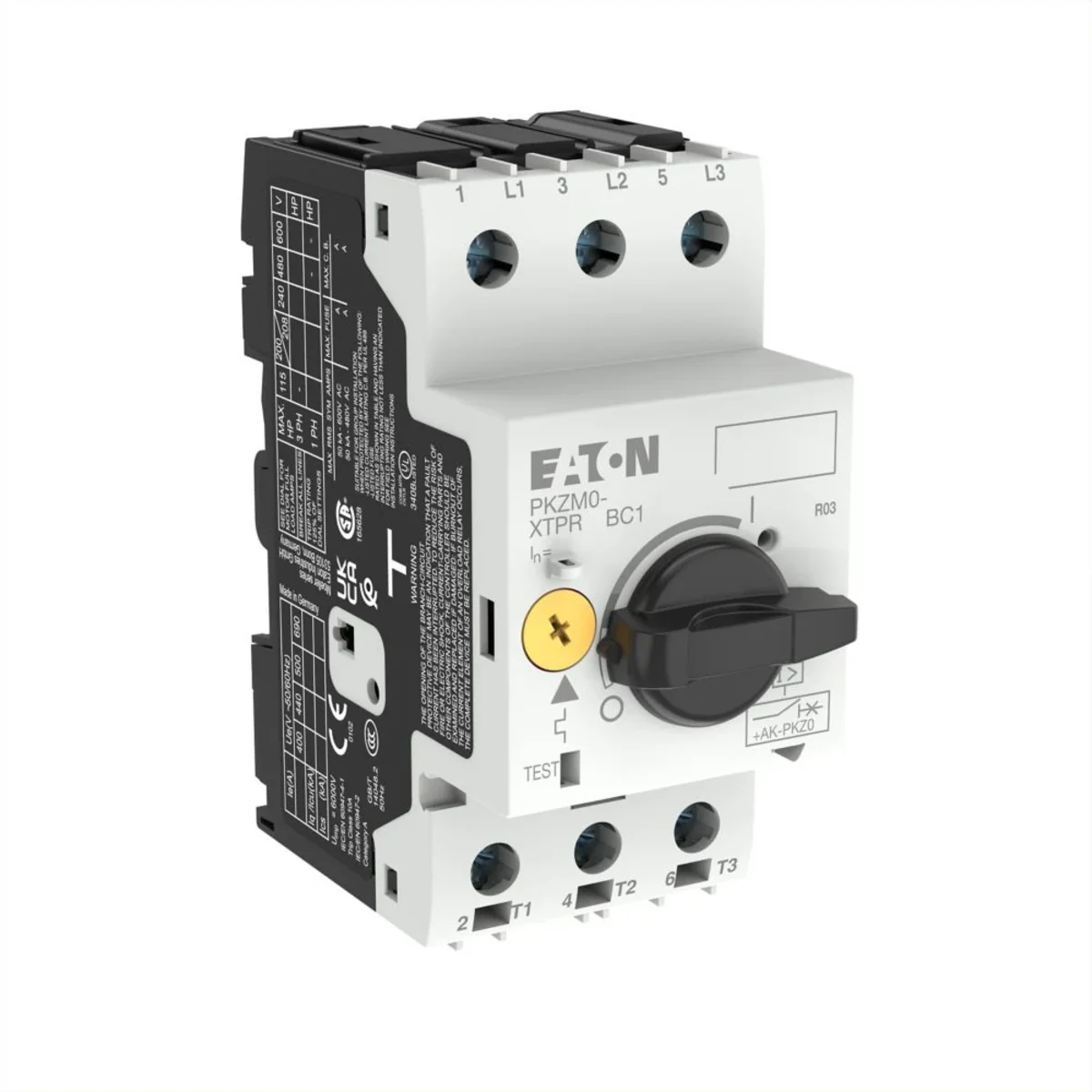

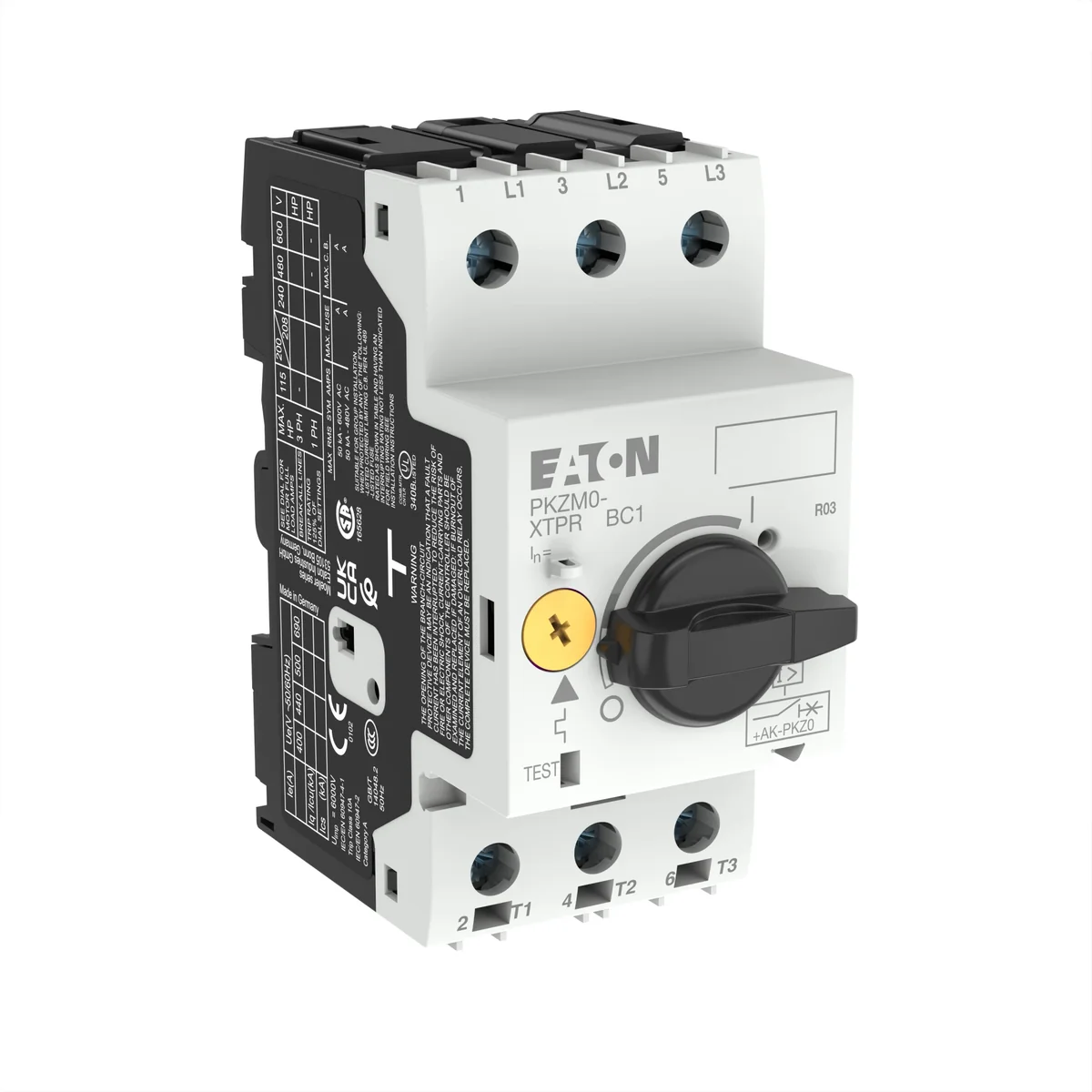

Motor circuit breaker 1, 6A, 0, 37kW, PKZM0-1, 6 072735
local index:
ASN106MOEL
Catalog No:
072735
EAN code:
4015080727354
Click on the photo to enlarge
Manufacturer:
EATON
Maximum load capacity AC-3 [kW]:
0.37
Continuous current [A]:
1.6
Overload release setting range [A]:
1-1.6
See full description
Price:
57,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Automatic motor circuit breaker PKZM0.
Technical data
Maximum load capacity AC-3 [kW]
0.37
Overload release setting range [A]
1-1.6
Continuous current [A]
1.6
Other technical data
Overload release current setting
1 ... 1.6 A
With thermal overload protection
No
Switch off technique
Thermomagnetic
Rated permanent current Iu
1.6 A
Rated operation power at AC-3, 400 V
0.55 kW
Type of control element
Turn button
With integrated auxiliary switch
No
Number of poles
3
Degree of protection (IP)
IP20
Width
45 mm
Adjustment range undelayed short-circuit release
25 ... 25 A
Phase failure sensitive
Yes
Rated operating voltage
690 ... 690 V
Rated operation power at AC-3, 230 V
0.25 kW
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
With integrated under voltage release
No
Rated short-circuit breaking capacity lcu at 400 V, AC
150 kA
Height
93 mm
Depth
76 mm
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,295
Volume (m3)
0,000
Width (m)
0,048
Length (m)
0,080
Depth (m)
0,097
