el12 Electrical apparatus Motor circuit breakers Motor circuit breakers for rail mounting Motor circuit breaker, 0.4A, PKZM01-0.4
Motor circuit breaker, 0.4A, PKZM01-0.4
Motor circuit breaker, 0.4A, PKZM01-0.4
Motor circuit breaker, 0.4A, PKZM01-0.4
Motor circuit breaker, 0.4A, PKZM01-0.4

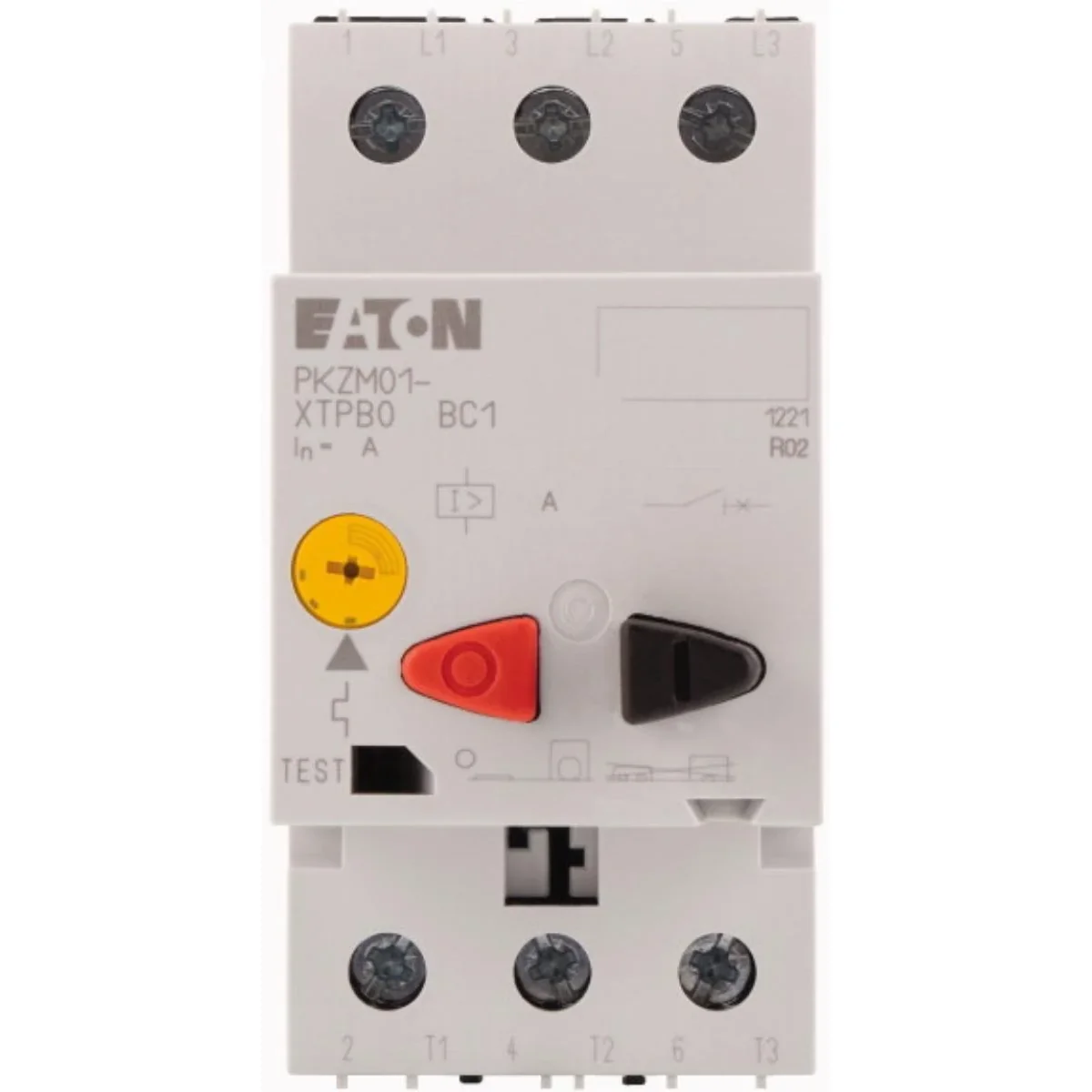

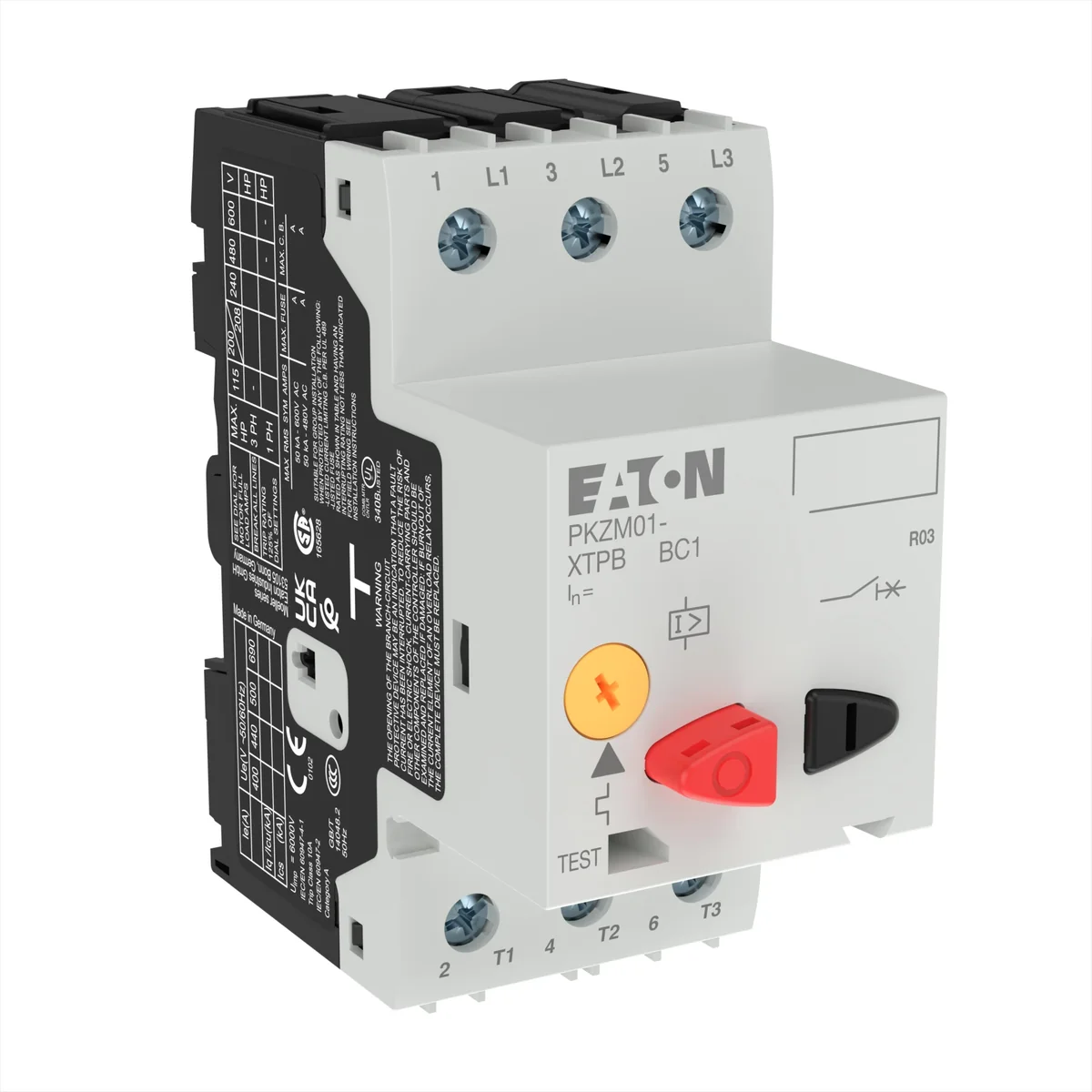

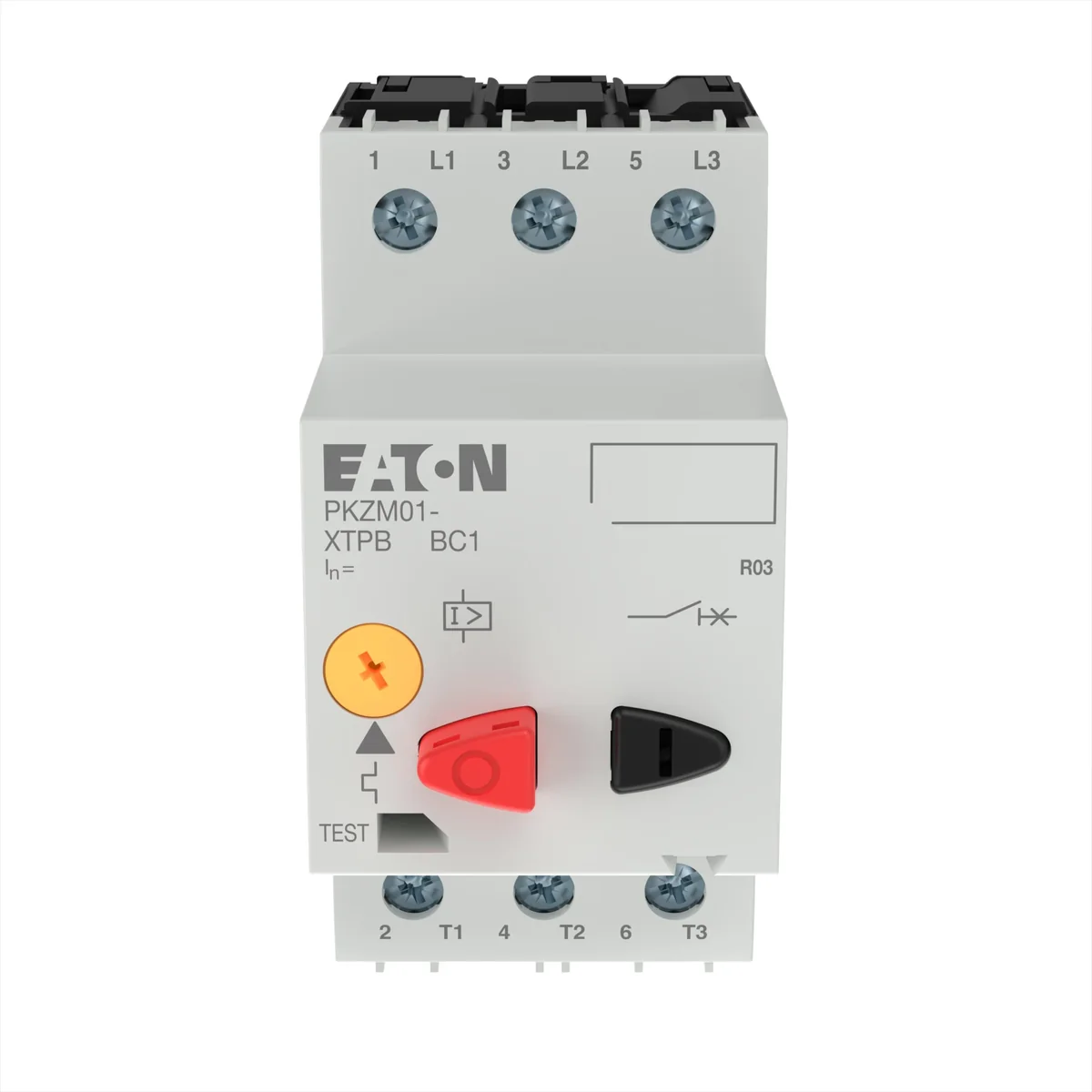

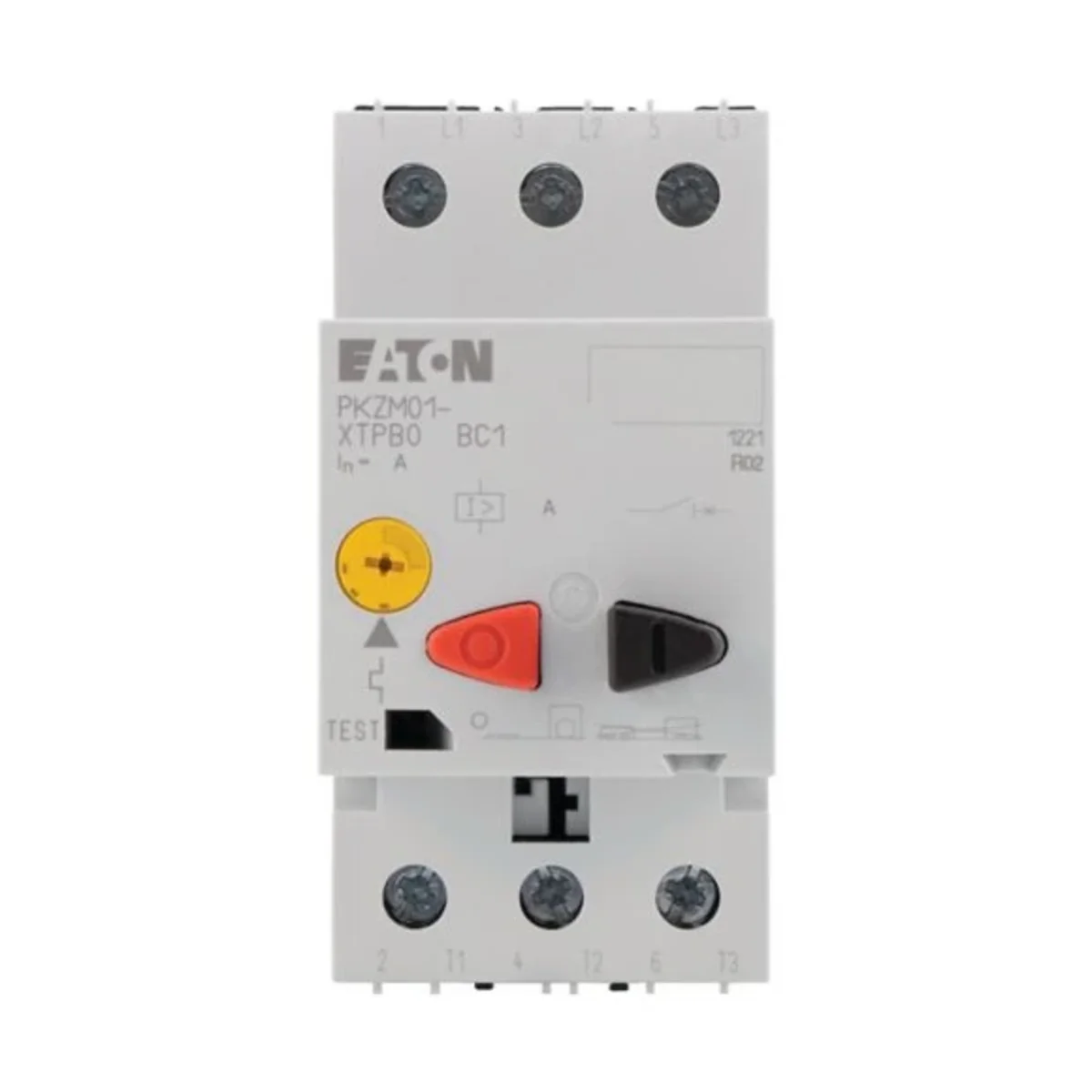

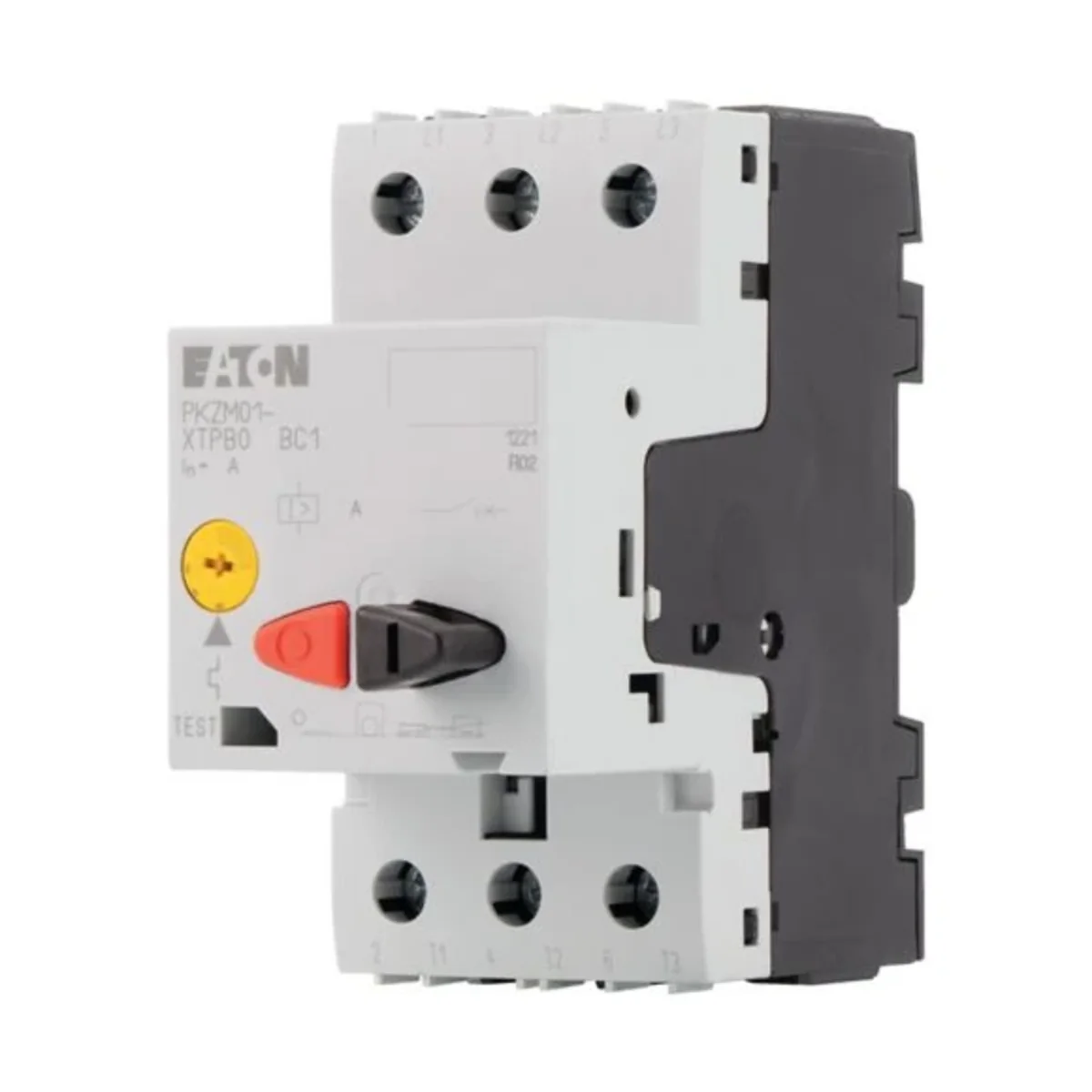

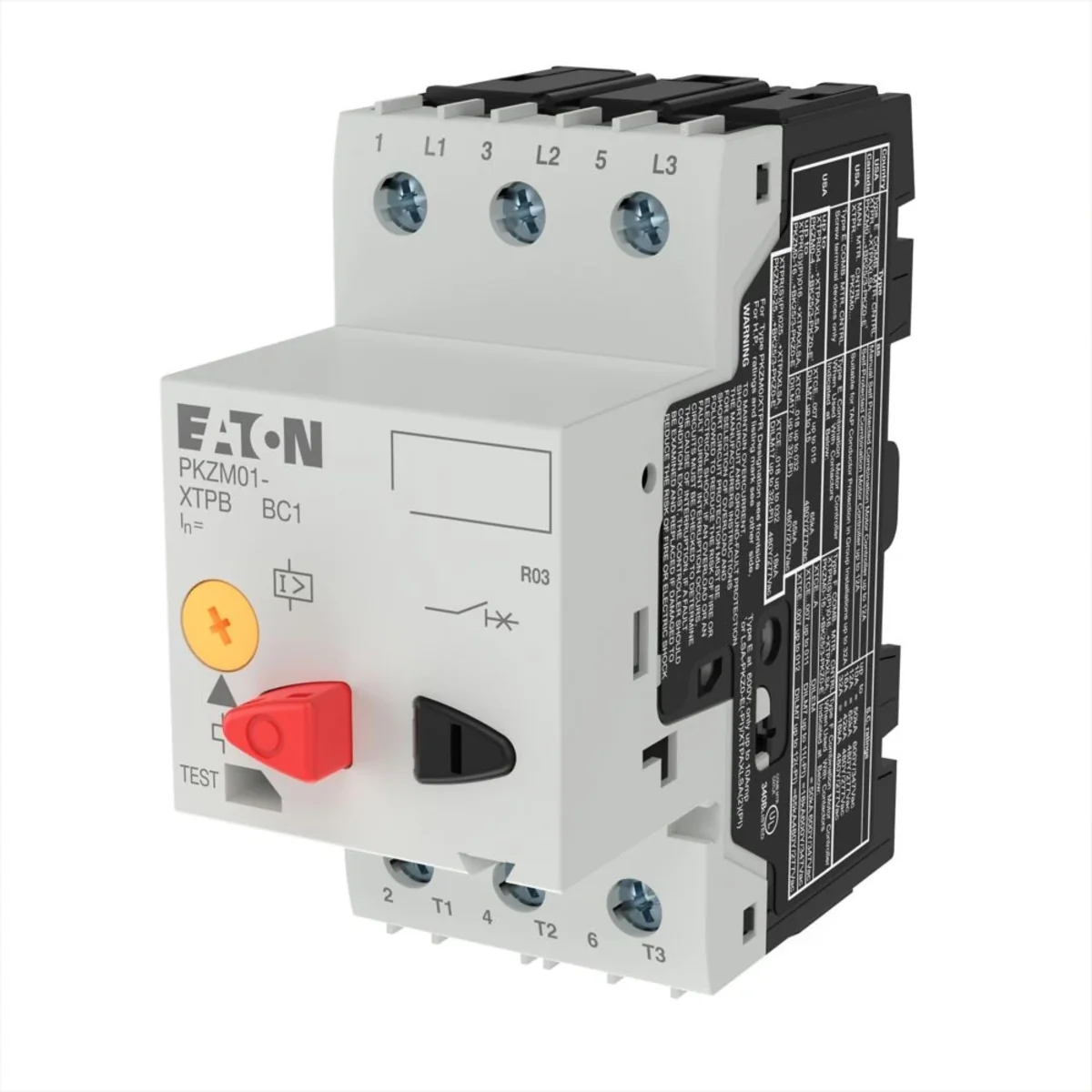

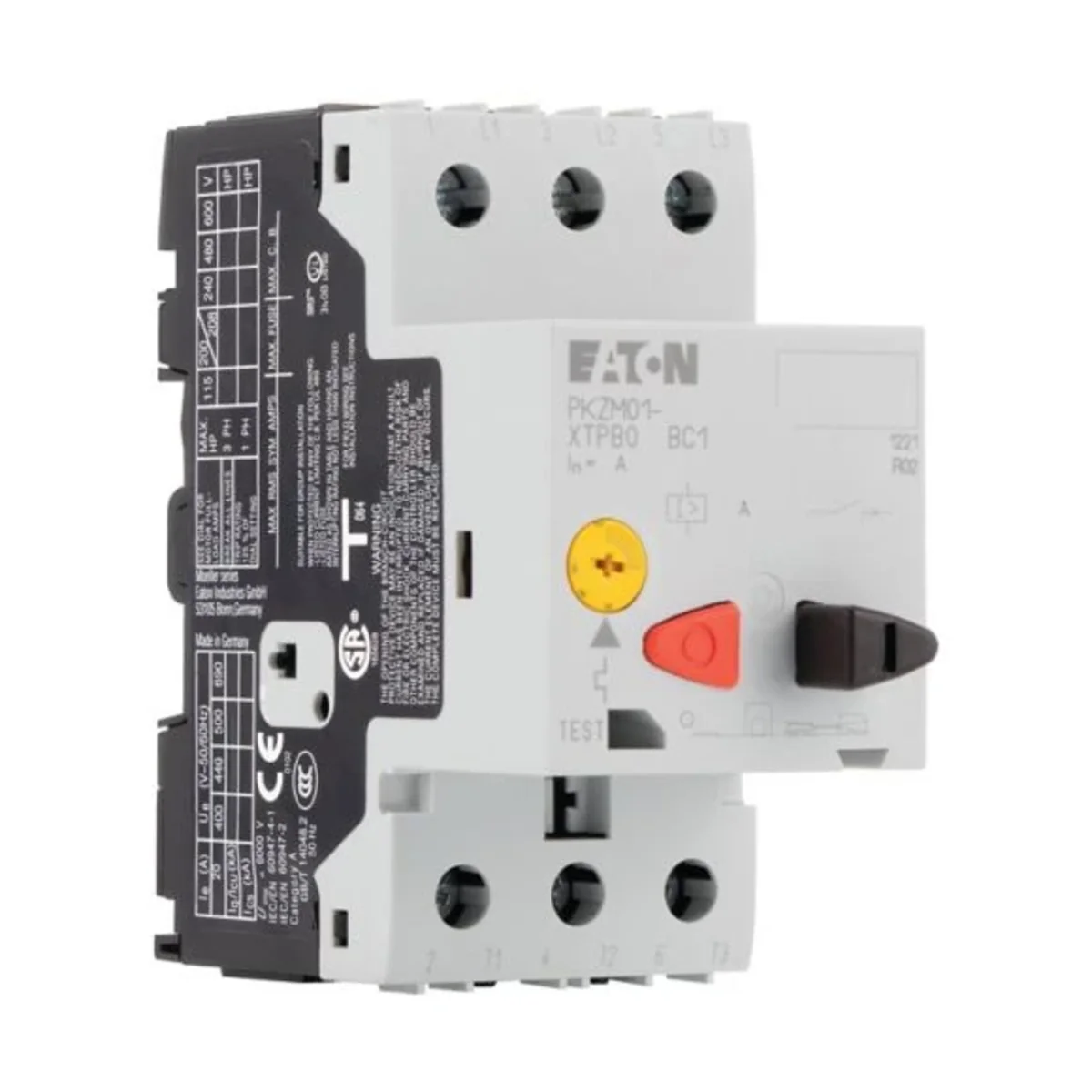

Click on the photo to enlarge

Motor circuit breaker, 0.4A, PKZM01-0.4
Motor circuit breaker, 0.4A, PKZM01-0.4
Motor circuit breaker, 0.4A, PKZM01-0.4
Motor circuit breaker, 0.4A, PKZM01-0.4
EATON

Motor circuit breaker, 0.4A, PKZM01-0.4 278477

local index:
ASN013MOEL
Catalog No:
278477
EAN code:
4015082784775
Price:
76,10 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Automatic motor circuit breaker PKZM0

Print the product sheet Report an error

Technical data

  • Rated current [A]
    0.4

Other technical data

  • Overload release current setting
    0.25 ... 0.4 A
  • With thermal overload protection
    no
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    0.4 A
  • Rated operation power at AC-3, 400 V
    0.09 kW
  • Type of control element
    Push button
  • With integrated auxiliary switch
    no
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    6.2 ... 6.2 A
  • Phase failure sensitive
    yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.06 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    no
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Height
    92.4 mm
  • Depth
    86 mm
