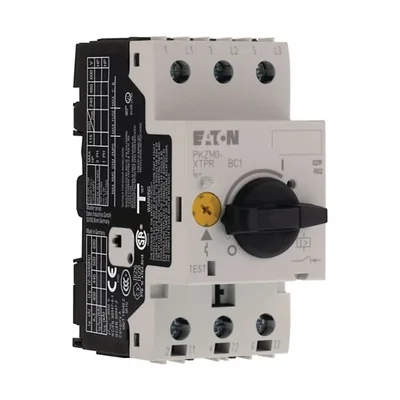

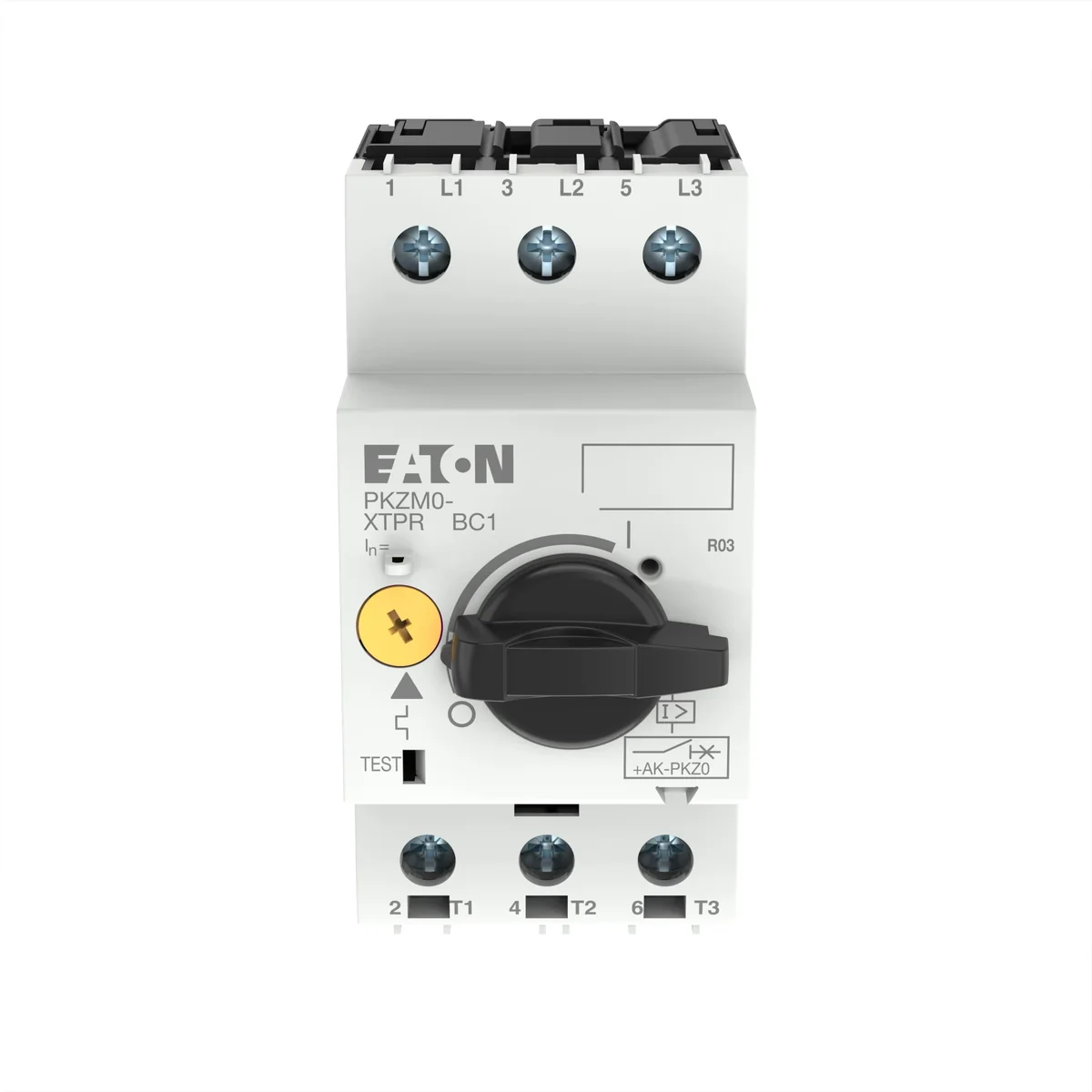

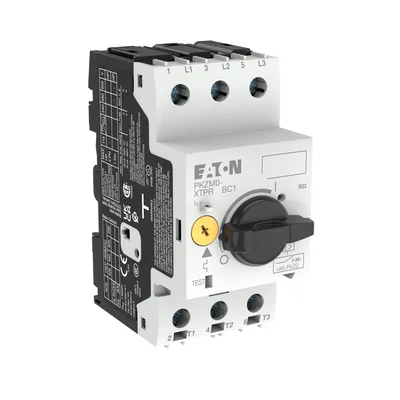

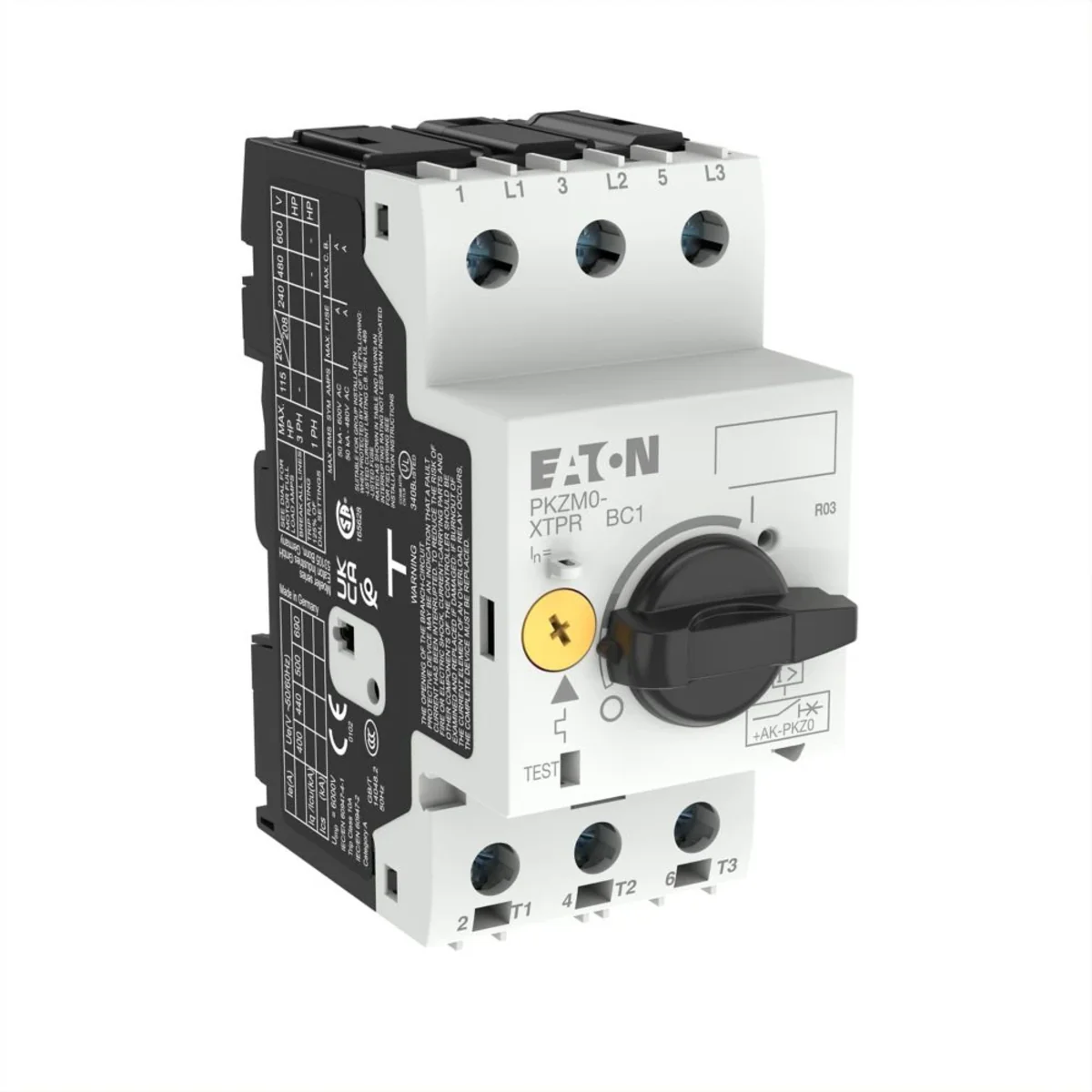

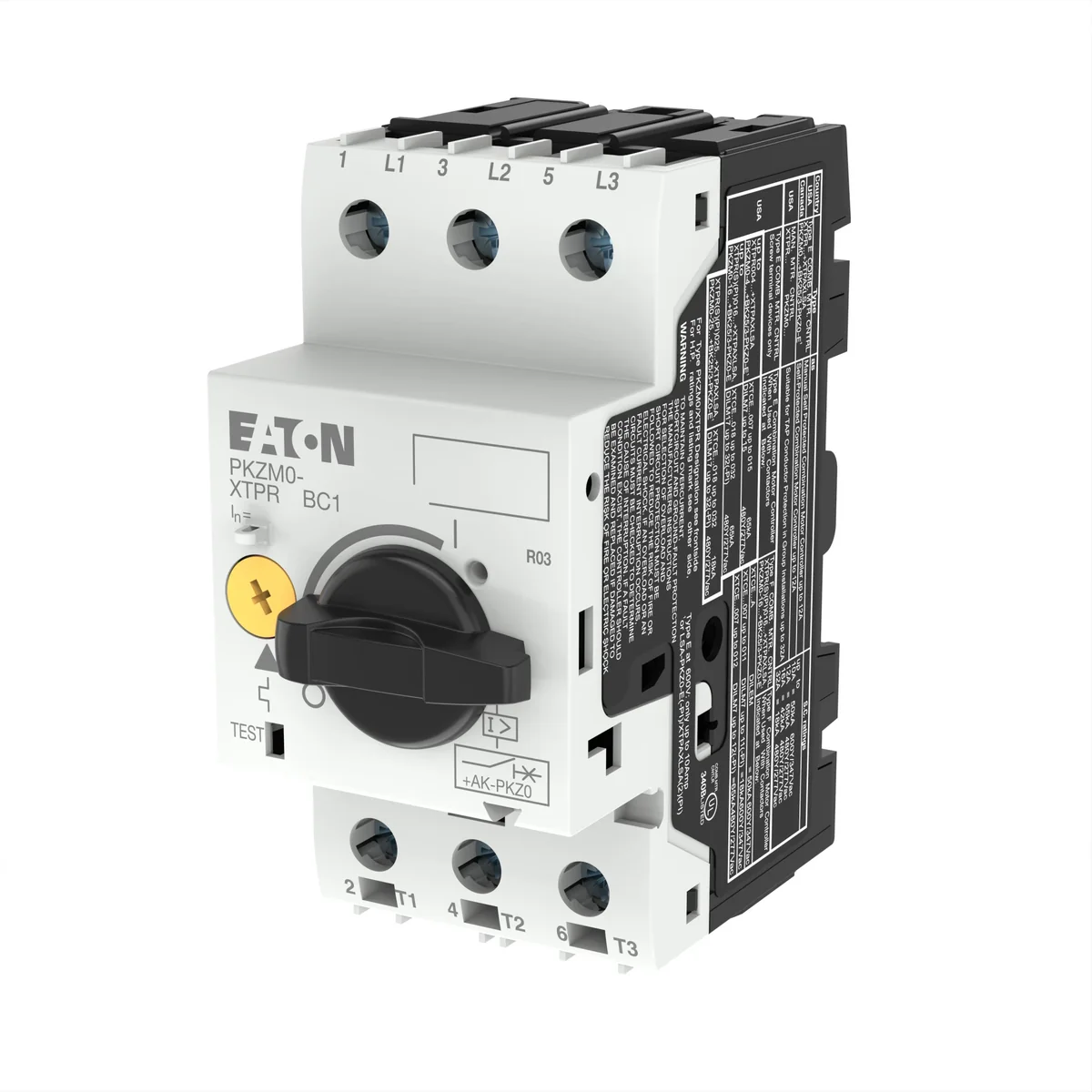

Motor circuit breaker 0.4A, 0.09kW, PKZM0-0, 4 072732

local index:
ASN103MOEL
Catalog No:
072732
EAN code:
4015080727323
Manufacturer: EATON
Maximum load capacity AC-3 [kW]: 0.09
Continuous current [A]: 0.4
Overload release setting range [A]: 0.25-0.4
Price:
73,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Automatic motor circuit breaker PKZM0.

Technical data

  • Maximum load capacity AC-3 [kW]
    0.09
  • Overload release setting range [A]
    0.25-0.4
  • Continuous current [A]
    0.4

Other technical data

  • Overload release current setting
    0.25 ... 0.4 A
  • With thermal overload protection
    No
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    0.4 A
  • Rated operation power at AC-3, 400 V
    0.09 kW
  • Type of control element
    Turn button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    6.2 ... 6.2 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    0.06 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    150 kA
  • Height
    93 mm
  • Depth
    76 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,258
Volume (m3) 0,000
Width (m) 0,048
Length (m) 0,080
Depth (m) 0,097
