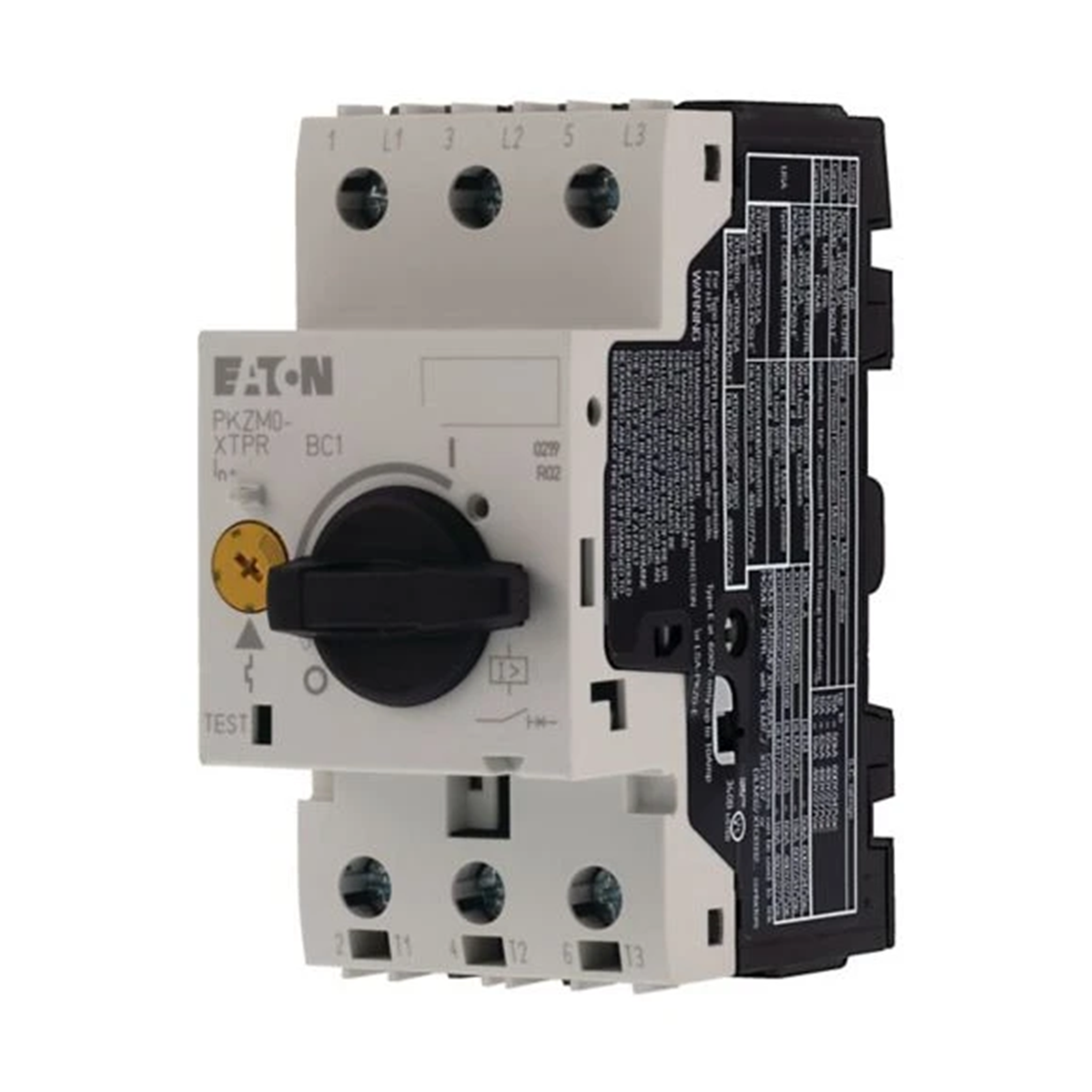

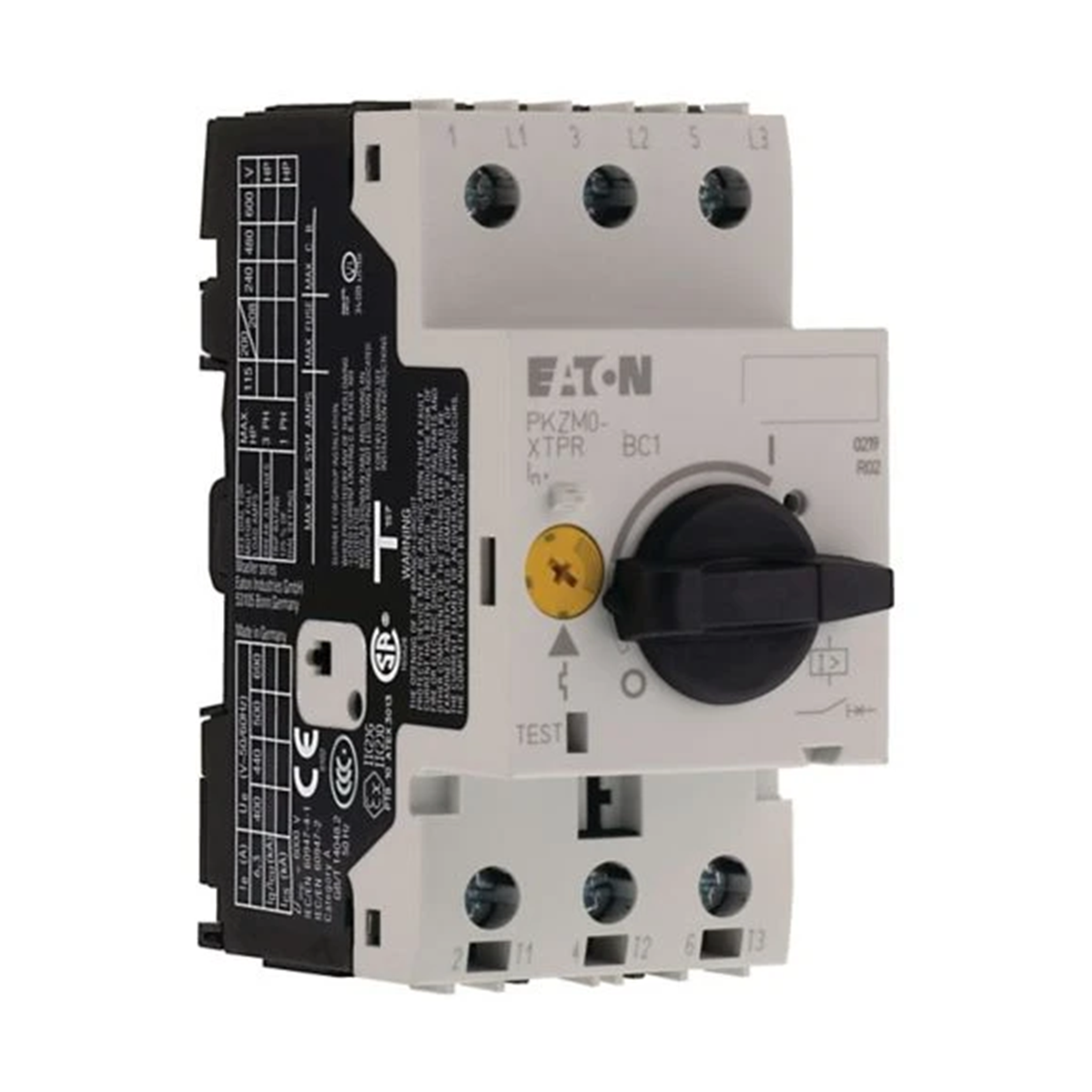

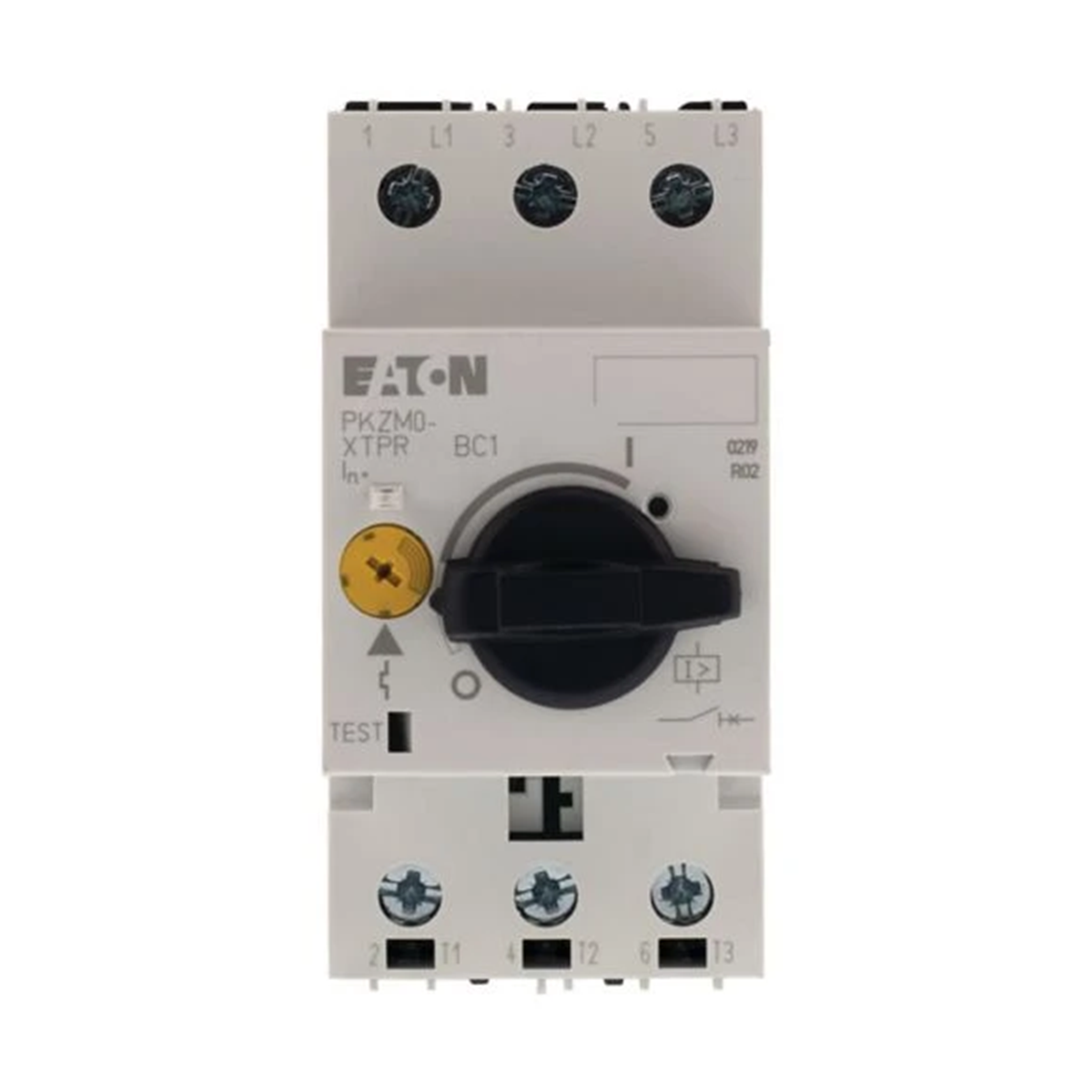

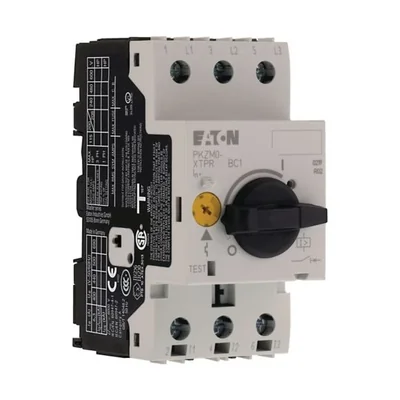

Motor circuit breaker 0.16A, 0.06kW, PKZM0-0.16 072730
local index:
ASN101MOEL
Catalog No:
072730
EAN code:
4015080727309
Manufacturer:
EATON
Maximum load capacity AC-3 [kW]: 0.06
Continuous current [A]: 0.16
Overload release setting range [A]: 0.1-0.16
Price:
80,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Automatic motor circuit breaker PKZM0.
Technical data
-
Maximum load capacity AC-3 [kW]0.06
-
Overload release setting range [A]0.1-0.16
-
Continuous current [A]0.16
Other technical data
-
Overload release current setting0.1 ... 0.16 A
-
With thermal overload protectionNo
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu0.16 A
-
Rated operation power at AC-3, 400 V0 kW
-
Type of control elementTurn button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release2.5 ... 2.5 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V0 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC150 kA
-
Height93 mm
-
Depth76 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,243 | 0,258 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,045 | 0,048 |
| Length (m) | 0,076 | 0,080 |
| Depth (m) | 0,093 | 0,097 |
