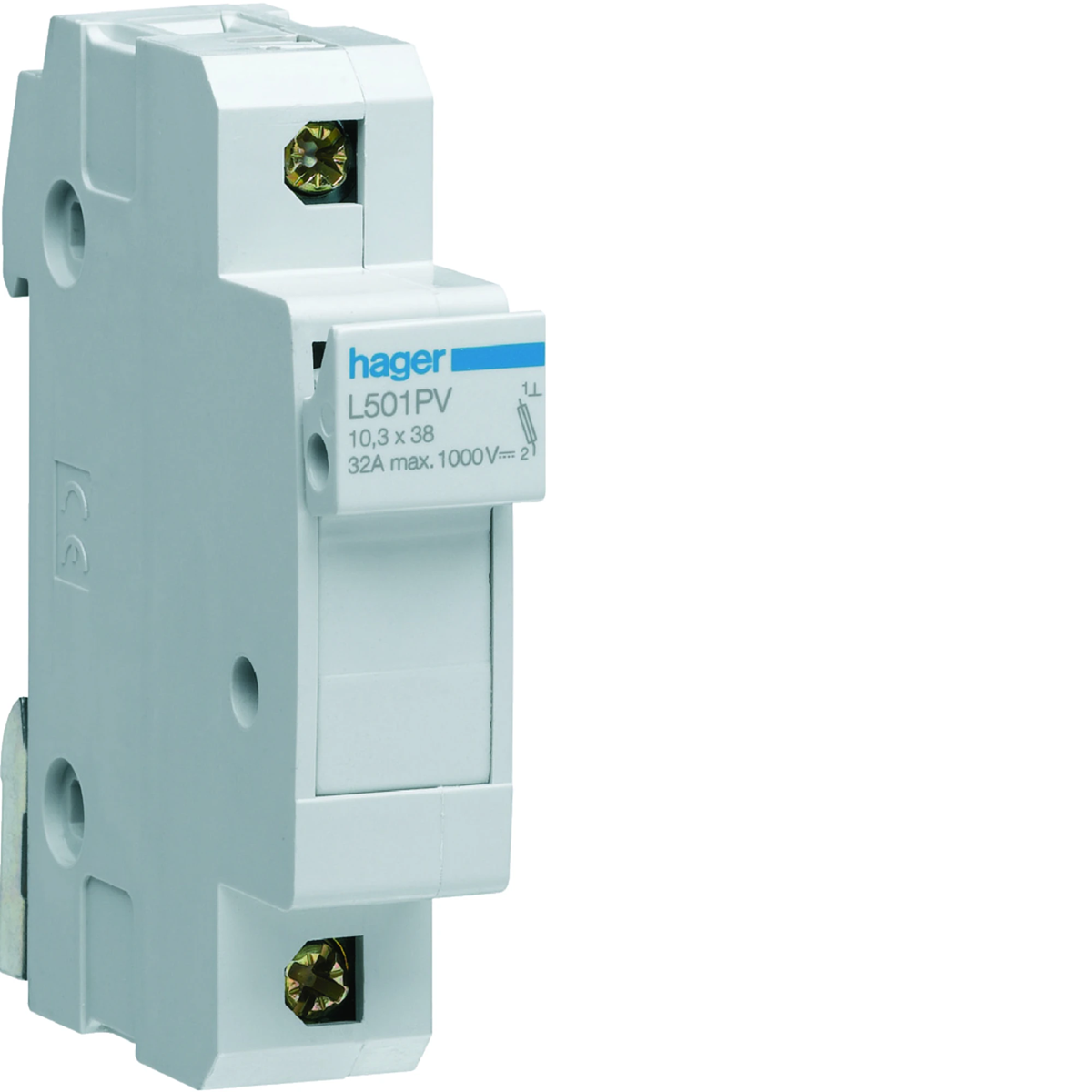

Modular fuse base for PV systems, 1P 10x38 mm 32 A 1000 V d.c. L501PV
local index:
ABO014HAGE
Catalog No:
L501PV
EAN code:
3250614124815
Price:
11,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular fuse base for PV systems, 1P 10x38 mm 32 A 1000 V d.c.
Technical data
-
Rated frequency [Hz]50
-
Number of poles1
-
Rated current [A]32
-
Width [mm]18
-
Height [mm]77
-
Mechanical durability (number of cycles)5000
-
Depth [mm]75
-
Rated insulation voltage [V]690
-
power loss [W]1.1
-
Size10.3x38
-
Electrical endurance (number of cycles)2000
-
PKWIU27.12.21.0
Other technical data
-
Size10x38 mm
-
Utilization categoryOther
-
Release characteristicOther
-
Voltage typeDC
-
Rated operating frequency50 ... 60 Hz
-
Breaking capacity30 kA
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,065 | 0,794 | 9,866 | 259,784 |
| Width (m) | 0,080 | 0,097 | 0,321 | 0,800 |
| Length (m) | 0,020 | 0,084 | 0,239 | 1,106 |
| Depth (m) | 0,100 | 0,230 | 0,367 | 1,200 |
