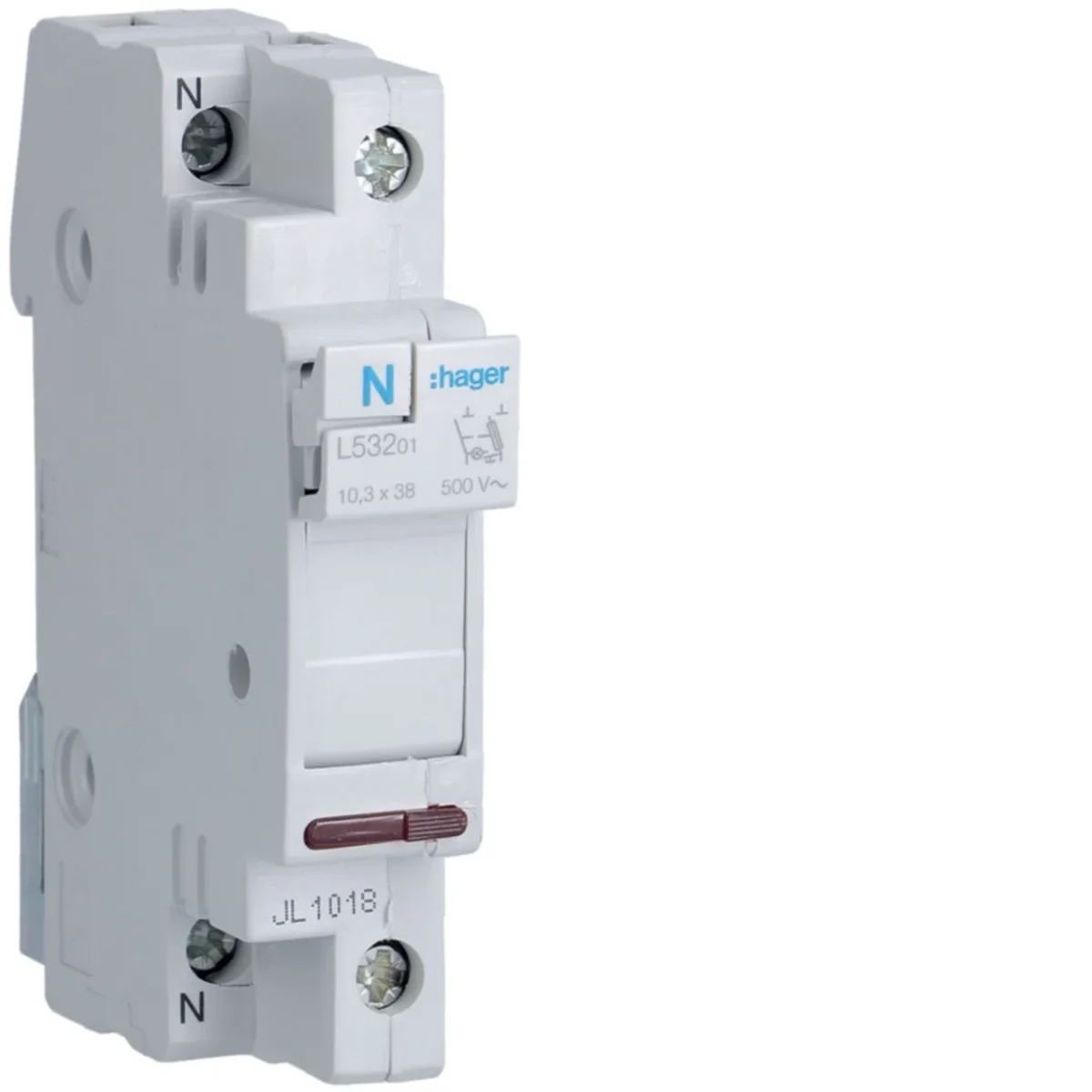

Modular fuse base 1P+N with lamps. 230 VAC fuse-link L38 10x38mm 32A 400VAC L53201
local index:
ABO039HAGE
Catalog No:
L53201
EAN code:
3250610100844
Price:
18,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Modular fuse base 1P+N with lamps. 230 VAC fuse-link L38 10x38mm 32A 400VAC
Technical data
-
Rated frequency [Hz]50
-
Depth [mm]75
-
Tightening torque [Nm]1.8
-
Level of securityIP20
-
Width [mm]17.5
-
Height [mm]77
-
Mechanical durability (number of cycles)5000
-
Rated switching voltage [V]400
-
Fuse link rated current [A]2/4/6/8/10/12/16/20/25/32
-
storage temperature [°C]from -25 to 80
-
Conductor cross-section (wire) [mm²]16
-
Energy lost in cables [W]5.8
-
Number of poles2
-
Rated current [A]32
-
power loss [W]1.5
-
Fuse link size10.3x38
-
Electrical endurance (number of cycles)2000
-
Operating temperature range [°C]from -5 to 40
-
Number of modules1
-
BeaconYes
-
Wire cross-section (cord) [mm²]10
-
PKWIU27.12.21.0
Other technical data
-
Nominal voltage400 V
-
Width in number of modular spacings1
-
Number of poles2
-
Built-in depth77 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,089 | 1,072 | 13,170 | 339,080 |
| Width (m) | 0,018 | 0,097 | 0,323 | 0,800 |
| Length (m) | 0,078 | 0,082 | 0,239 | 1,106 |
| Depth (m) | 0,062 | 0,229 | 0,370 | 1,200 |
