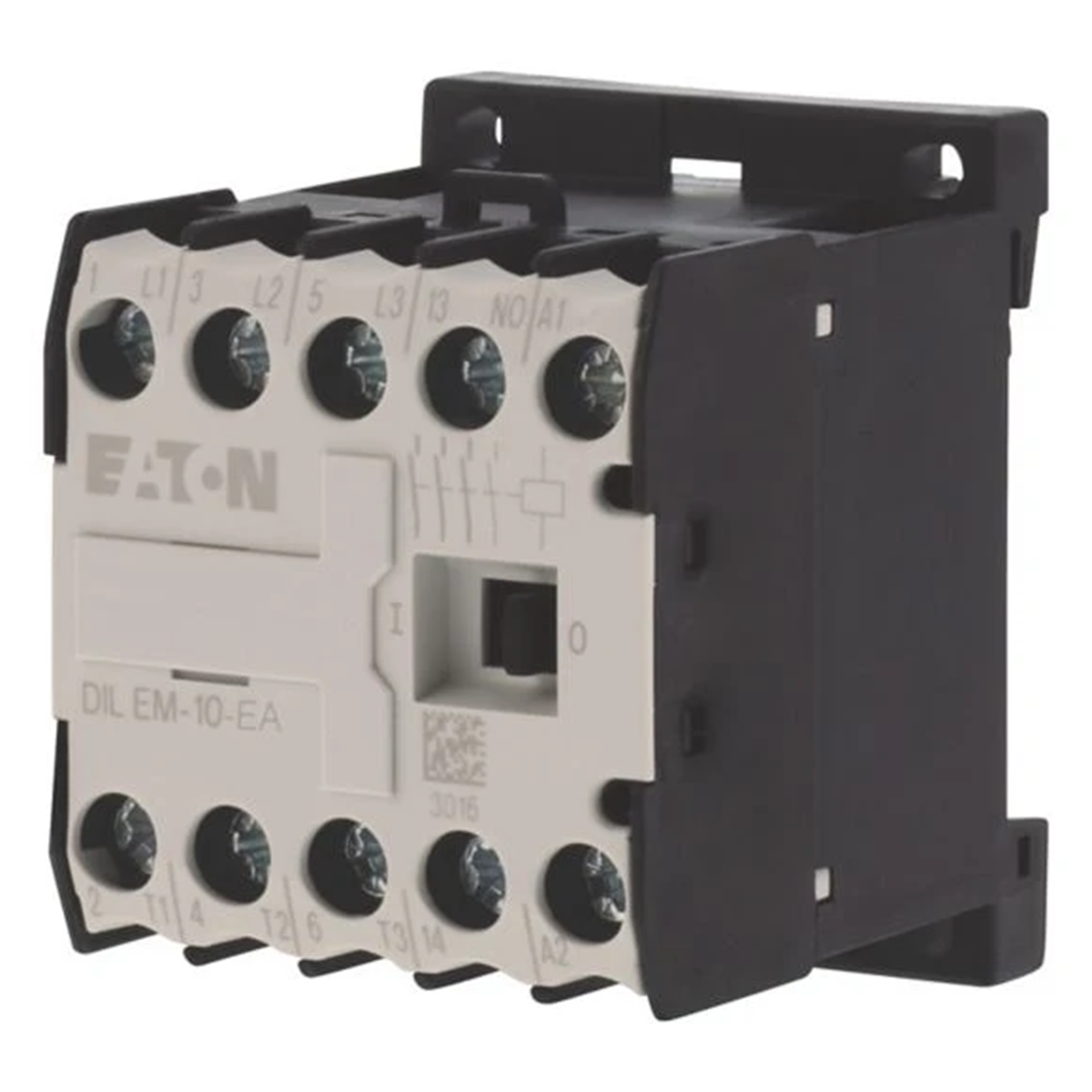

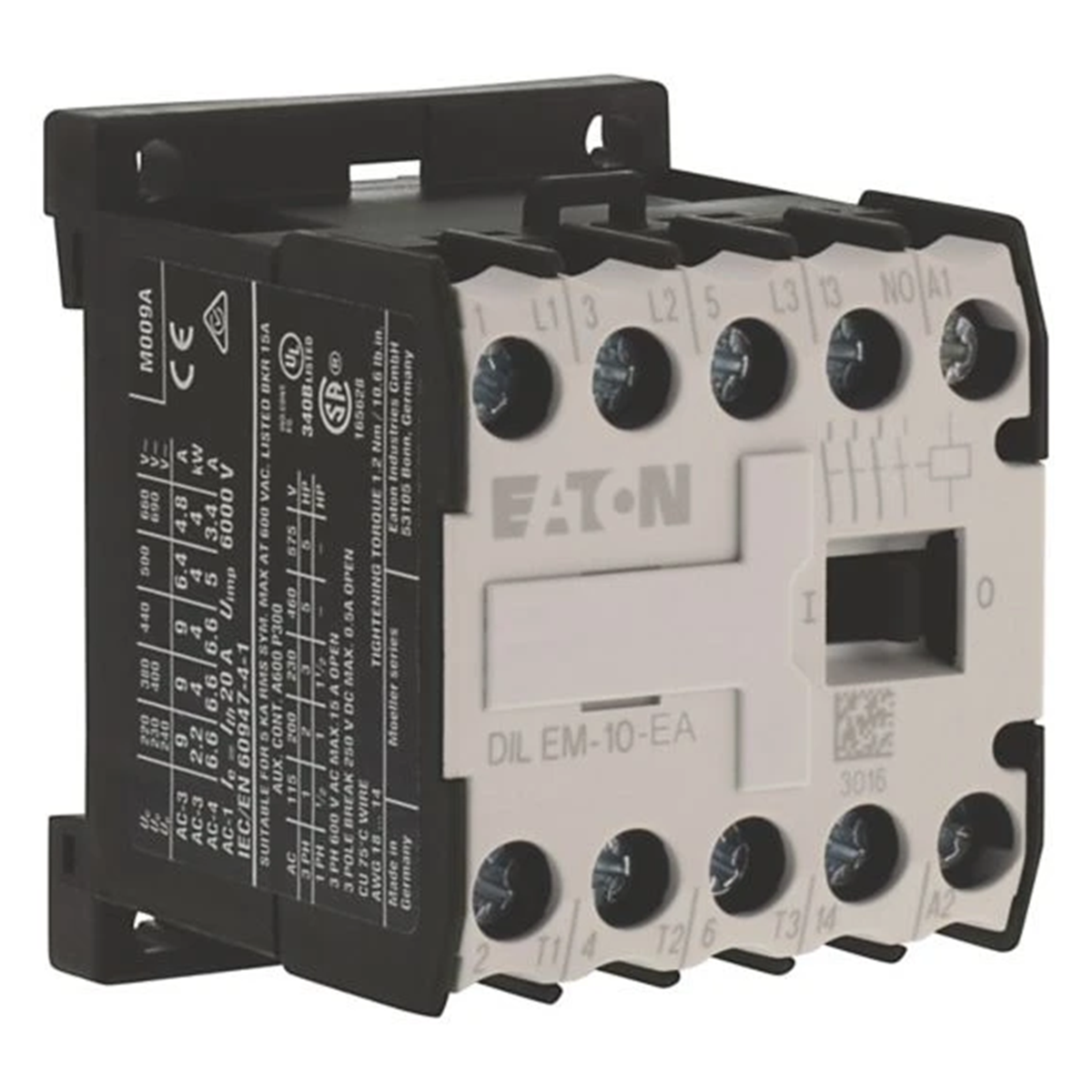

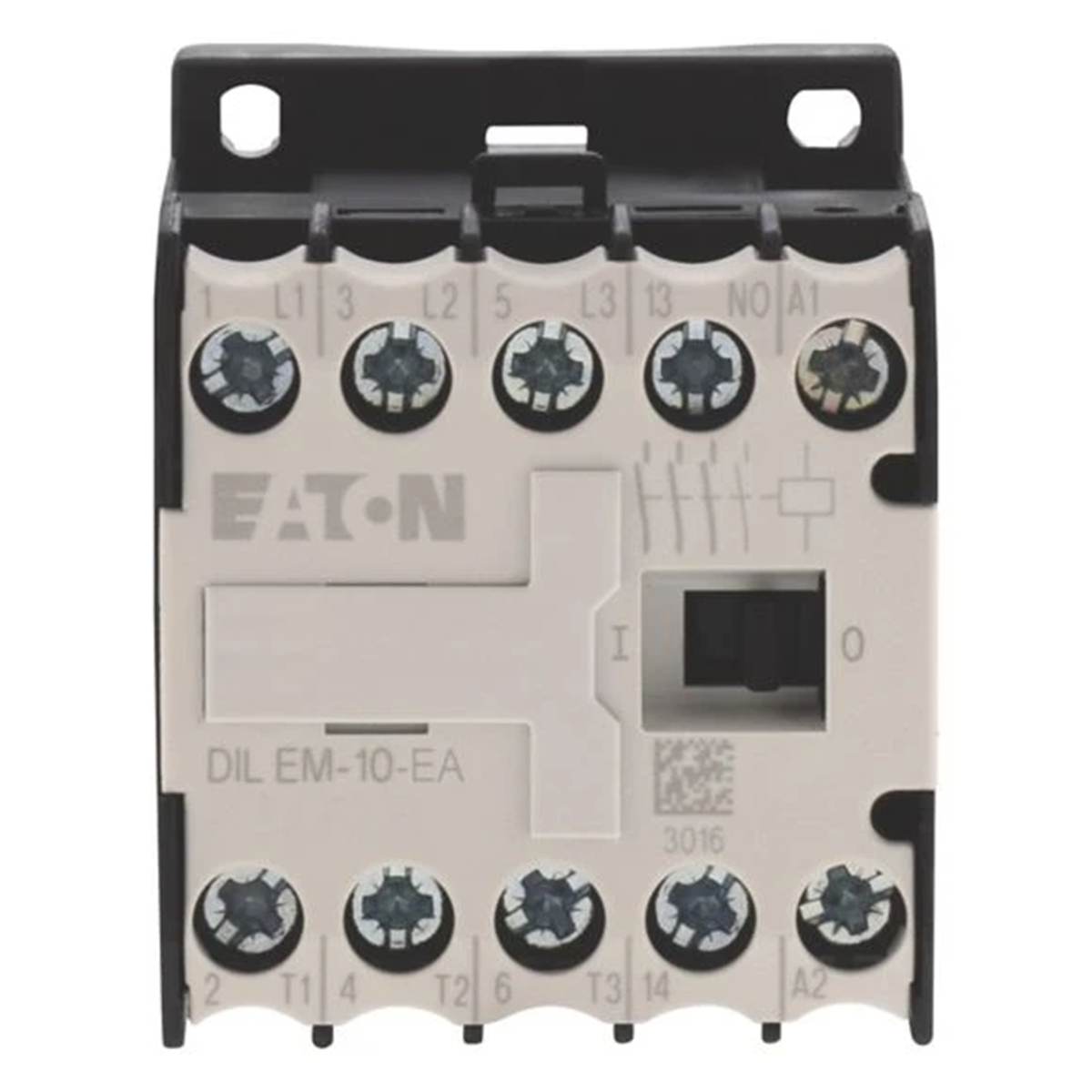

Miniature contactor DILEM-10-G-EA 3P 4kW/400V IP00 24VDC 189984
local index:
ATD018MOEL
Catalog No:
189984
EAN code:
4015081879809
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Miniature contactors with a horizontal drive are used wherever the depth of the device is the most important parameter and determines the success of the proposed solution.
Technical data
-
Number of contacts1NO 1NC
-
Number of poles3
-
DC control voltage [V]24
-
Level of securityIP20
-
Mechanical durability [Number of connections]20000000
-
Rated surge voltage [V]6000
-
Rated operational current Ie for AC-1 400V [A]22
-
Rated operational current Ie for AC-4 400V [A]6.6
-
Overvoltage categoryIII
-
InstallationOn the TH-35 rail
-
Rated insulation voltage [V]690
-
Degree of contamination3
-
Maximum operating voltage [V]690
-
Rated operating power at AC-3 400V [kW]4
-
Rated operational current Ie for AC-3 400V [A]9
-
Rated operating power at AC-4 400V [kW]3
Other technical data
-
Rated control supply voltage AC 50 Hz0 ... 0 V
-
Rated control supply voltage DC24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V22 A
-
Rated operation power at AC-3, 400 V4 kW
-
Rated operation power at AC-4, 400 V3 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz0 ... 0 V
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V9 A
-
Rated operation current Ie at AC-4, 400 V6.6 A
-
Rated operation power NEMA3.7 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,206 | 0,220 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,045 | 0,047 |
| Length (m) | 0,054 | 0,055 |
| Depth (m) | 0,058 | 0,060 |
