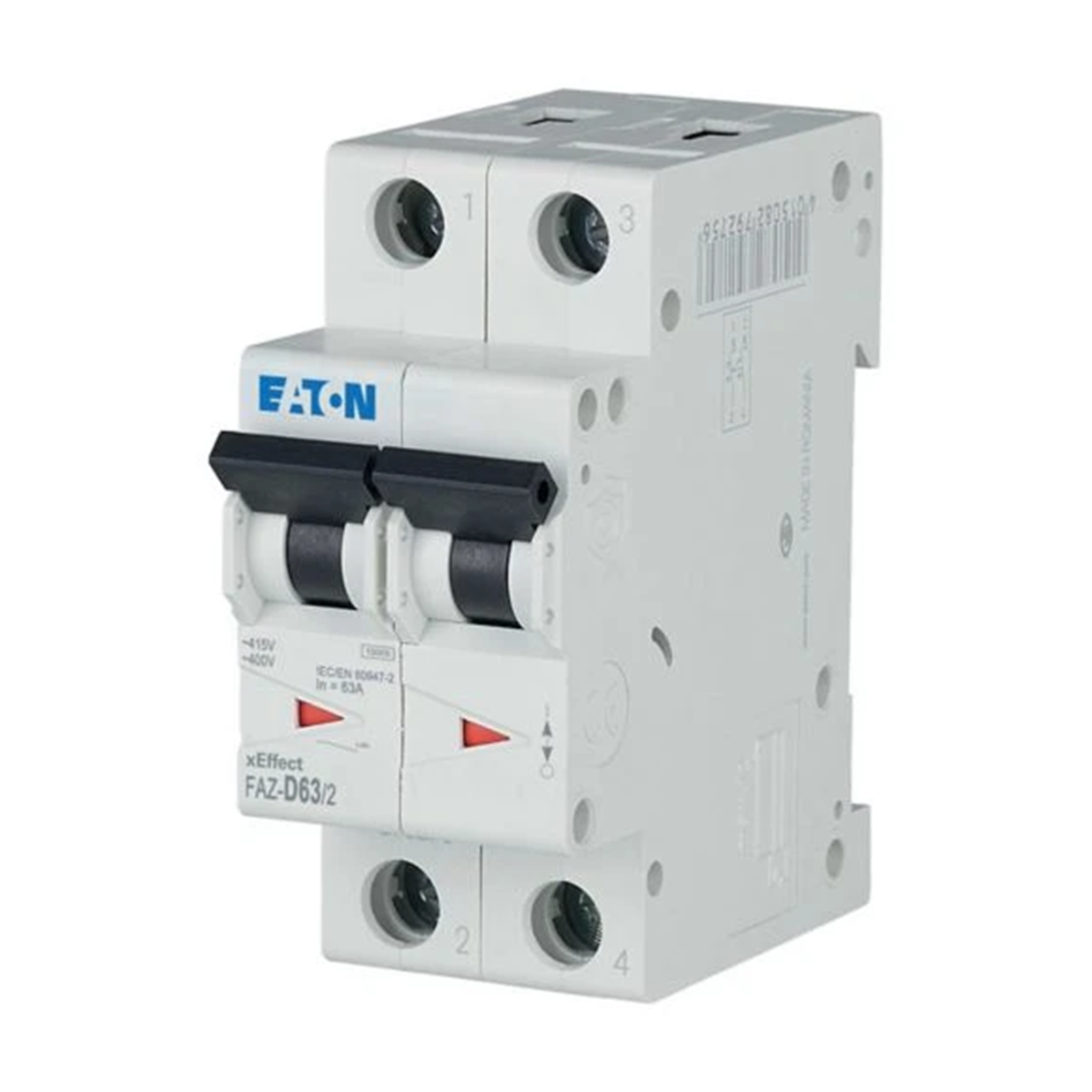

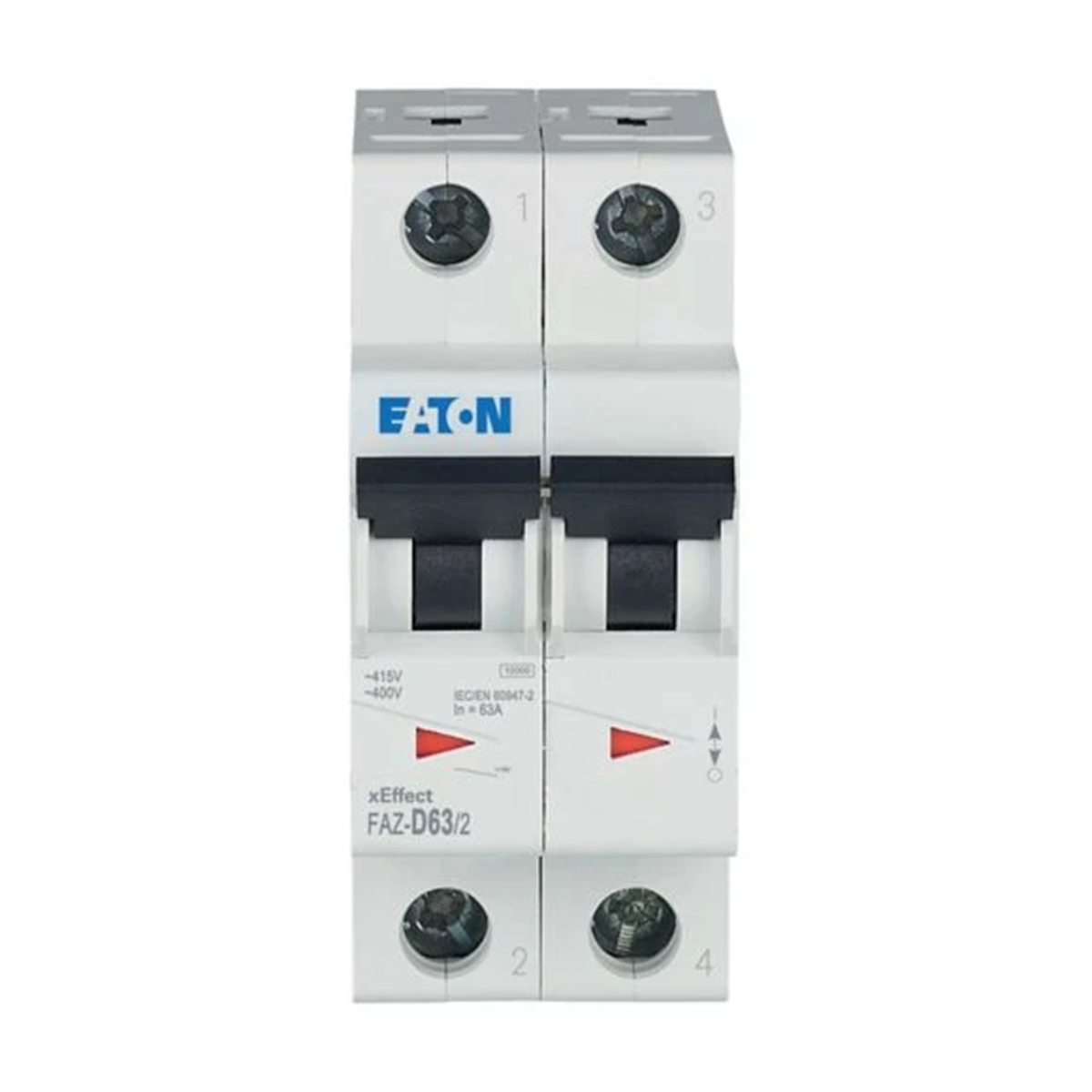

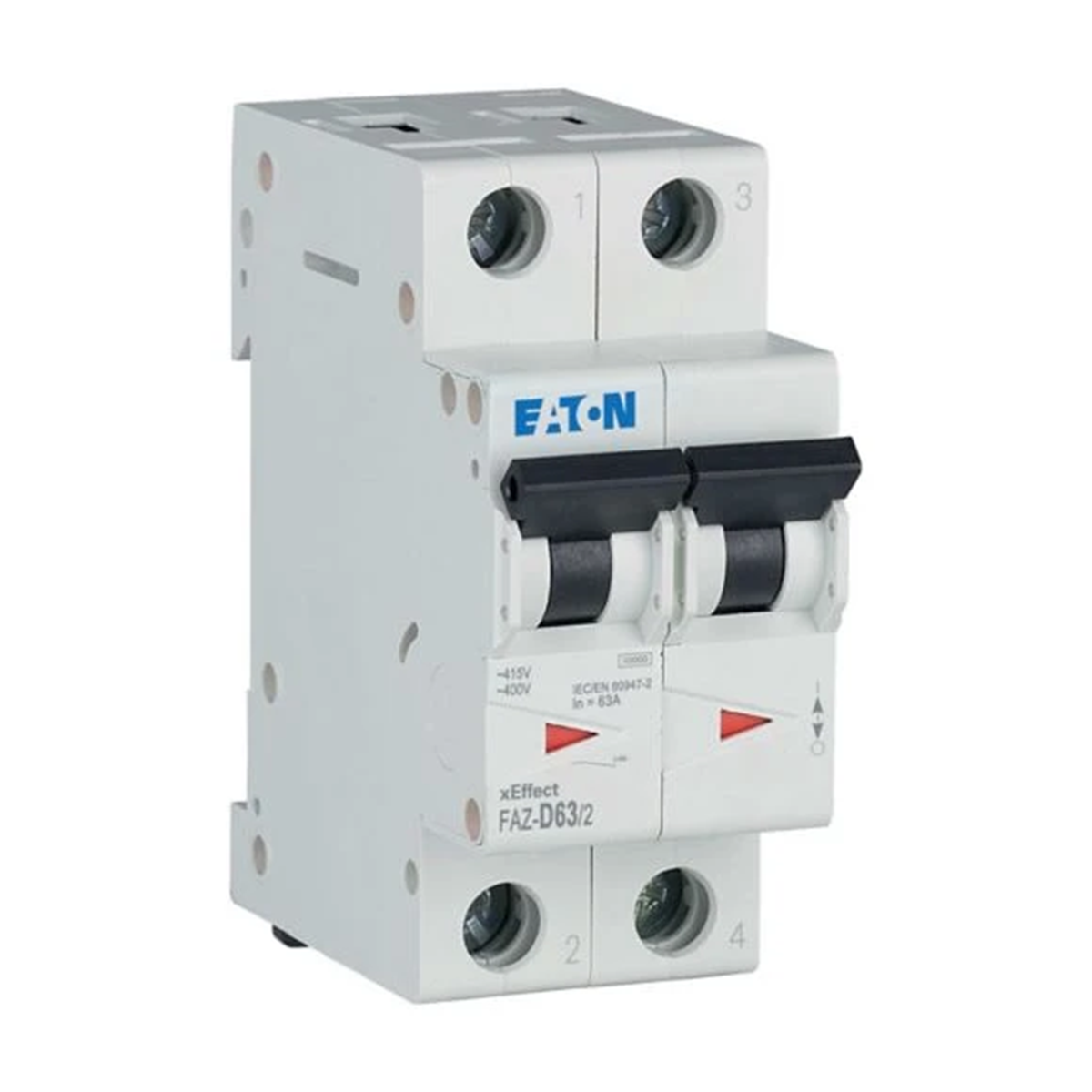

Miniature circuit breaker type D 2-pole, 63A, D-Char 115373

Name: Miniature circuit breaker type D 2-pole, 63A, D-Char
Brand: EATON
SKU: ABD021MOEL
Price: 143.55 PLN

Indeks lokalny:

ABD021MOEL

Nr katalogowy:

115373

Kod EAN:

4015081147731

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Characteristic: d

Number of poles: 2

Rated current [A]: 63

Zobacz cały opis

Cena:

143,55 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 4 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

1

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

High-quality circuit breaker, 10 kA breaking capacity, 2-pole, 63 A rated current, D tripping characteristic.

Built-in depth

70.5 mm
Number of poles (total)

2
Rated current

63 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

D
Number of protected poles

2
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No
