Name: Miniature circuit breaker type D 1-pole+N, 50A, D-Char
Brand: EATON
SKU: ABD029MOEL
Price: 196.64 PLN

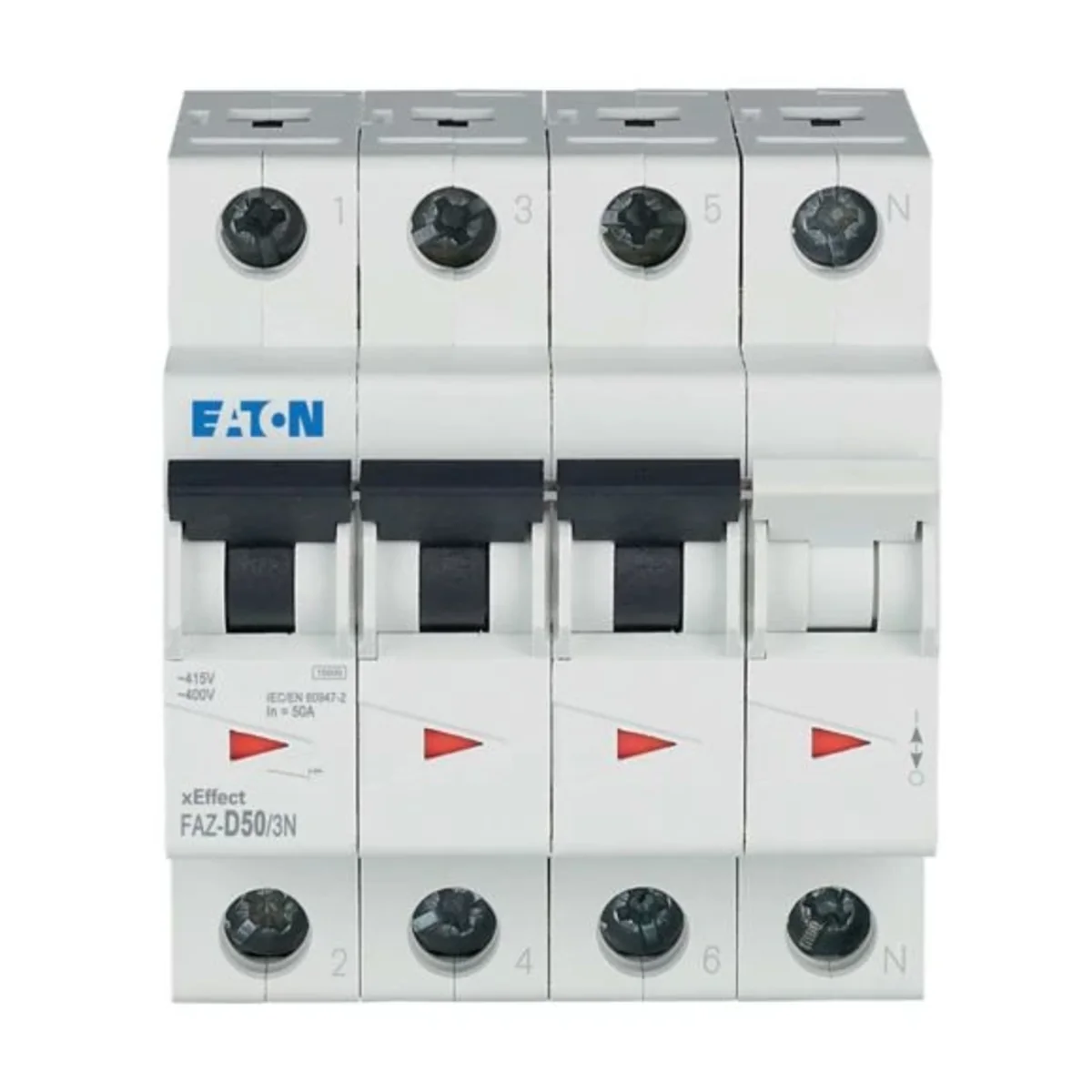

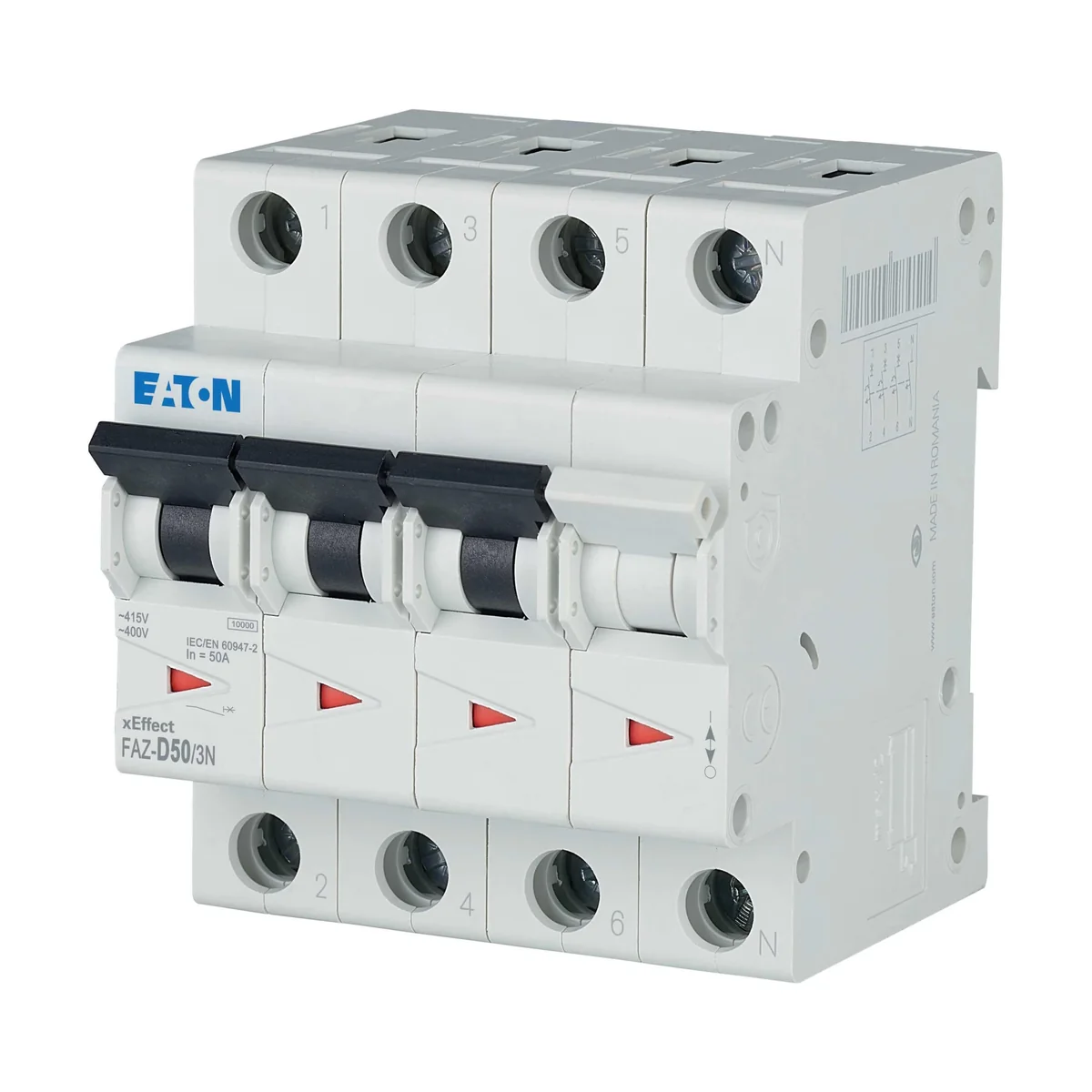

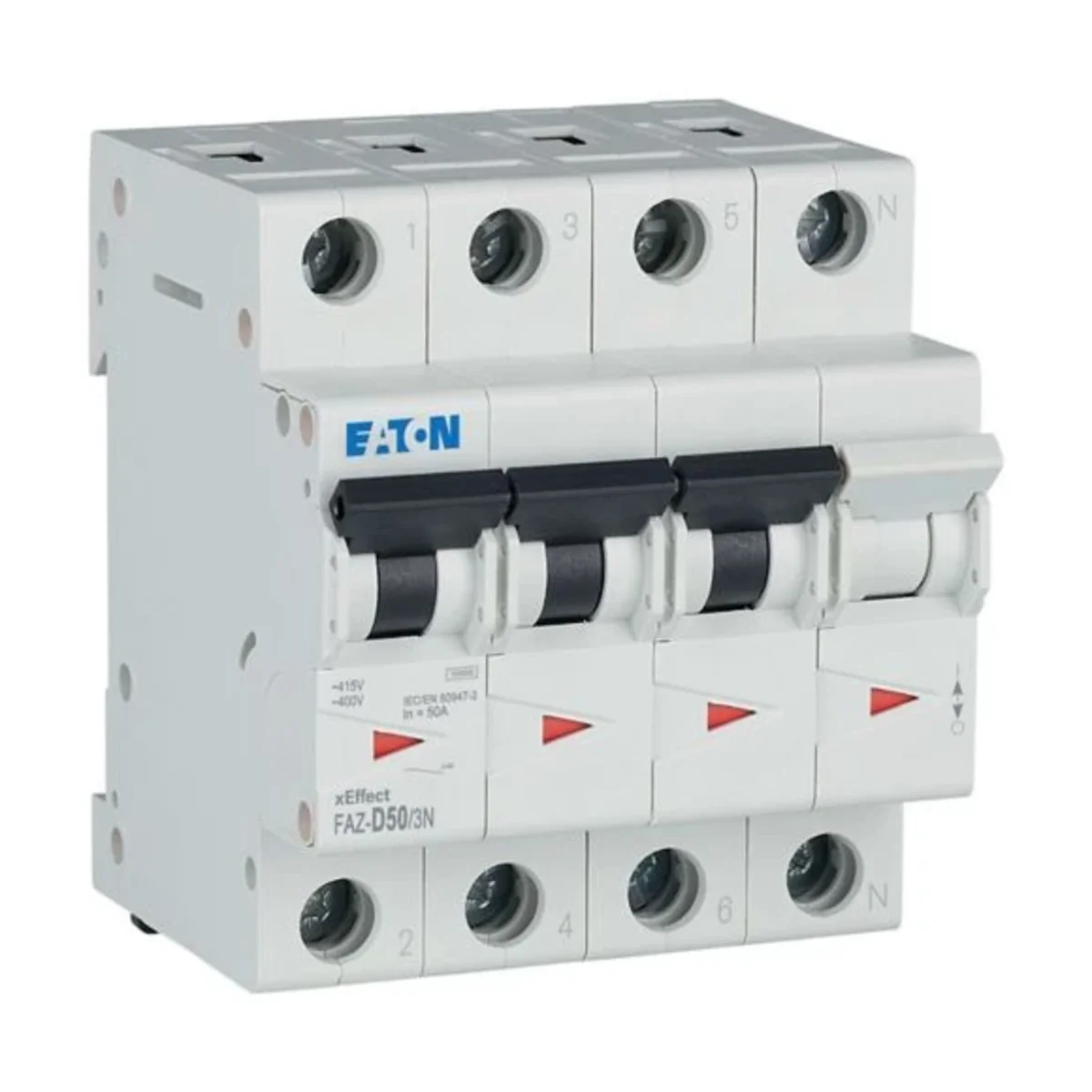

Miniature circuit breaker (MCB) FAZ, 3 pole + N, characteristics: D, rated current In: 50 A, rated switching capacity (IEC / EN 60947-2): 15 kA, switchgear for industrial and advanced applications

Characteristic

d
Rated current [A]

50

Number of poles

3
Rated switching capacity [kA]

15

Other technical data

Built-in depth

70.5 mm
Number of poles (total)

4
Rated current

50 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Current limiting class

3
Concurrently switching neutral conductor

Yes
Pollution degree

2
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

D
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	30 pcs.
Weight (kg)	0,490	0,514	15,621
Volume (m3)	0,000	0,000	0,016
Width (m)	0,072	0,073	0,180
Length (m)	0,080	0,086	0,385
Depth (m)	0,075	0,075	0,230
