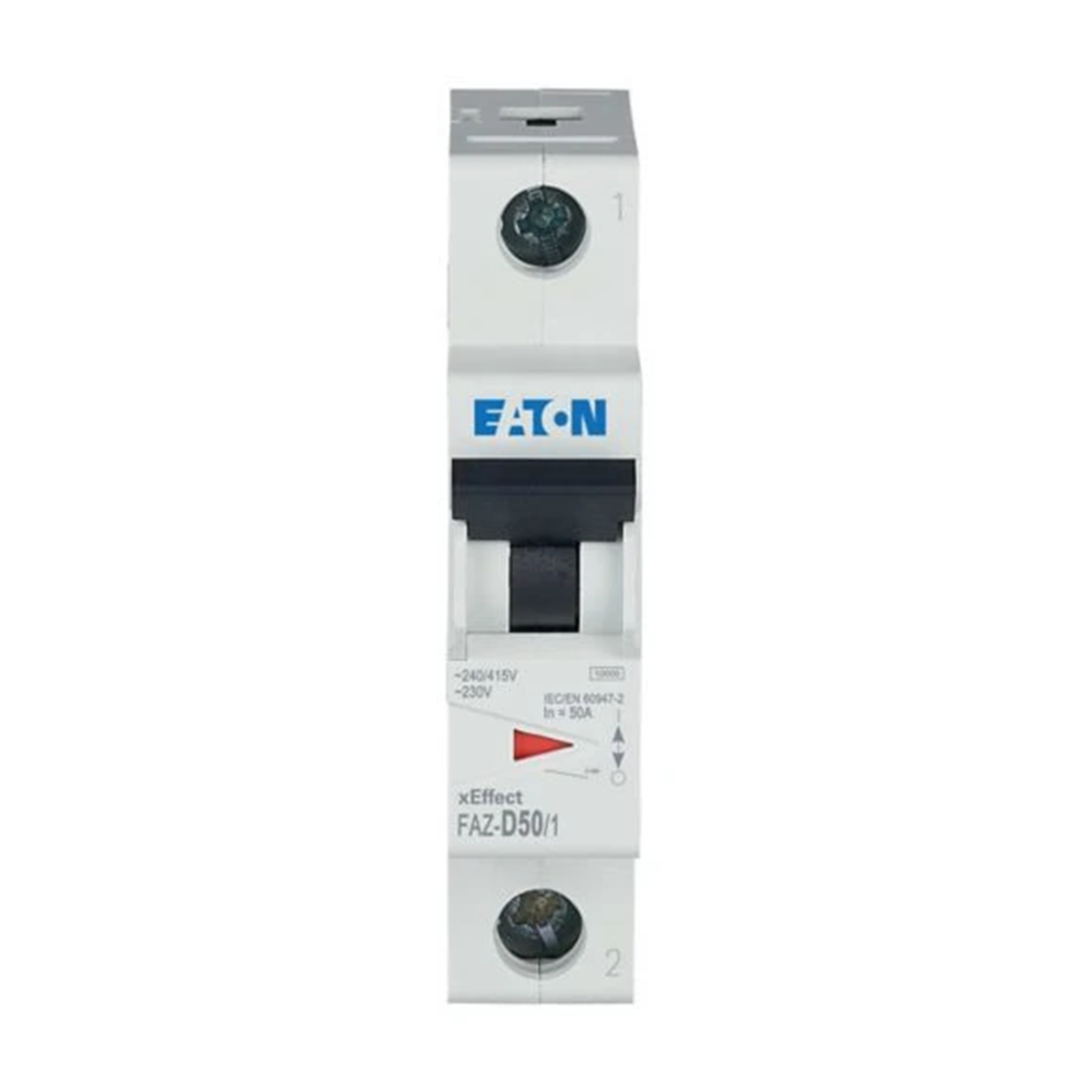

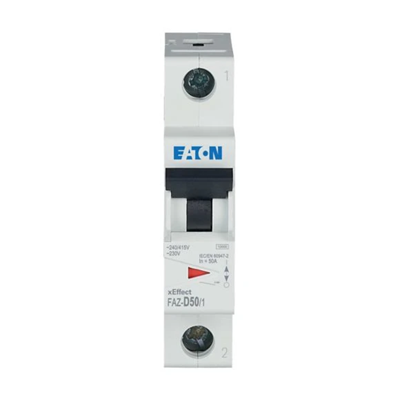

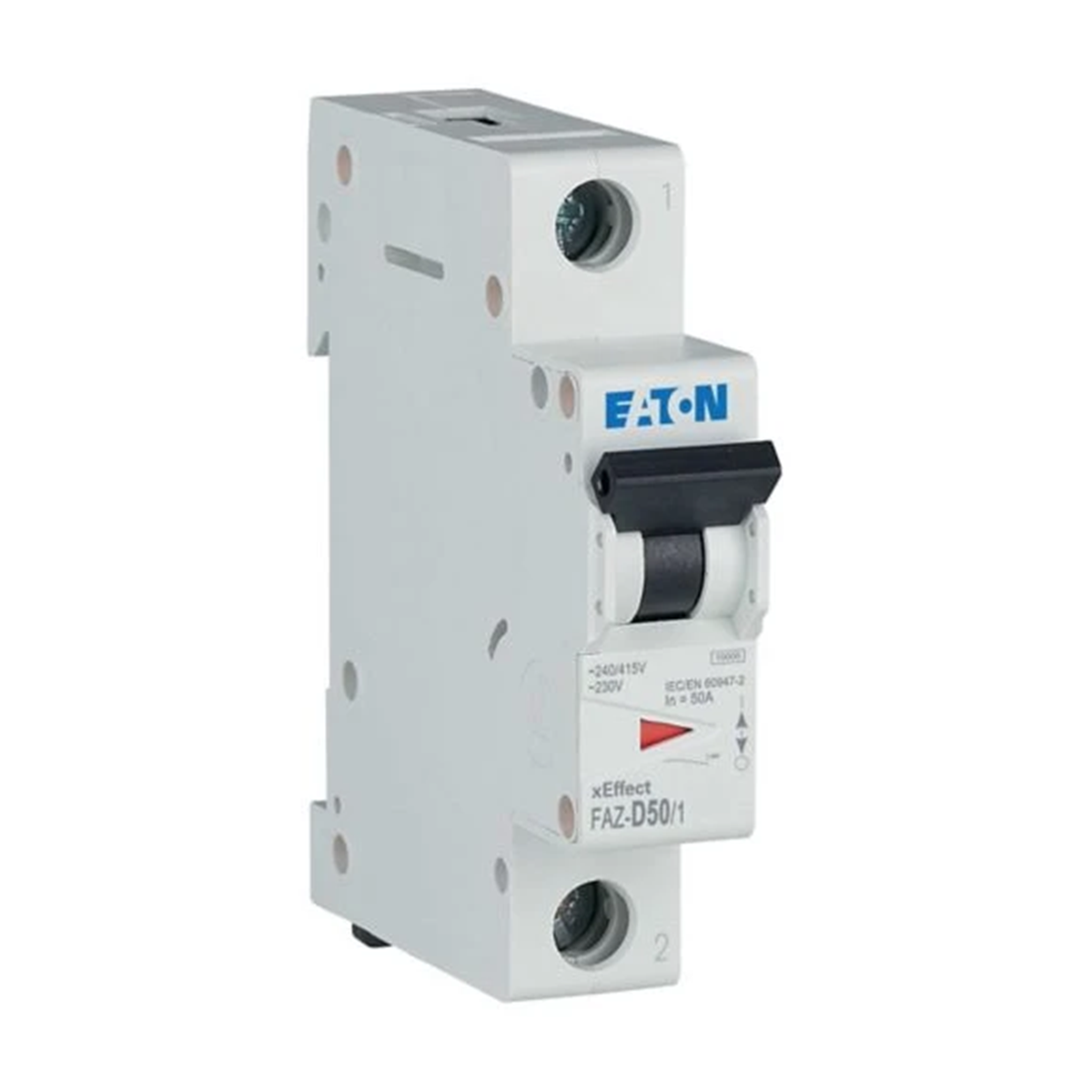

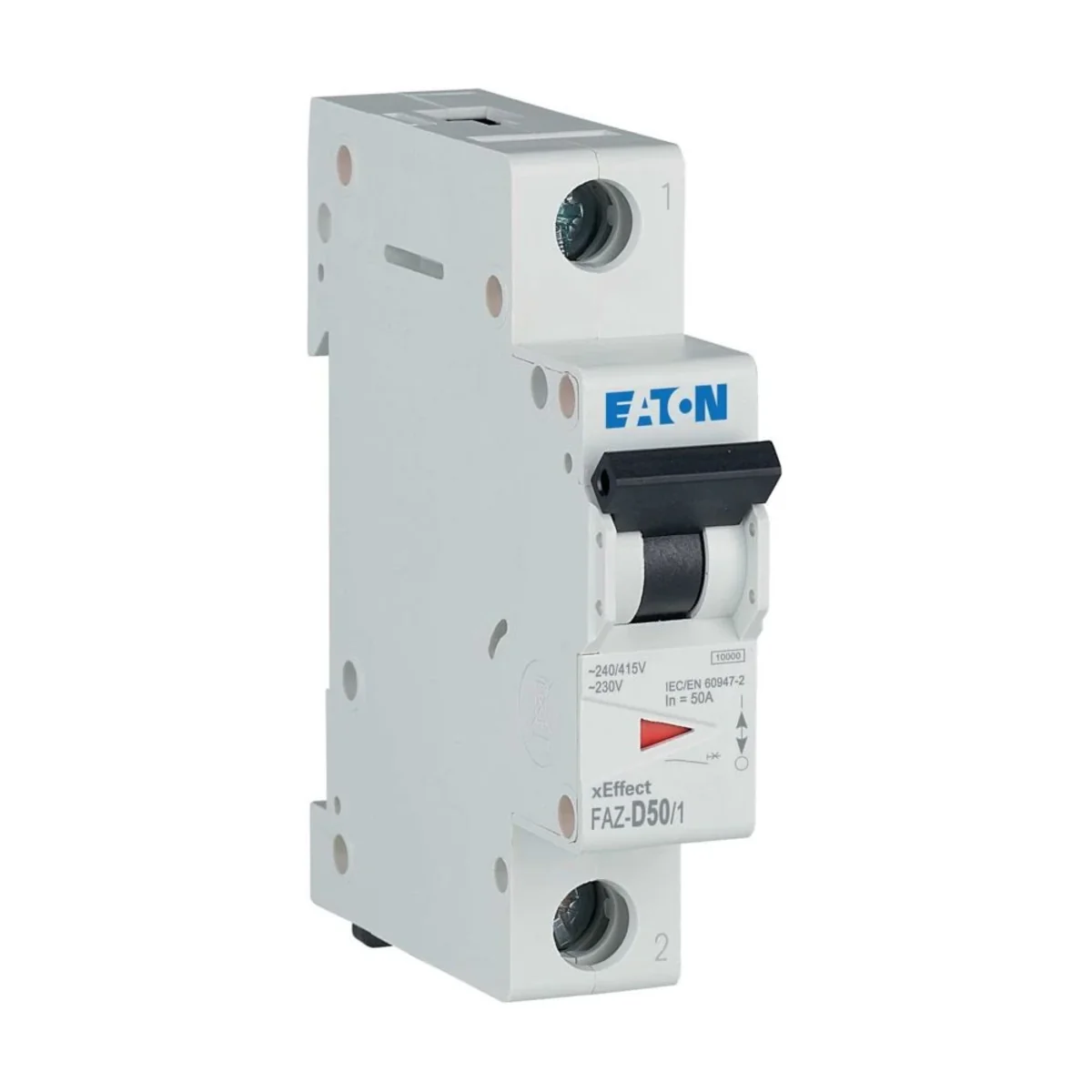

Miniature circuit breaker type D 1-pole, 50A, D-Char 115370
local index:
ABD018MOEL
Catalog No:
115370
EAN code:
4015081147700
Price:
40,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
High-quality circuit breaker, 10 kA breaking capacity, 1-pole, 50 A rated current, D tripping characteristic.
Technical data
-
Characteristicd
-
Rated current [A]50
-
Number of poles1
-
Rated switching capacity [kA]10
Other technical data
-
Built-in depth70.5 mm
-
Number of poles (total)1
-
Rated current50 A
-
Rated insulation voltage Ui440 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
-
Current limiting class3
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings1
-
Ambient temperature during operating-25 ... 75 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Release characteristicD
-
Number of protected poles1
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
-
Frequency50 ... 60 Hz
-
Flush-mounted installationNo
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Explosion-proofNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 120 pcs. |
| Weight (kg) | 0,122 | 0,126 | 1,507 | 15,271 |
| Volume (m3) | 0,000 | 0,000 | 0,001 | 0,016 |
| Width (m) | 0,018 | 0,020 | 0,218 | 0,180 |
| Length (m) | 0,080 | 0,082 | 0,086 | 0,385 |
| Depth (m) | 0,075 | 0,078 | 0,075 | 0,230 |
