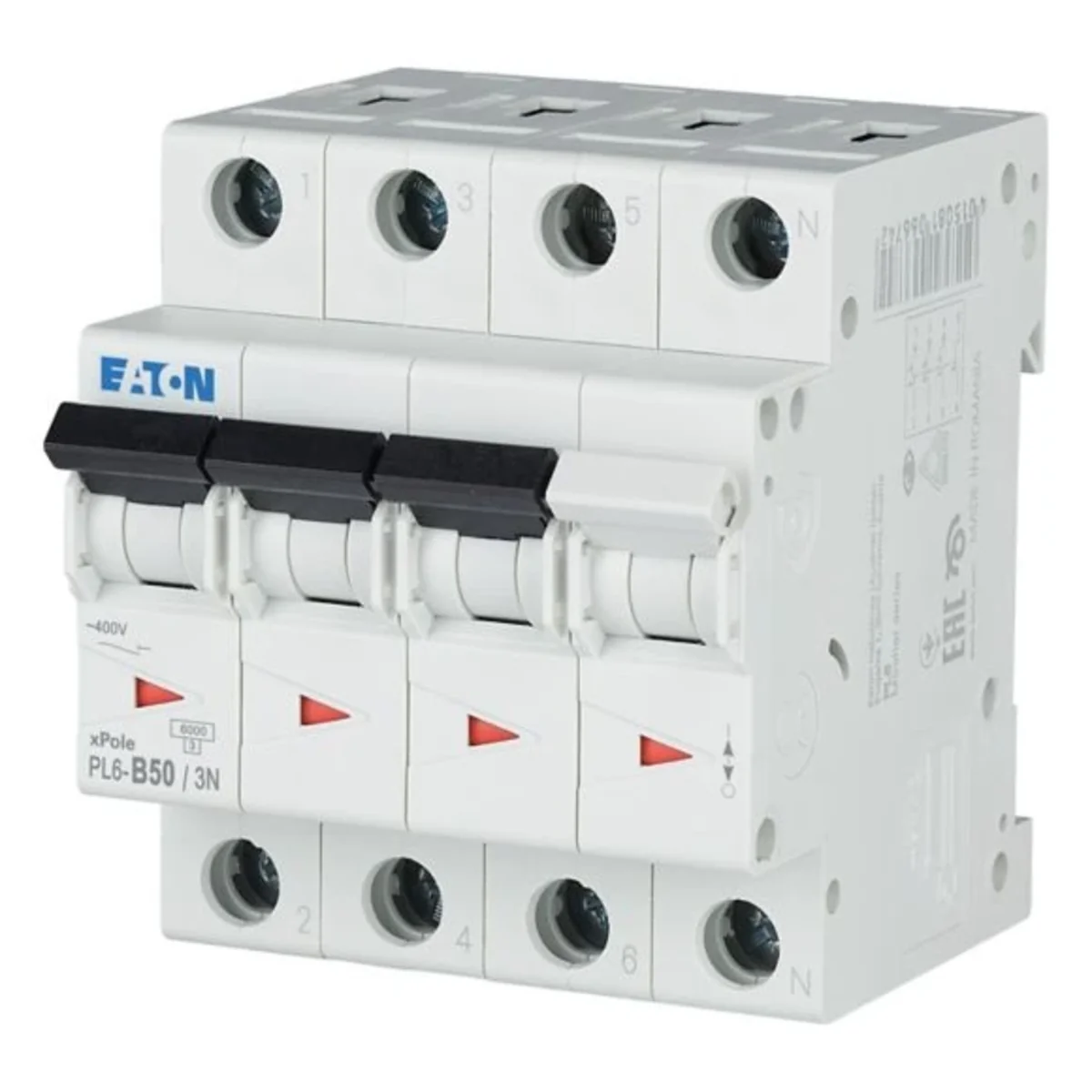

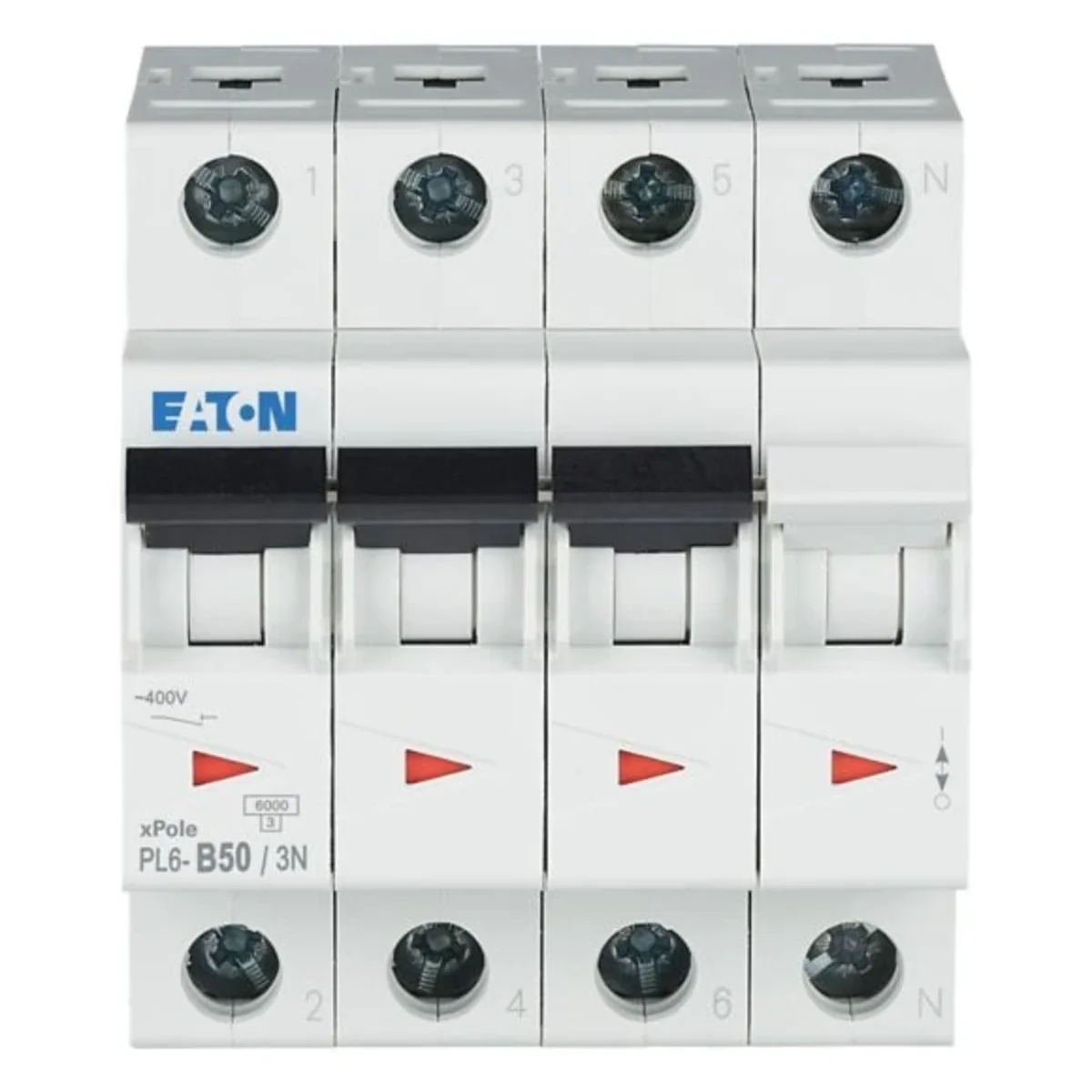

Miniature circuit breaker 6kA 3-pole, 50A, B-Char 106903

local index:
ABB104MOEL
Catalog No:
106903
EAN code:
4015081066636
Manufacturer: EATON
Characteristic: b
Number of poles: 3
Rated current [A]: 50
Price:
79,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

High-quality circuit breaker, 6 kA breaking capacity, 3-pole, 50 A rated current, B tripping characteristic.

Technical data

  • Characteristic
    b
  • Rated current [A]
    50
  • Number of poles
    3
  • Rated switching capacity [kA]
    6

Other technical data

  • Built-in depth
    70.5 mm
  • Number of poles (total)
    4
  • Rated current
    50 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    6 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    0 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    Yes
  • Pollution degree
    2
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    3
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    0 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    No
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 3 pcs. 30 pcs.
Weight (kg) 0,474 1,423 14,335
Volume (m3) 0,000 0,001 0,016
Width (m) 0,073 0,086 0,180
Length (m) 0,087 0,218 0,385
Depth (m) 0,075 0,074 0,230
