Miniature circuit breaker 6kA 1-pole, 13A, B-Char 106027

Name: Miniature circuit breaker 6kA 1-pole, 13A, B-Char
Brand: EATON
SKU: ABB093MOEL
Price: 67.08 PLN
Availability: BackOrder

Indice locale:

ABB093MOEL

Numero di catalogo:

106027

Codice EAN:

4015081057955

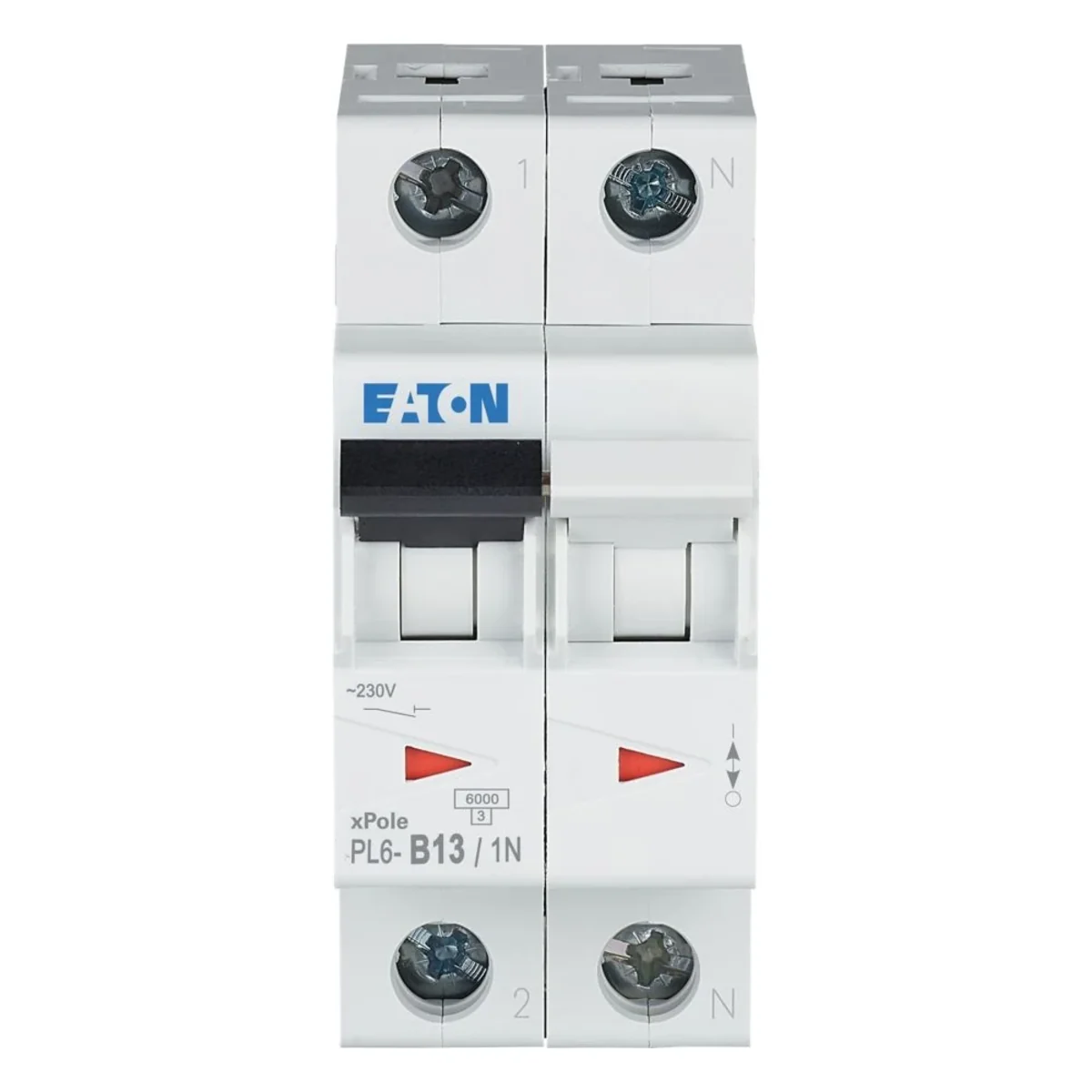

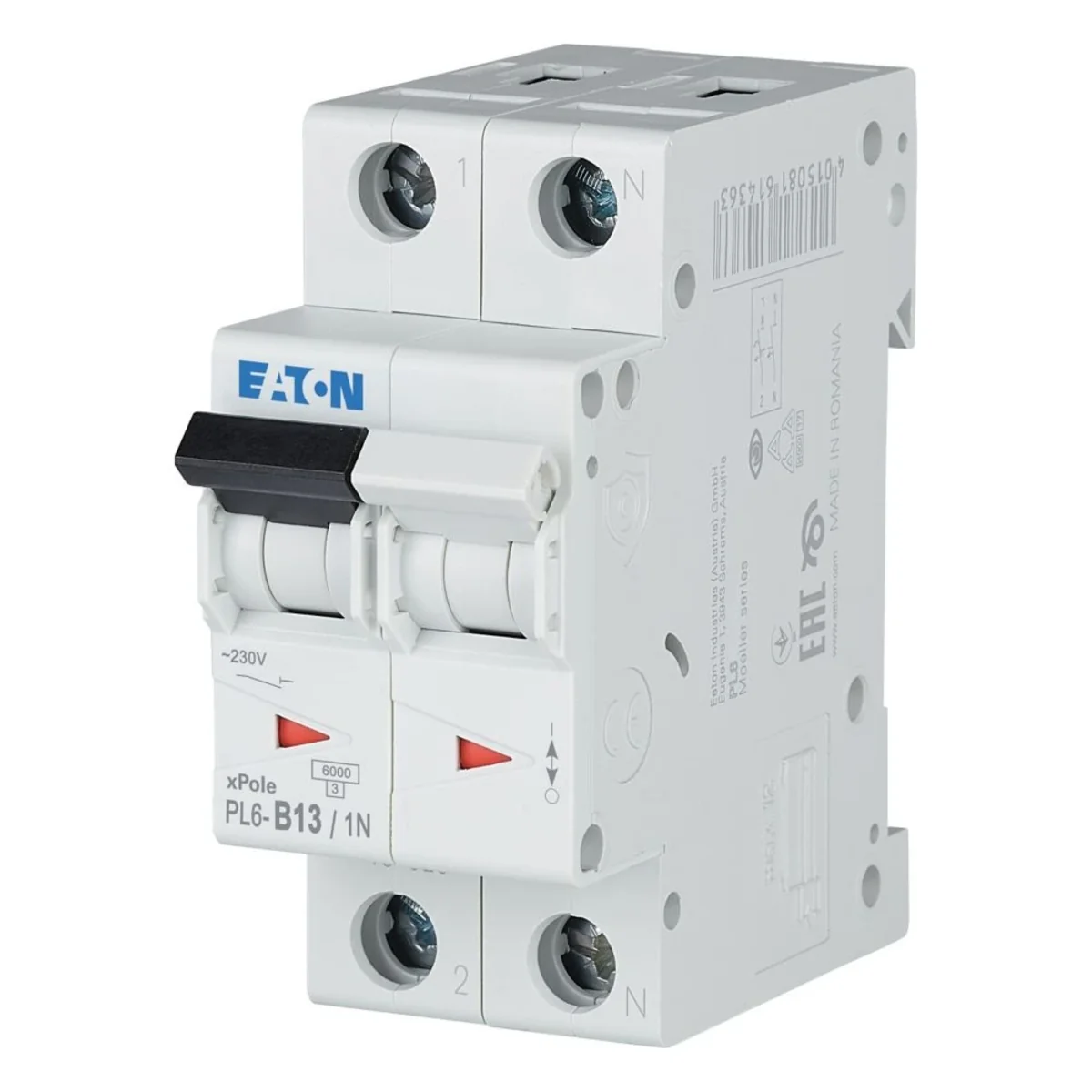

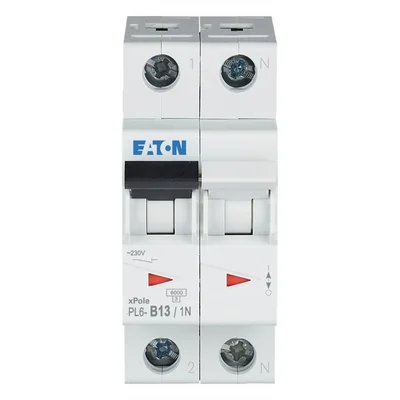

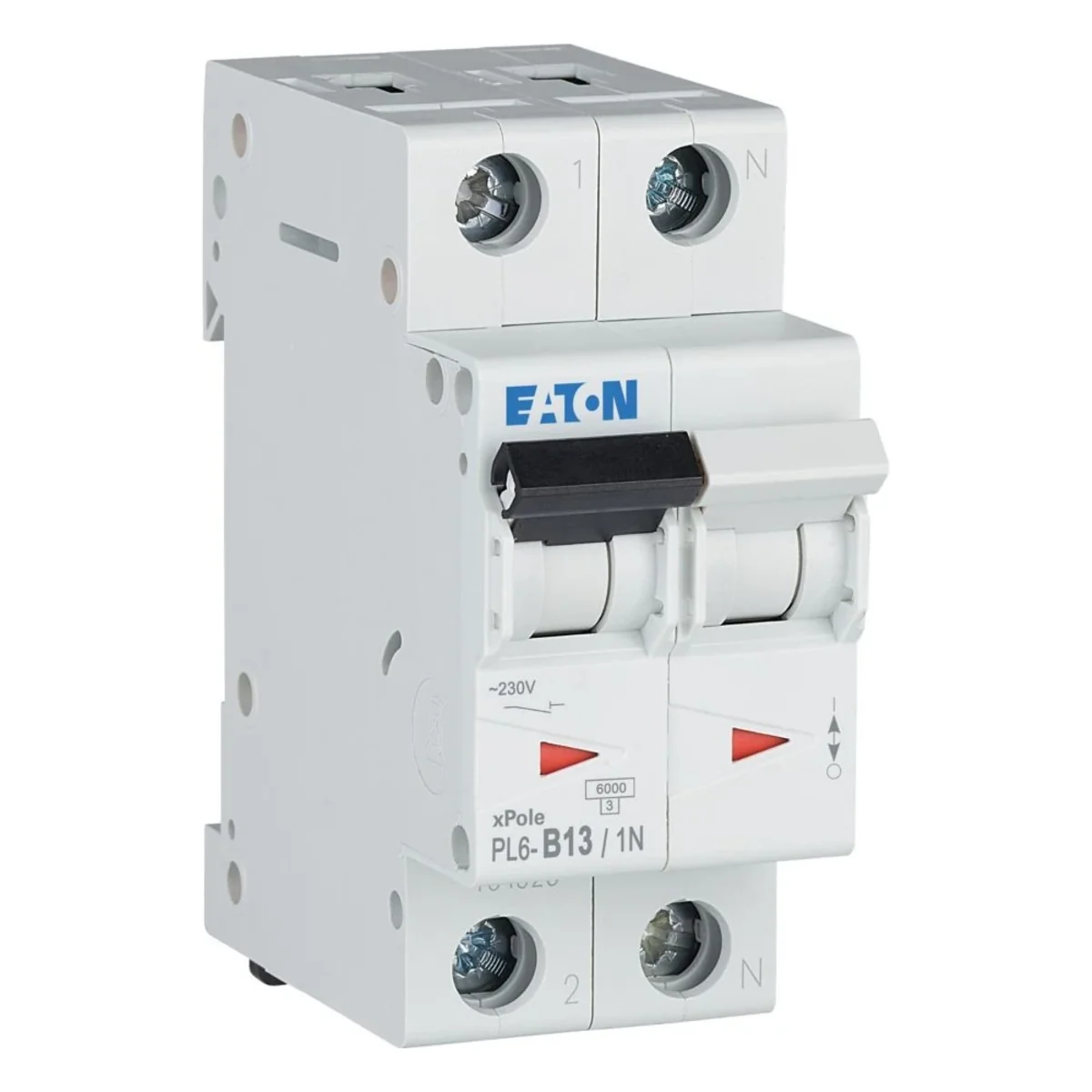

Clicca sulla foto per ingrandire

Produttore: EATON

Characteristic: b

Number of poles: 1

Rated current [A]: 13

Vedi la descrizione completa

Prezzo:

67,08 zł

gross / pezzi

(inclusa IVA 23%)

fino a 4 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

High-quality circuit breaker, 6 kA breaking capacity, 1-pole, 13 A rated current, B tripping characteristic.

Built-in depth

70.5 mm
Number of poles (total)

2
Rated current

13 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0 kA
Current limiting class

3
Concurrently switching neutral conductor

Yes
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

1
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No
