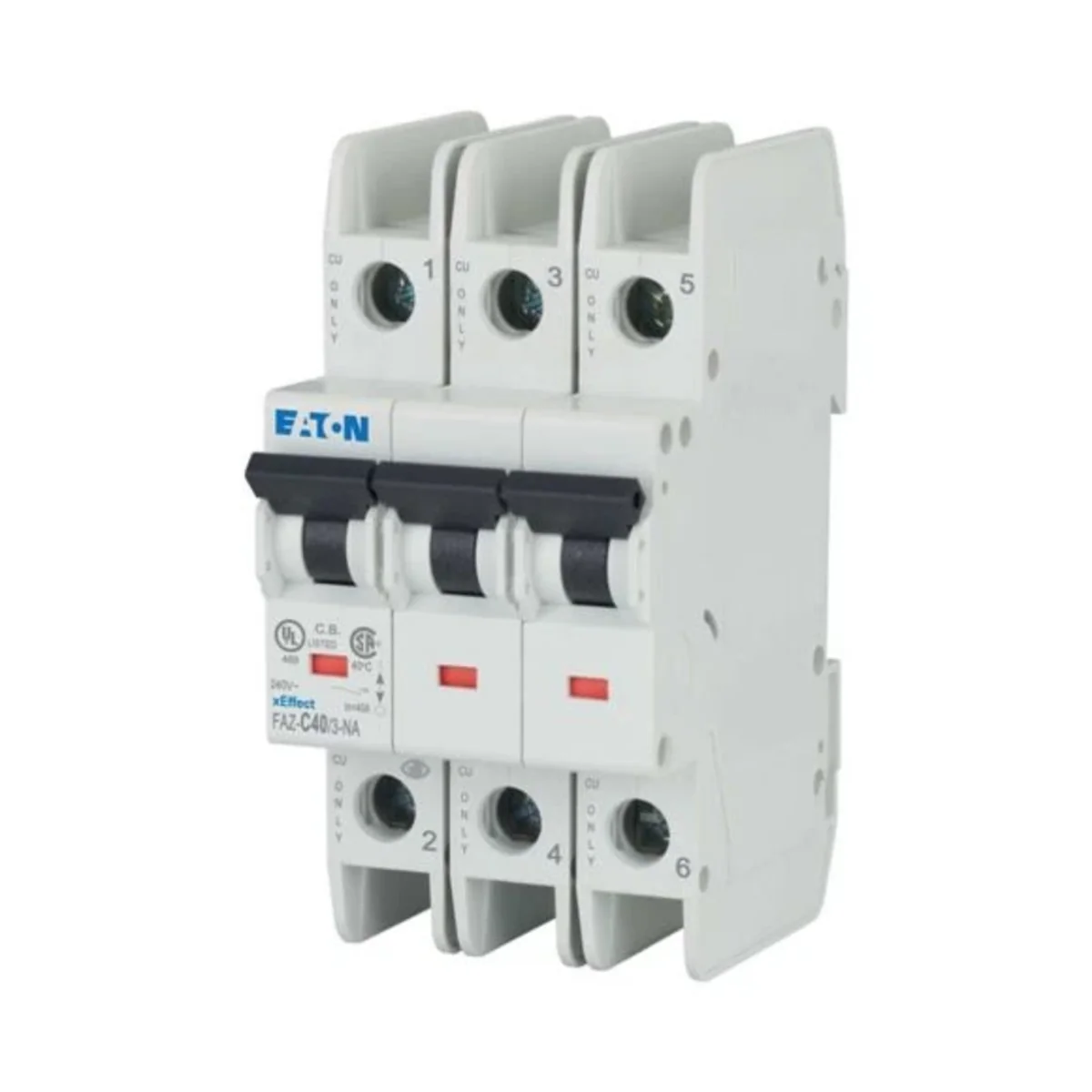

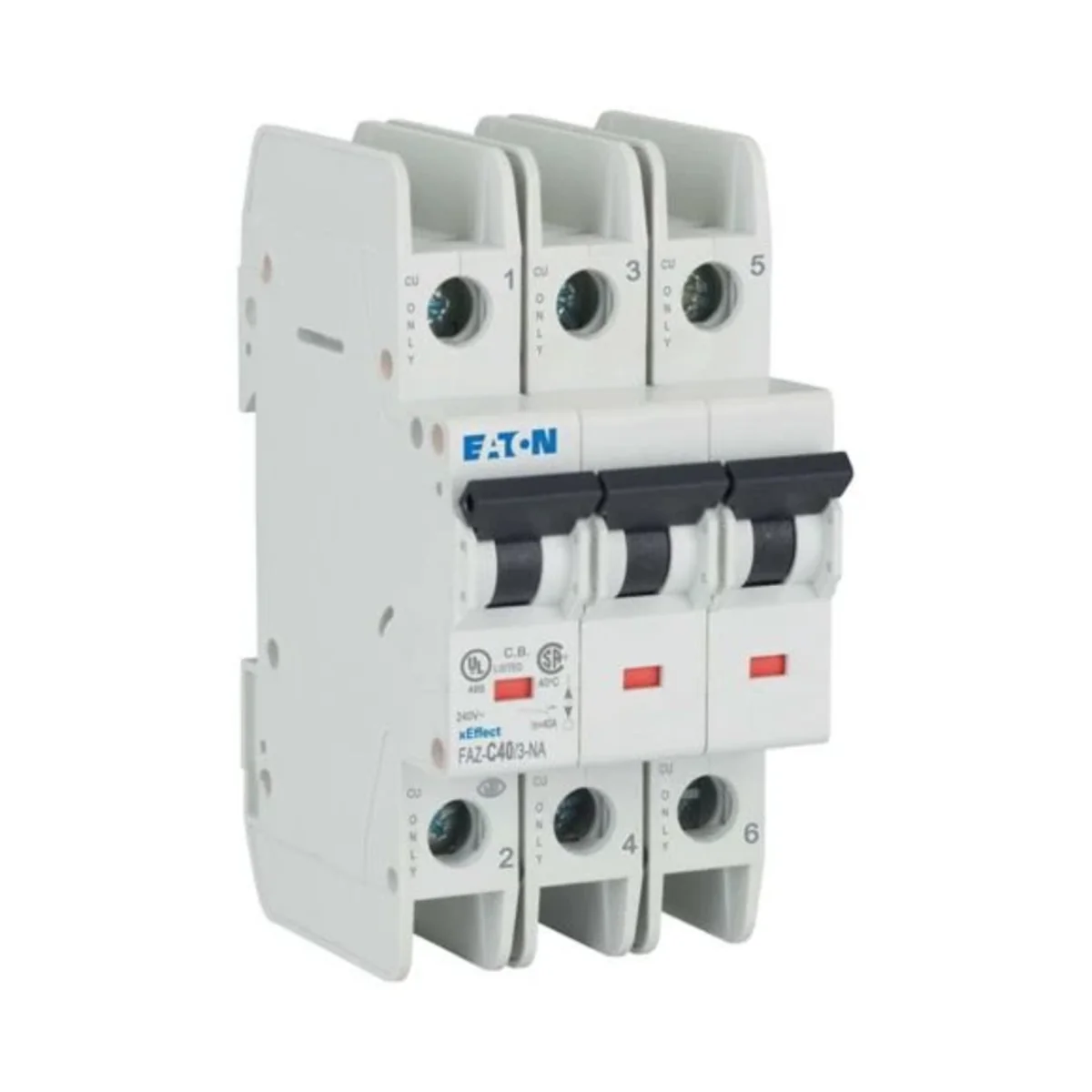

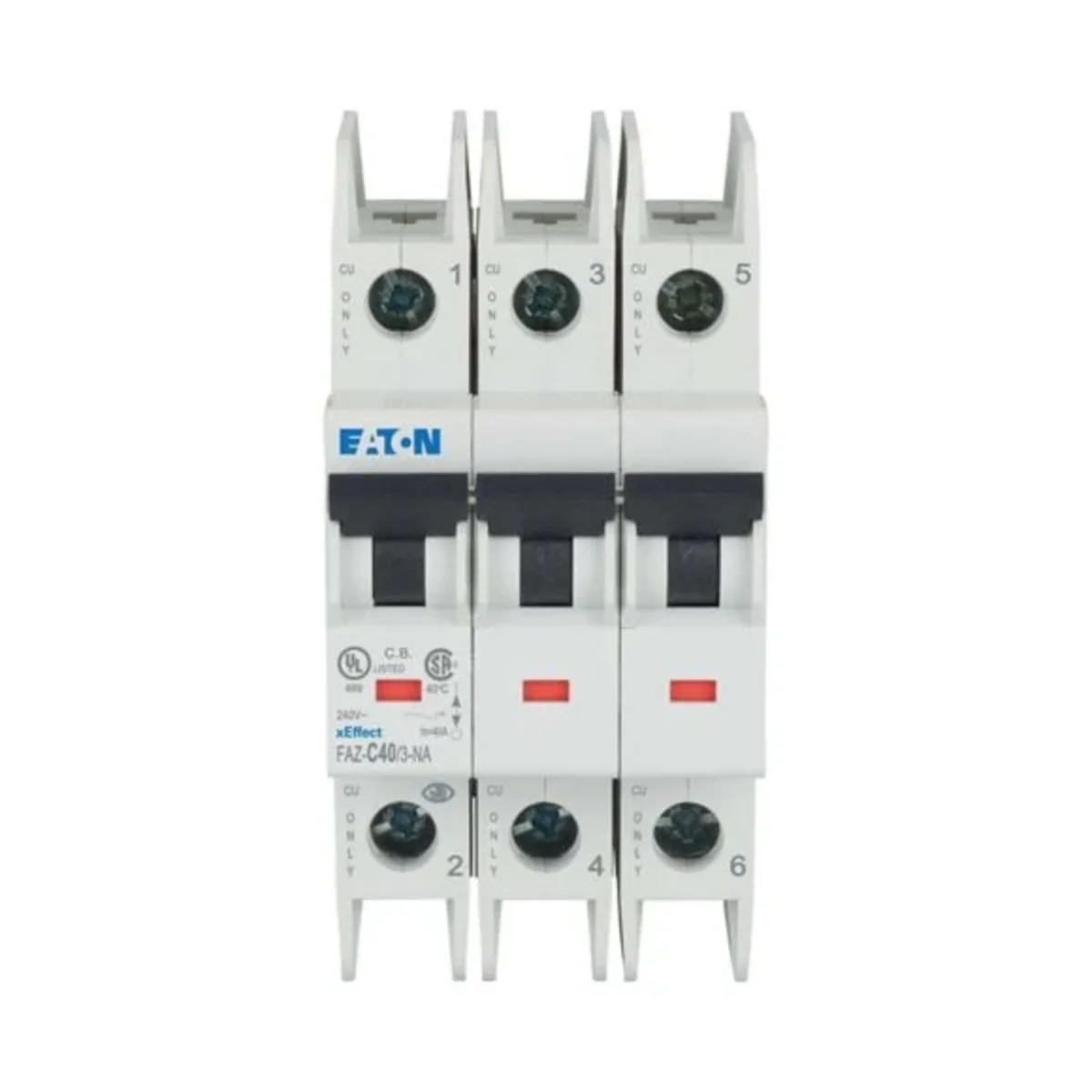

Miniature circuit breaker 3-pole NA version, 40A, C-Char 102256

Lokaler Index:
ABC175MOEL
Katalognummer:
102256
EAN-Code:
4015081021321
Hersteller: EATON
Characteristic: c
Number of poles: 3
Rated current [A]: 40
Preis:
182,32 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

High-quality circuit breaker for use in North America, rated operating voltage 230/400V, rated breaking capacity 15 kA according to UL 489, CSA C22.2 No 5-02 and IEC/EN 60947-2, three-state latching slider allows removal from the existing travel unit, rated currents up to 40 A, tripping characteristics B, C, D

Technische Daten

  • Characteristic
    c
  • Rated current [A]
    40
  • Number of poles
    3
  • Rated switching capacity [kA]
    15

Weitere technische Daten

  • Built-in depth
    70.5 mm
  • Number of poles (total)
    3
  • Rated current
    40 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    0 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    3
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    3
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    No
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No

Hersteller-Details

  • Hersteller
    EATON Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk ul. Galaktyczna 30
  • Steueridentifikationsnummer
    5841022327

Großpackungen

Eine Art Paket Skrzynia Karton
Menge 1 stk. 1 stk. 28 stk.
Gewicht (kg) 0,382 0,401 11,430
Volumen (m3) 0,000 0,000 0,016
Breite (m) 0,053 0,055 0,180
Länge (m) 0,105 0,107 0,385
Tiefe (m) 0,075 0,076 0,230
