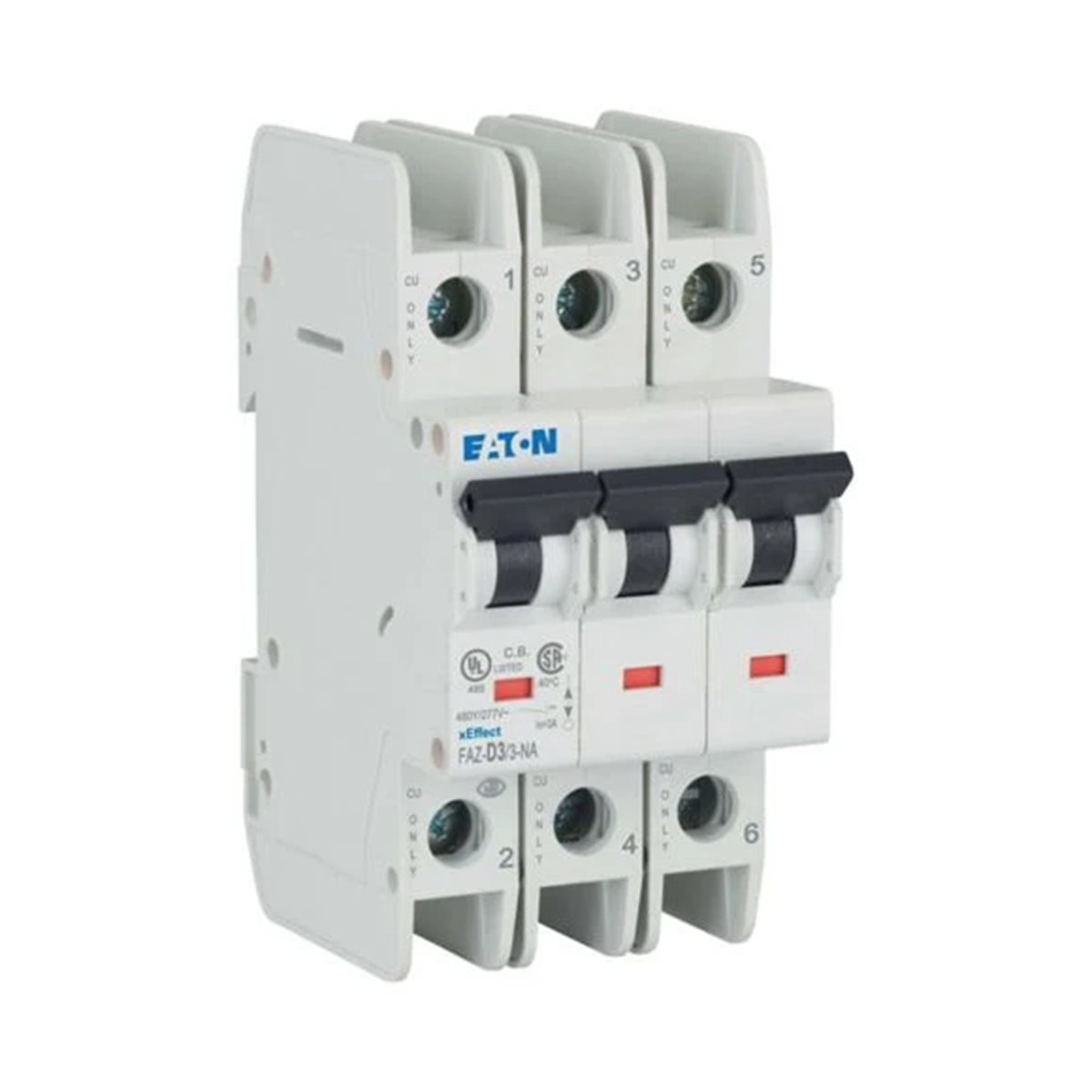

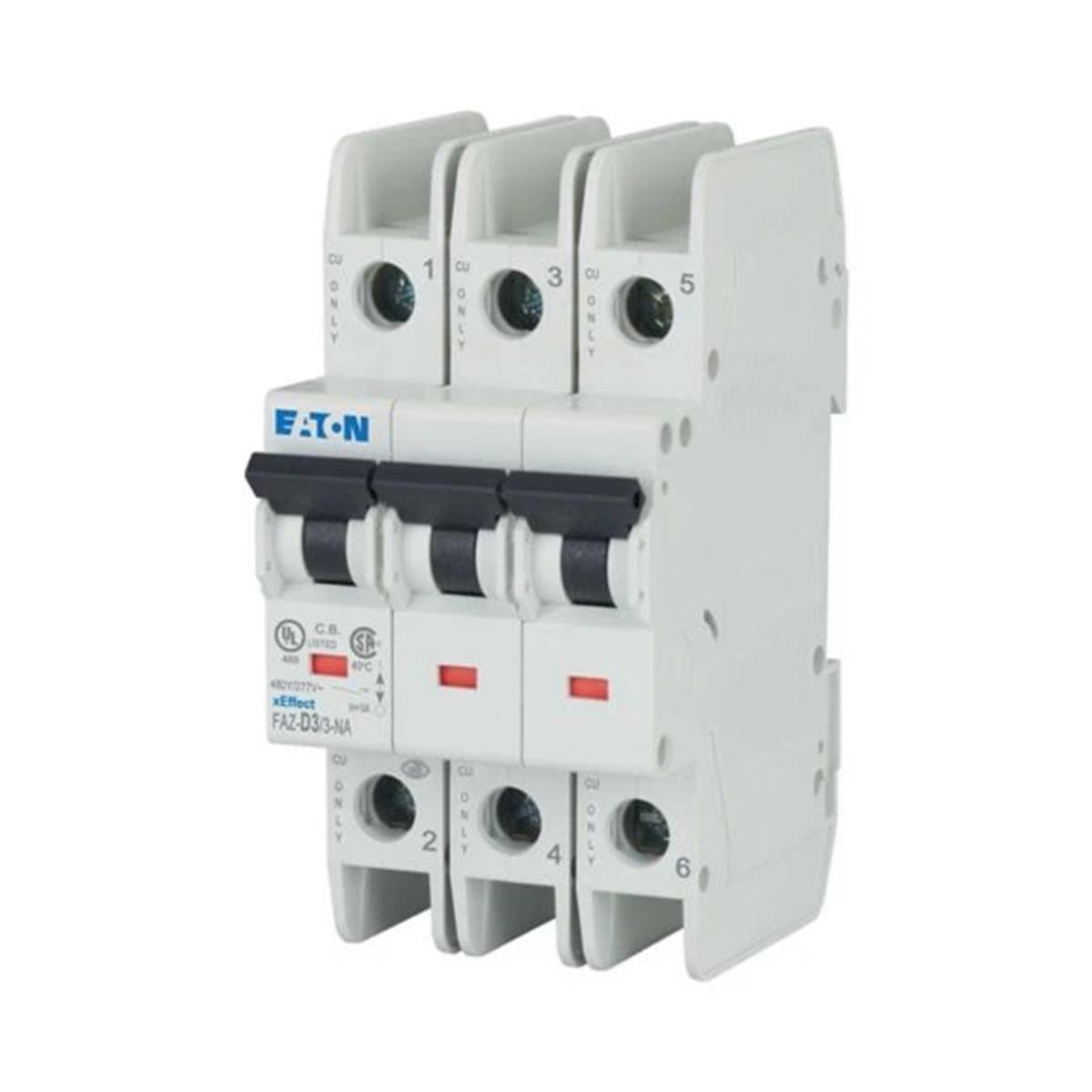

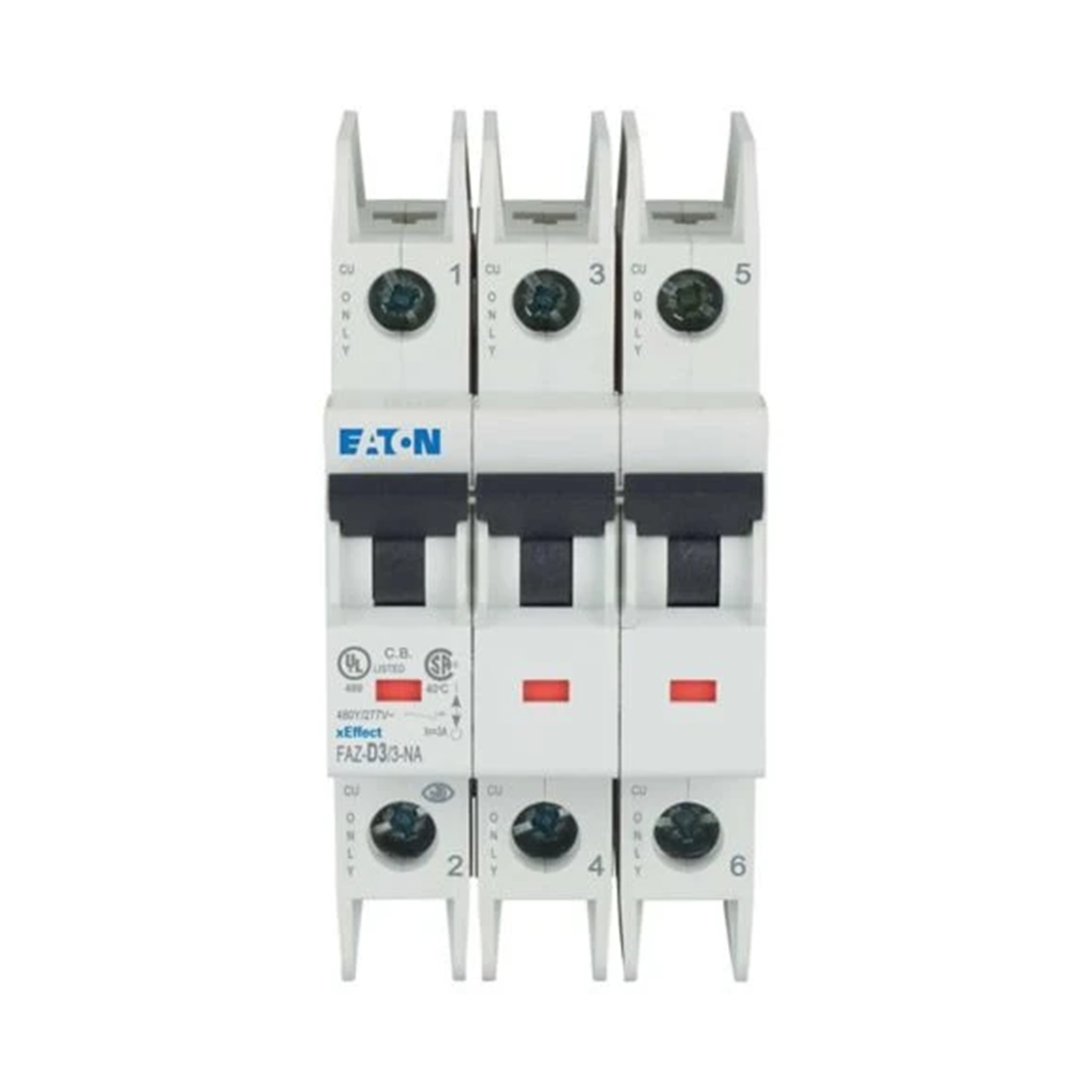

Name: Miniature circuit breaker 3-pole NA version, 3A, D-Char
Brand: EATON
SKU: ABD037MOEL
Price: 78.89 PLN

High-quality circuit breaker for use in North America, rated operating voltage 230/400V, rated breaking capacity 15 kA according to UL 489, CSA C22.2 No 5-02 and IEC/EN 60947-2, three-state latching slider allows removal from the existing travel unit, rated currents up to 40 A, tripping characteristics B, C, D

Characteristic

d
Rated current [A]

3

Number of poles

3
Rated switching capacity [kA]

15

Other technical data

Built-in depth

70.5 mm
Number of poles (total)

3
Rated current

3 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

D
Number of protected poles

3
Rated voltage

415 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	28 pcs.
Weight (kg)	0,370	0,389	11,101
Volume (m3)	0,000	0,000	0,016
Width (m)	0,053	0,055	0,180
Length (m)	0,105	0,107	0,385
Depth (m)	0,075	0,076	0,230
