Miniature circuit breaker 2-pole NA version, 6A, C-Char 102164

Name: Miniature circuit breaker 2-pole NA version, 6A, C-Char
Brand: EATON
SKU: ABC144MOEL
Price: 57.17 PLN

Índice local:

ABC144MOEL

Número de catálogo:

102164

Código EAN:

4015081020409

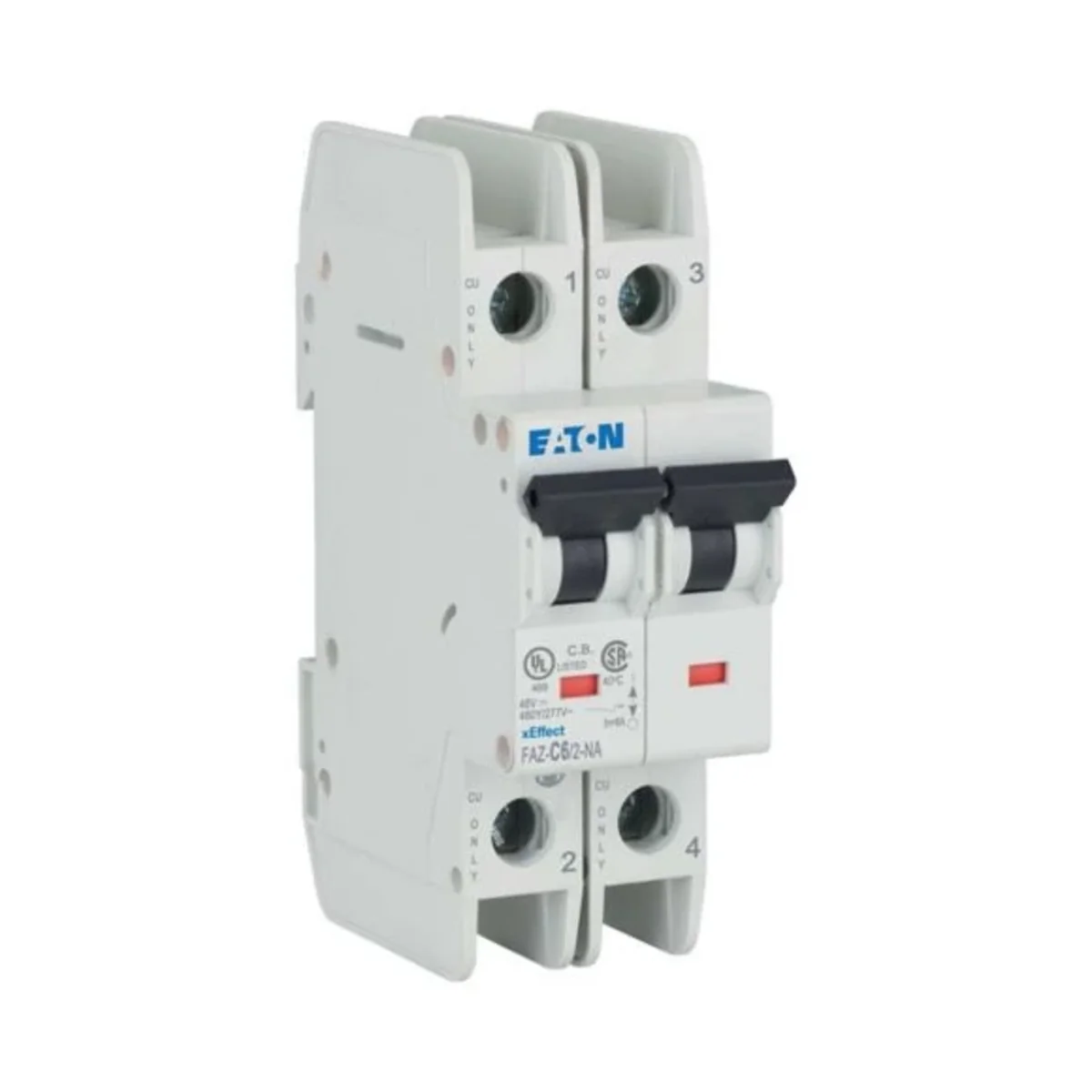

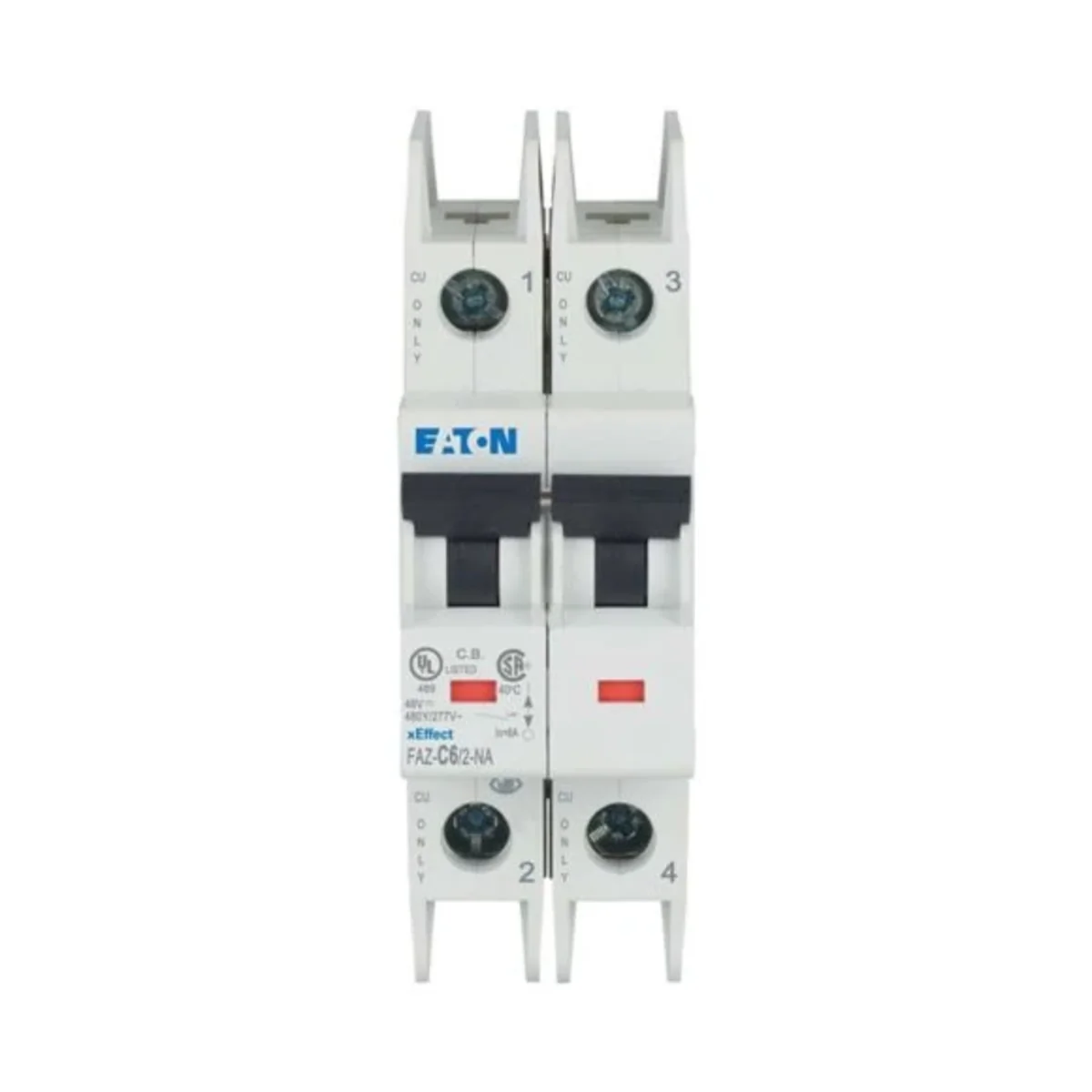

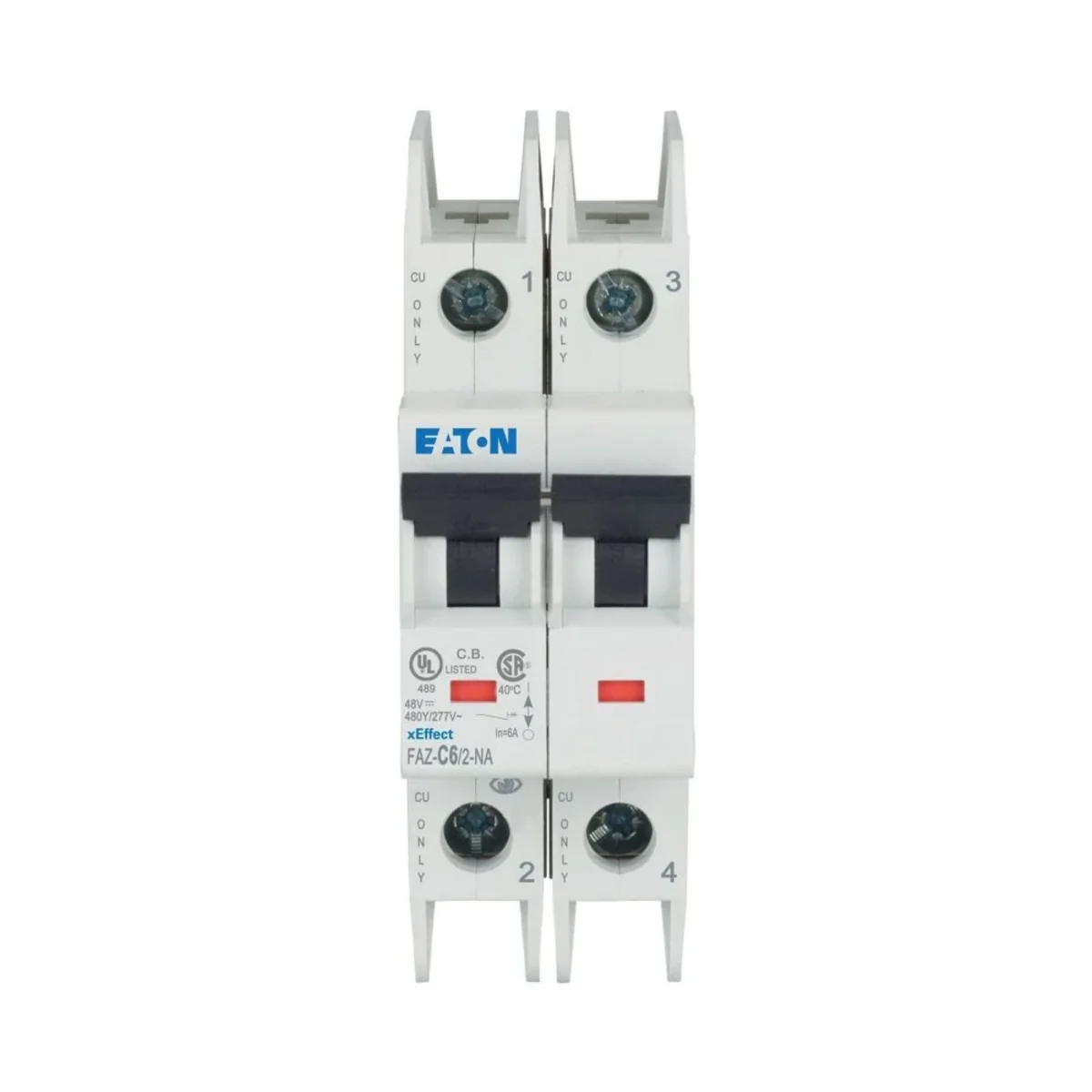

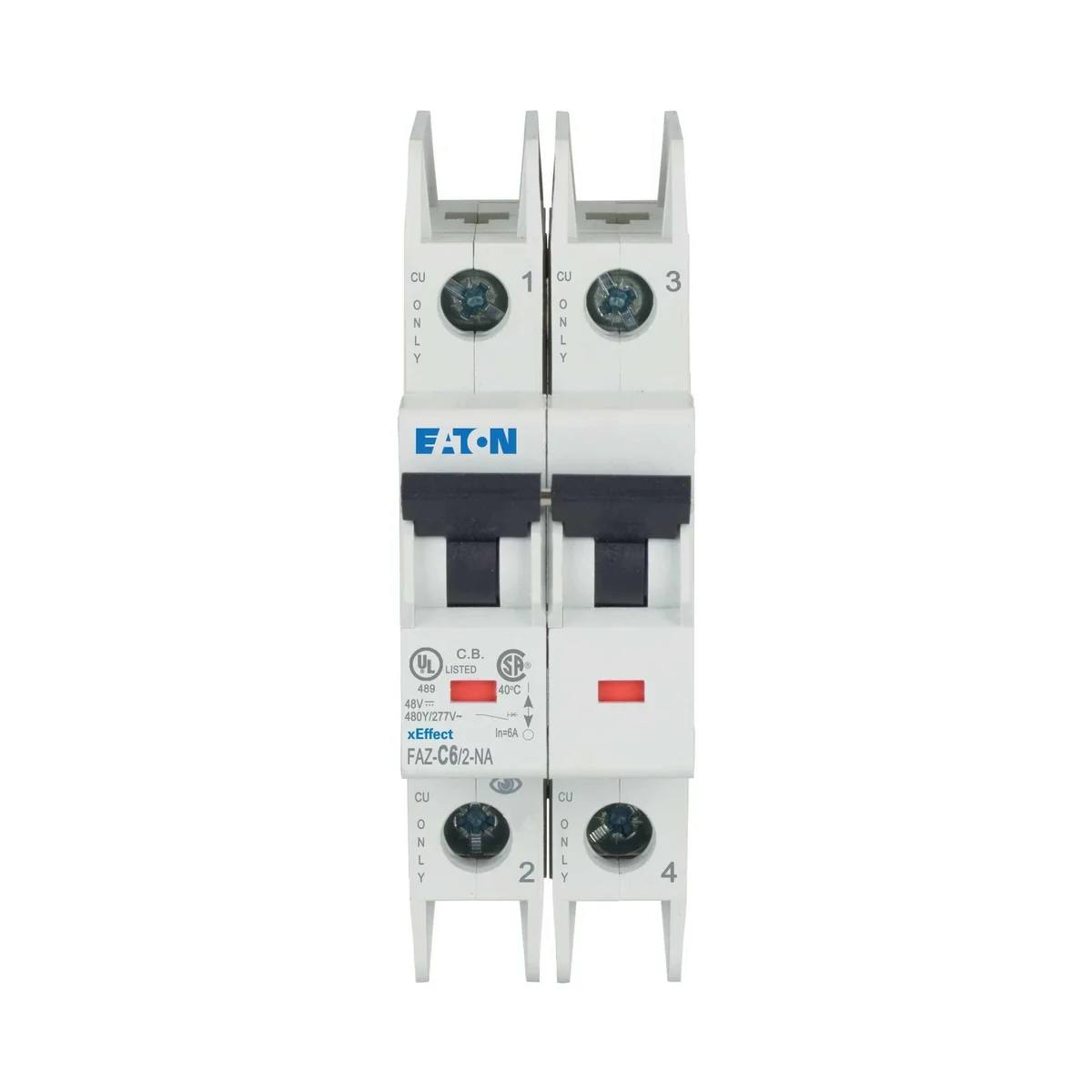

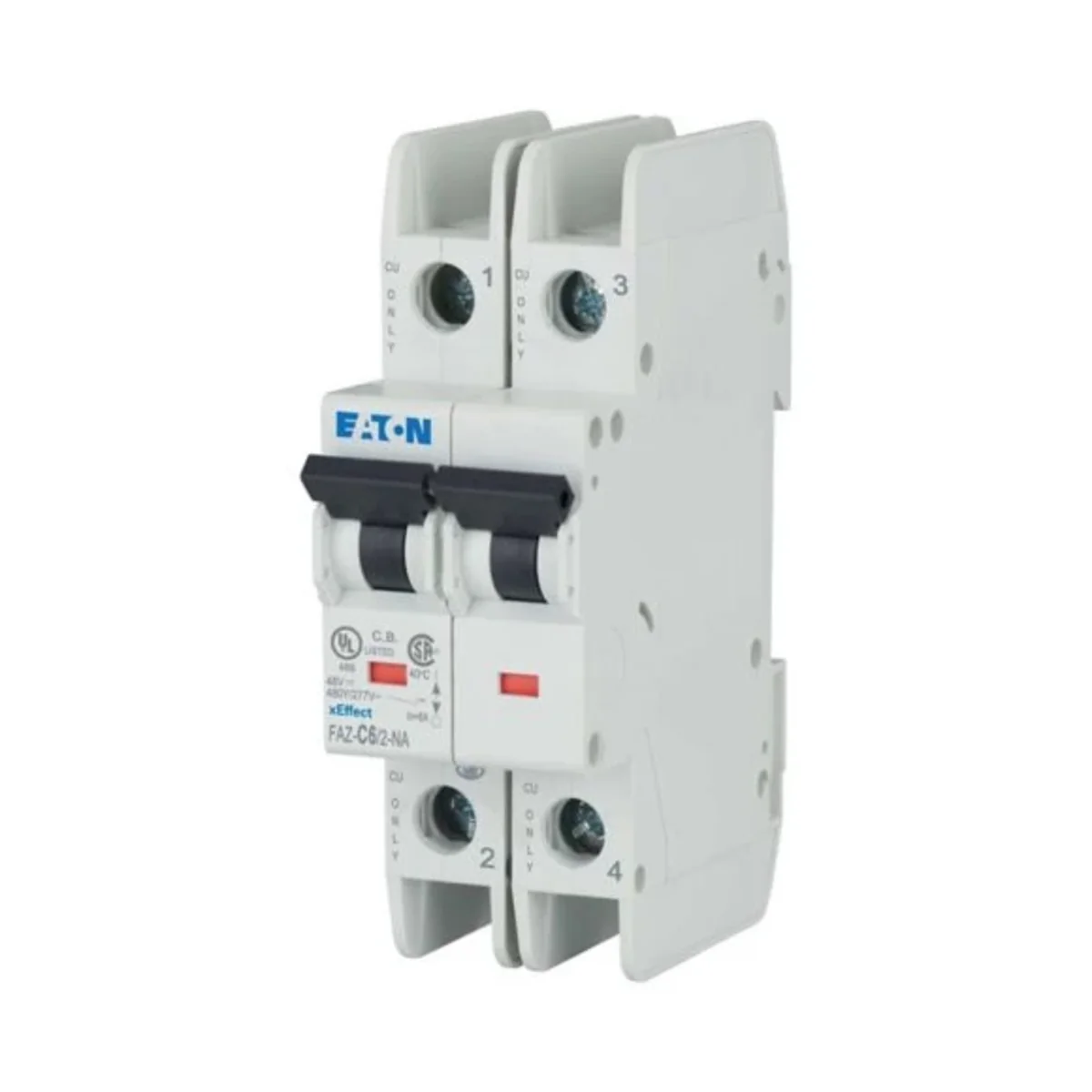

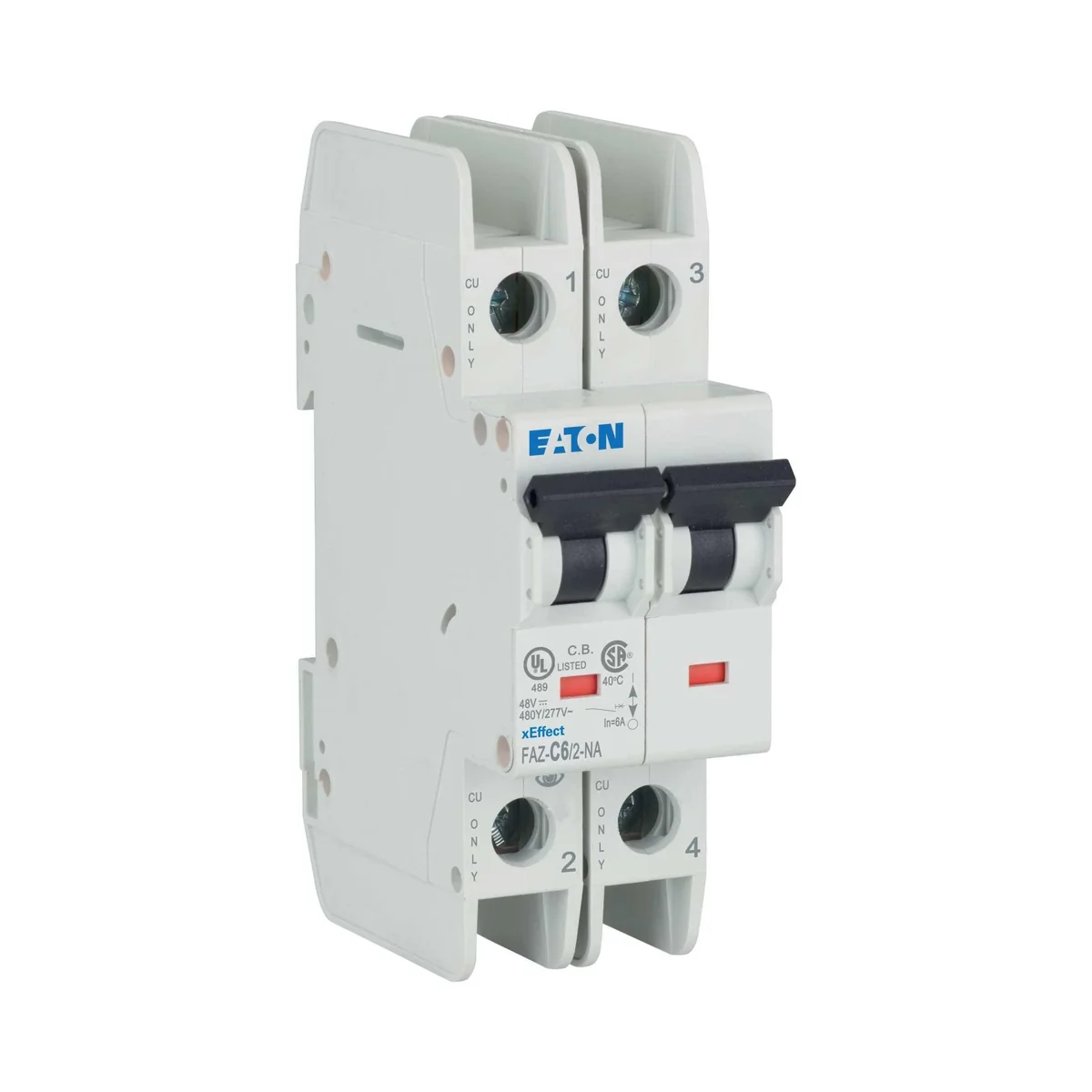

Miniature circuit breaker 2-pole NA version, 6A, C-Char

Haga clic en la foto para ampliar

Fabricante: EATON

Characteristic: c

Number of poles: 2

Rated current [A]: 6

Ver descripción completa

Precio:

57,17 €

gross / uds.

(IVA incluido 23%)

Entrega en 3h

hasta 4 semanas (días laborables)

Recogida en 1h

Cantidad uds.

(múltiple:

)

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

High-quality circuit breaker for use in North America, rated operating voltage 230/400V, rated breaking capacity 15 kA according to UL 489, CSA C22.2 No 5-02 and IEC/EN 60947-2, three-state latching slider allows removal from the existing travel unit, rated currents up to 40 A, tripping characteristics B, C, D

Datos técnicos

Characteristic

c
Rated current [A]

6

Number of poles

2
Rated switching capacity [kA]

15

Otros datos técnicos

Built-in depth

70.5 mm
Number of poles (total)

2
Rated current

6 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

2
Rated voltage

415 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Detalles del fabricante

Fabricante

EATON Electric Sp. z o.o.
Dirección

80-299 Gdańsk ul. Galaktyczna 30
NIF

5841022327

Empaquetado a granel

una especie de paquete		Skrzynia	Karton
Cantidad	1 uds.	1 uds.	40 uds.
Peso (kg)	0,240	0,255	10,379
Volumen (m3)	0,000	0,000	0,016
Ancho (m)	0,035	0,037	0,180
Longitud (m)	0,105	0,107	0,385
Profundidad (m)	0,075	0,076	0,230
