Miniature circuit breaker 2-pole NA version, 25A, C-Char 102172

Name: Miniature circuit breaker 2-pole NA version, 25A, C-Char
Brand: EATON
SKU: ABC152MOEL
Price: 349.74 PLN
Availability: BackOrder

Index local:

ABC152MOEL

Numéro de catalogue:

102172

Code EAN:

4015081020485

Miniature circuit breaker 2-pole NA version, 25A, C-Char

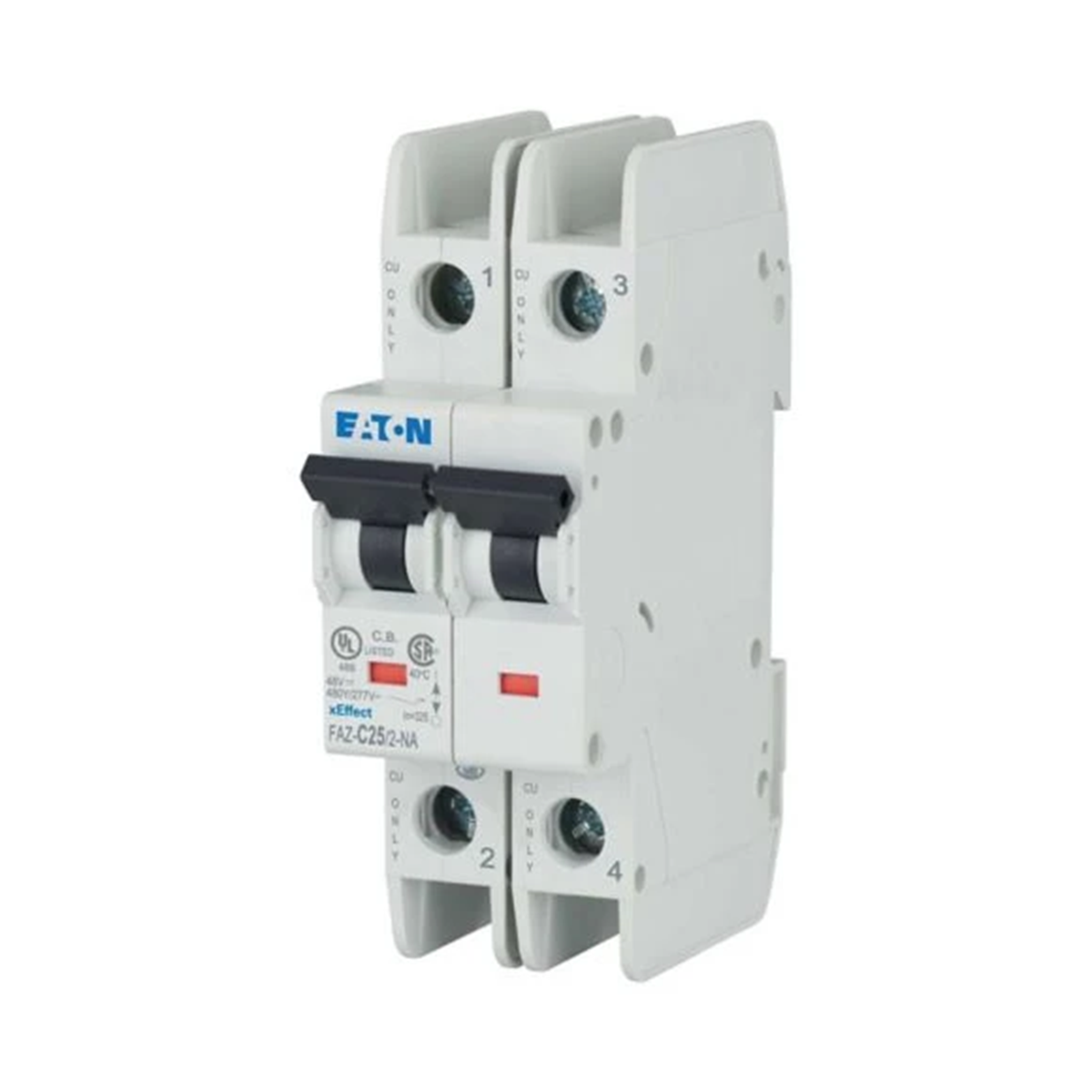

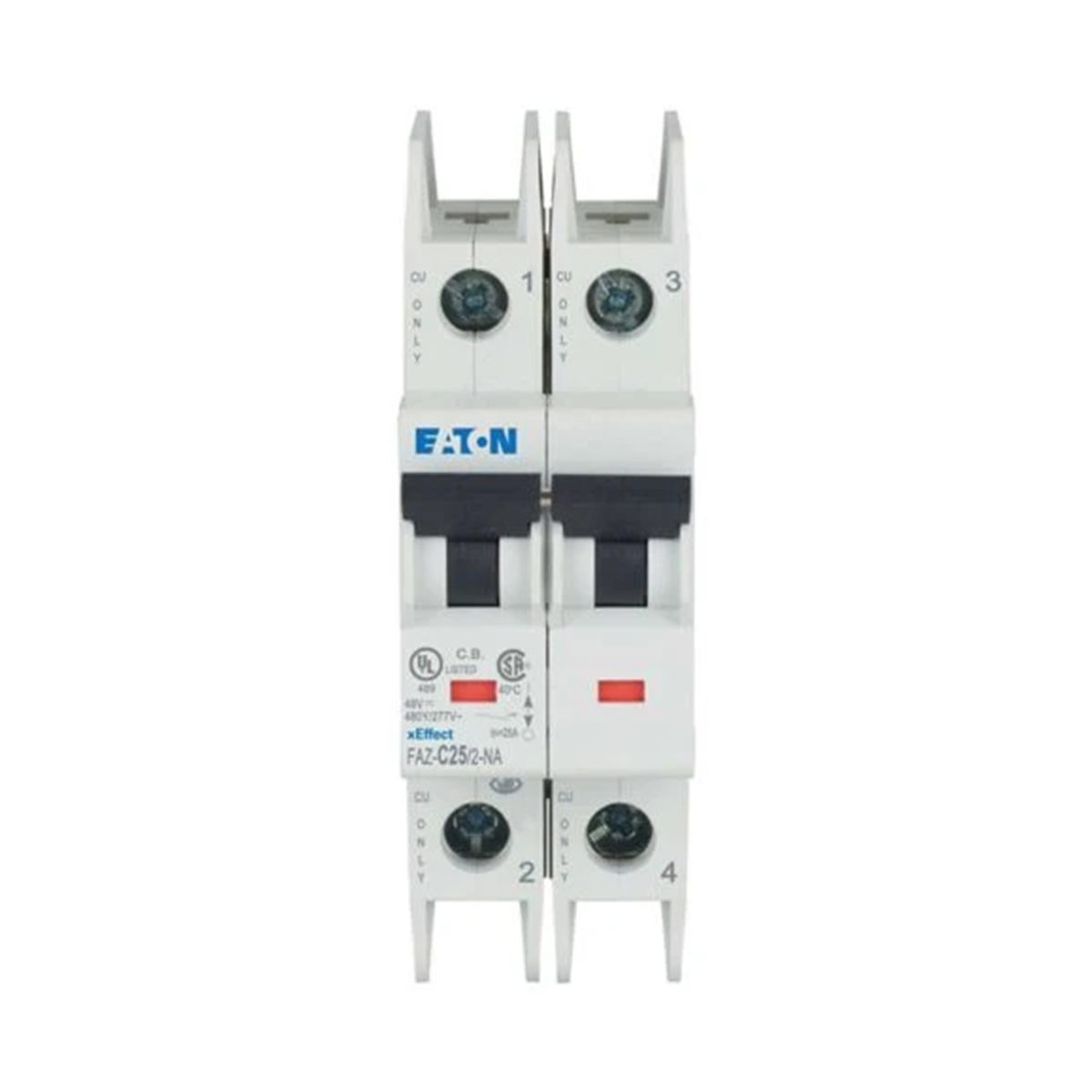

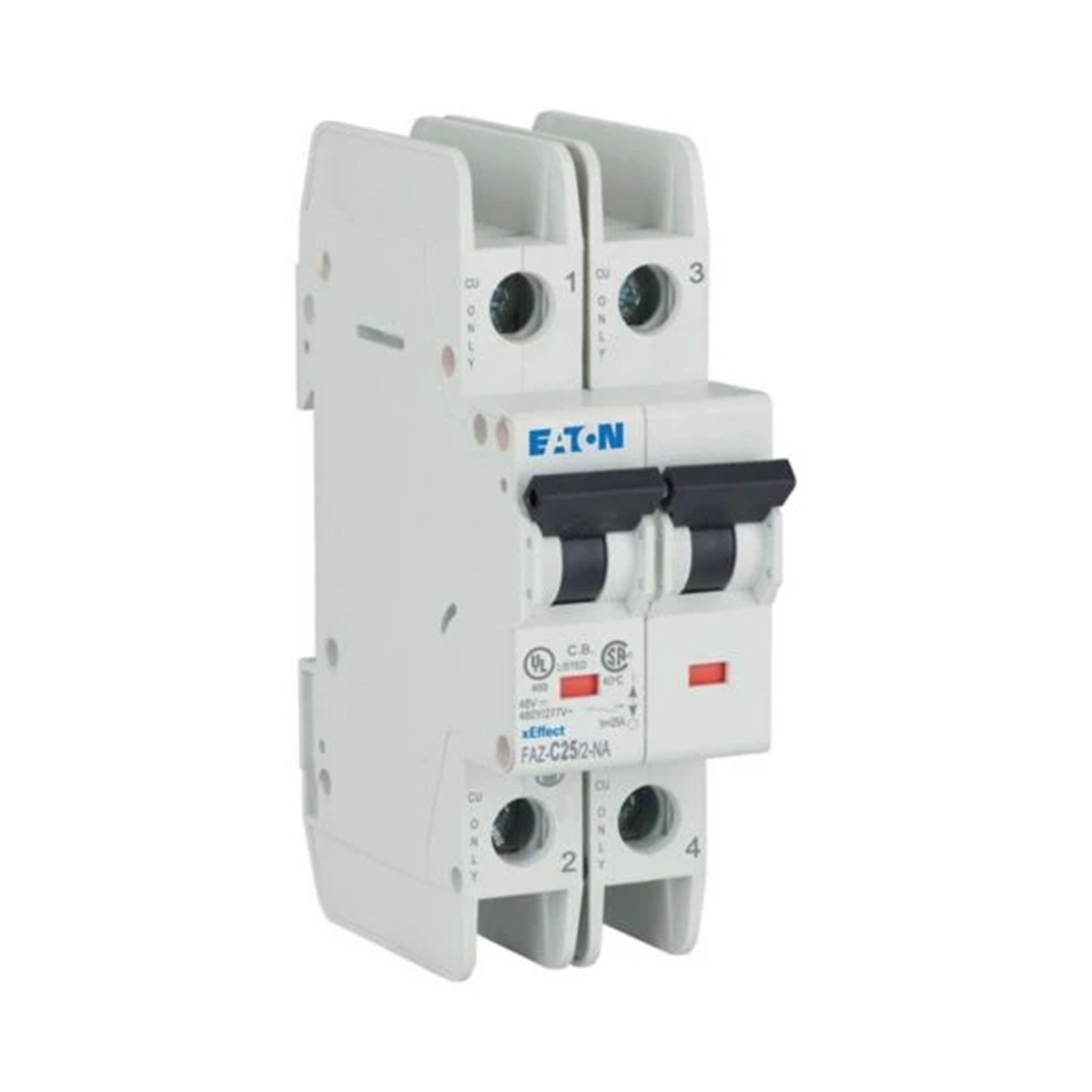

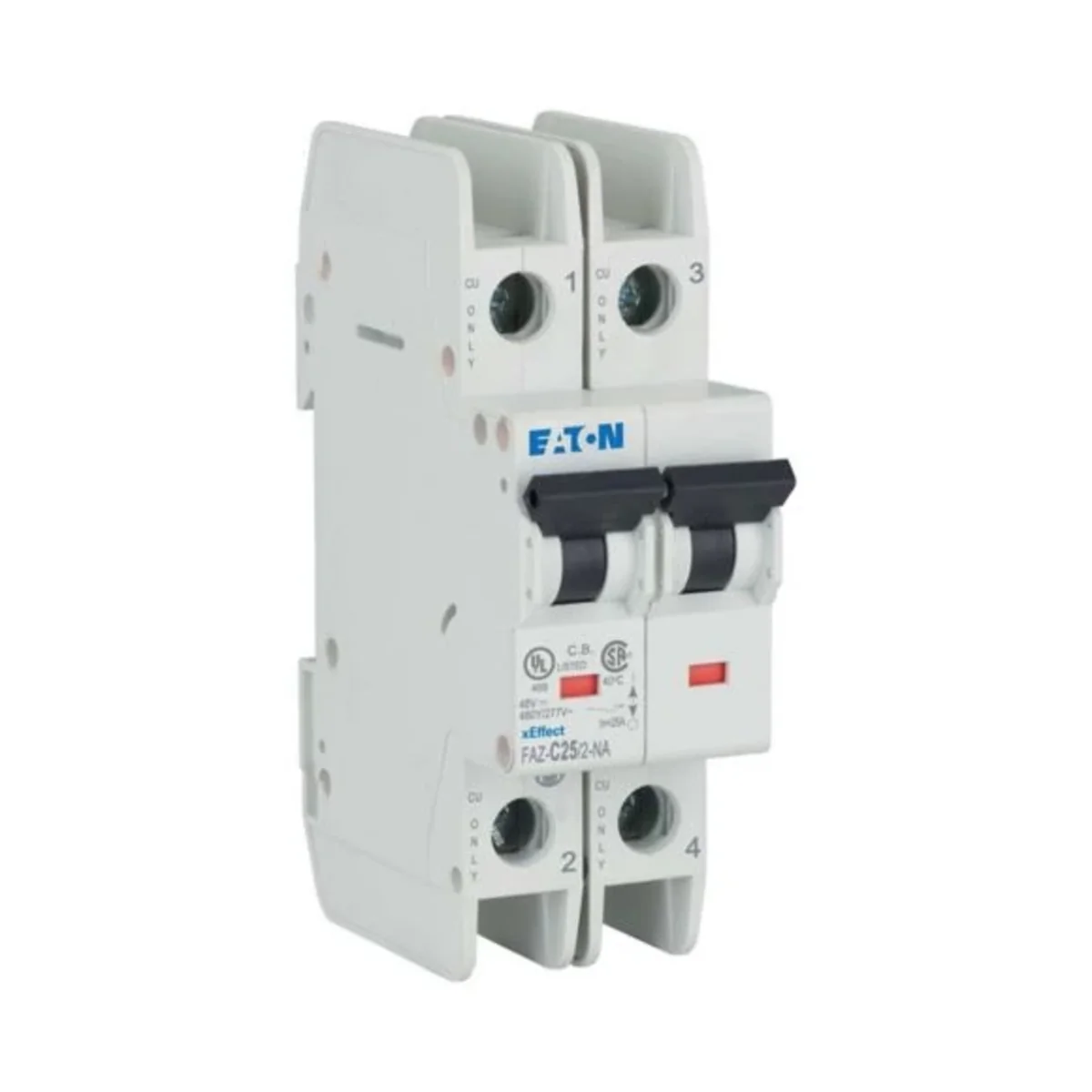

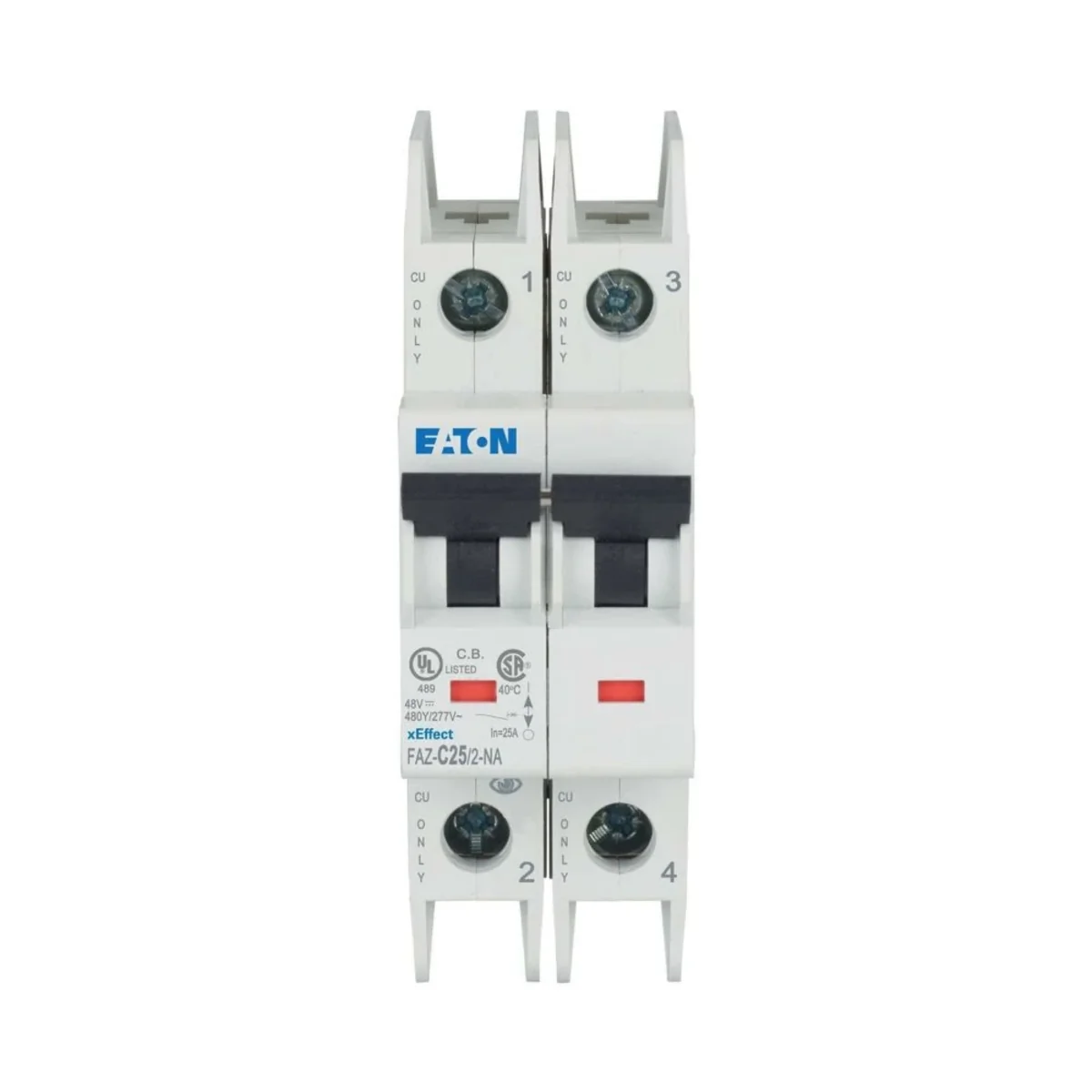

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Characteristic: c

Number of poles: 2

Rated current [A]: 25

Voir la description complète

Prix:

349,74 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

High-quality circuit breaker for use in North America, rated operating voltage 230/400V, rated breaking capacity 15 kA according to UL 489, CSA C22.2 No 5-02 and IEC/EN 60947-2, three-state latching slider allows removal from the existing travel unit, rated currents up to 40 A, tripping characteristics B, C, D

Données techniques

Characteristic

c
Rated current [A]

25

Number of poles

2
Rated switching capacity [kA]

15

Autres données techniques

Built-in depth

70.5 mm
Number of poles (total)

2
Rated current

25 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

2
Rated voltage

415 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia	Karton
Quantité	1 pcs.	40 pcs.
poids (kg)	0,267	10,869
Volume (m3)	0,000	0,016
Largeur (m)	0,037	0,180
Longueur (m)	0,107	0,385
Profondeur (m)	0,076	0,230
