Miniature circuit breaker 2-pole NA version, 20A, C-Char 102171

Name: Miniature circuit breaker 2-pole NA version, 20A, C-Char
Brand: EATON
SKU: ABC151MOEL
Price: 81.11 PLN

Indeks lokalny:

ABC151MOEL

Nr katalogowy:

102171

Kod EAN:

4015081020478

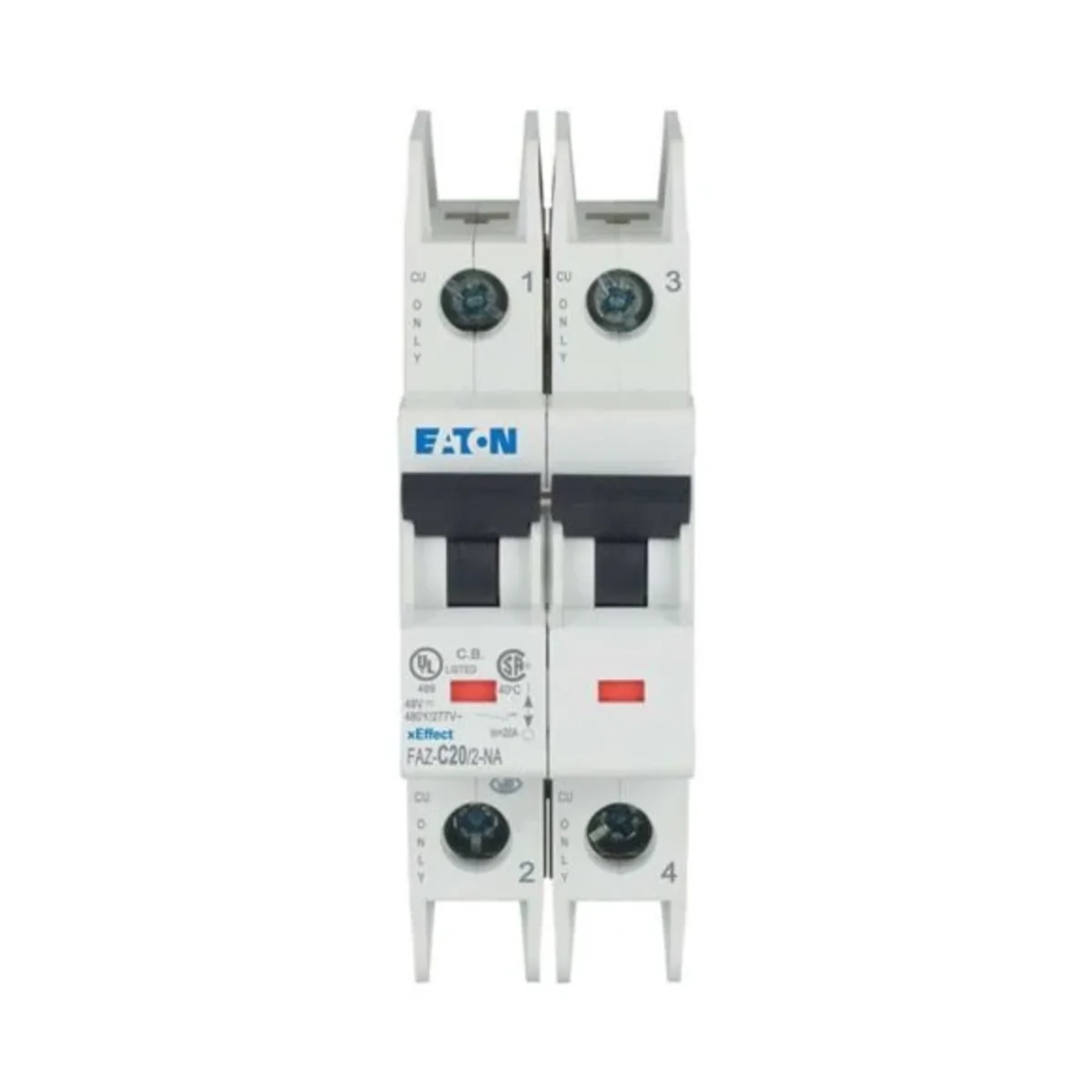

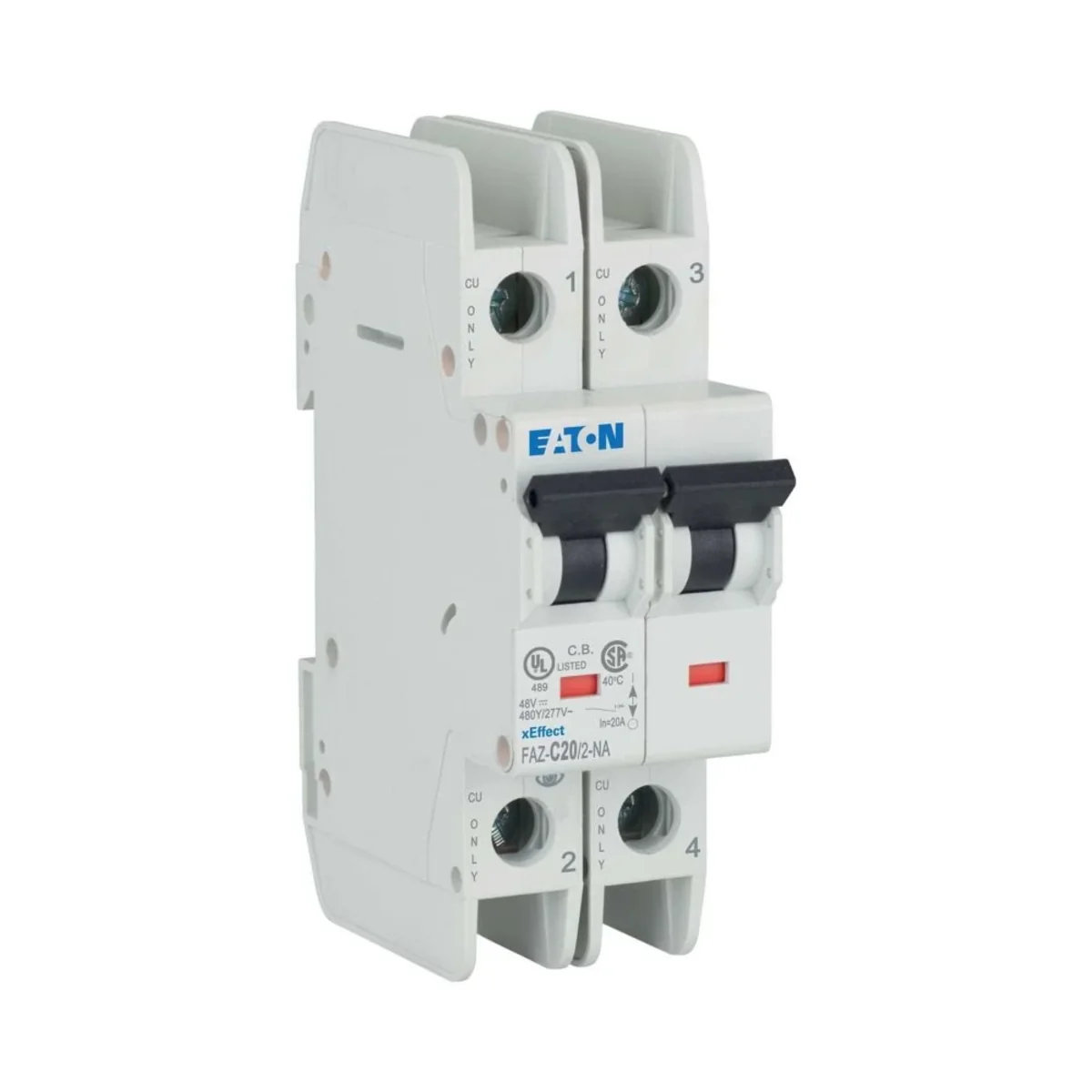

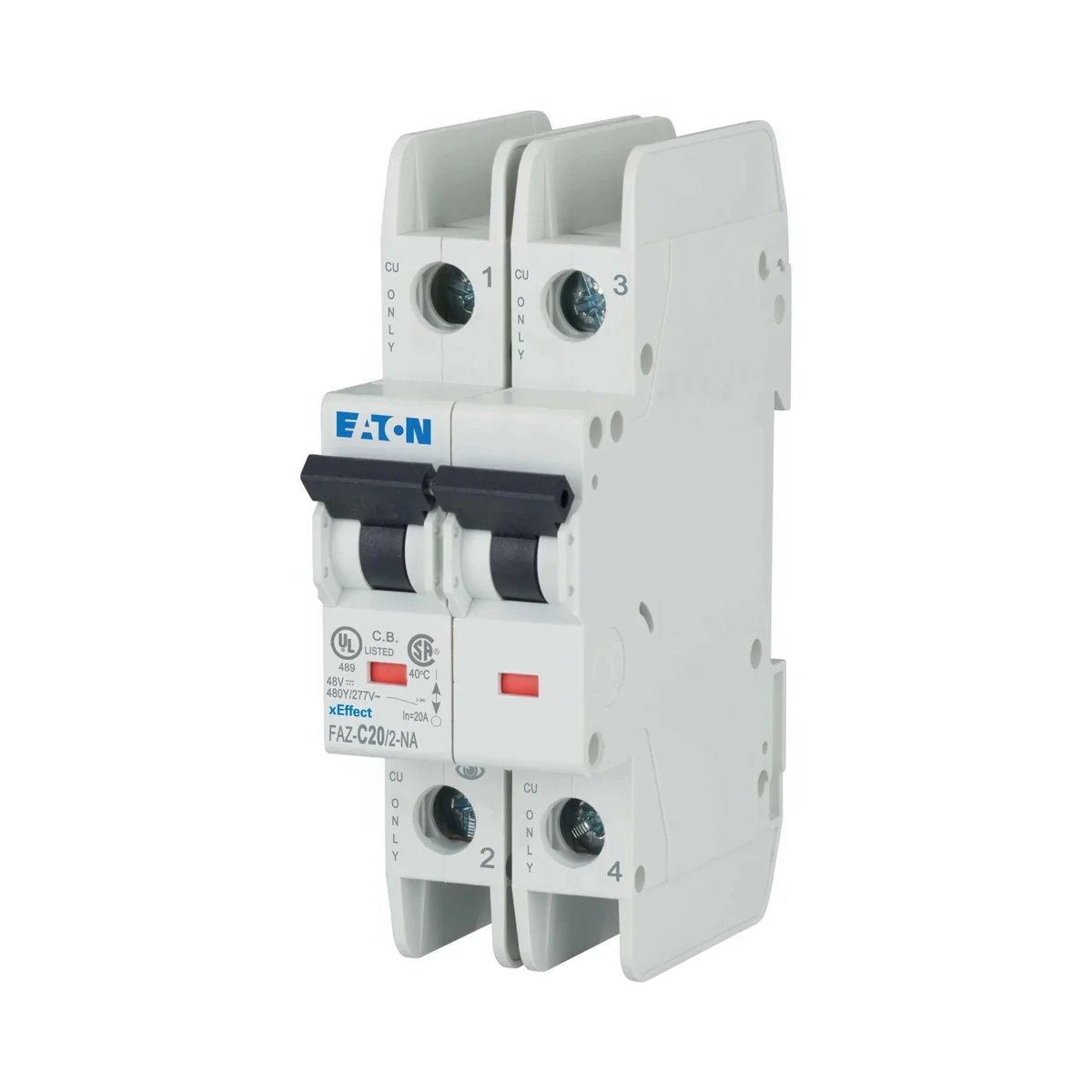

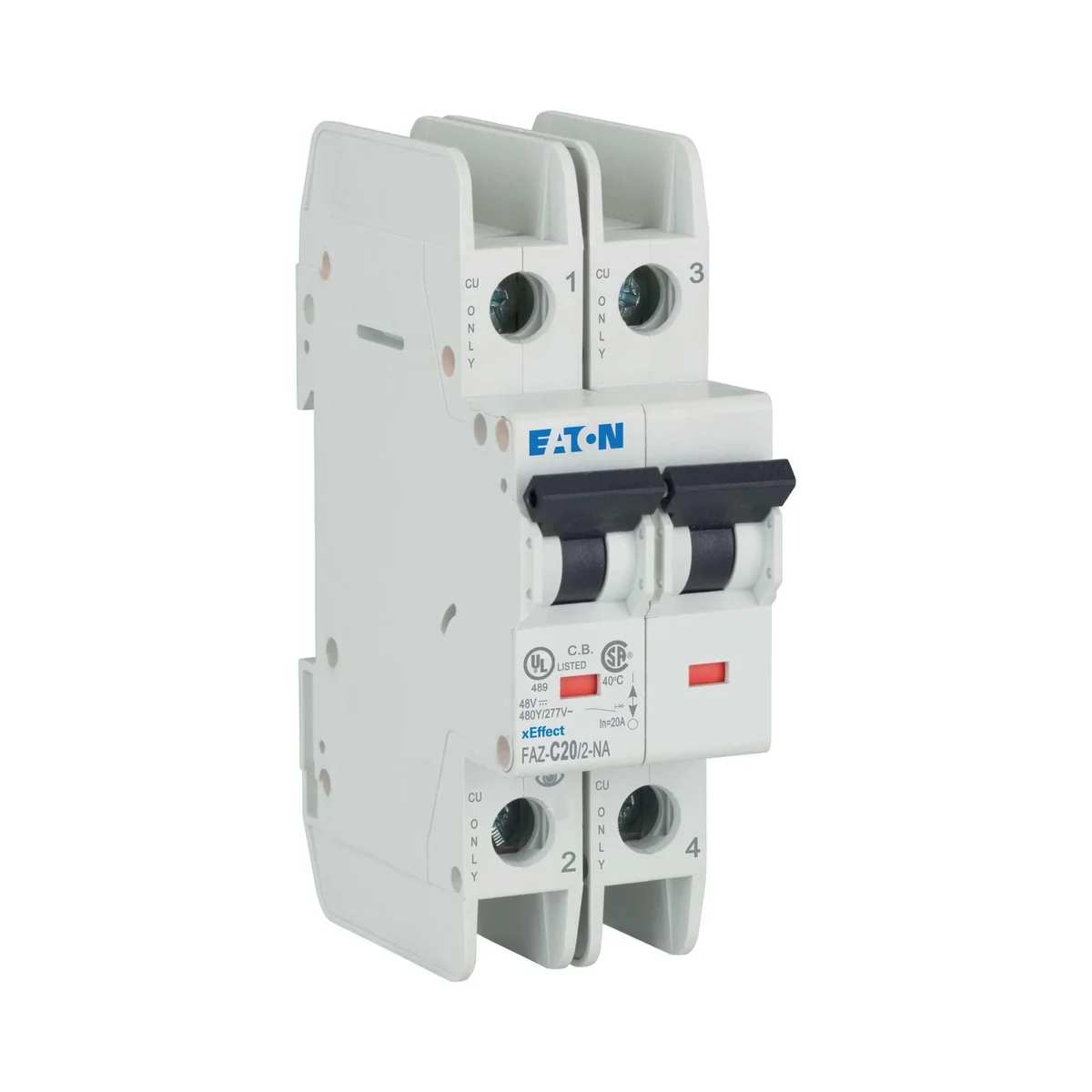

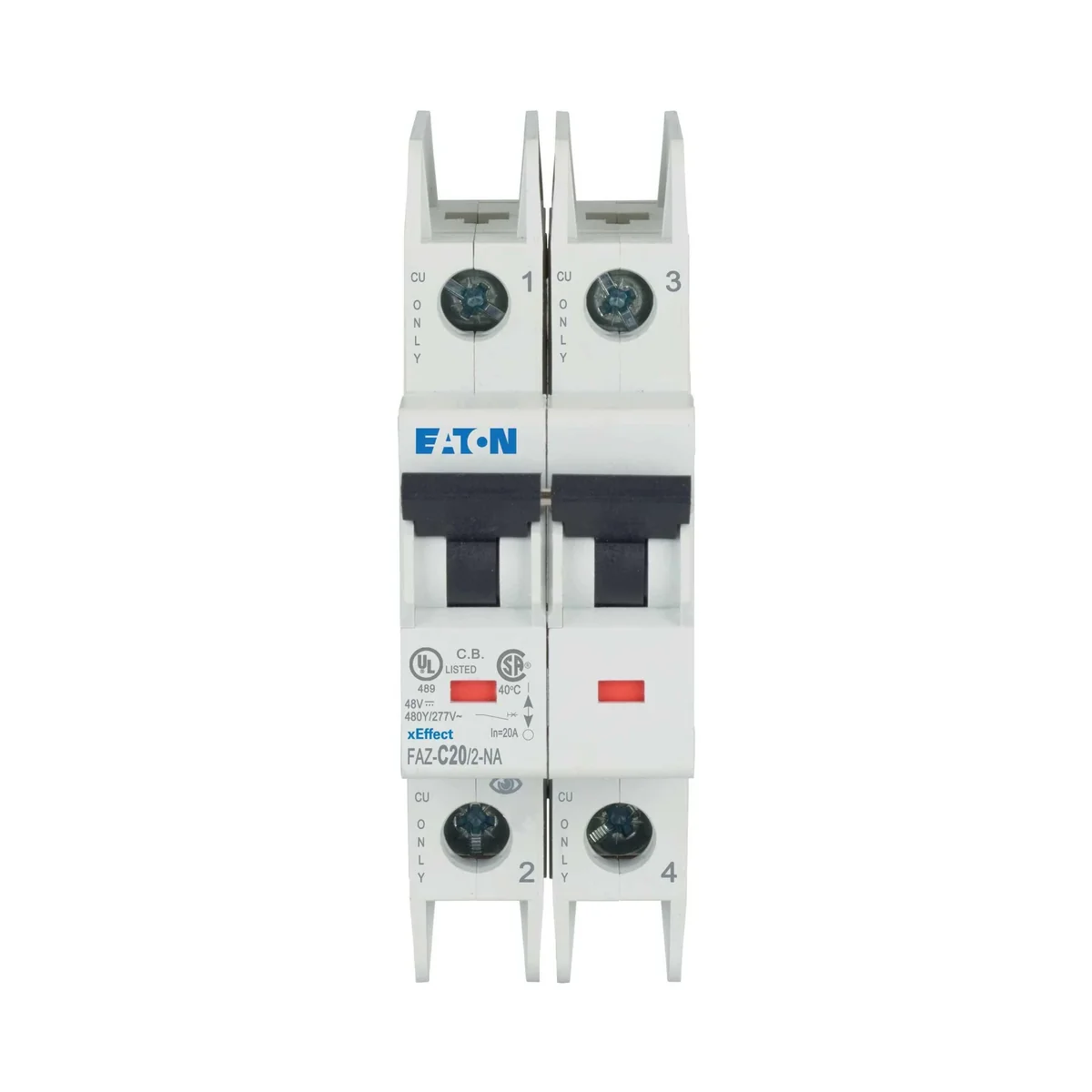

Miniature circuit breaker 2-pole NA version, 20A, C-Char

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Characteristic: c

Number of poles: 2

Rated current [A]: 20

Zobacz cały opis

Cena:

81,11 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 4 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

High-quality circuit breaker for use in North America, rated operating voltage 230/400V, rated breaking capacity 15 kA according to UL 489, CSA C22.2 No 5-02 and IEC/EN 60947-2, three-state latching slider allows removal from the existing travel unit, rated currents up to 40 A, tripping characteristics B, C, D

Dane techniczne

Characteristic

c
Rated current [A]

20

Number of poles

2
Rated switching capacity [kA]

15

Pozostałe dane techniczne

Built-in depth

70.5 mm
Number of poles (total)

2
Rated current

20 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

2
Rated voltage

415 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Dane producenta

Producent

EATON Electric Sp. z o.o.
Adres

80-299 Gdańsk ul. Galaktyczna 30
NIP

5841022327

Opakowania zbiorcze

Rodzaj opakowania		Skrzynia	Karton
Ilość	1 szt.	1 szt.	40 szt.
Waga (kg)	0,243	0,257	10,490
Objętość (m3)	0,000	0,000	0,016
Szerokość (m)	0,035	0,037	0,180
Długość (m)	0,105	0,107	0,385
Głębokość (m)	0,075	0,076	0,230
