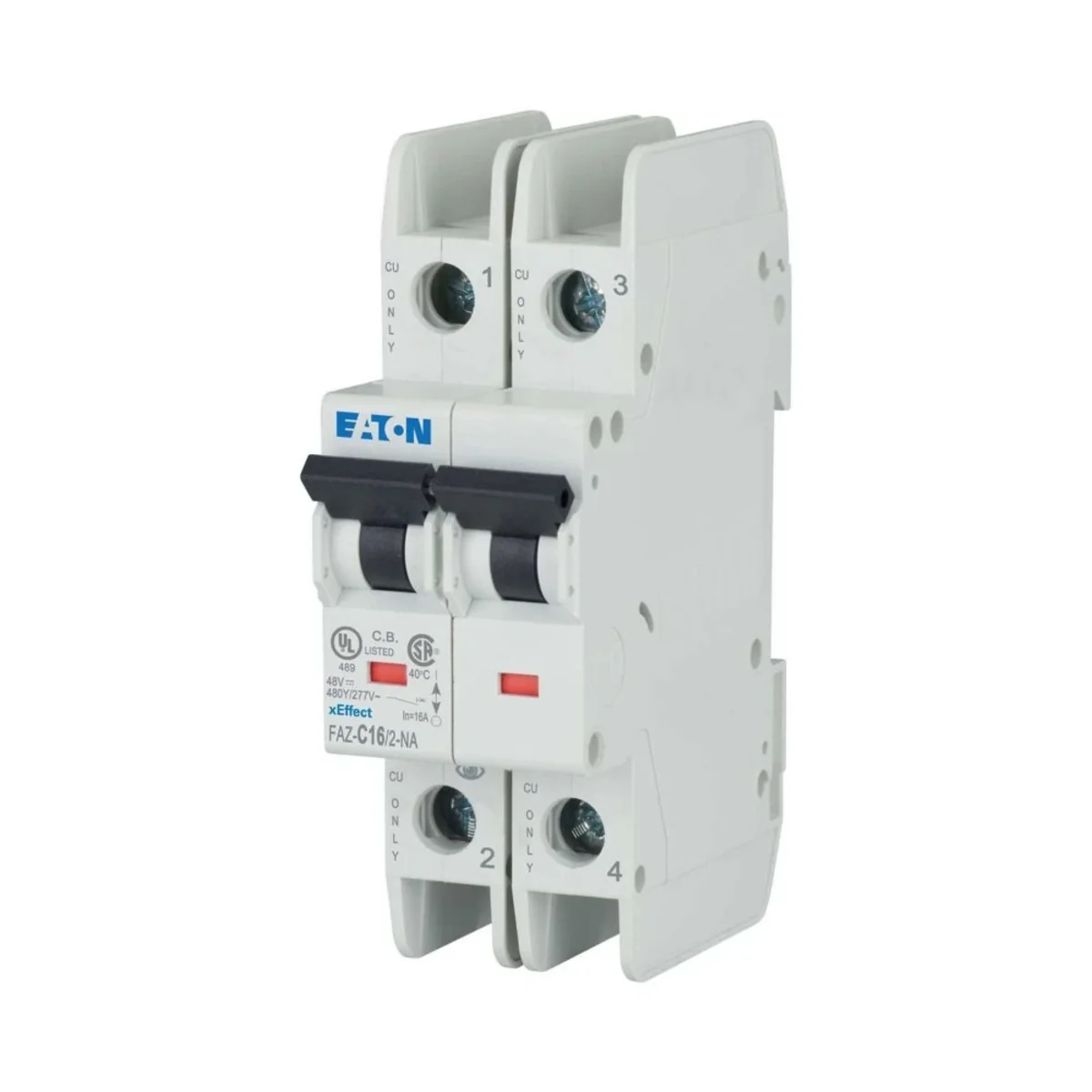

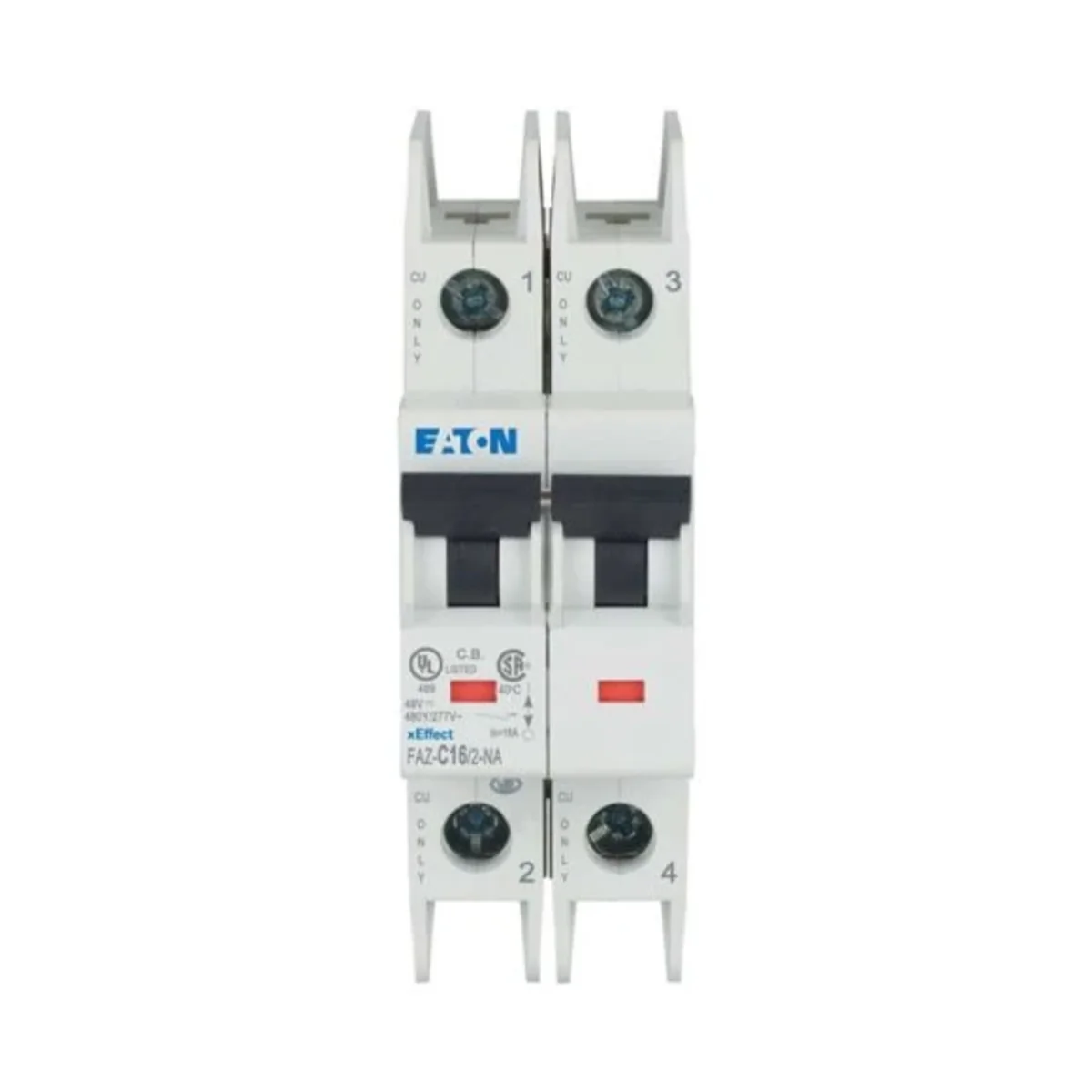

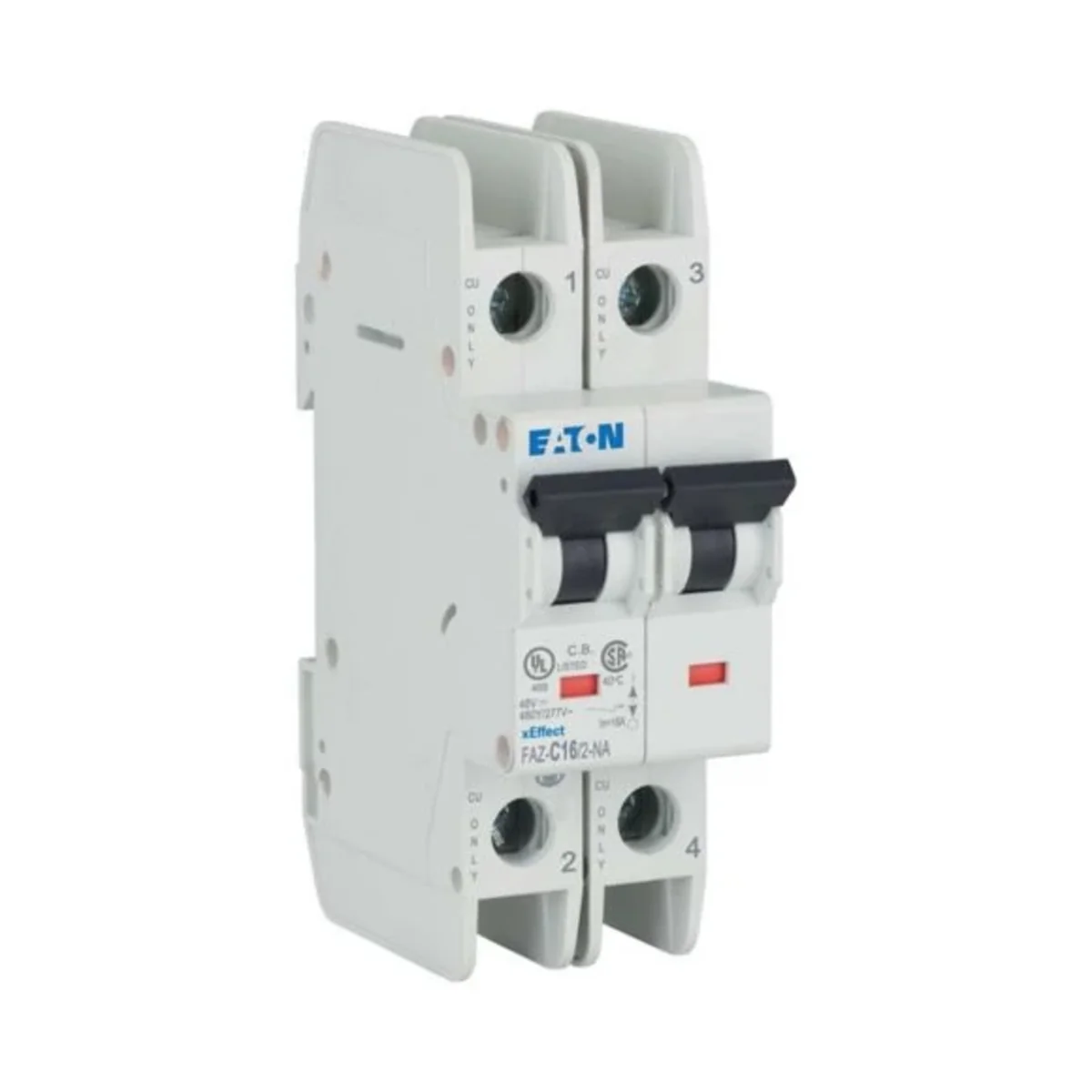

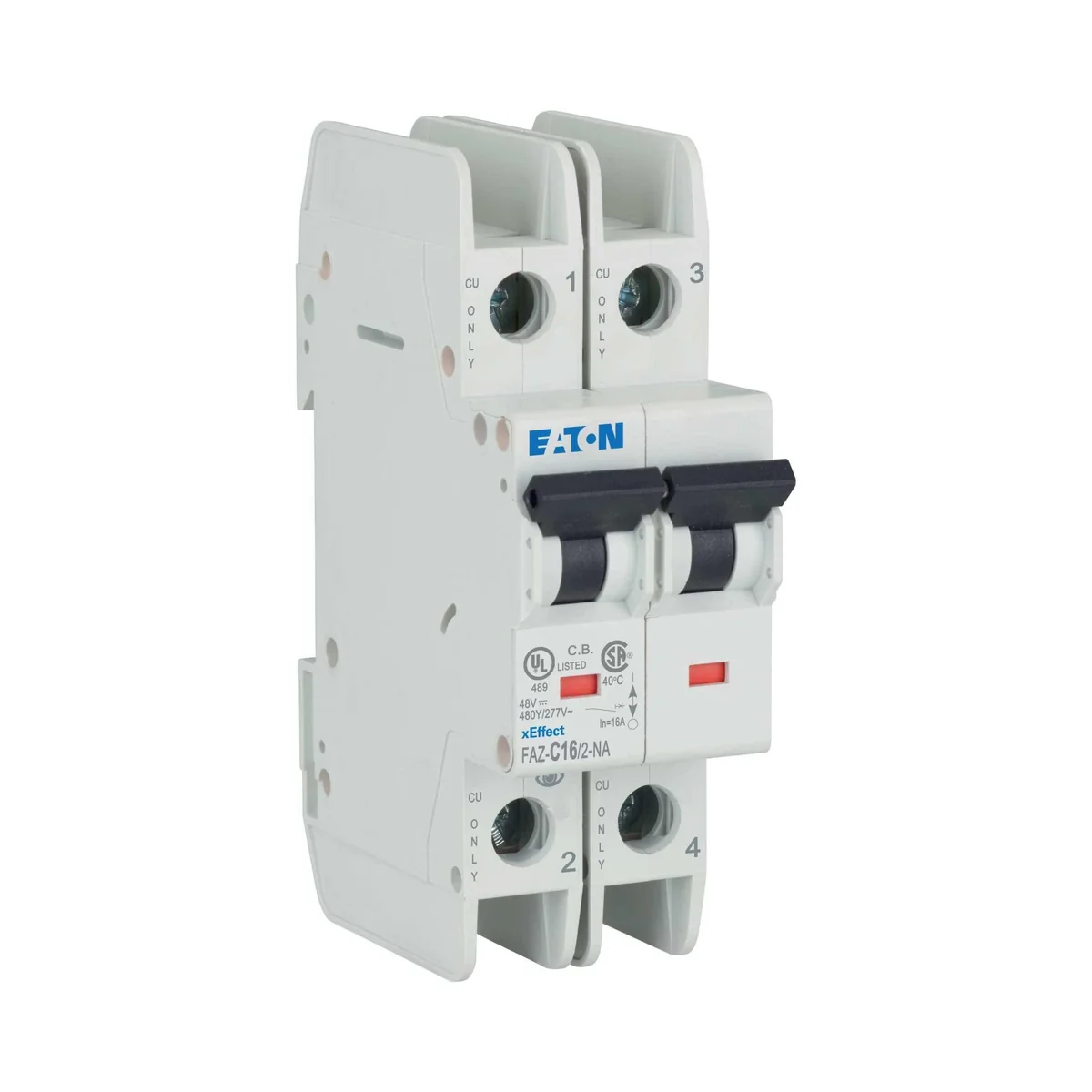

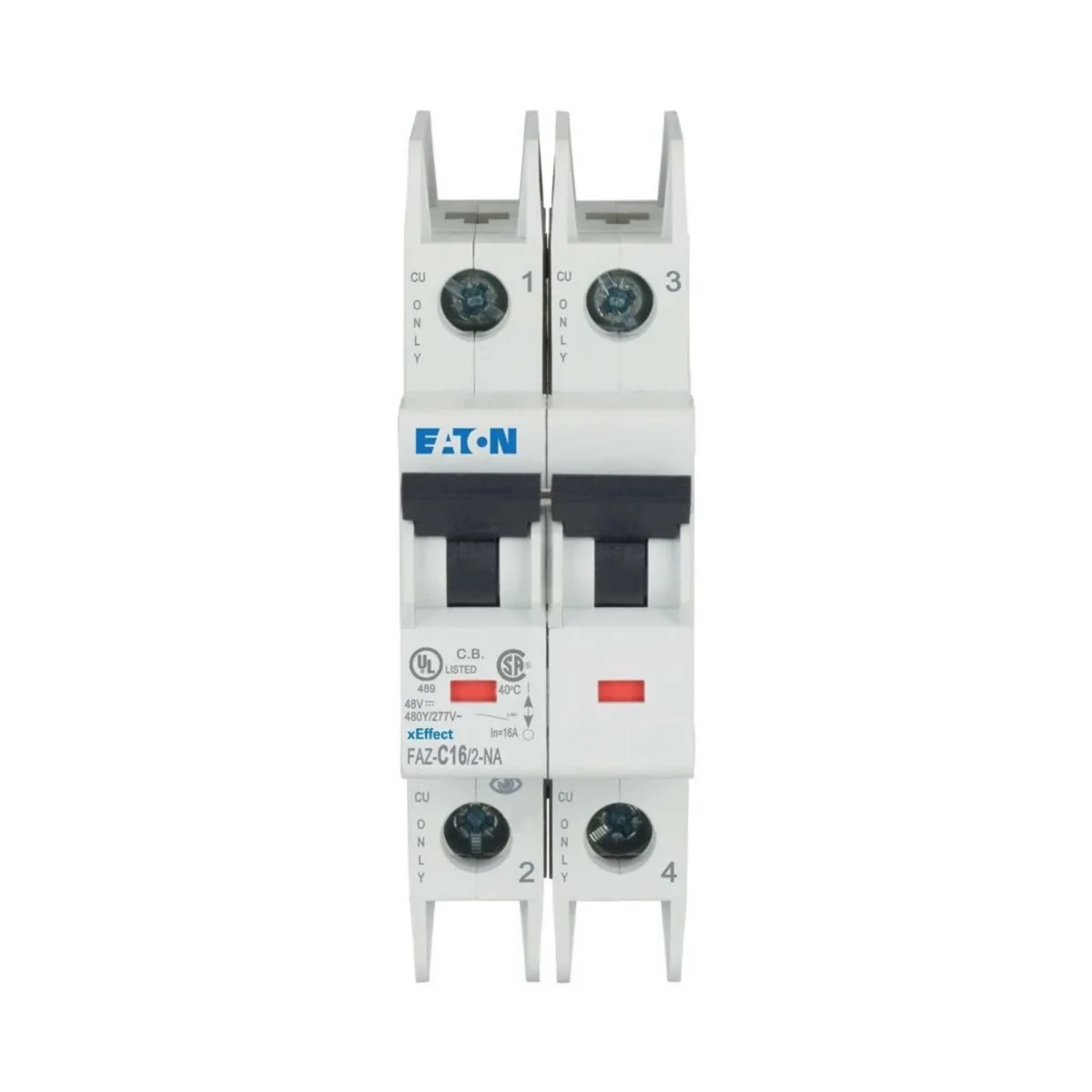

Miniature circuit breaker 2-pole NA version, 16A, C-Char 102170
local index:
ABC150MOEL
Catalog No:
102170
EAN code:
4015081020461
Price:
67,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
High-quality circuit breaker for use in North America, rated operating voltage 230/400V, rated breaking capacity 15 kA according to UL 489, CSA C22.2 No 5-02 and IEC/EN 60947-2, three-state latching slider allows removal from the existing travel unit, rated currents up to 40 A, tripping characteristics B, C, D
Technical data
-
Characteristicc
-
Rated current [A]16
-
Number of poles2
-
Rated switching capacity [kA]15
Other technical data
-
Built-in depth70.5 mm
-
Number of poles (total)2
-
Rated current16 A
-
Rated insulation voltage Ui440 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0 kA
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
-
Current limiting class3
-
Concurrently switching neutral conductorNo
-
Pollution degree2
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 75 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
-
Release characteristicC
-
Number of protected poles2
-
Rated voltage415 V
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeAC
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
-
Frequency50 ... 60 Hz
-
Flush-mounted installationNo
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Explosion-proofNo
Bulk packaging
| A kind of package | Skrzynia | Karton |
| Quantity | 1 pcs. | 40 pcs. |
| Weight (kg) | 0,257 | 10,482 |
| Volume (m3) | 0,000 | 0,016 |
| Width (m) | 0,037 | 0,180 |
| Length (m) | 0,107 | 0,385 |
| Depth (m) | 0,076 | 0,230 |
