el12 Electrical apparatus fuses Circuit breakers with "C" characteristic Miniature circuit breaker 2-pole NA version, 15A, C-Char

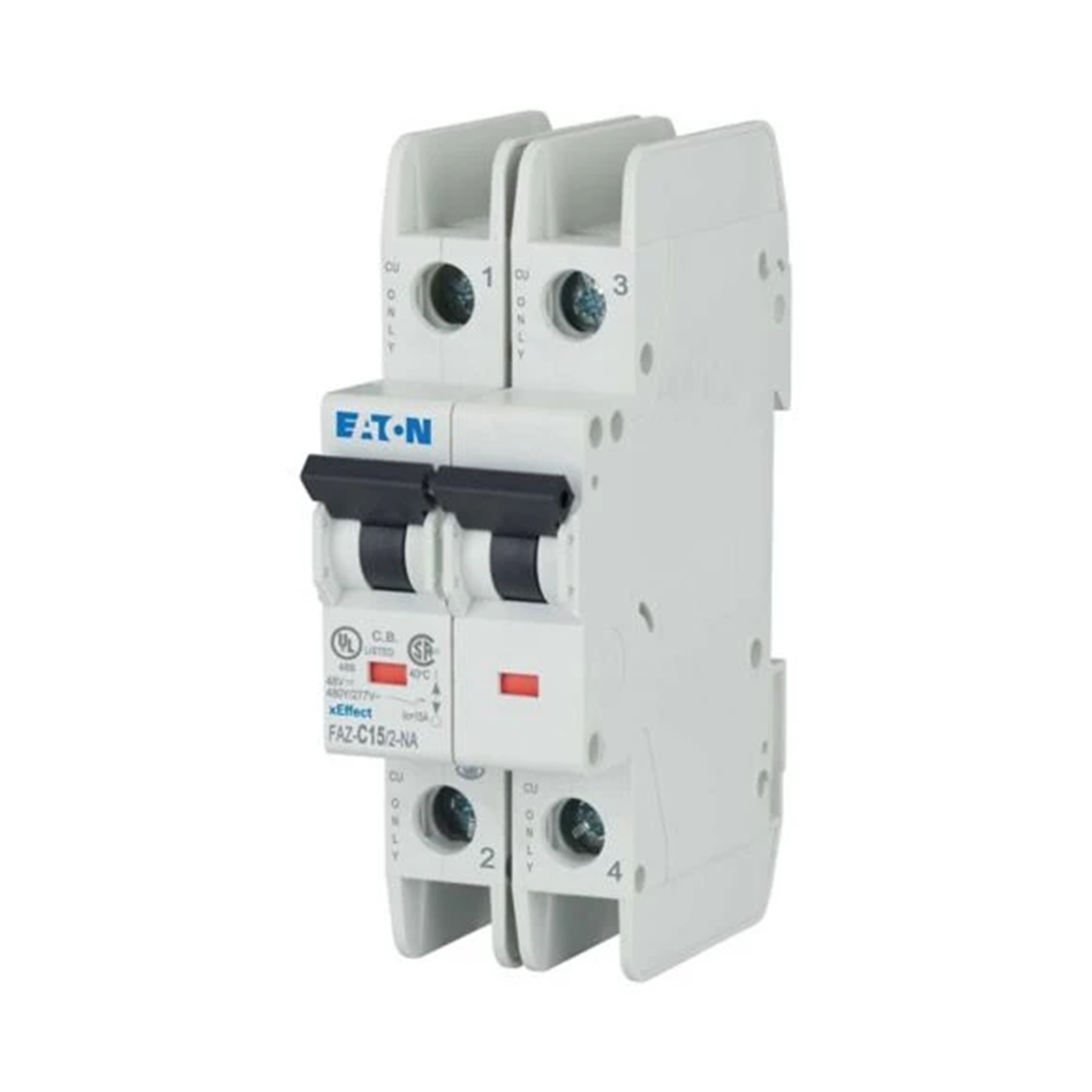

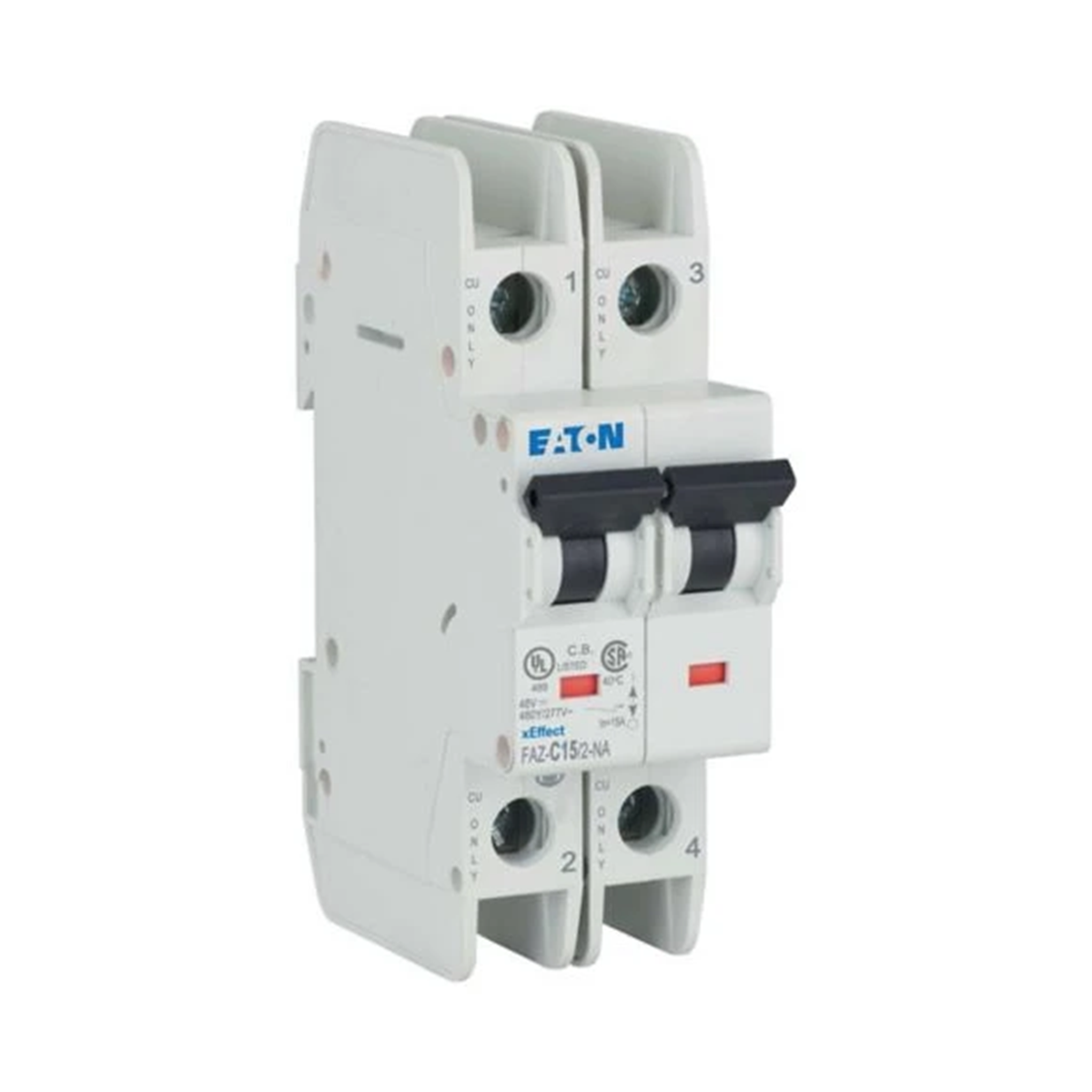

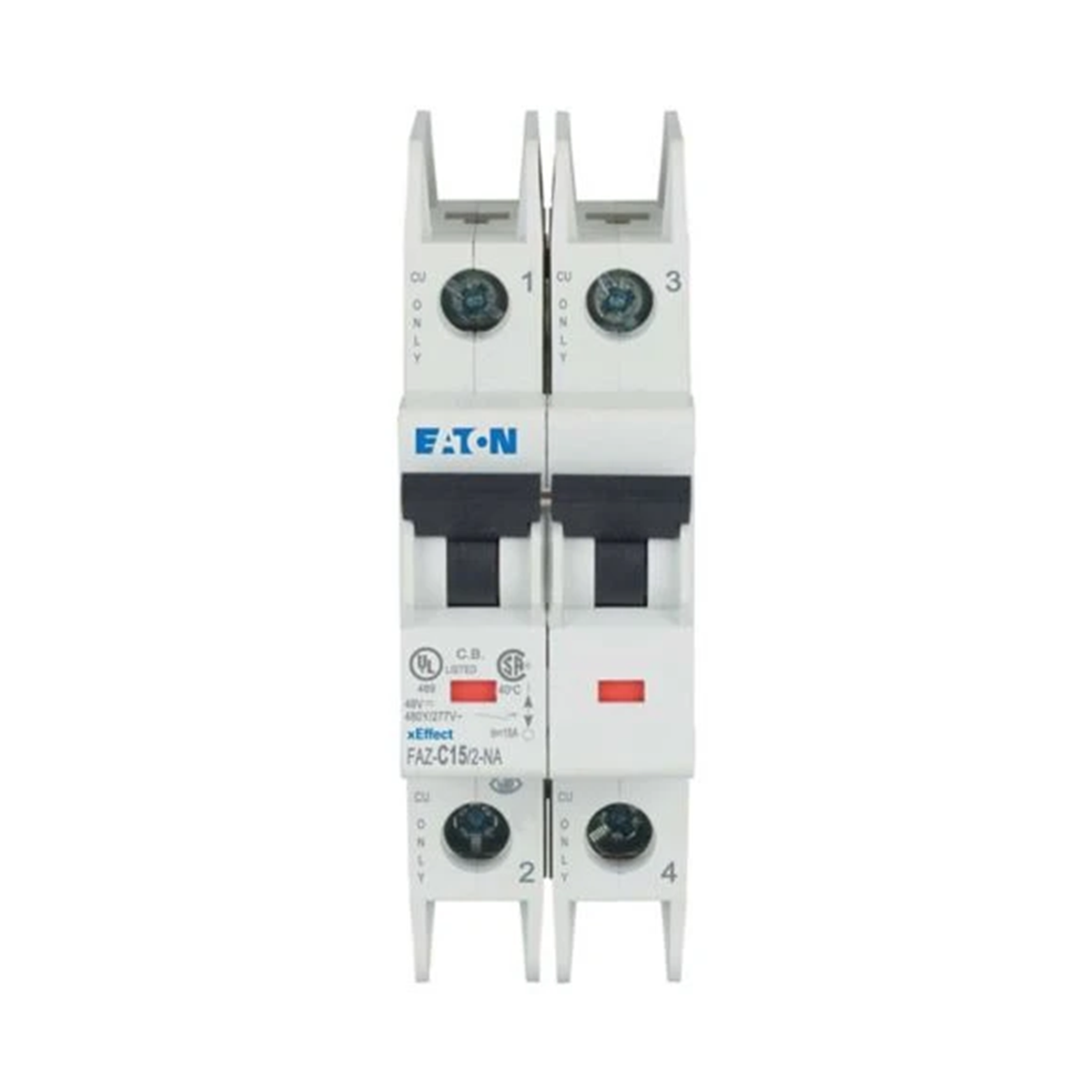

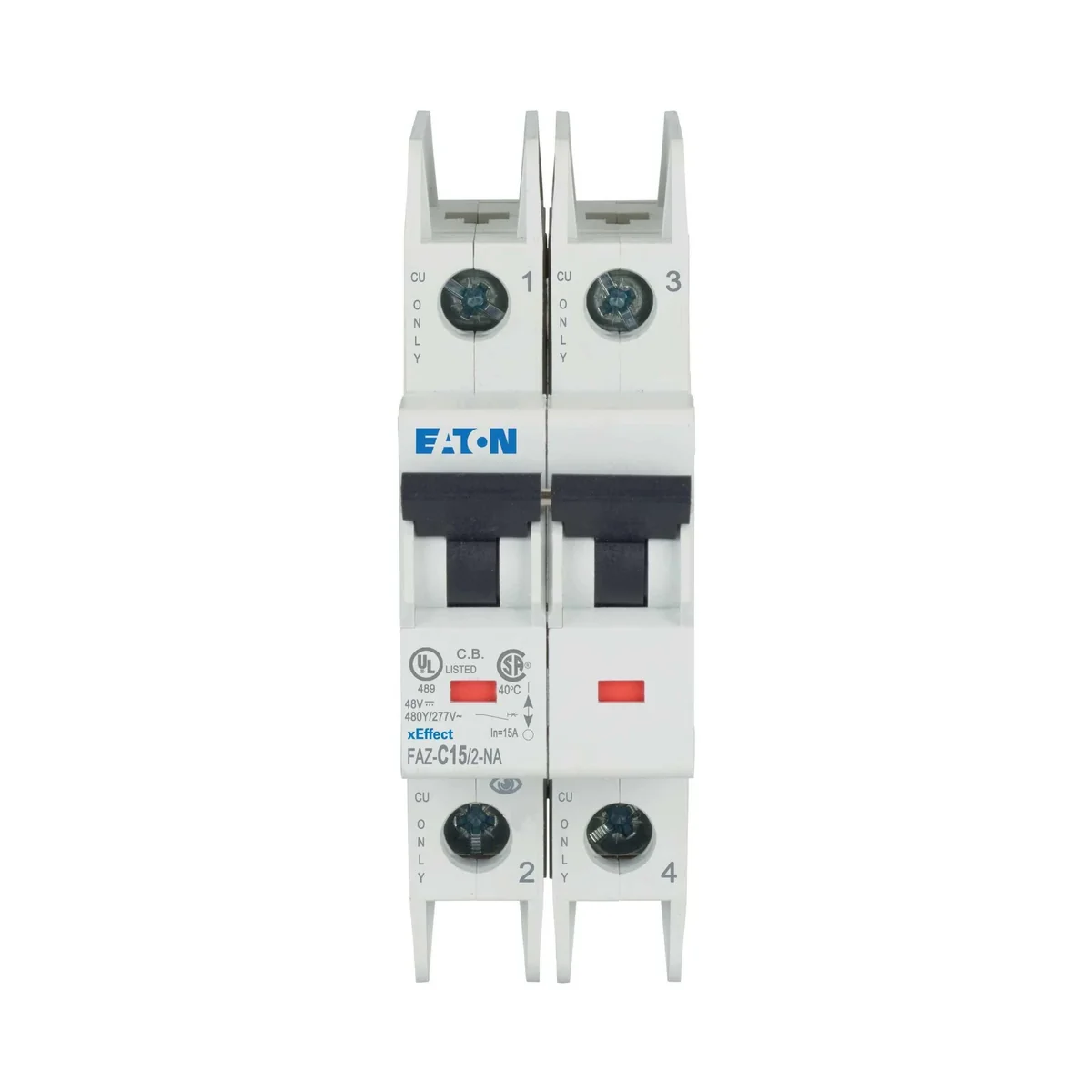

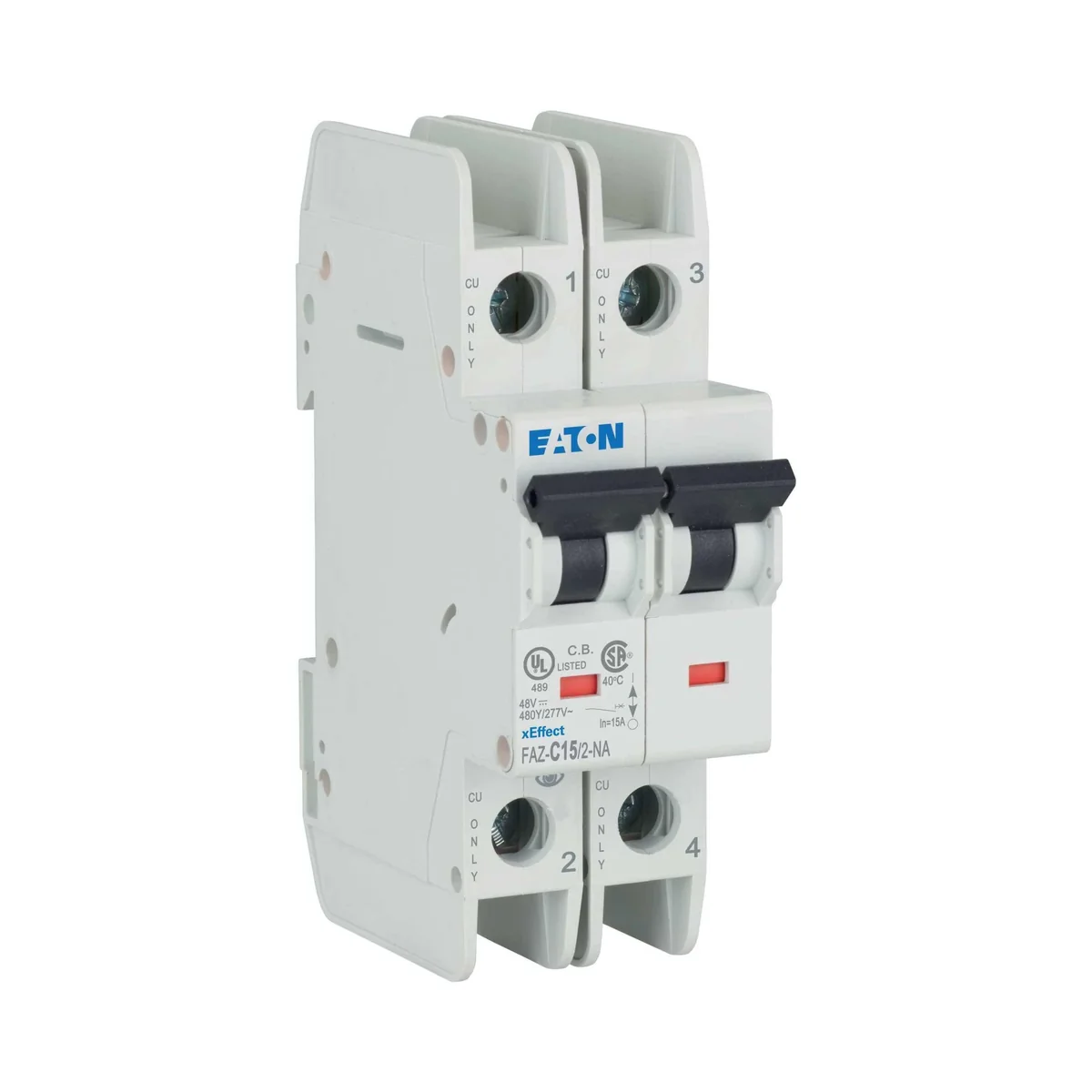

Miniature circuit breaker 2-pole NA version, 15A, C-Char
Miniature circuit breaker 2-pole NA version, 15A, C-Char
Miniature circuit breaker 2-pole NA version, 15A, C-Char
Miniature circuit breaker 2-pole NA version, 15A, C-Char

Click on the photo to enlarge

Miniature circuit breaker 2-pole NA version, 15A, C-Char
Miniature circuit breaker 2-pole NA version, 15A, C-Char
Miniature circuit breaker 2-pole NA version, 15A, C-Char
Miniature circuit breaker 2-pole NA version, 15A, C-Char
EATON

Miniature circuit breaker 2-pole NA version, 15A, C-Char 102169

local index:
ABC149MOEL
Catalog No:
102169
EAN code:
4015081020454
Price:
64,38 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,49 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

High-quality circuit breaker for use in North America, rated operating voltage 230/400V, rated breaking capacity 15 kA according to UL 489, CSA C22.2 No 5-02 and IEC/EN 60947-2, three-state latching slider allows removal from the existing travel unit, rated currents up to 40 A, tripping characteristics B, C, D

Print the product sheet Report an error

Technical data

  • Characteristic
    c
  • Rated current [A]
    15
  • Number of poles
    2
  • Rated switching capacity [kA]
    15

Other technical data

  • Built-in depth
    70.5 mm
  • Number of poles (total)
    2
  • Rated current
    15 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    0 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    no
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    2
  • Rated voltage
    415 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    no
  • Over voltage category
    3
  • Additional equipment possible
    yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    no
