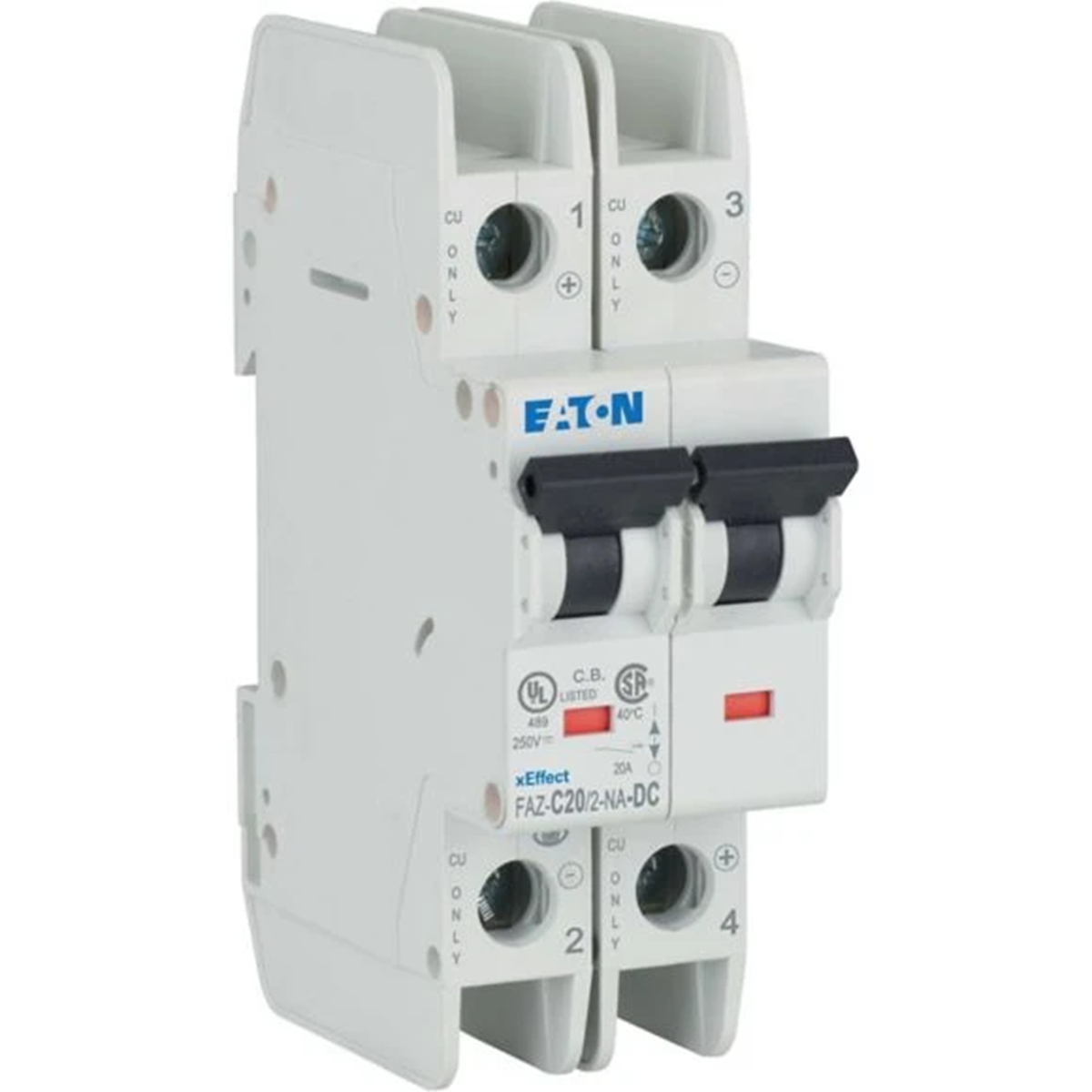

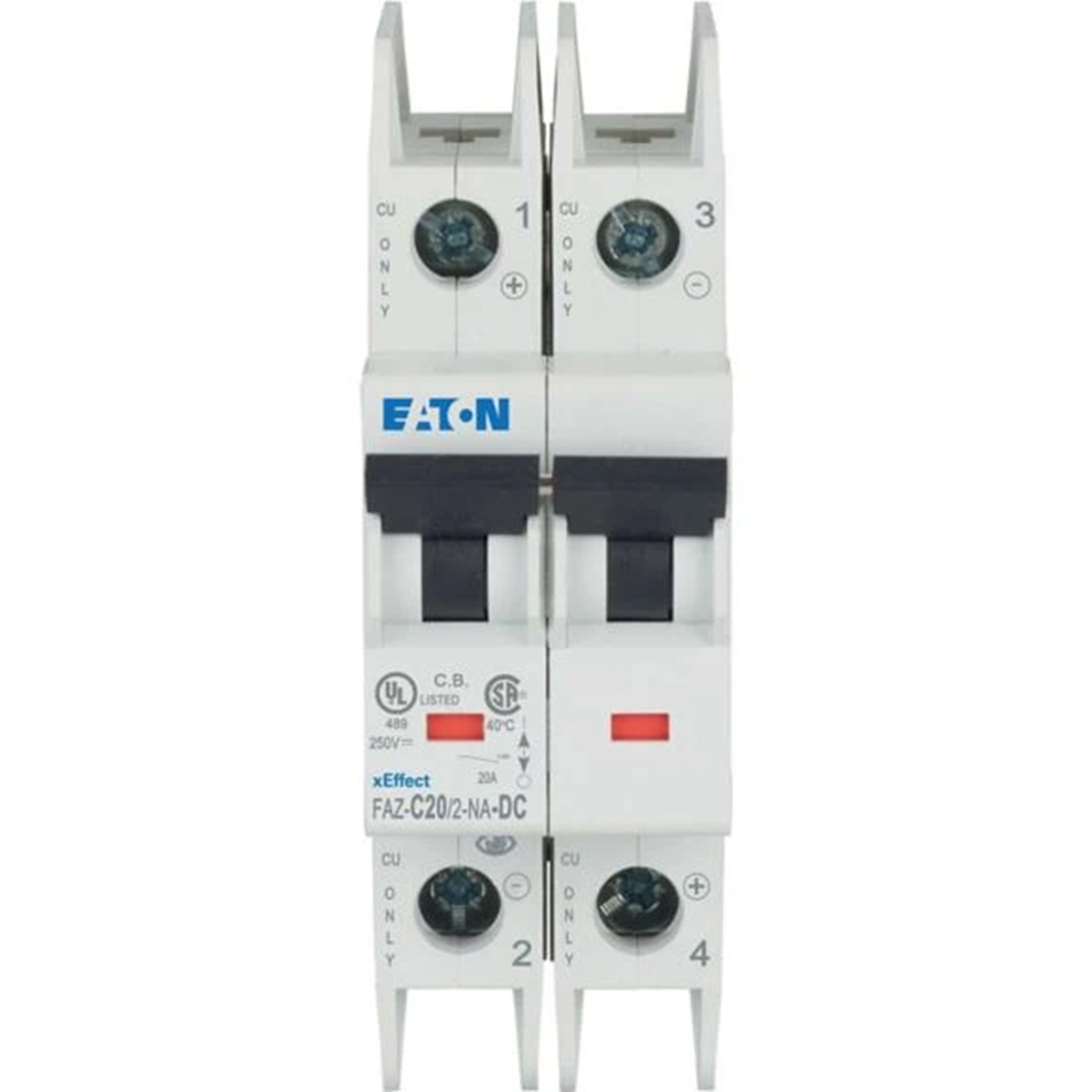

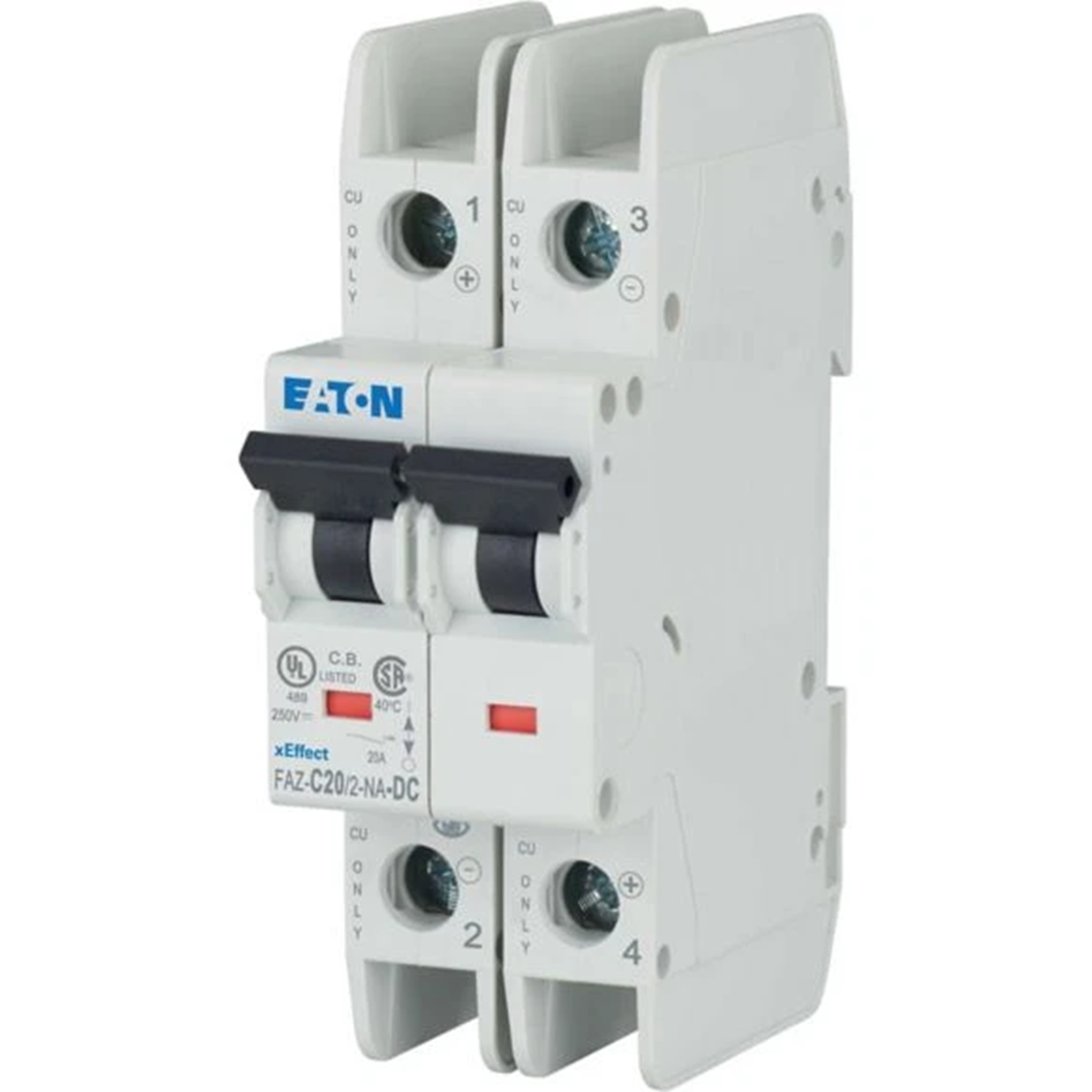

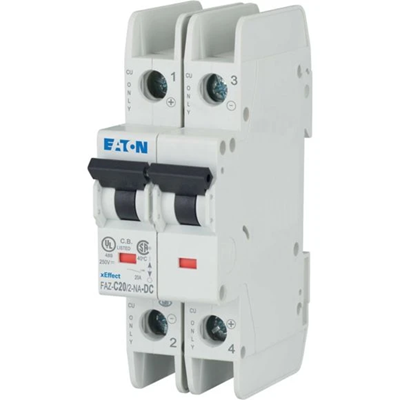

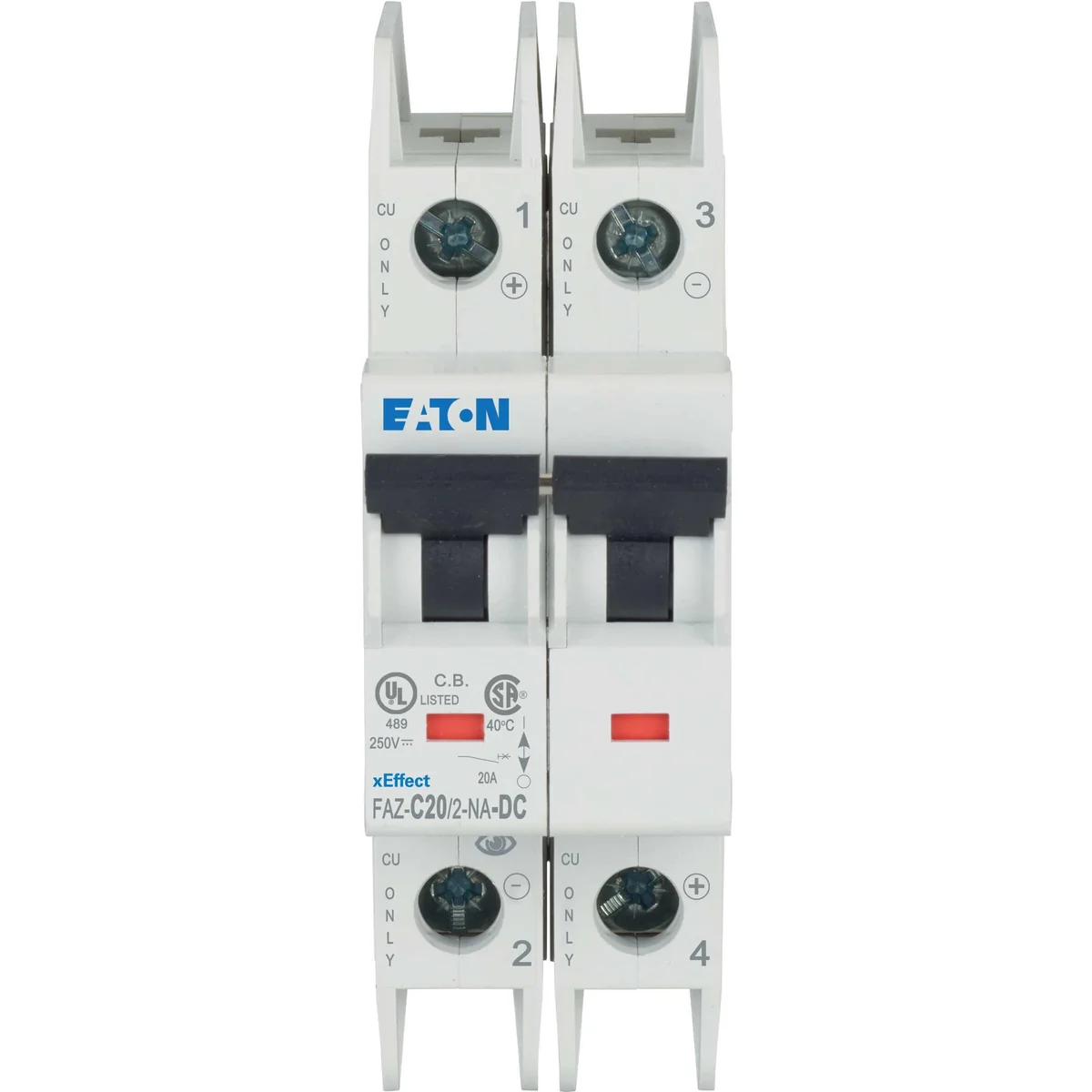

Miniature circuit breaker, 2-pole, DC version, 20A, C-Char 120645

Name: Miniature circuit breaker, 2-pole, DC version, 20A, C-Char
Brand: EATON
SKU: ARB025MOEL
Price: 136.32 PLN

local index:

ARB025MOEL

Catalog No:

120645

EAN code:

4015081184750

Click on the photo to enlarge

Manufacturer: EATON

Characteristic: c

Number of poles: 2

Rated current [A]: 20

See full description

Price:

136,32 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Switchgear for export to North America (UL certified)

Built-in depth

70.5 mm
Number of poles (total)

2
Rated current

20 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

2
Rated voltage

250 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No
