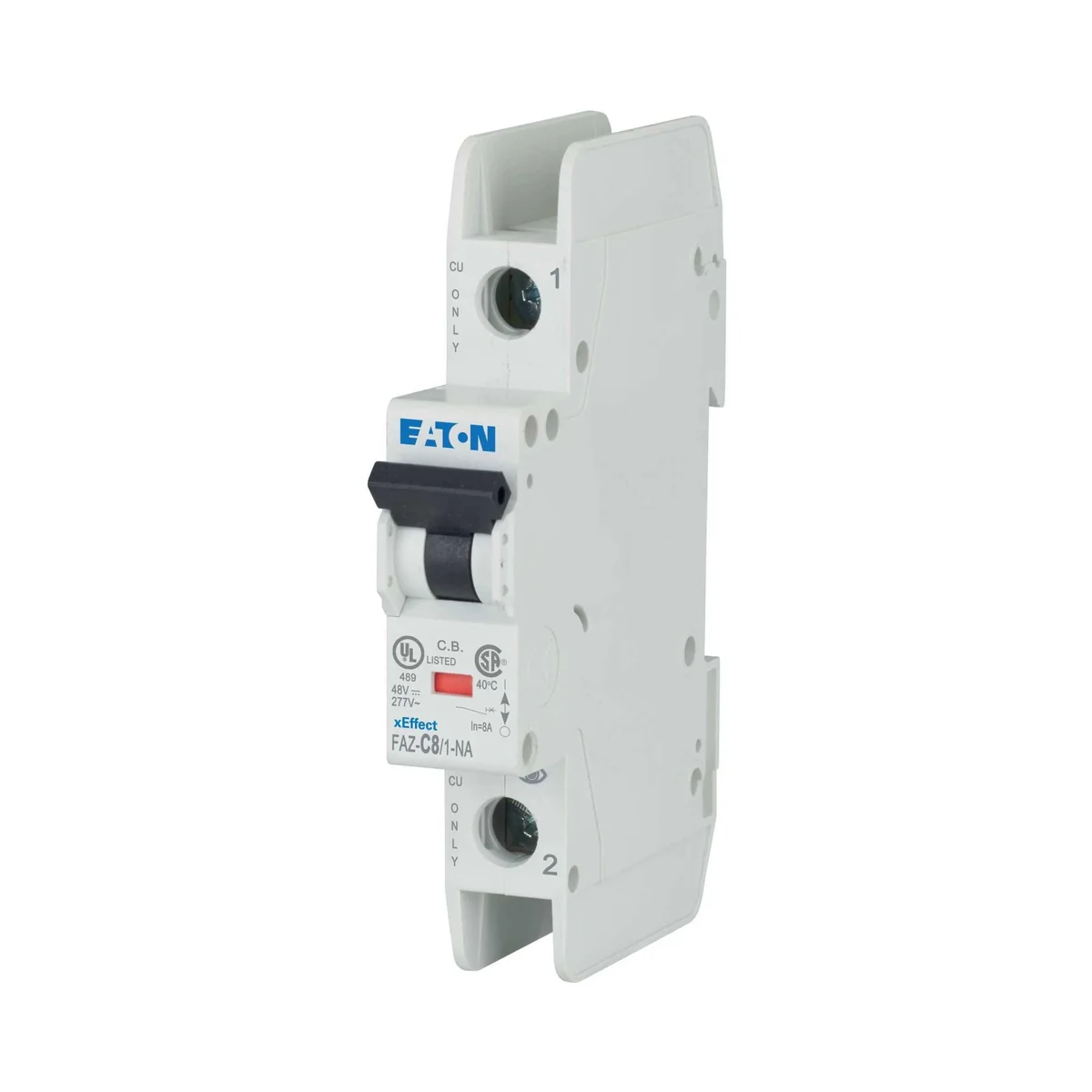

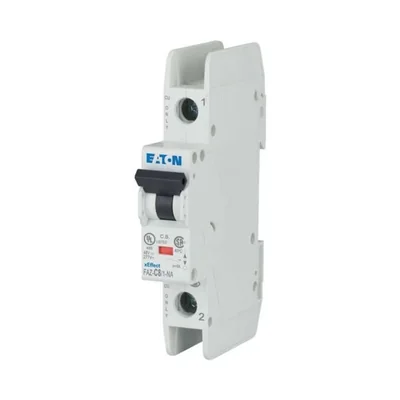

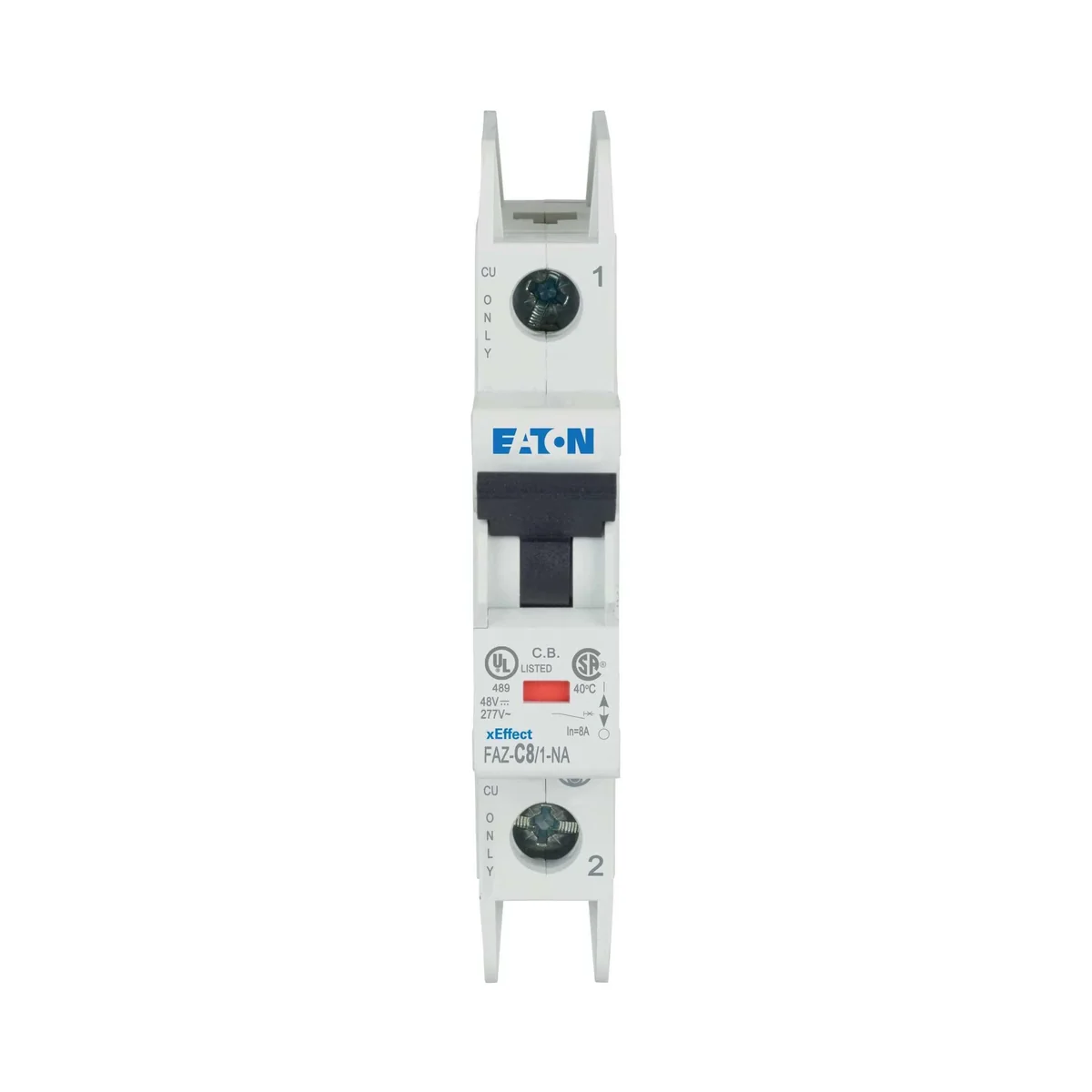

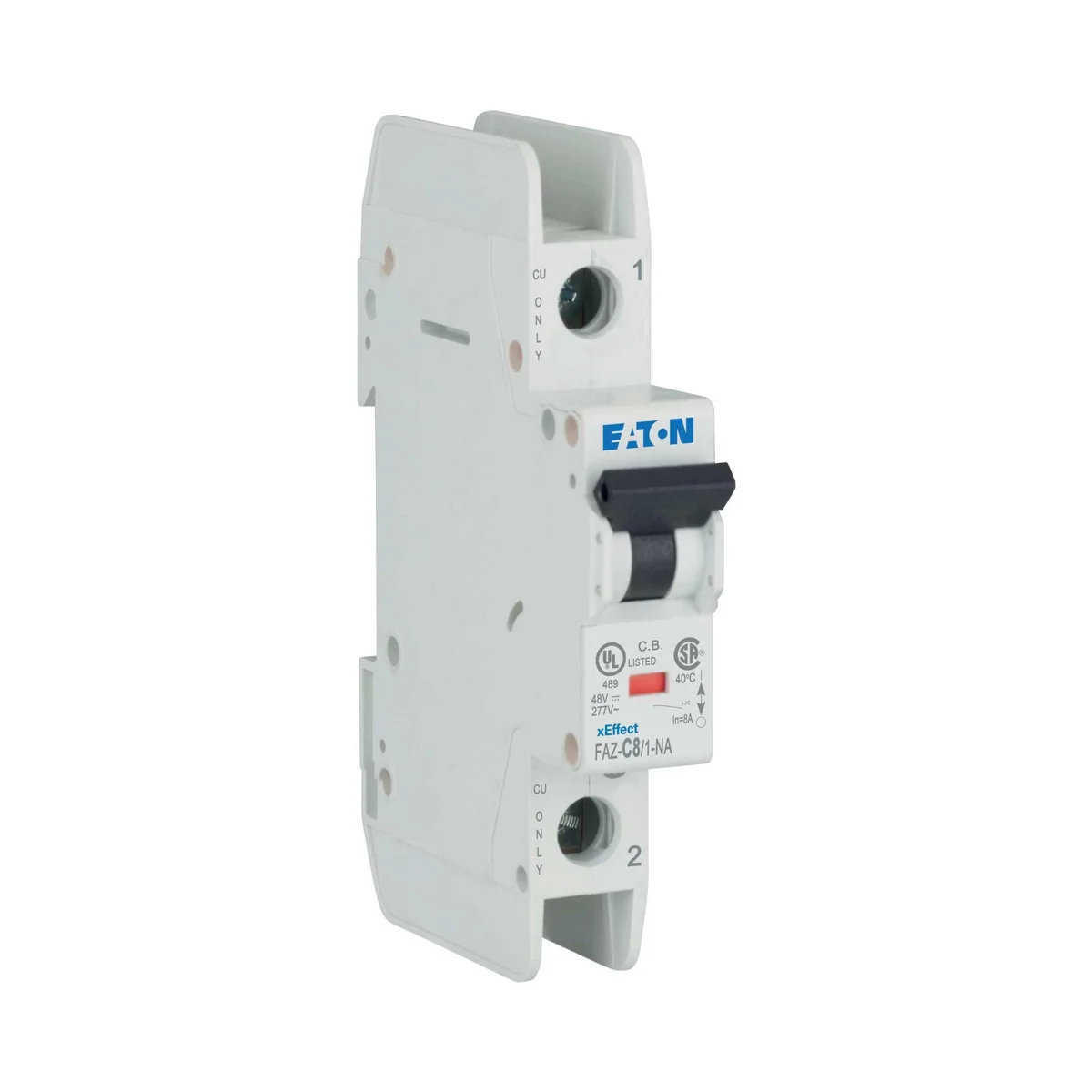

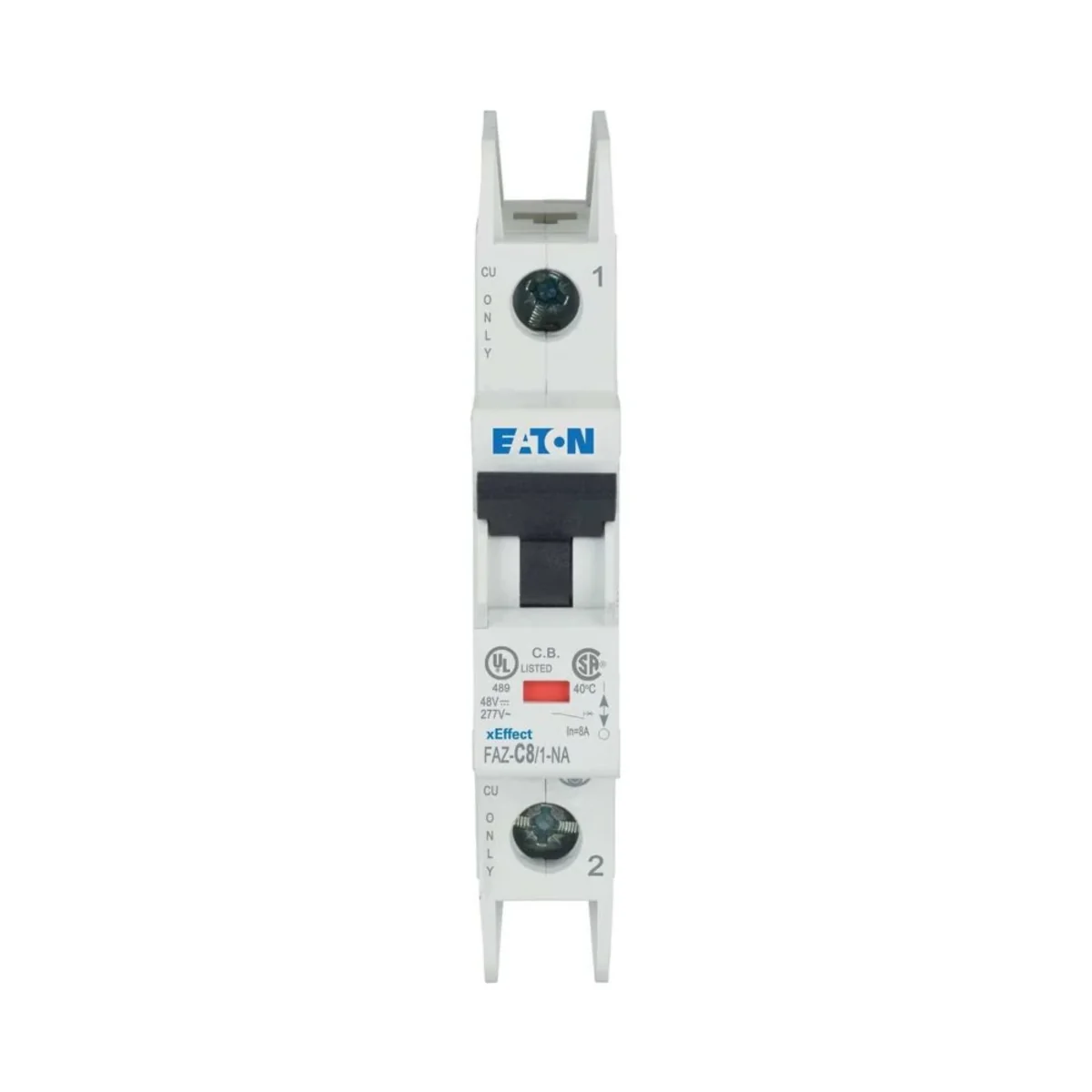

Miniature circuit breaker 1-pole NA version, 8A, C-Char 102086

local index:
ABC128MOEL
Catalog No:
102086
EAN code:
4015081019625
Manufacturer: EATON
Characteristic: c
Number of poles: 1
Rated current [A]: 8
Price:
34,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Miniature Circuit Breaker (MCB) PHASE-NA, 1 Pole, Tripping Characteristics: C, Rated Current In: 8A, North American Export Switchgear (UL Listed)

Technical data

  • Characteristic
    c
  • Rated current [A]
    8
  • Number of poles
    1
  • Rated switching capacity [kA]
    15

Other technical data

  • Built-in depth
    70.5 mm
  • Number of poles (total)
    1
  • Rated current
    8 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    0 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    240 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    No
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 2 pcs. 80 pcs.
Weight (kg) 0,128 0,256 10,432
Volume (m3) 0,000 0,000 0,016
Width (m) 0,020 0,037 0,180
Length (m) 0,107 0,107 0,385
Depth (m) 0,078 0,076 0,230
