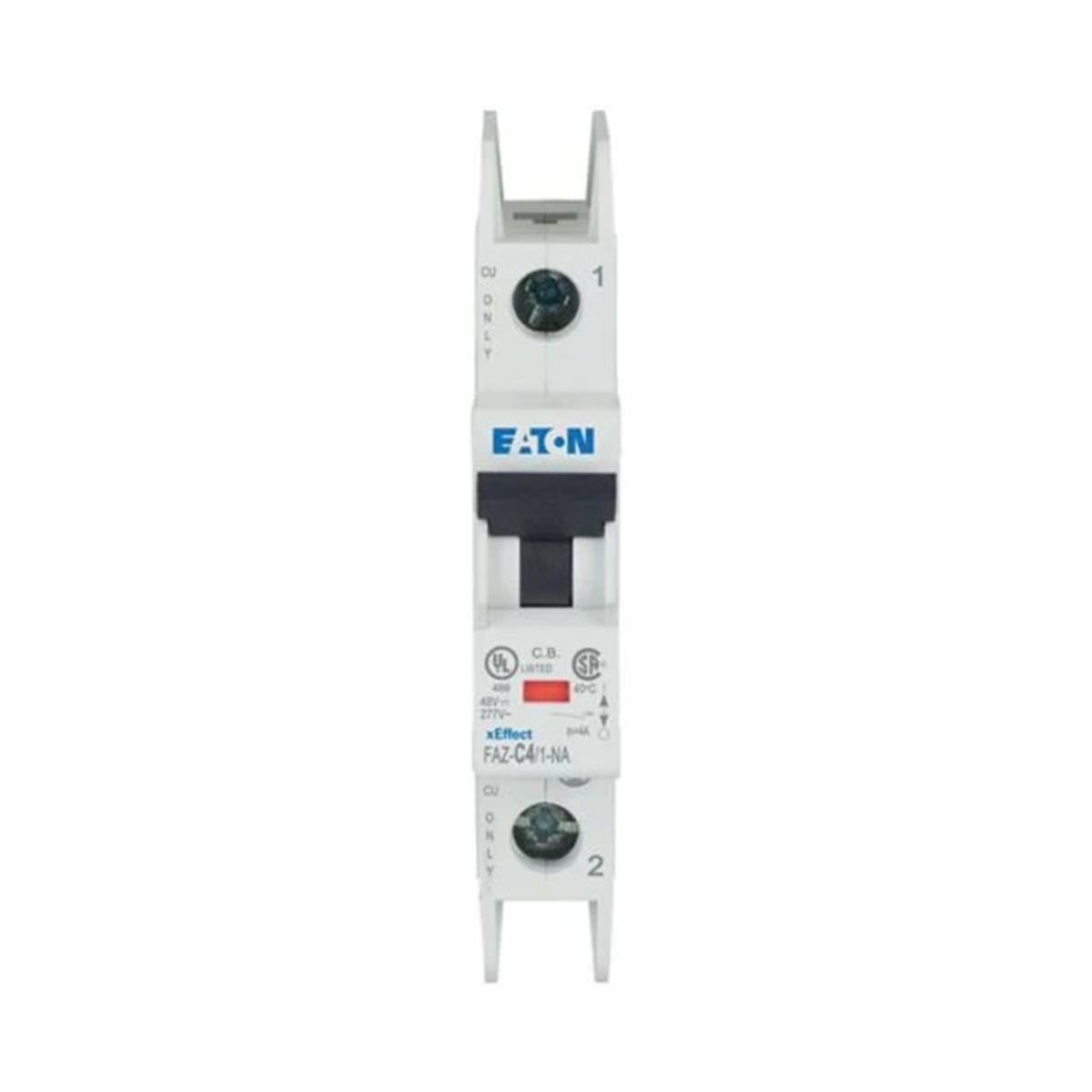

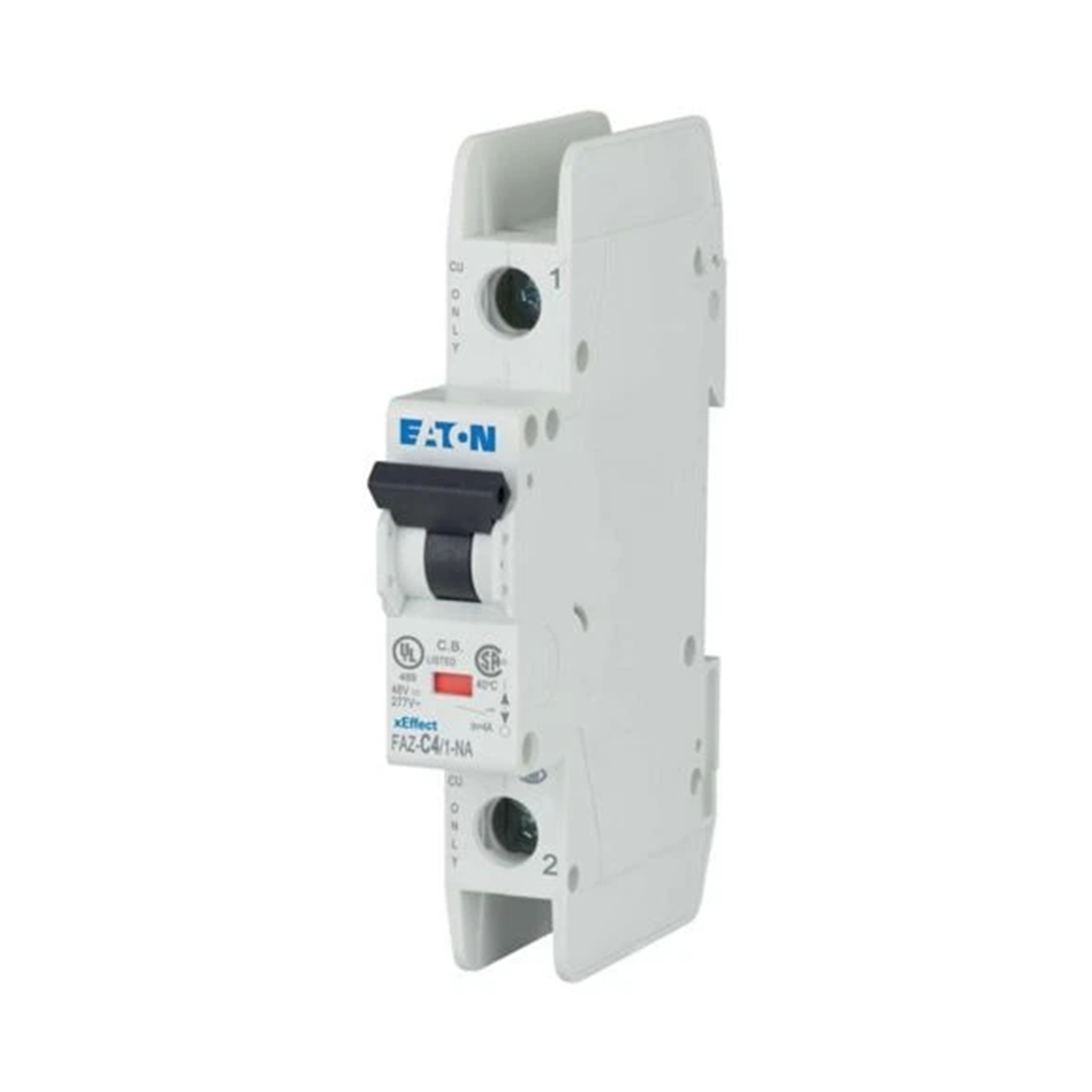

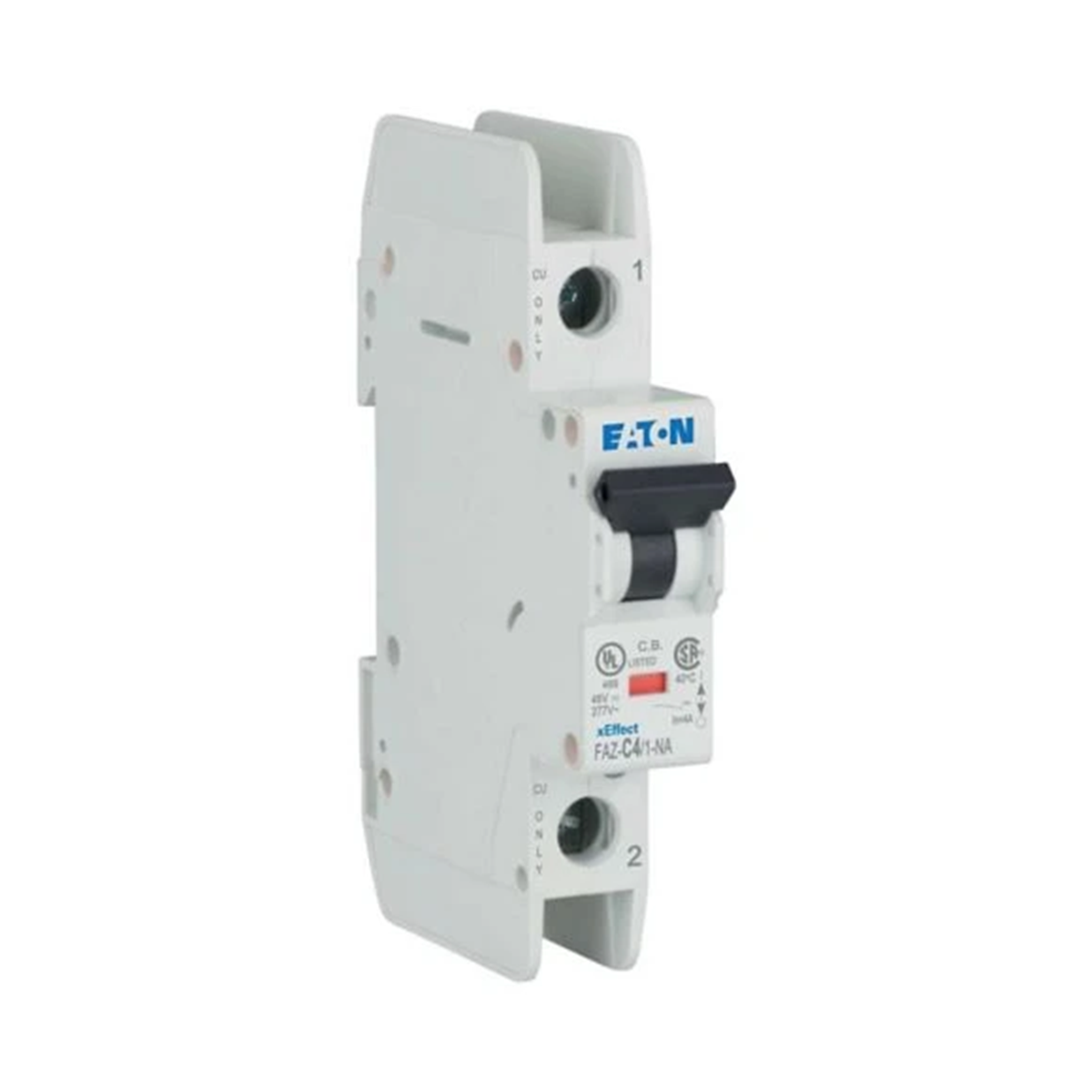

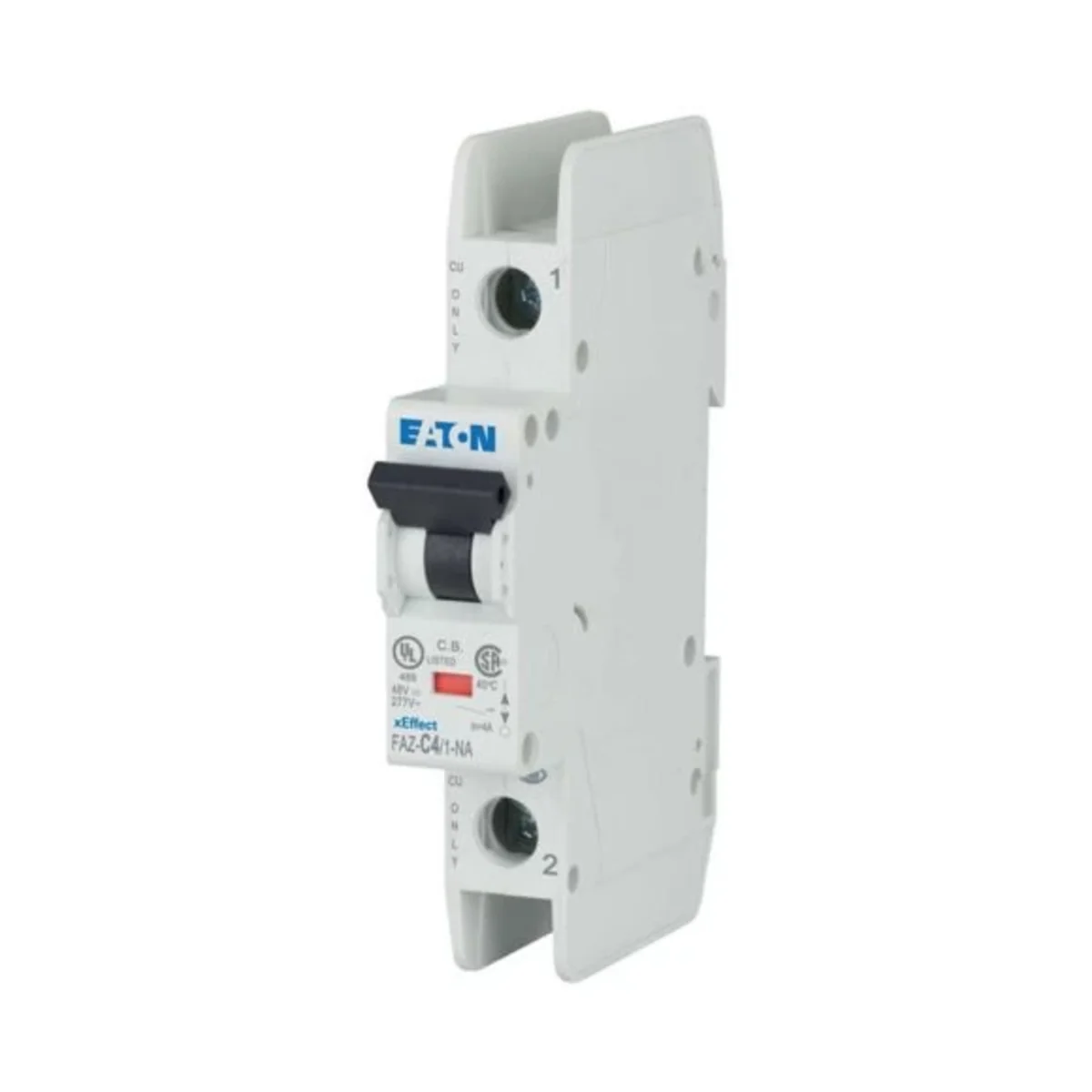

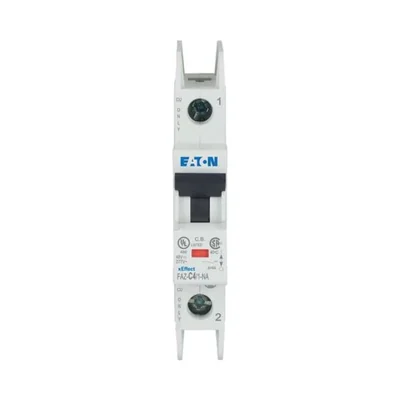

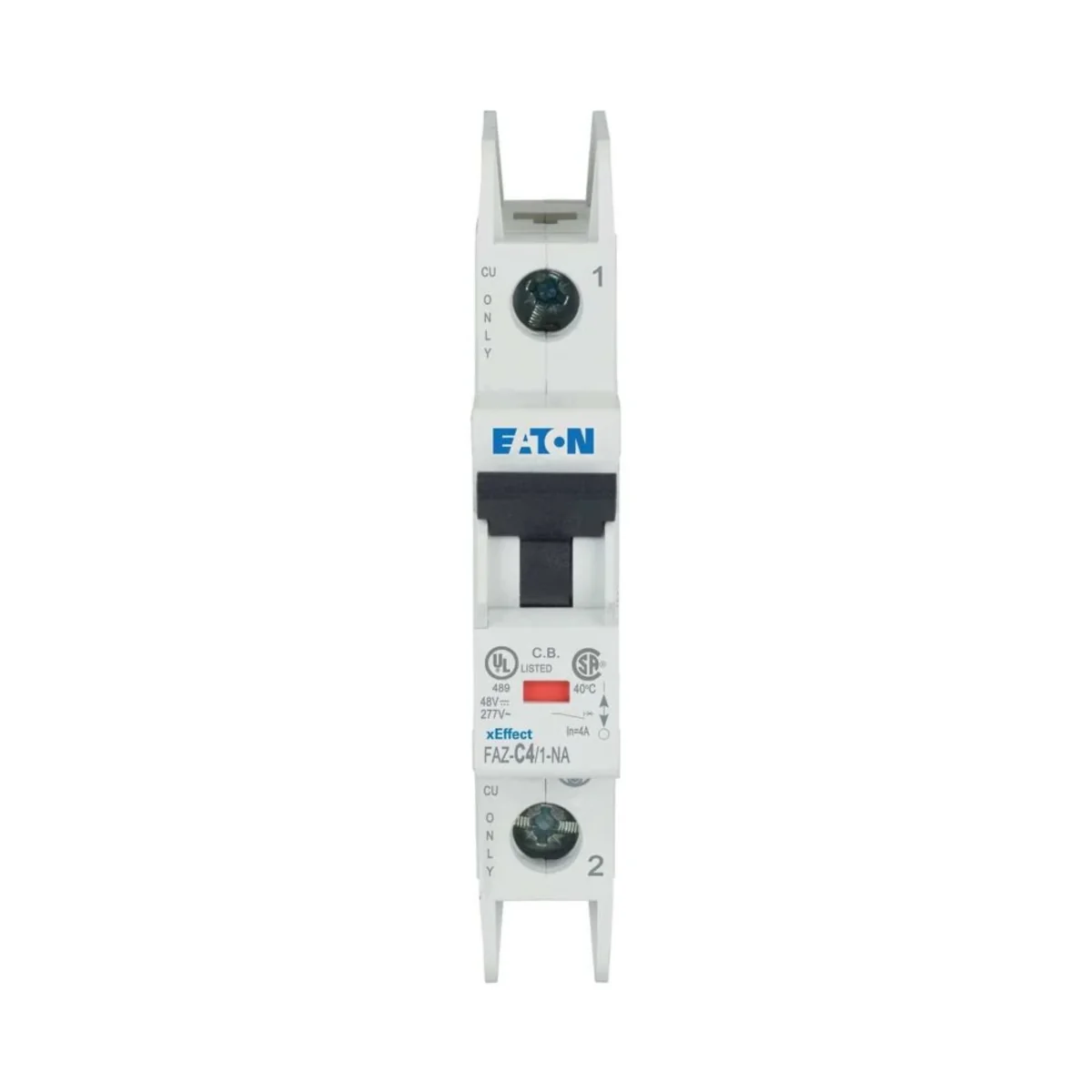

Name: Miniature circuit breaker 1-pole NA version, 4A, C-Char
Brand: EATON
SKU: ABC125MOEL
Price: 42.03 PLN

High-quality circuit breaker for use in North America, rated operating voltage 230/400V, rated breaking capacity 15 kA according to UL 489, CSA C22.2 No 5-02 and IEC/EN 60947-2, three-state latching slider allows removal from the existing travel unit, rated currents up to 40 A, tripping characteristics B, C, D

Characteristic

c
Rated current [A]

4
PKWIU

31.20.24-50.21

Number of poles

1
Rated switching capacity [kA]

15

Other technical data

Built-in depth

70.5 mm
Number of poles (total)

1
Rated current

4 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

1
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Manufacturer details

Manufacturer

EATON ELECTRIC SP. Z O.O.
Address

80-299 UL. GALAKTYCZNA 30
E-mail

pl-zamowienia@eaton.com
Tax identification number

5841022327

A kind of package		Skrzynia	Karton	Karton
Quantity	1 pcs.	1 pcs.	2 pcs.	80 pcs.
Weight (kg)	0,122	0,130	0,259	10,561
Volume (m3)	0,000	0,000	0,000	0,016
Width (m)	0,018	0,020	0,037	0,180
Length (m)	0,105	0,107	0,107	0,385
Depth (m)	0,075	0,078	0,076	0,230
