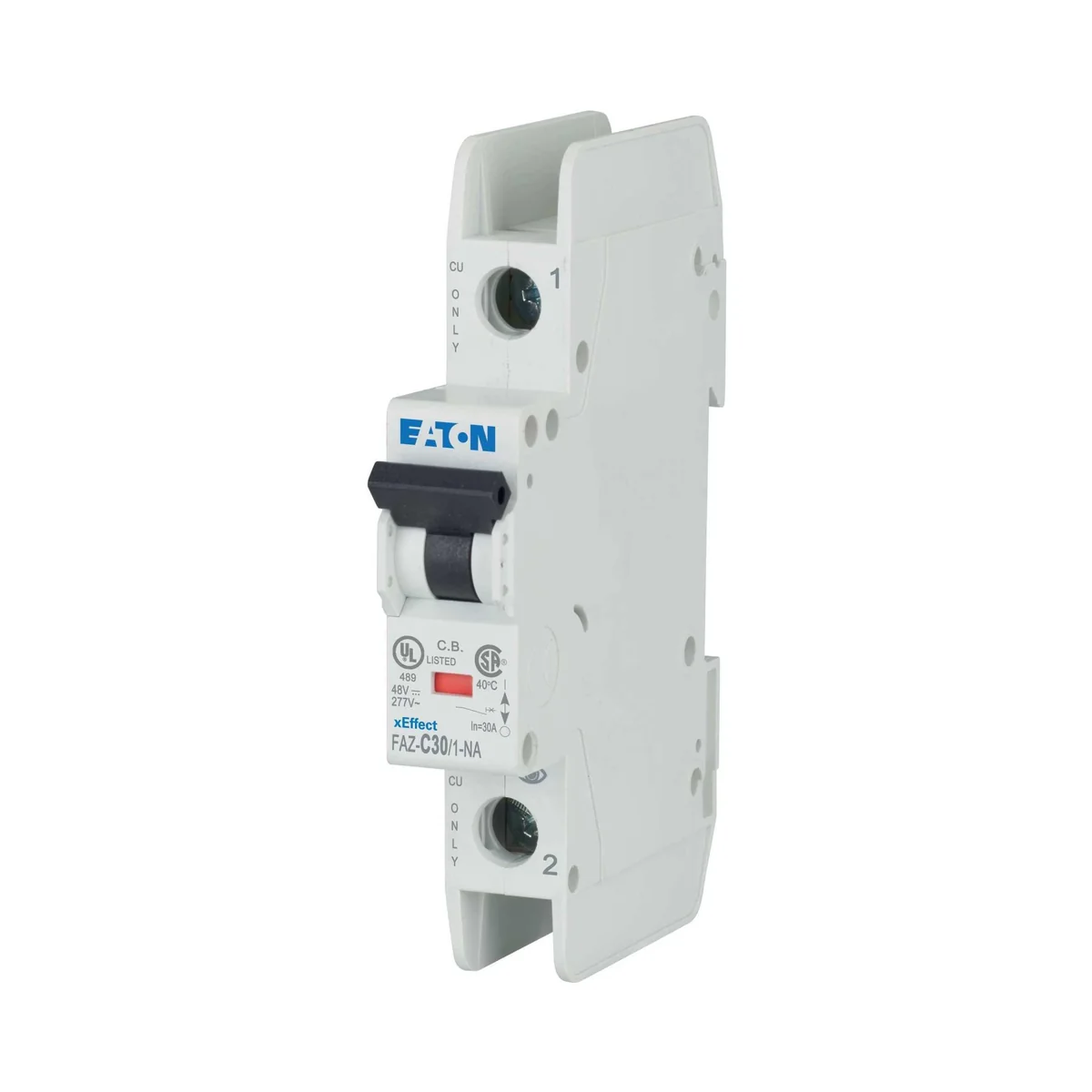

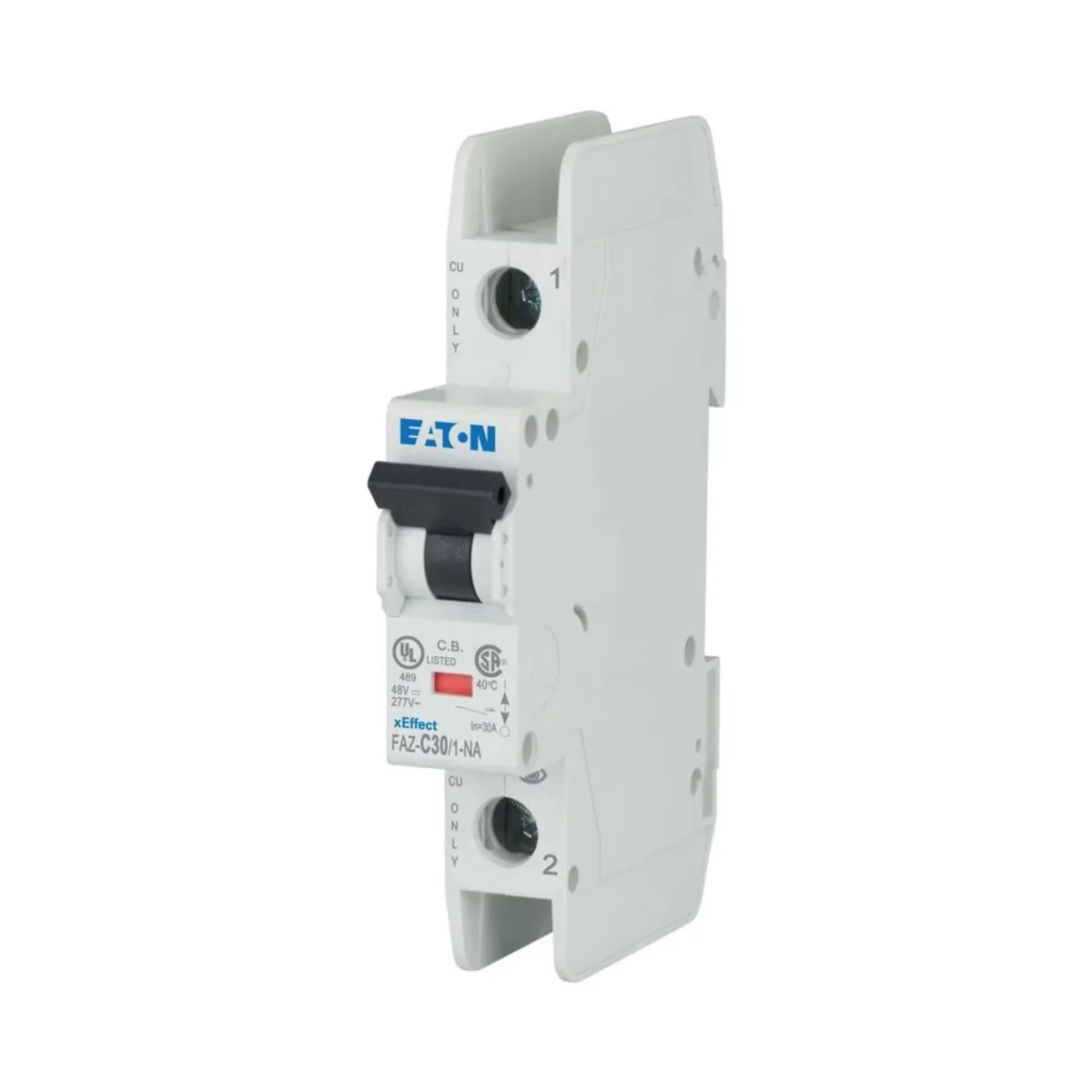

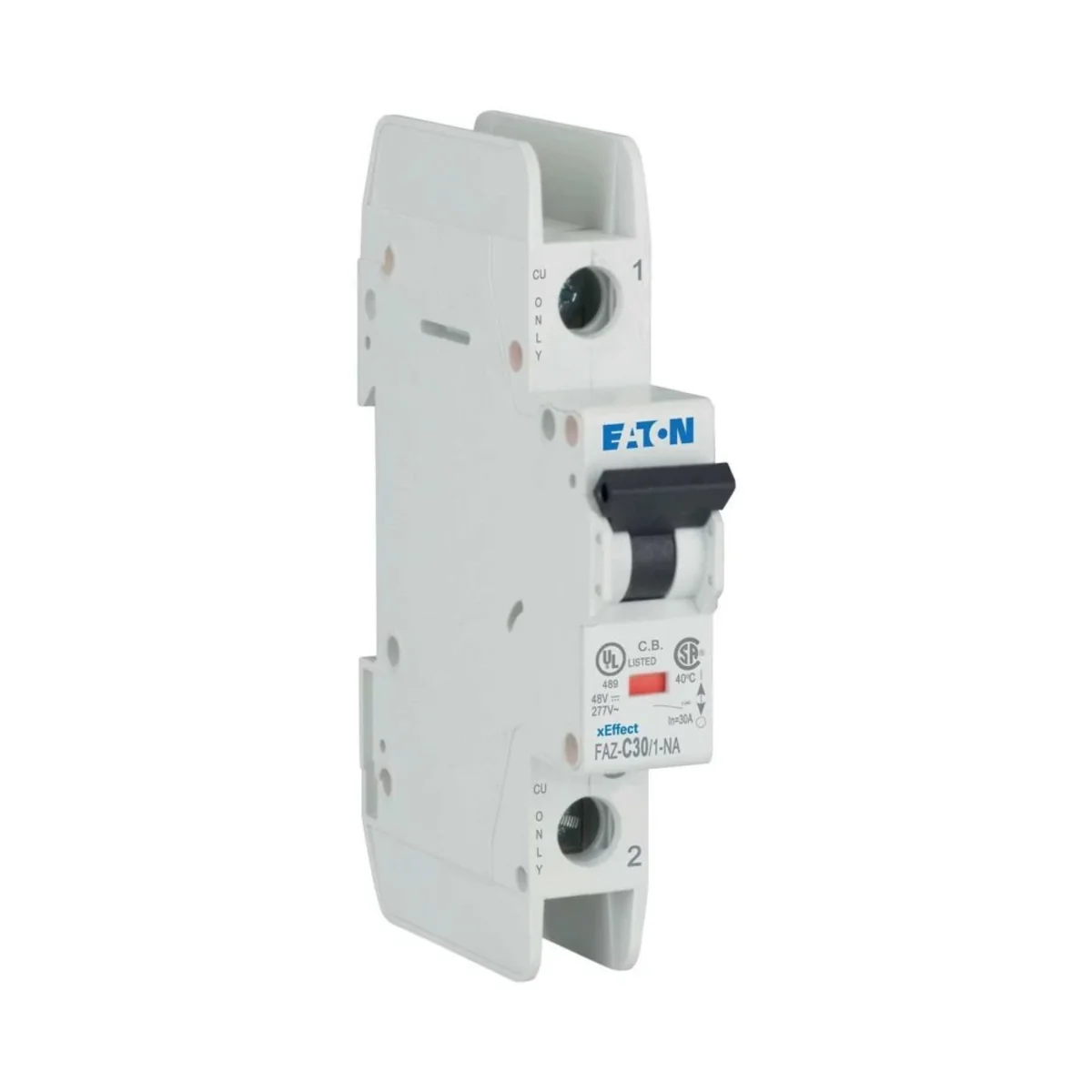

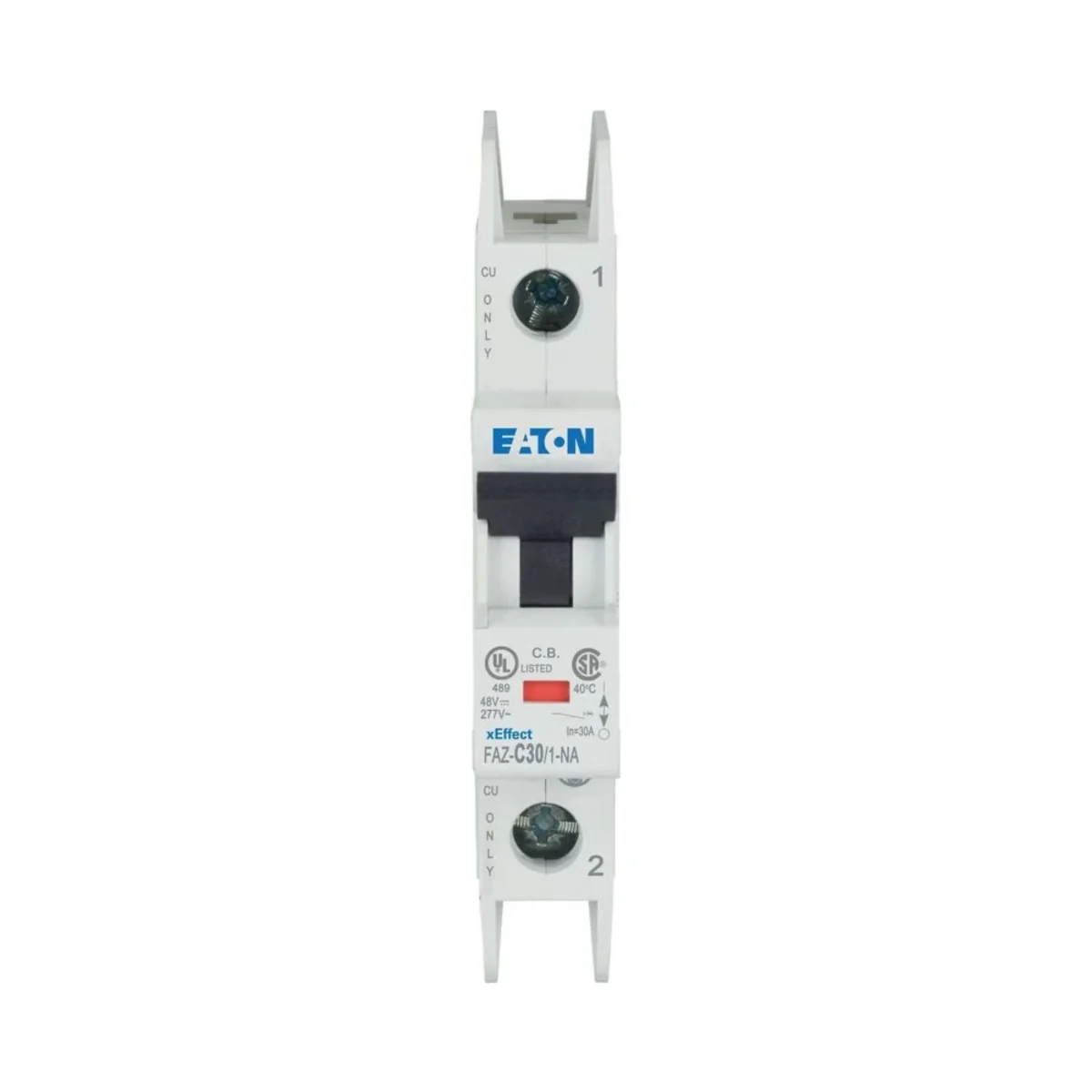

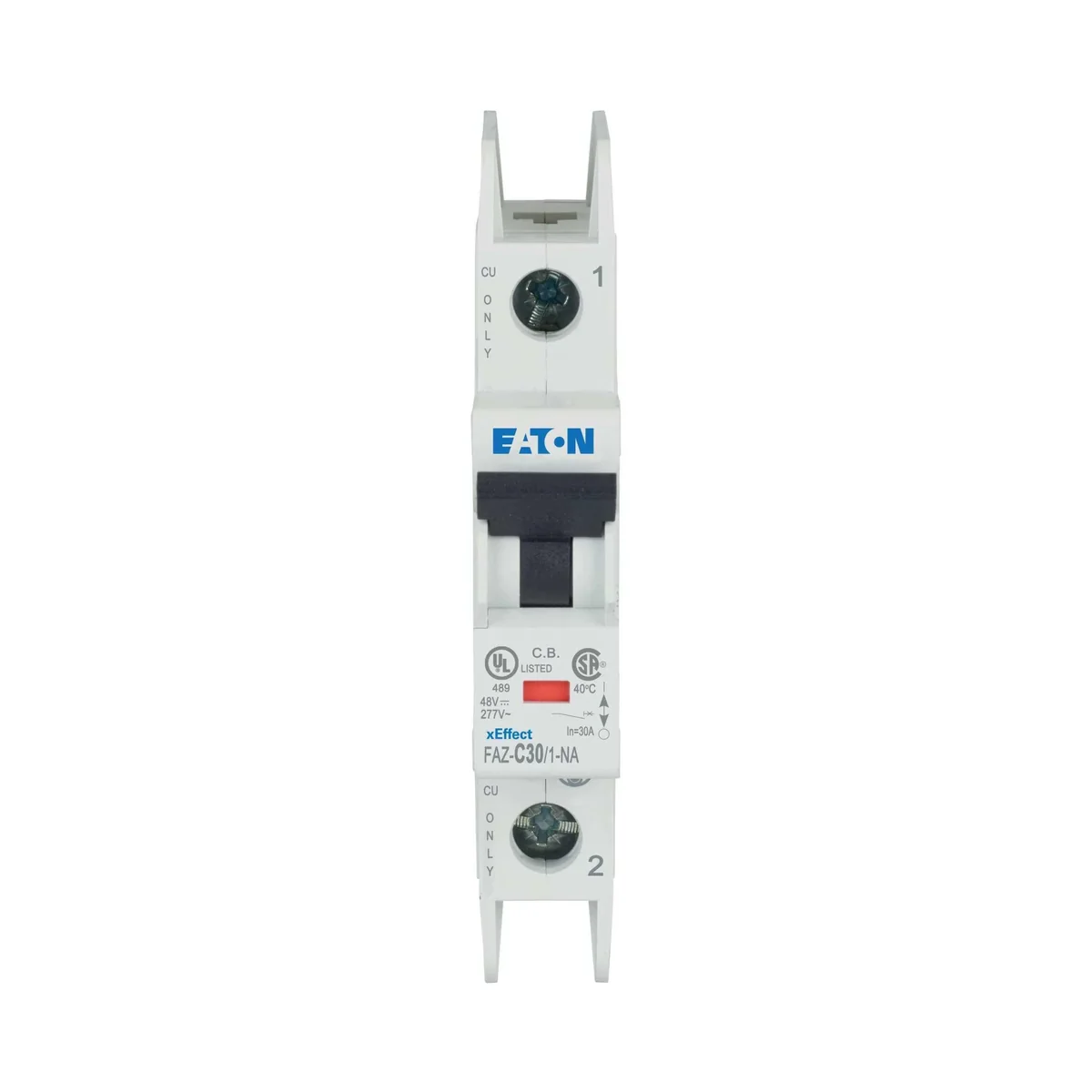

Name: Miniature circuit breaker 1-pole NA version, 30A, C-Char
Brand: EATON
SKU: ABC136MOEL
Price: 35.24 PLN

Miniature Circuit Breaker (MCB) PHASE-NA, 1 Pole, Tripping Characteristics: C, Rated Current In: 30A, North American Export Switchgear (UL Listed)

Built-in depth

70.5 mm
Number of poles (total)

1
Rated current

30 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

15 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

1
Rated voltage

240 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

15 kA
Frequency

50 ... 60 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No
