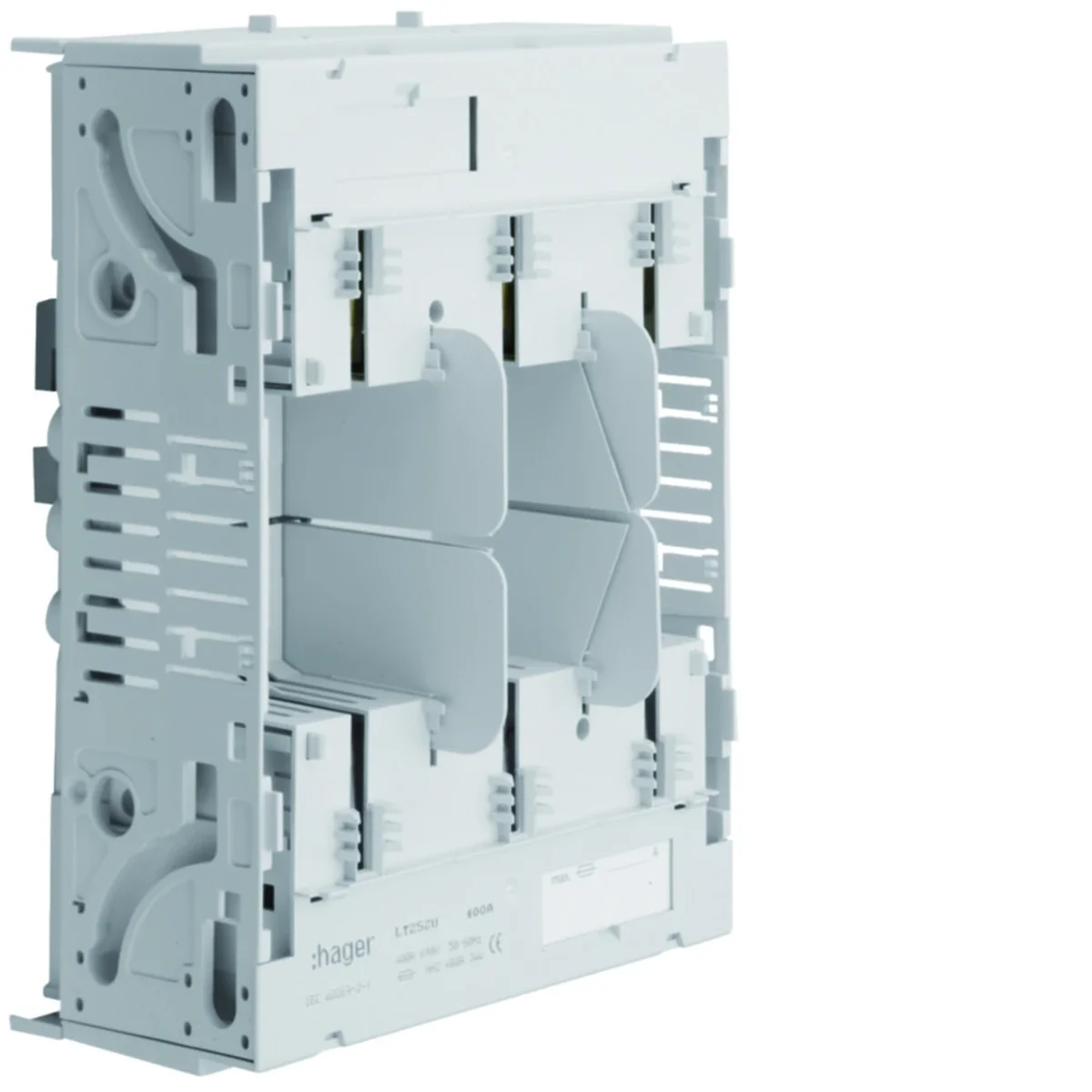

LT NH2 3X400A fuse base for mounting on 40mm rails LT252U

local index:
ABO100HAGE
Catalog No:
LT252U
EAN code:
3250614201073
Manufacturer: HAGER
Rated frequency [Hz]: 60
Energy lost in cables [W]: 122
Depth [mm]: 130
Price:
237,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse base LT series:

  • 3x400A
  • mounting on 40mm rails
  • < li> M10 bolt

Technical data

  • Rated frequency [Hz]
    60
  • Depth [mm]
    130
  • Fixing
    rail system
  • Rated insulation voltage [V]
    1000
  • Family
    LT
  • power loss [W]
    102
  • Fuse link size
    NH2
  • Electrical endurance (number of cycles)
    200
  • Operating temperature range [°C]
    from -20 to 60
  • The distance between the rails
    40mm
  • Busbar width [mm]
    12
  • Busbar height [mm]
    5/10
  • Wire cross-section (cord) [mm²]
    70 - 300
  • PKWIU
    27.12.40.0
  • Energy lost in cables [W]
    122
  • Number of poles
    3
  • Tightening torque [Nm]
    8
  • Rated current [A]
    400
  • Level of security
    IP20
  • Width [mm]
    210
  • Height [mm]
    306
  • Mechanical durability (number of cycles)
    800
  • Rated switching voltage [V]
    690
  • Conventional short-circuit current [kA]
    50
  • storage temperature [°C]
    from -20 to 60
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    70 - 300

Other technical data

  • Construction size
    NH2
  • Rated current
    400 A
  • Swivelling mechanism
    No
  • Number of poles
    3
  • Bus-mounting type
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 50 pcs.
Weight (kg) 2,285 2,470 146,500
Width (m) 0,210 0,240 0,800
Length (m) 0,278 0,145 0,975
Depth (m) 0,114 0,335 1,200
