Electrical apparatus
fuses
Fuse sockets and accessories
el12
sale
El12 and HAGER

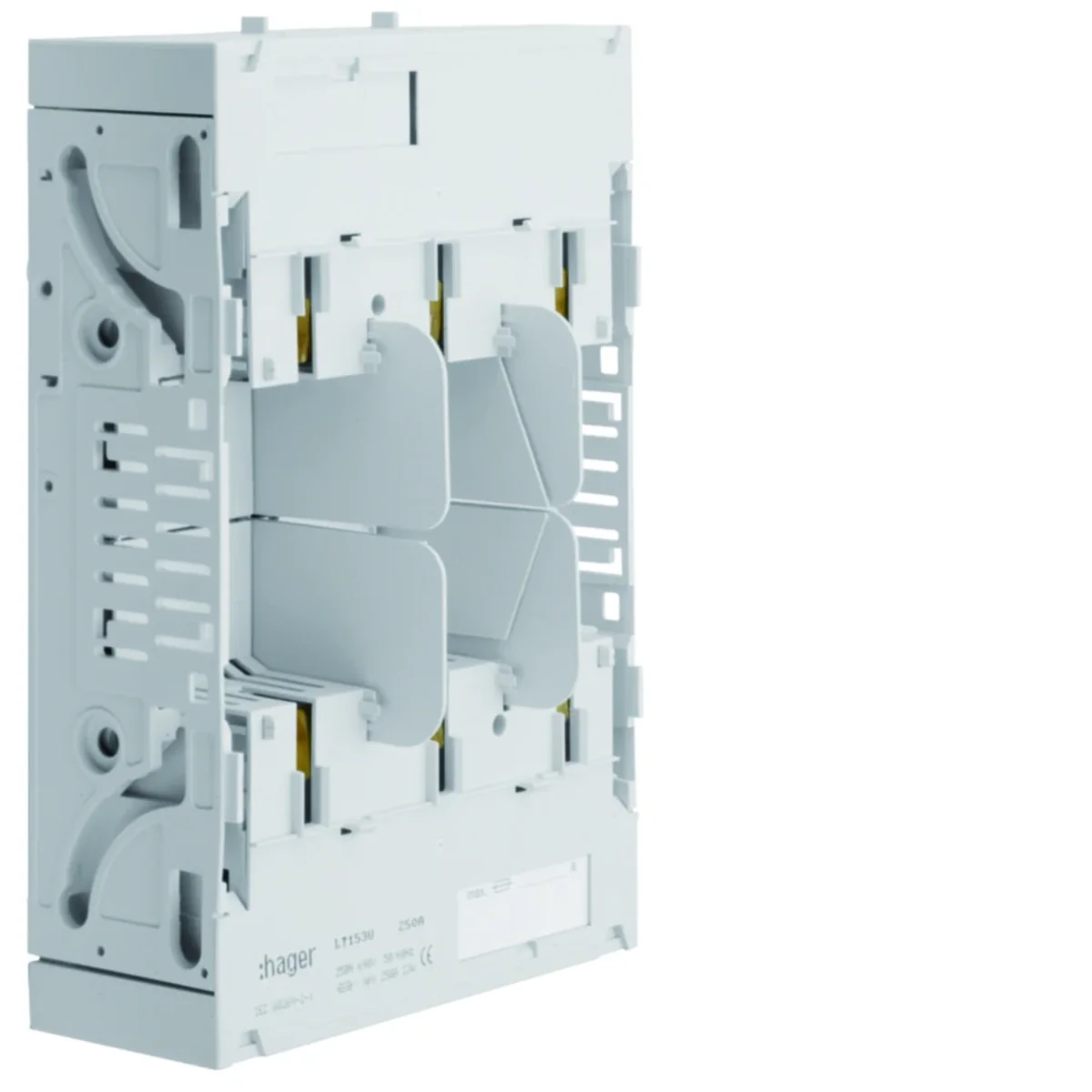

LT Fuse base NH1 3x250A mounting on 60mm rails LT153U
local index:
ABO099HAGE
Catalog No:
LT153U
EAN code:
3250614201059
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
60
Energy lost in cables [W]:
85
Depth [mm]:
110
See full description
Price:
190,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Fuse base
LT
series:
3x250A
mounting on 60mm rails
< li> M10 bolt
Technical data
Rated frequency [Hz]
60
Depth [mm]
110
Fixing
rail system
Rated insulation voltage [V]
1000
Family
LT
power loss [W]
69
Fuse link size
NH1
Electrical endurance (number of cycles)
200
Operating temperature range [°C]
from -20 to 60
The distance between the rails
60mm
Busbar width [mm]
12/20/30
Busbar height [mm]
5/10
Wire cross-section (cord) [mm²]
6 - 150
PKWIU
27.12.40.0
Energy lost in cables [W]
85
Number of poles
3
Tightening torque [Nm]
8
Rated current [A]
250
Level of security
IP20
Width [mm]
184
Height [mm]
306
Mechanical durability (number of cycles)
1400
Rated switching voltage [V]
690
Conventional short-circuit current [kA]
50
storage temperature [°C]
from -20 to 60
Rated surge voltage [V]
8000
Conductor cross-section (wire) [mm²]
6 - 150
Other technical data
Construction size
NH1
Rated current
250 A
Swivelling mechanism
No
Number of poles
3
Bus-mounting type
Yes
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
60 pcs.
Weight (kg)
1,527
1,740
112,000
Width (m)
0,278
0,200
0,800
Length (m)
0,096
0,140
0,850
Depth (m)
0,184
0,340
1,200
