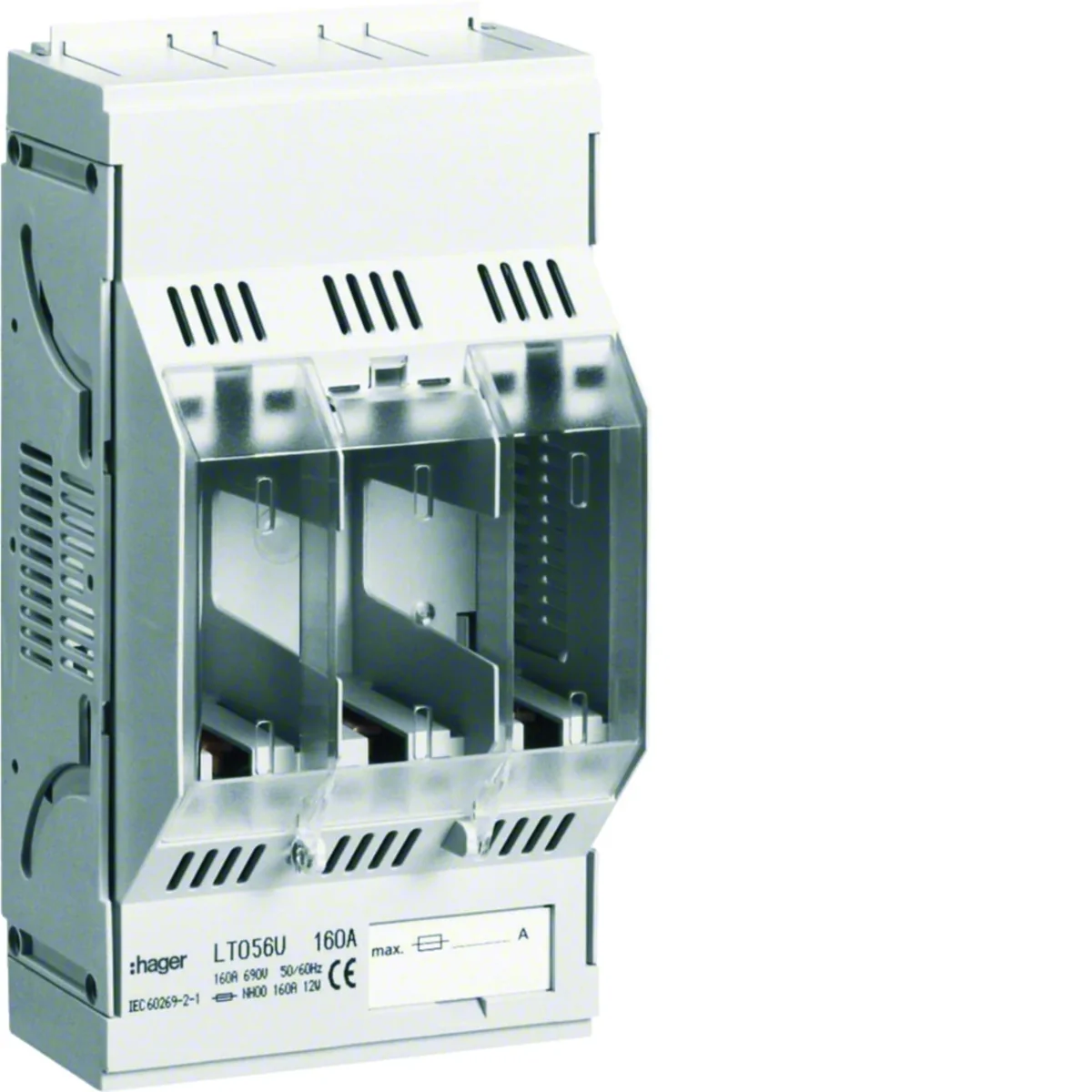

LT Fuse base NH00 3x160A mounting on 60mm rails LT056U
local index:
ABO097HAGE
Catalog number:
LT056U
EAN code:
3250614201028
Price:
374,39 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Fuse base LT series:
- 3x160A
- mounting on 60mm rails < li> 95mm2 cage terminals
Technical data
-
Rated frequency [Hz]60
-
Energy lost in cables [W]46.5
-
Number of poles3
-
Tightening torque [Nm]8
-
Rated current [A]160
-
Level of securityIP20
-
Width [mm]106
-
Height [mm]206
-
Mechanical durability (number of cycles)1400
-
Rated switching voltage [V]690
-
Conventional short-circuit current [kA]50
-
storage temperature [°C]from -20 to 60
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]6 - 95
-
Length [mm]150
-
Depth [mm]104
-
Fixingrail system
-
Rated insulation voltage [V]1000
-
FamilyLT
-
power loss [W]36
-
Fuse link sizeNH00
-
Electrical endurance (number of cycles)200
-
Operating temperature range [°C]from -20 to 60
-
The distance between the rails60mm
-
Busbar width [mm]12/20/30
-
Busbar height [mm]5/10
-
Wire cross-section (cord) [mm²]6 - 95
-
PKWIU27.12.40.0
Other technical data
-
Construction sizeNH00
-
Connection typeScrewed terminal
-
Rated current160 A
-
Swivelling mechanismYes
-
Halogen freeYes
-
Mounting methodDIN rail
-
Number of poles3
-
Bus-mounting typeYes
-
With extra contactNo
Manufacturer details
-
ManufacturerHager Electro S.A.S.
-
AddressFR 67215 Obernai 123 boulevard d’Europe Francja
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta | Karton | Paleta |
| Quantity | 1 pcs. | 150 pcs. | 1 pcs. | 150 pcs. |
| Weight (kg) | 0,800 | 115,500 | 0,800 | 115,500 |
| Width (m) | 0,140 | 0,800 | 0,140 | 0,800 |
| Length (m) | 0,110 | 1,000 | 0,110 | 1,000 |
| Depth (m) | 0,230 | 1,200 | 0,230 | 1,200 |
