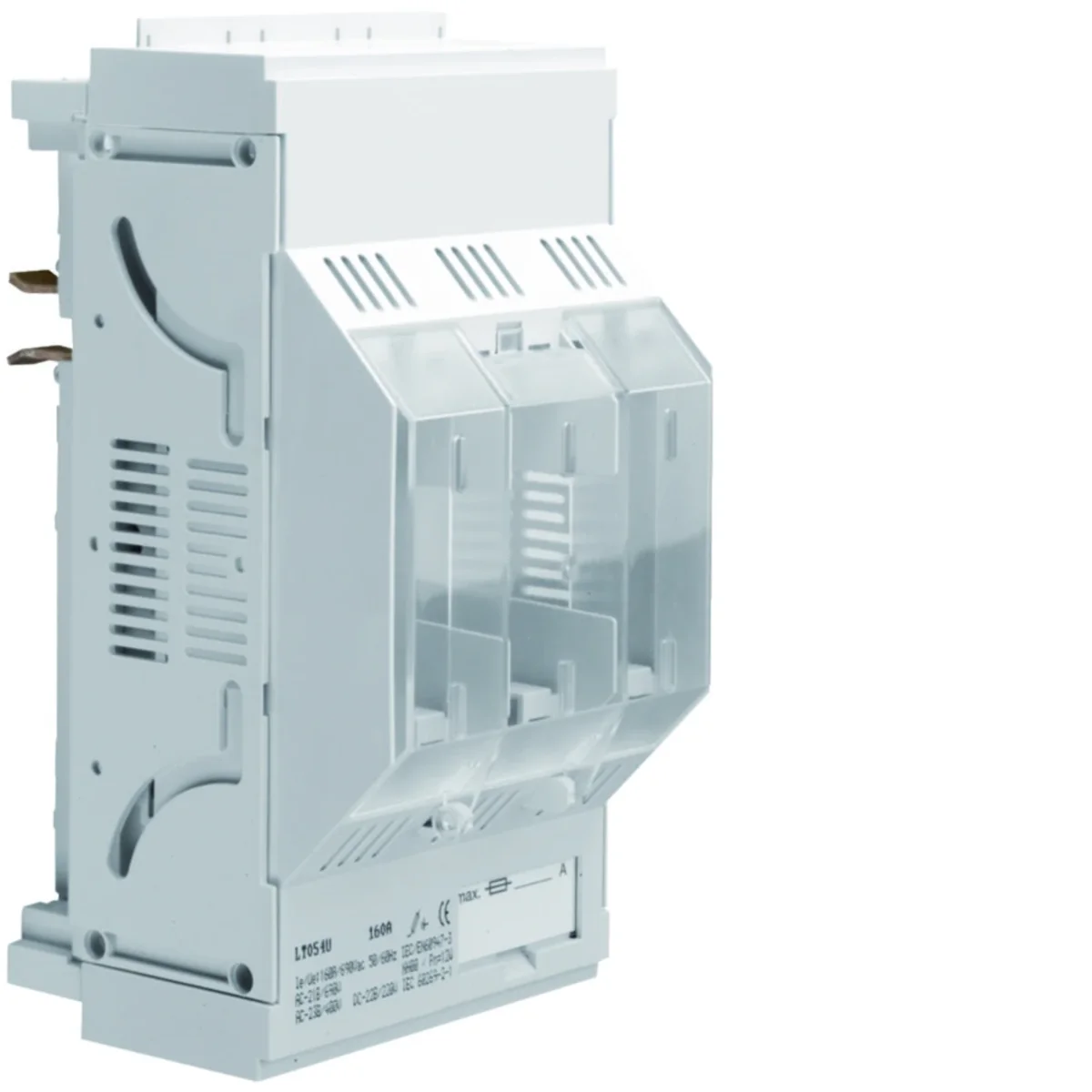

LT Fuse base NH00 3x160A mounting on 40mm rails LT054U

local index:
ABO096HAGE
Catalog No:
LT054U
EAN code:
3250614201011
Manufacturer: HAGER
Rated frequency [Hz]: 60
Length [mm]: 150
Energy lost in cables [W]: 46.5
Price:
78,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fuse base LT series:

  • 3x160A
  • mounting on 40mm rails
  • < li> 95mm2 cage terminals

Technical data

  • Rated frequency [Hz]
    60
  • Energy lost in cables [W]
    46.5
  • Number of poles
    3
  • Tightening torque [Nm]
    8
  • Rated current [A]
    160
  • Level of security
    IP20
  • Width [mm]
    106
  • Height [mm]
    206
  • Mechanical durability (number of cycles)
    1400
  • Rated switching voltage [V]
    690
  • Conventional short-circuit current [kA]
    50
  • storage temperature [°C]
    from -20 to 60
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    6 - 95
  • Length [mm]
    150
  • Depth [mm]
    104
  • Fixing
    rail system
  • Rated insulation voltage [V]
    1000
  • Family
    LT
  • power loss [W]
    36
  • Fuse link size
    NH00
  • Electrical endurance (number of cycles)
    200
  • Operating temperature range [°C]
    from -20 to 60
  • The distance between the rails
    40mm
  • Busbar width [mm]
    12
  • Busbar height [mm]
    5/10
  • Wire cross-section (cord) [mm²]
    6 - 95
  • PKWIU
    27.12.40.0

Other technical data

  • Construction size
    NH00
  • Rated current
    160 A
  • Swivelling mechanism
    No
  • Number of poles
    3
  • Bus-mounting type
    Yes

Manufacturer details

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 150 pcs.
Weight (kg) 0,688 0,745 134,750
Width (m) 0,106 0,125 0,800
Length (m) 0,206 0,145 1,000
Depth (m) 0,125 0,230 1,200
