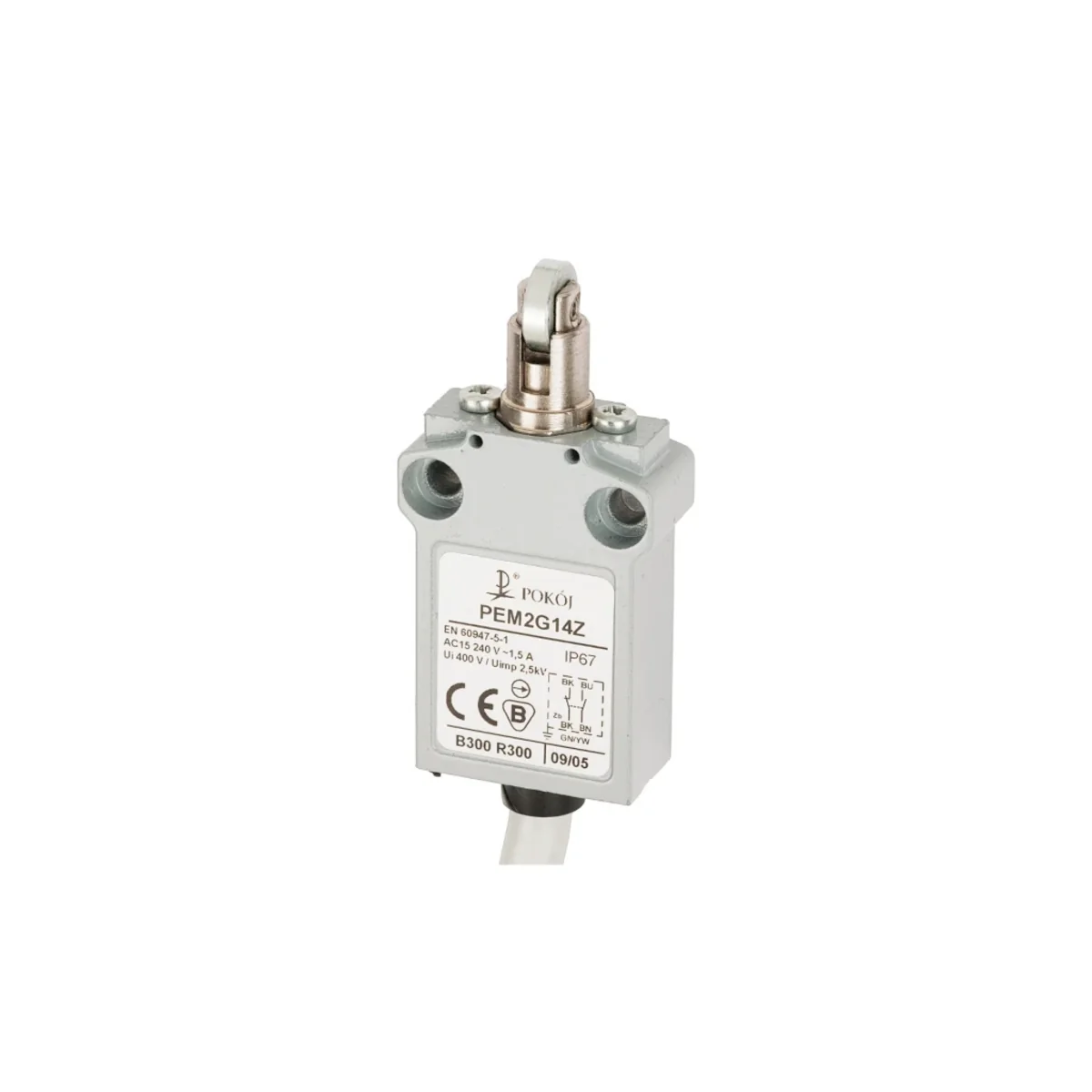

Limit switch 1R 1Z snap action metal pusher with perpendicular steel roller Ø12 PEM2G14Z A37-B85Z A37-B85Z
Índice local:
AKK004POKO
Número de catálogo:
A37-B85Z
Código EAN:
5902626157807
Fabricante:
POKÓJ
Precio:
219,00 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Datos técnicos
Otros datos técnicos
-
Width sensor35 mm
-
Length of sensor70 mm
-
Rated operation current Ie at AC-15, 125 V3 A
-
Rated operation current Ie at DC-13, 24 V1.1 A
-
Rated operation current Ie at DC-13, 230 V0.1 A
-
Output electronicNo
-
Number of contacts as normally closed contact1
-
Type of interfaceNone
-
Obudowa zgodnie z normąOther
-
Housing materialMetal
-
Type of control elementRoller cam
-
Type of electric connectionWith cable preassembled
-
Suitable for safety functionsNo
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP67
-
Height of sensor16 mm
-
Rated operation current Ie at AC-15, 24 V5 A
-
Rated operation current Ie at AC-15, 230 V1.5 A
-
Rated operation current Ie at DC-13, 125 V0.22 A
-
Switching functionQuick-break switch
-
Forced openingYes
-
Number of contacts as normally open contact1
-
Type of interface for safety communicationNone
-
Construction type housingCuboid
-
Coating housingPowder coating
-
Alignment of the control elementRoller cam crossed
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
Detalles del fabricante
-
FabricantePOKÓJ S.E.
-
Dirección91-202 Łódź Warecka 1 Polska
-
